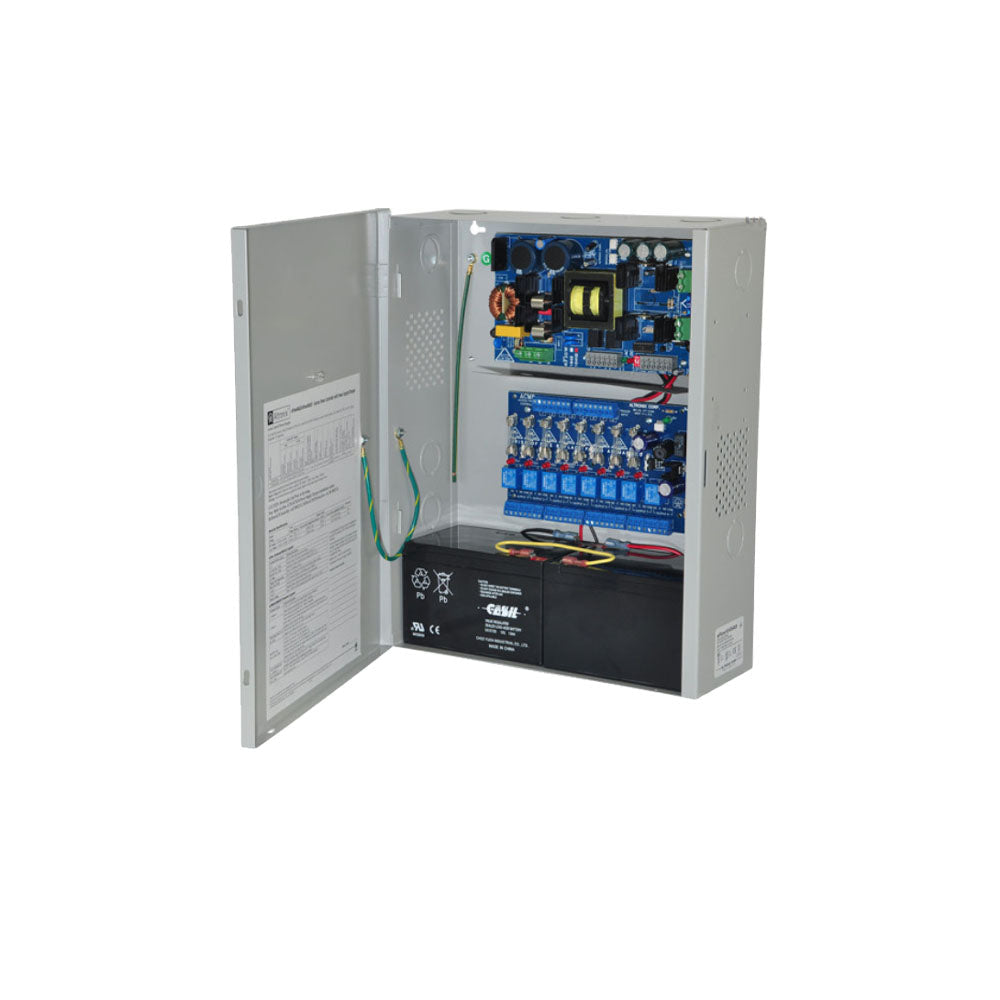

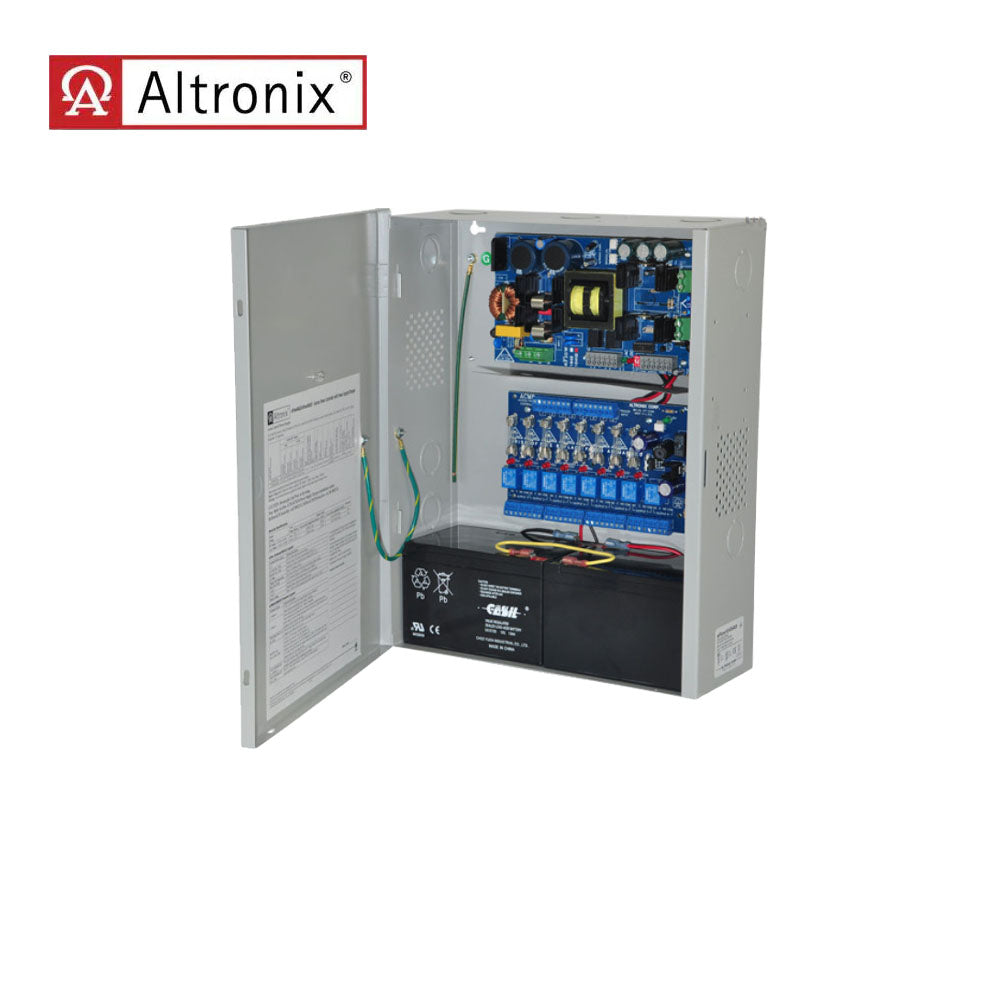

Altronix - EFLOW104NA8 - Power Supply Charger Access Power Controller with ACM8 - BC300 Enclosure

Altronix - EFLOW104NA8 - Power Supply Charger Access Power Controller with ACM8 - BC300 Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• Input 120VAC 60Hz, 4.5A.
• Power supply input options:
  a) One (1) common power input for ACM8 and lock power (factory installed).
  b) Two (2) isolated power inputs - One (1) to power the ACM8 and one (1) for lock accessory power, (external power supply is required). Current is determined by the power supply connected, not to exceed a maximum of 10A total.
• Eight (8) Access Control System trigger inputs.
• Input options:
  a) Eight (8) normally open (NO) inputs.
  b) Eight (8) open collector inputs.
  c) Any combination of the above.
• ACM8 board main fuse is rated at 10A.

Output:

• 24VDC outputs @ 10A supply current.
• Eight (8) independently trigger controlled outputs.
• Output options:
  a) Eight (8) Fail-Safe filtered power outputs.
  b) Eight (8) Fail-Secure filtered power outputs.
  c) Eight (8) form "C" relay outputs (rated @ 5A/24VDC or VAC).
  d) Any combination of the above.
• Eight (8) unswitched filtered aux. power outputs (outputs are rated @ 2.5A).
• Over Voltage protection.
• Short circuit and thermal overload protection.

Fire Alarm Disconnect:

• Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
• Fire Alarm disconnect input options:
  a) Normally open (NO) or normally closed (NC) dry contact input.
  b) Polarity reversal input from FACP signaling circuit.
• Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1A 28VDC not evaluated by UL).

Supervision:

• AC fail supervision (form "C" contacts).
• Battery fail and presence supervision (form "C" contacts).
• Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% (depending on the power supply). Prevents deep battery discharge.

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.
• Zero voltage drop when unit switches over to battery backup (AC failure condition).

Temperature:

• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.): 24VDC: 123 BTU/Hr.

Visual Indicators:

• ACM8 Access Power Controller:
  Red LEDs indicate outputs are triggered (relays energized).
  Green LED indicates FACP disconnect is triggered.
• eFlow Power Supply Board:
  AC input and DC output LED indicators

Enclosure:

• Wall mount enclosure for indoor use.
• Accommodates up to two (2) 12VDC/12AH Batteries.
• Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
• 1.125" and 1.375" combination knockouts.

Download:

• Installation Instruction
