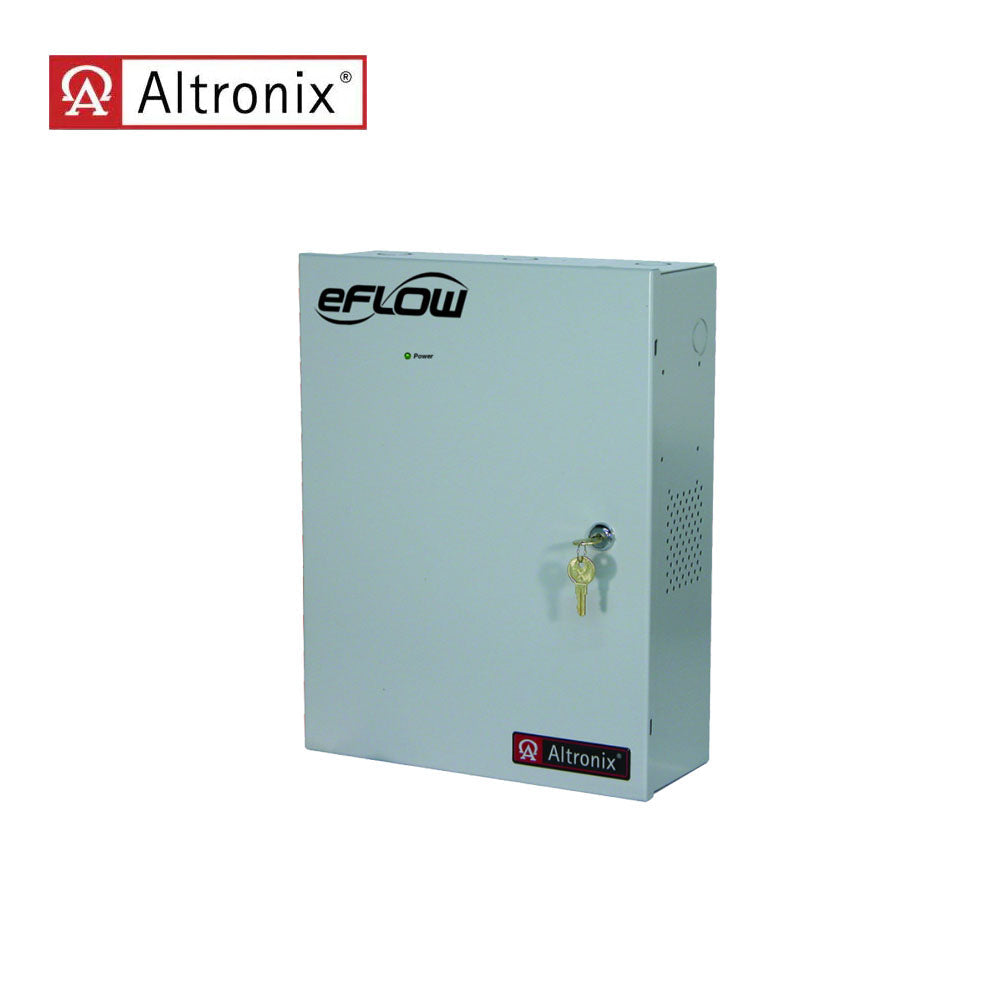

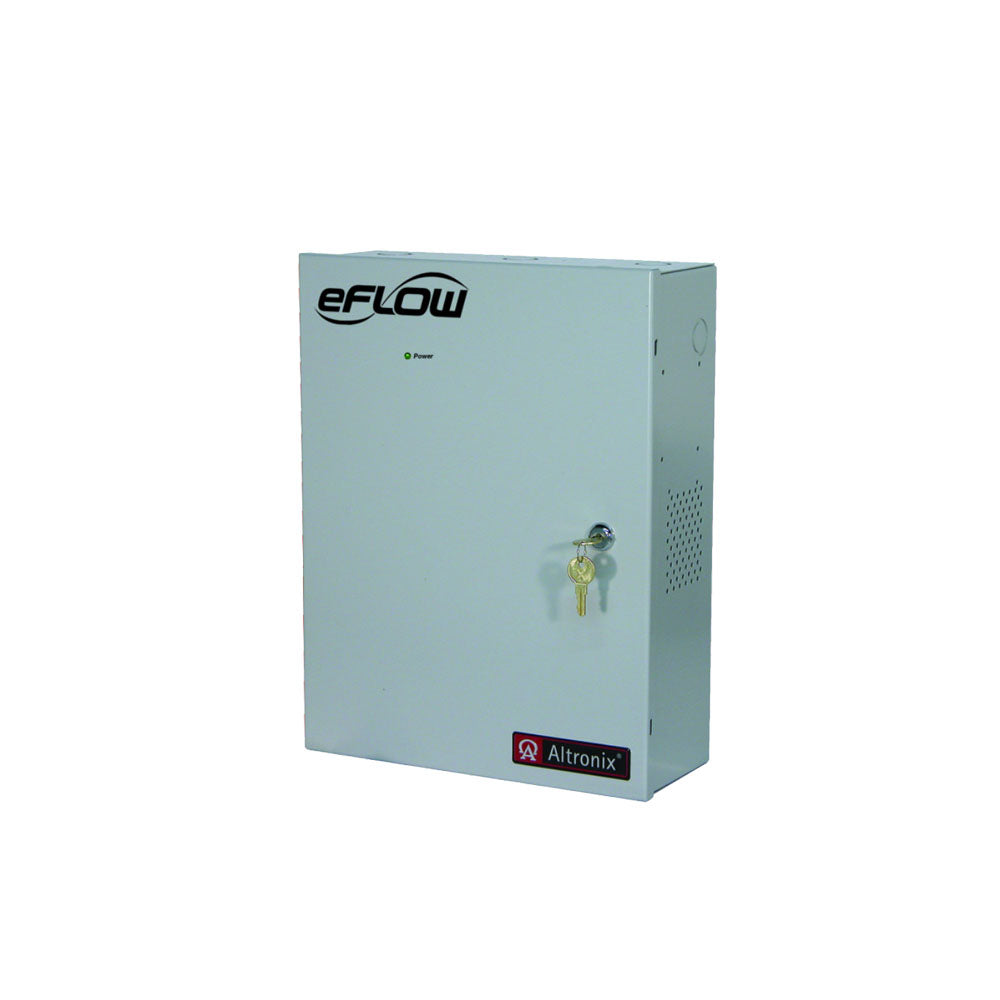

Altronix - EFLOW104NK8D - Dual Output Power Supply Charger with 8 PTC Protected Auxiliary Power-limited Outputs Class 2 - BC300 Enclosure

Altronix - EFLOW104NK8D - Dual Output Power Supply Charger with 8 PTC Protected Auxiliary Power-limited Outputs Class 2 - BC300 Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

eFlow104NB Power Supply/Charger

Input:

• Voltage: 120VAC, 60Hz, 4.5A max.
• Input Fuse: 6.3A / 250V.

Output:

• Voltage: 24VDC @ 10A.
• Auxiliary: 1A (unswitched).
• Protection: Overvoltage protection. Filtered and regulated.

Fire Alarm Disconnect:

• Supervised: Latching or non-latching.
• EOL: 10K Resistor.

Supervision:

• AC Failure: Form “C” contacts.
• Battery: Form “C” contacts.
• Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.

Battery Backup:

• Type: Sealed lead acid or gel type.
• Fuse Rating: 10A @ 32VDC.
• Failover: Upon AC loss, instantaneous..

Indicators LED:

• AC Input: 120VAC is present.
• DC Output: Powered.
• Battery: Discharged or not connected.

VR6 Voltage Regulator

Input:

• Voltage: 24VDC from eFlow104NB.

Output:

• Voltage: 12VDC.
• Current: 6A continuous.
• Other: Surge suppression.

Indicators LED:

• Input: 24VDC is present.
• Output: Powered.

PDS8CB Dual Input Power Distribution Module

Input:

• Voltage: 24VDC from eFlow104NB and 12VDC or 5VDC from VR6.
• Input PTCs: 9A.

Outputs:

• Voltage: 12 or 24VDC individually selectable.
• Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2.
• Individual outputs may be set to OFF position for servicing.
• Output PTCs: 2.5A.

Indicators (LED):

• Out1 - Out8: Bi-colored LEDs indicate 12 or 24VDC.

Temperature:

• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.): 123 BTU/Hr.

Enclosure:

• Wall mount enclosure for indoor use.
• Dimensions 12"W x 15.5"H x 4.5"D (304.8 mm W x 393.7 mm H x 114.3 mm D).
• 1.125" and 1.375" combination knockouts.

Download:

• Installation Instruction
