Altronix - MAXFIT5FE - Single Power Supply Expandable Power Systems - BC750 Enclosure

Altronix - MAXFIT5FE - Single Power Supply Expandable Power Systems - BC750 Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• 120VAC, 60Hz, 3.5A.
• Input fuse: 5A/250V.

Output:

• Voltage: 12VDC.
• Current: 10A maximum supply current.
• Aux. power-limited output rated @ 1A (unswitched).
• Other: Overvoltage protection. Filtered and regulated.

Fire Alarm Disconnect:

• Supervised: Latching or non-latching.
• EOL: 10K Resistor.

Supervision:

• AC Failure: Form “C” contacts.
• Battery: Form “C” contacts.
• Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.

Battery Backup:

• Capacity 12AH / 12VDC (Up to 4 within enclosure). 40 AH / 65 AH (requires separate enclosure).
• Type: Sealed lead acid or gel type.
• Fuse Rating: 15A/32V.
• Failover: Upon AC loss, instantaneous.

Indicators:

• Input: 120VAC is present.
• DC Output: Powered.

Temperature:

• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.):
  12VDC: 61 BTU/Hr.
• System AC input VA requirement: 420VA.

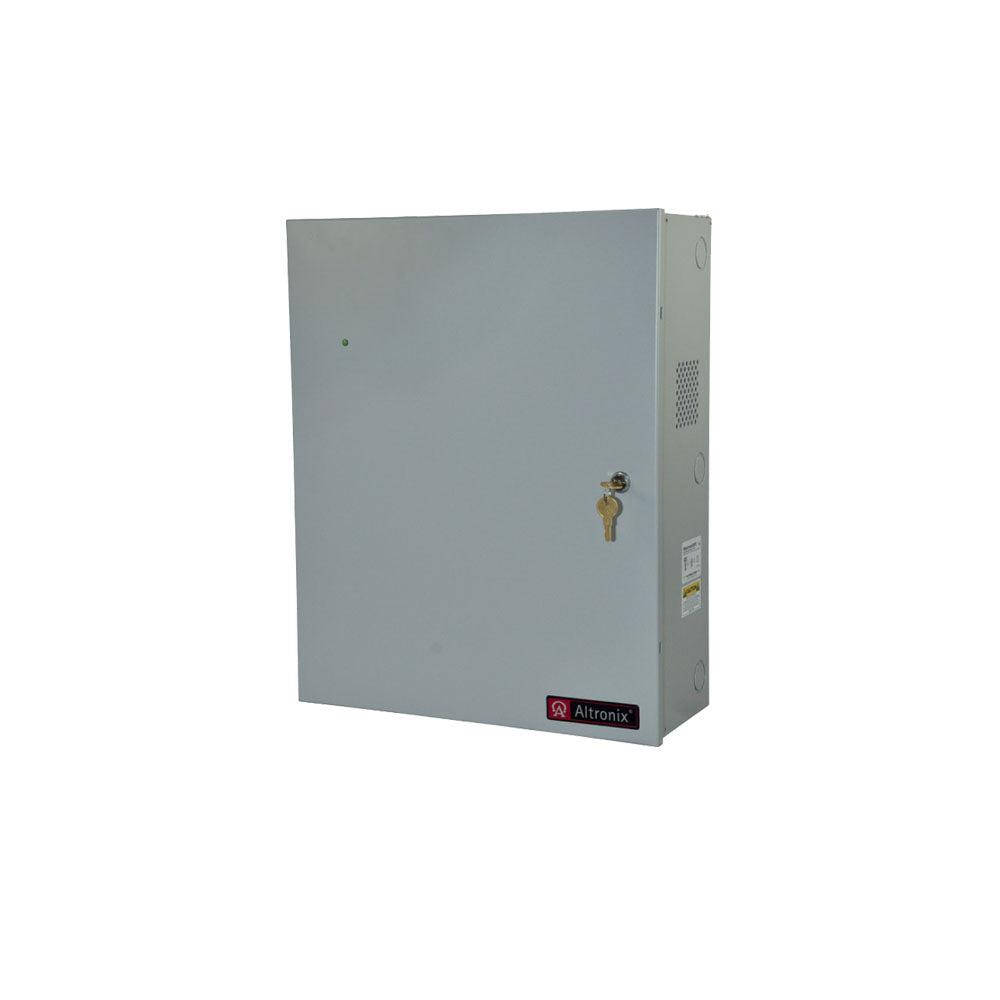

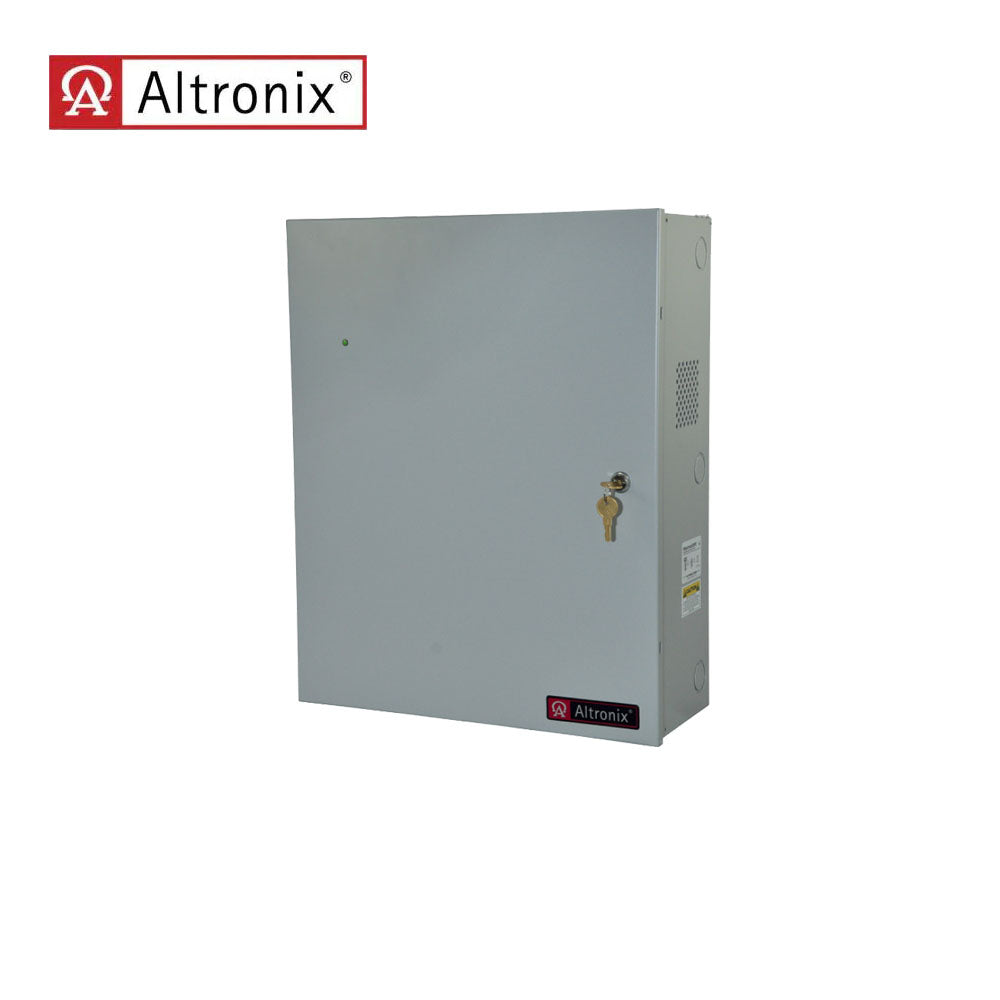

Enclosure:

• Wall mount enclosure for indoor use.
• Dimensions 16.5"W x 20.5"H x 6.25"D (419.1 mm W x 520.7 mm H x 158.8 mm D).

Download:

• Installation Instruction
