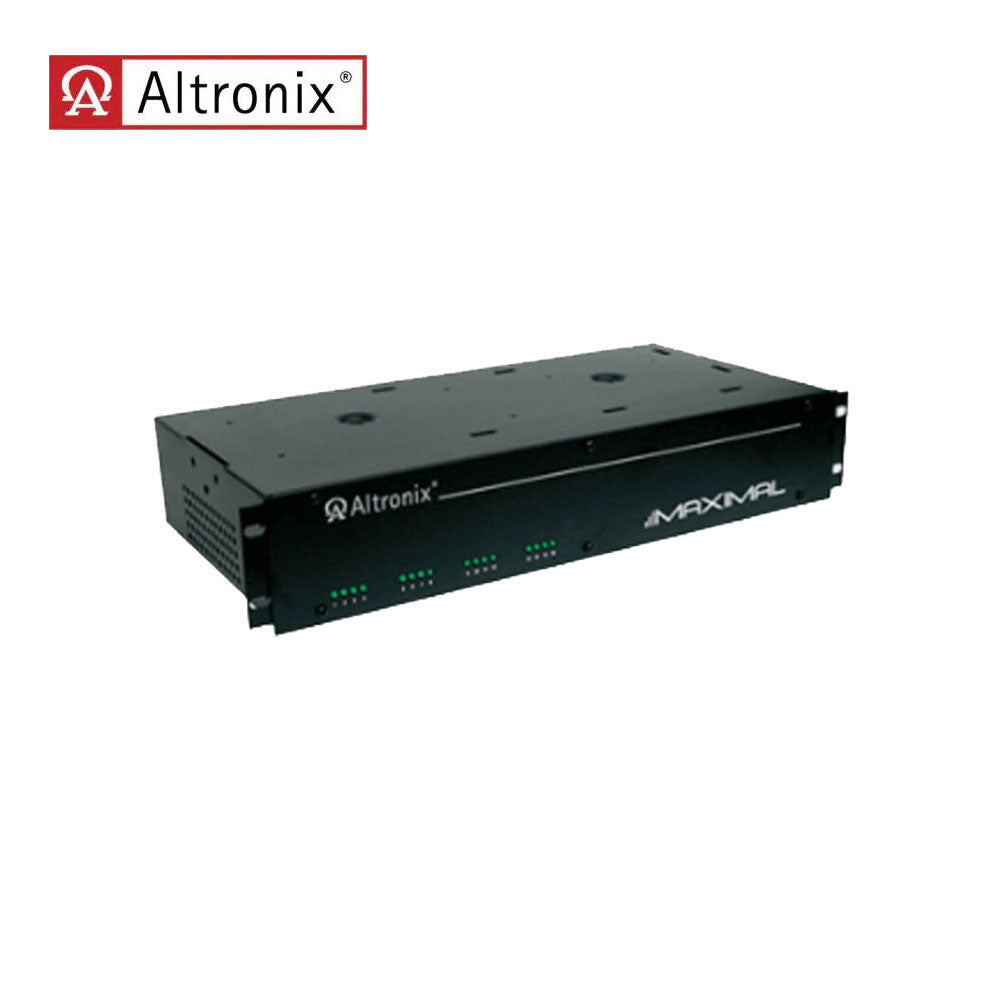

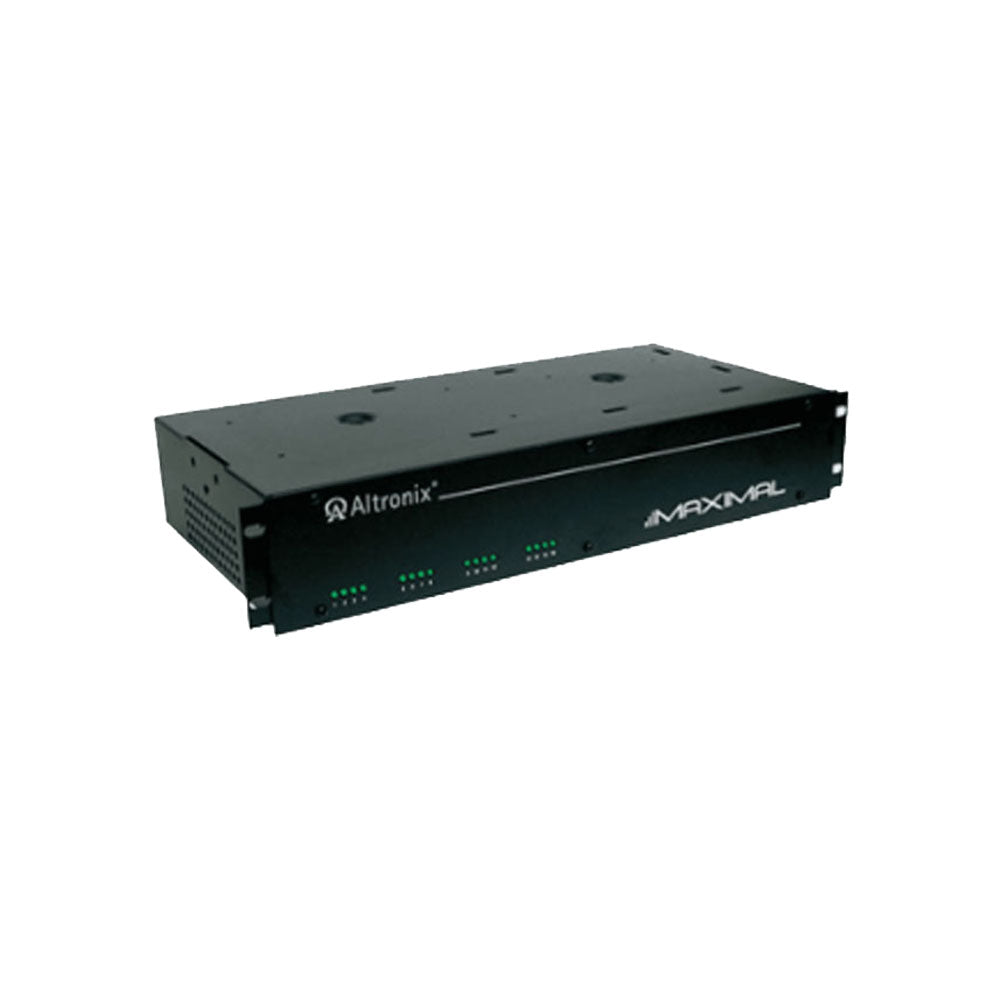

Altronix - MAXIMAL1R - Rack Mount Access Power Controller with 16 Fuse Protected Outputs

Altronix - MAXIMAL1R - Rack Mount Access Power Controller with 16 Fuse Protected Outputs

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Features:

• Removable terminal blocks with locking screw flange.
• 3-wire line cord.
• Illuminated master power disconnect circuit breaker with manual reset.

Input:

• 115VAC 60Hz., 1.9A.
• Normally closed [NC] or normally open [NO] dry contact inputs (switch selectable).

Output:

• 12VDC @ 4A or 24VDC @ 3A total output current.
• Sixteen (16) fuse protected outputs.
• Maximum current per ACM8R-M output is 2.5A.
• Individually selectable Mag Lock/Strike (Fail-Safe, Fail-Secure) solid state fuse protected outputs.
• Thermal and short circuit protection with auto reset.

Fire Alarm Interface:

• Latching or Non-Latching fire alarm reset switch individually selectable for each output.
• Remote reset capability for latching Fire Alarm Interface mode.
  Fire Alarm disconnect input options:
  a) Normally open [NO] or normally closed [NC] dry contact input.
  b) Polarity reversal input from FACP signaling circuit.

Supervision:

• AC fail supervision (form "C" contacts).
• Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
• Low battery and battery presence supervision (form "C" contact).

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.(if batteries are required install separate enclosure).
• Automatic switch over to stand-by battery when AC fails.
• Zero voltage drop when unit switches over to battery backup (AC failure condition).

Visual Indicators:

• Individual Output Status LEDs located on the front panel.

Temperature:

• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.):
  12VDC: 25 BTU/Hr.
  24VDC: 88 BTU/Hr.
  24VDC: 37 BTU/Hr.
• System AC input VA requirement: 218.5VA.

Enclosure:

• Modular 2U standard EIA 19" rack mount chassis.
• Dimensions 19.12"W x 3.25"H x 8.5"D (486 mm W x 83 mm H x 216 mm D).
• Allow 1/2U space on top and bottom of the unit for ventilation.
