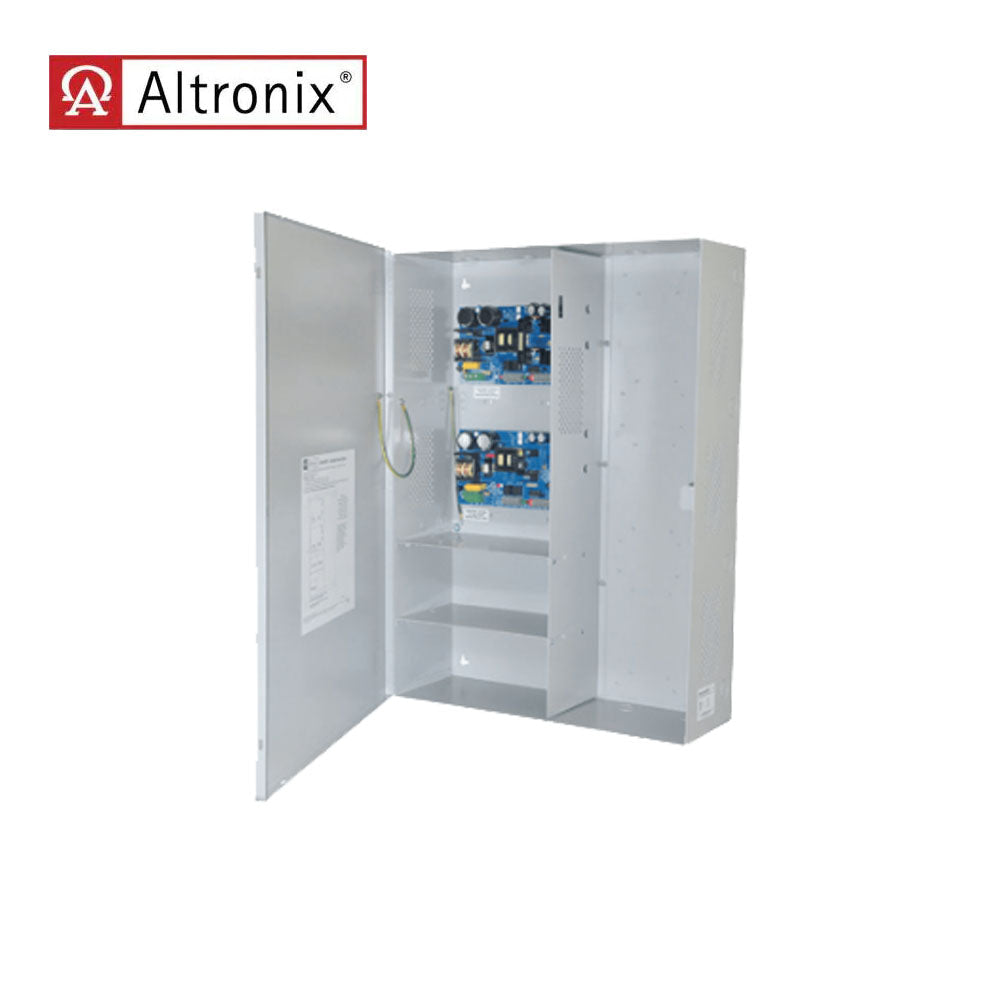

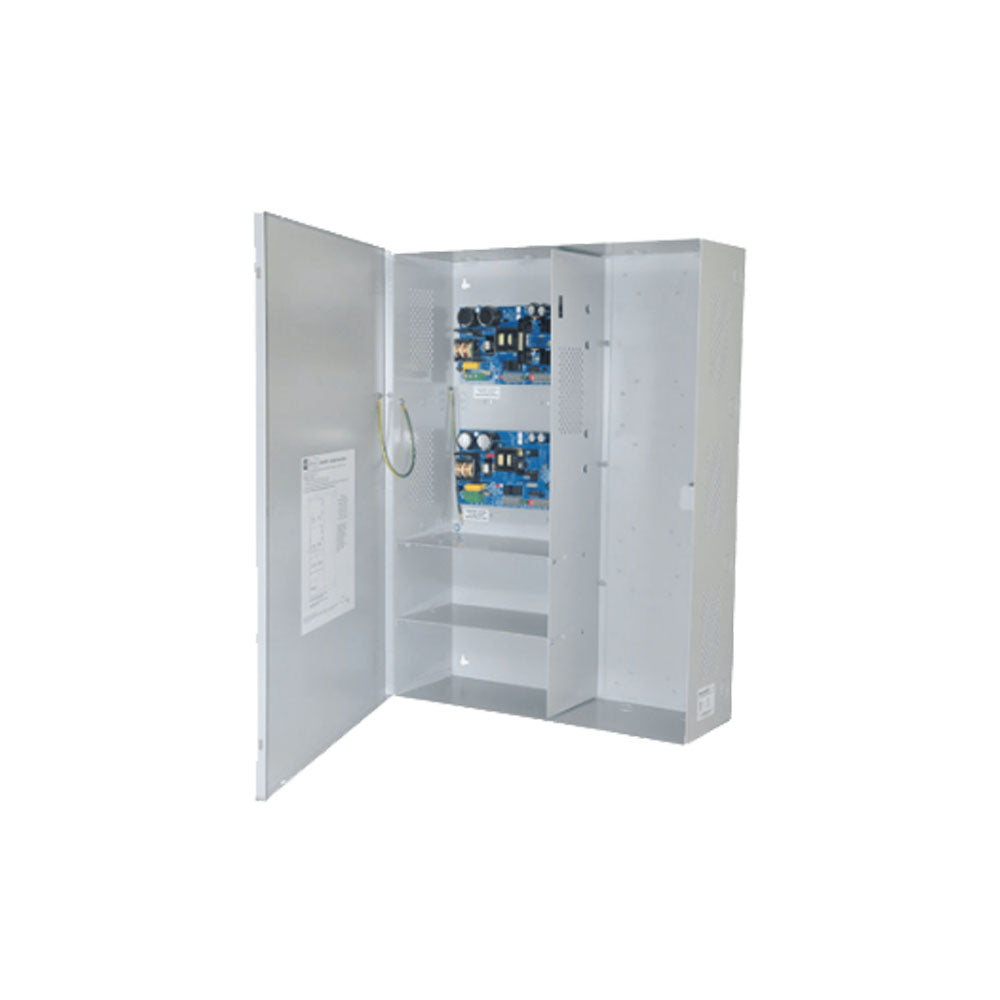

Altronix - MAXIMAL35FE - Expandable Power System with Dual EFlow6 and EFlow102 - 12 or 24VDC at 10A Max Output

Altronix - MAXIMAL35FE - Expandable Power System with Dual EFlow6 and EFlow102 - 12 or 24VDC at 10A Max Output

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• 120VAC 60Hz, 7.0A input.

Output:

• 12VDC and/or 24VDC outputs.
  Maximum output current Options:
  A) 12VDC @ 6A plus 12VDC @ 10A.
  B) 24VDC @ 6A plus 12VDC @ 10A.
• Non power-limited outputs.
• Aux. power-limited output rated @ 1A (unswitched).
• Over Voltage Protection.

Fuse Ratings:

• Power Supply input fuse rated @ 5A/250V.

Supervision:

• AC fail supervision (form "C" contacts).
• Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
• Battery fail and presence supervision (form "C" contacts).
• Low power shutdown. Prevents deep battery discharge.

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• Battery fuses rated @ 10A/32V (P/S 1) and 15A/32V (P/S 2).

Visual Indicators:

• Green AC Power LED indicates 120VAC present.
• AC input and DC output LED indicators.

Temperature:

• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.):
  12VDC: 98BTU/Hr.
  12VDC 24VDC: 130 BTU/Hr.
• System AC input VA requirement: 840VA.

Enclosure:

• Wall mount enclosure for indoor use.
• Accommodates up to four (4) 12VDC/12AH Batteries.
• Dimensions 19"W x 26"H x 6.25"D (483 mm W x 660.4 mm H x 159 mm D).
• 1/2" and 3/4" combination knockouts.
