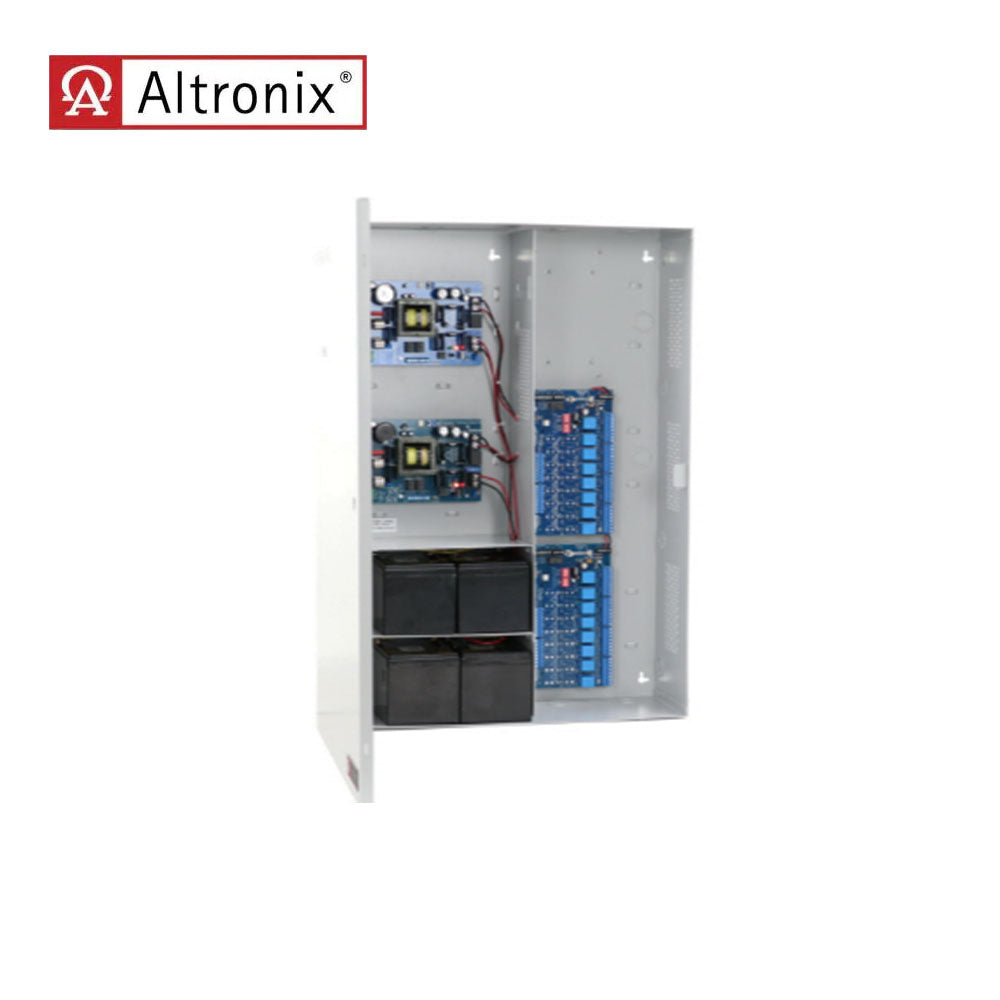

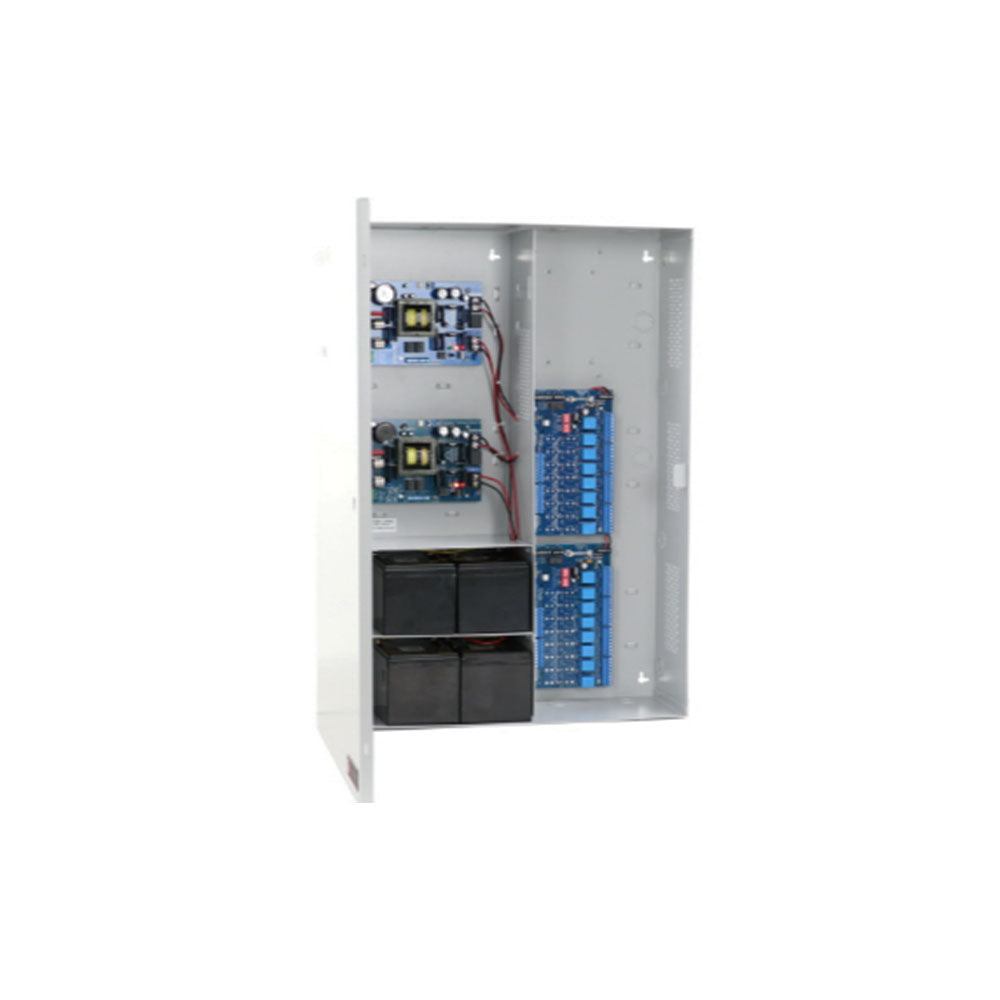

Altronix - MAXIMAL77D - Access Power Controller with Two AL1024ULXB - 16 PTC Protected Outputs 12/24VDC at 9.7A

Altronix - MAXIMAL77D - Access Power Controller with Two AL1024ULXB - 16 PTC Protected Outputs 12/24VDC at 9.7A

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• 115VAC 60Hz, 8.8A input.
• Power supply input options:
  a) Two (2) common power input for either ACM8CB and lock power (factory installed).
  b) Two (2) isolated power inputs (external power supply is required), (current is determined by the power supply connected, not to exceed a maximum of 10A total).
• Sixteen (16) Access Control System trigger inputs.
  Input options:
  a) Sixteen (16) normally open (NO) inputs.
  b) Sixteen (16) open collector inputs.
  c) Any combination of the above.

Output:

• 24VDC outputs.
• Maximum output current:
  A) 24VDC @ 9.7A plus 24VDC @ 9.7A.
• Class 2 Rated power limited outputs (auto-resettable).
• Sixteen (16) independently controlled outputs can be Fail-Safe and/or Fail-Secure power outputs.
• Sixteen (16) auxiliary power outputs (unswitched) (outputs are rated 2A).
• Filtered and electronically regulated outputs (built-in power supply).
• Thermal and short circuit protection with auto reset.

Fuse Ratings:

• Power Supply input fuse rated @ 10A/250V.
• ACM8CB boards main fuse is rated at 10A. Output fuses are rated @ 2.5A.

Features:

• Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs.
  Fire Alarm Disconnect Input Options:
  a) Normally open (NO) or normally closed (NC) dry contact input.
  b) Polarity reversal input from FACP signaling circuit.
• Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1A 28VDC).

Supervision:

• AC fail supervision (form "C" contacts).
• Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
• Low battery and battery presence supervision (form "C" contact).

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• Zero voltage drop when unit switches over to battery backup (AC failure condition).

Visual Indicators:

• Red LEDs indicate outputs are triggered (relays energized).
• Green LED indicates FACP disconnect is triggered.
• AC input and DC output LED indicators.

Temperature:

• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.): 238 BTU/Hr.
• System AC input VA requirement: 1012VA.

Enclosure:

• Wall mount enclosure for indoor use.
• Accommodates up to four (4) 12VDC/12AH Batteries.
• Dimensions 19"W x 26"H x 6.25"D (483 mm W x 660.4 mm H x 159 mm D).
• 1/2" and 3/4" combination knockouts.
