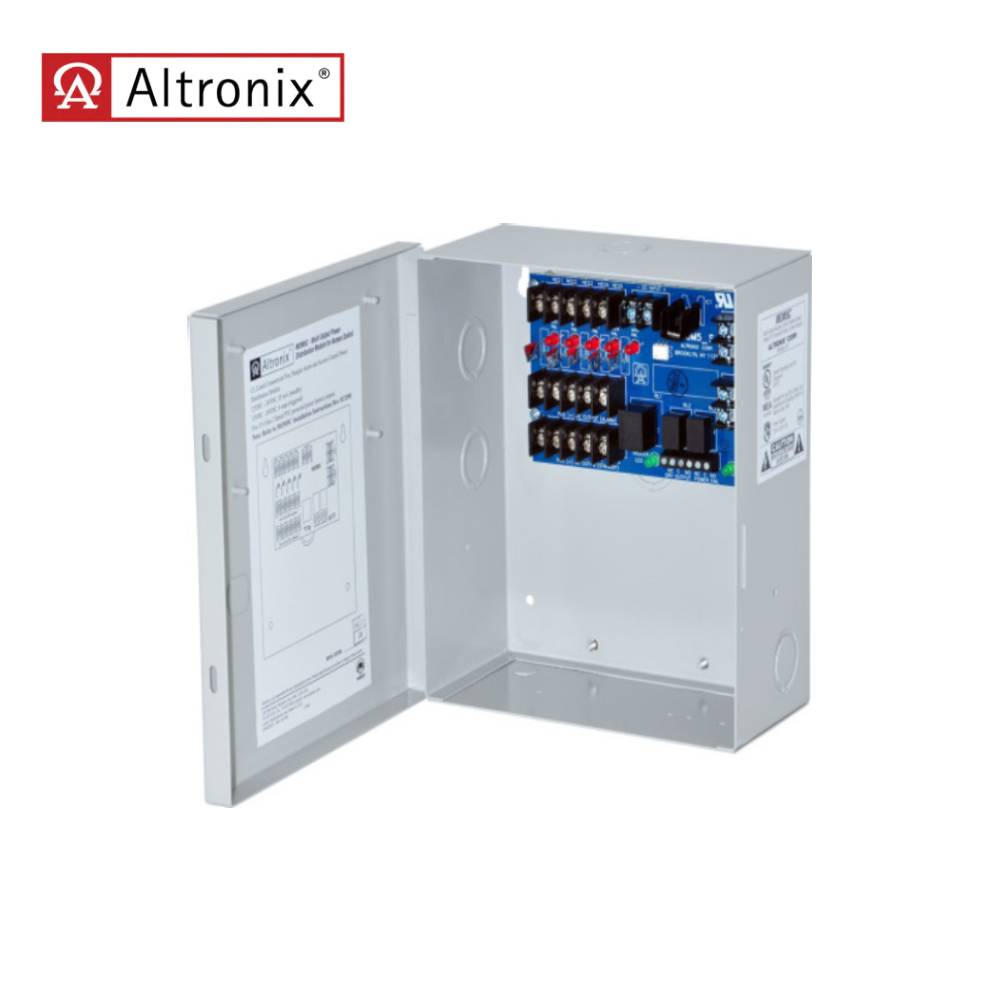

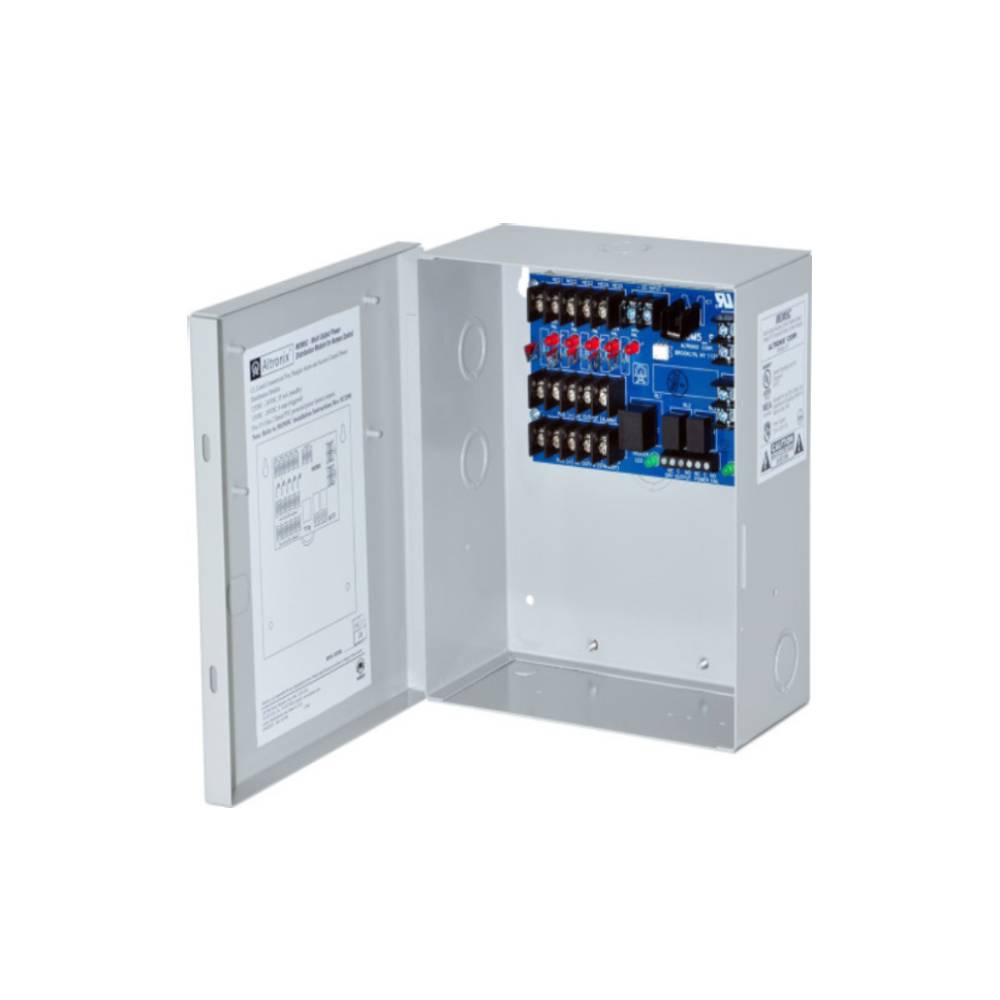

Altronix - MOM5C - Power Distribution Module 5 Class 2 Power Limited PTC Protected Power Supply

Altronix - MOM5C - Power Distribution Module 5 Class 2 Power Limited PTC Protected Power Supply

Altronix MOM5C power distribution module converts one (1) non power-limited DC voltage input to five (5) power-limited outputs. Each output will route power to a variety of access control hardware and devices which includes Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both fail-safe and fail-secure modes. Controlled trigger input is achieved through normally open (NO) or normally closed (NC) supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form "C" dry output relay will enable HVAC Shutdown, Elevator Recall or trigger auxiliary devices.

Features:

• Five (5) individual Class 2 Rated PTC protected power-limited outputs (auto-resettable).
• Red LED's indicate condition of each power output.
• Power & input trigger LED's.
• Fire Alarm Panel or Access Control System trigger inputs. (NO or NC supervised trigger input and polarity reversal trigger input).
• Power fail supervision relay (Form "C" contact rated 1A @ 28VDC).
• Interfaces with most UL Listed Power Supplies.

Product Specifications:

Downloads:

• Installation Instructions
