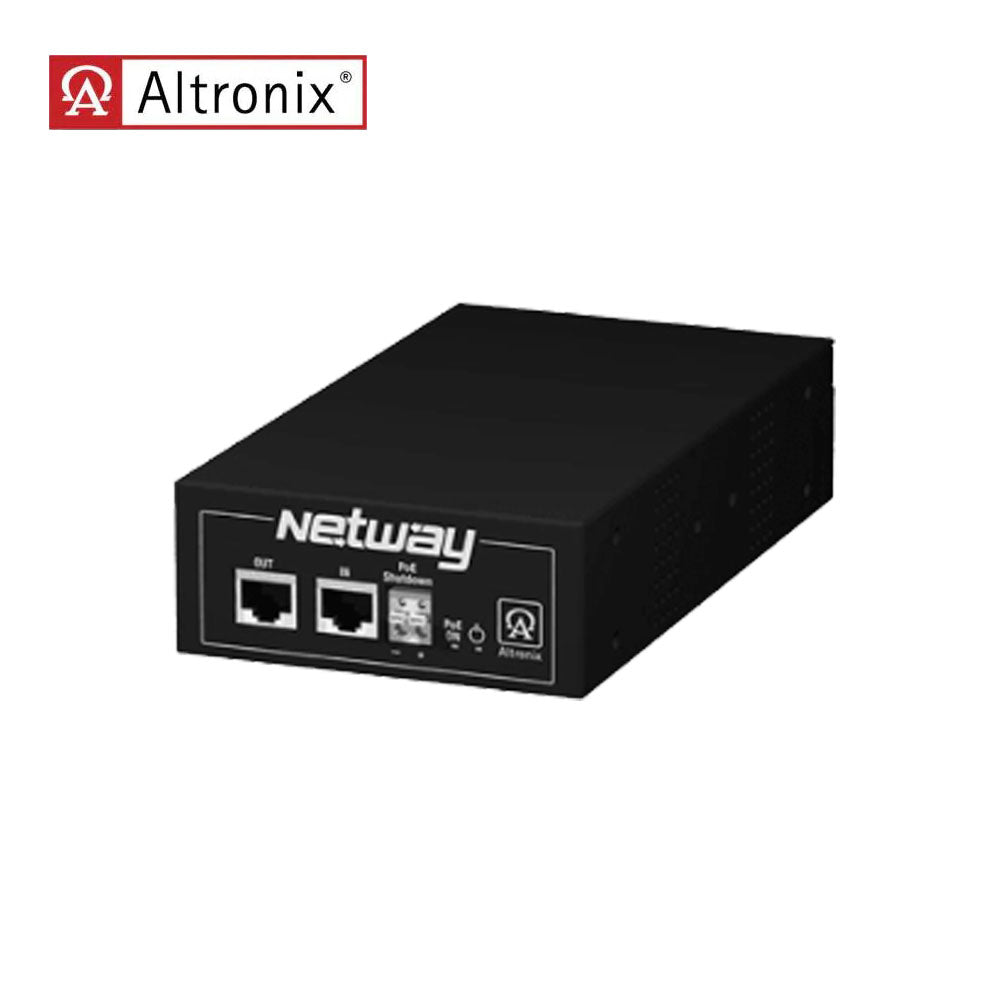

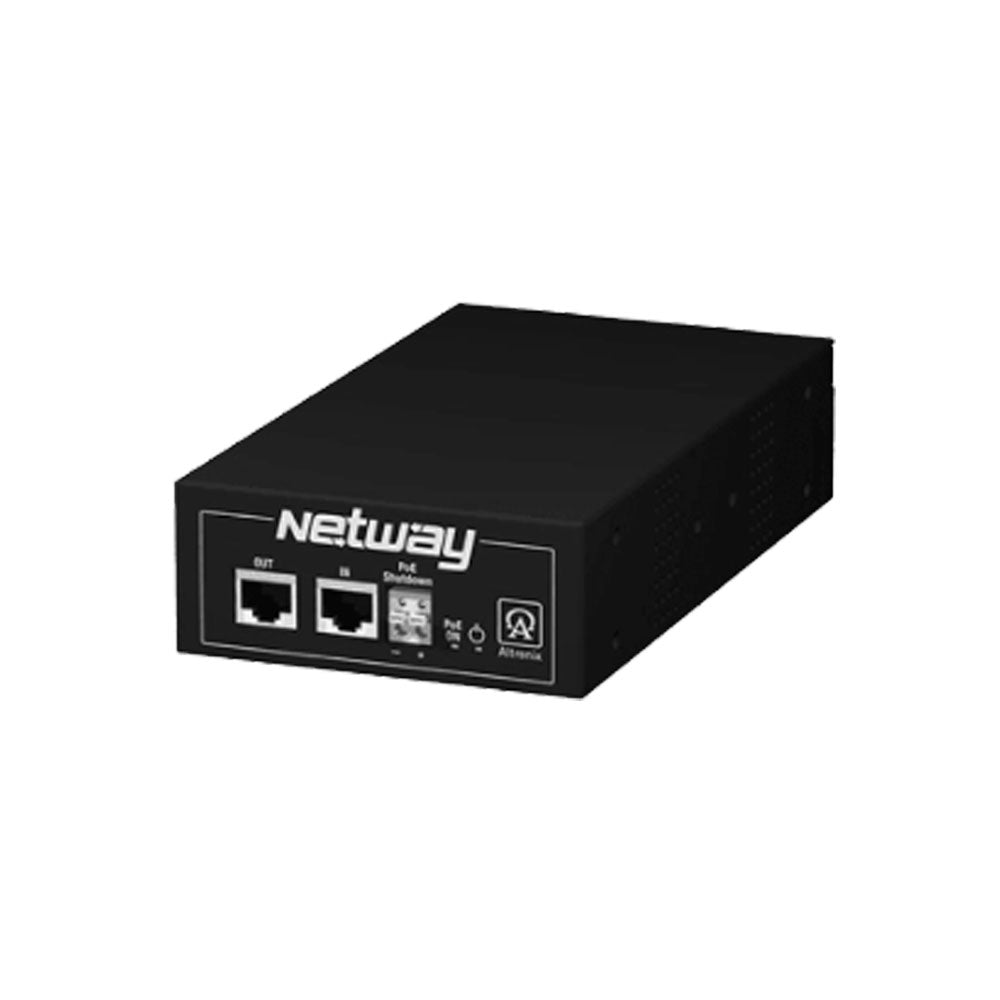

Altronix - NETWAY1EV - Hi-PoE Injector for Standard and Enhanced Power Network Infrastructure - Single Port - 230VAC at 0.8AInput with Short Circuit and Overload Protection

Altronix - NETWAY1EV - Hi-PoE Injector for Standard and Enhanced Power Network Infrastructure - Single Port - 230VAC at 0.8AInput with Short Circuit and Overload Protection

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• 230VAC, 50/60Hz, 0.8A.

Output:

• IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant.
• Supports LTPoE++™ 70W, 52.7W and 38.7W PD compliant devices up to 100m.
• Integral short circuit and overload protection.

Ethernet:

• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair CAT5e or higher structured cable.
• Distance: up to 100m.
• Speed: 10/100/1000 Base T, half/full duplex, auto negotiation.

Indicators (LED):

• Red LED: PoE ON.
• Red LED: Power ON.
• Yellow and Green LED (by RJ45 jack):
• IP Link status, 10/100Base-T/active.

Temperature:

• Operating:
  85W: - 20° C to 49° C ( - 4° F to 120° F).
  55W: - 20° C to 55° C ( - 4° F to 131° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.): 32 BTU/Hr.
• System AC input VA requirement: 172.5VA.

Operating Altitude:

• - 304.8m to 609.6m ( - 1,000 ft. to 2,000 ft.).

Enclosure:

• Dimensions 4.1"W x 1.7"H x 7.2"D (105 mm W x 44 mm H x 183 mm D).

Download:

• Installation Instruction
