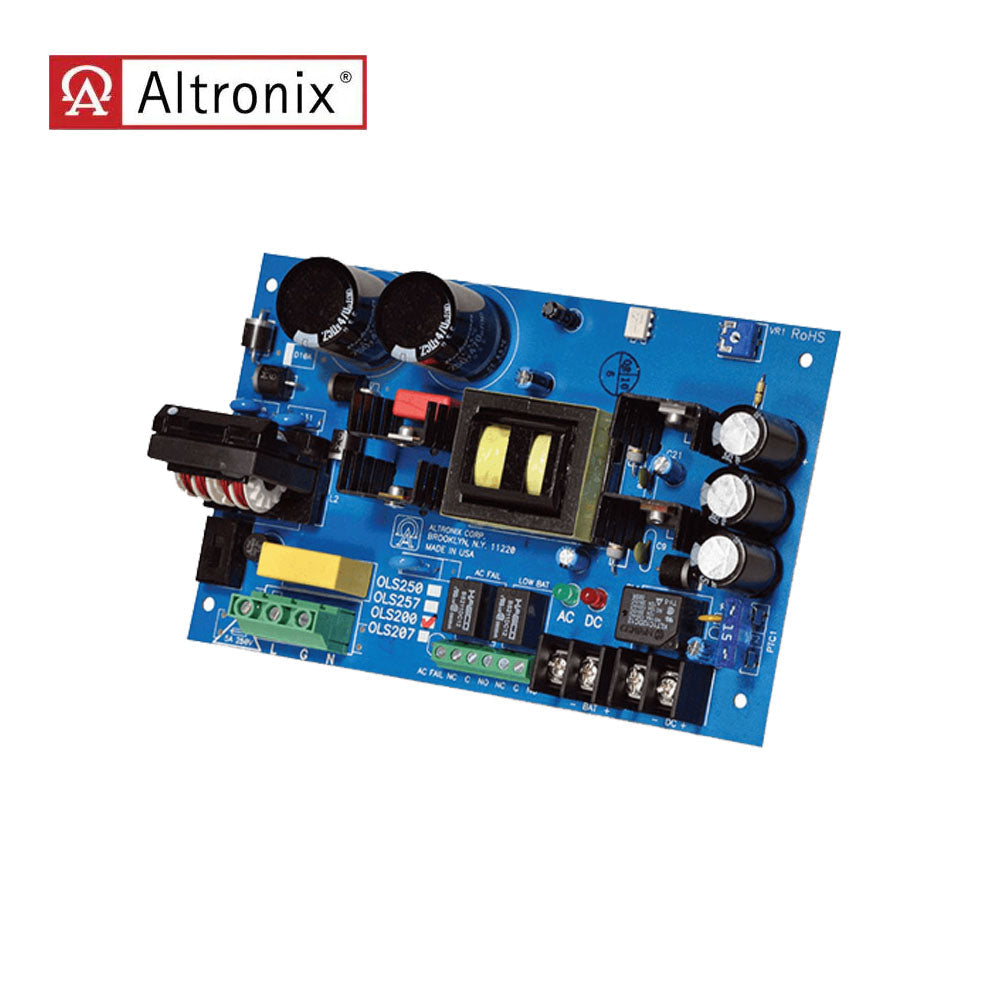

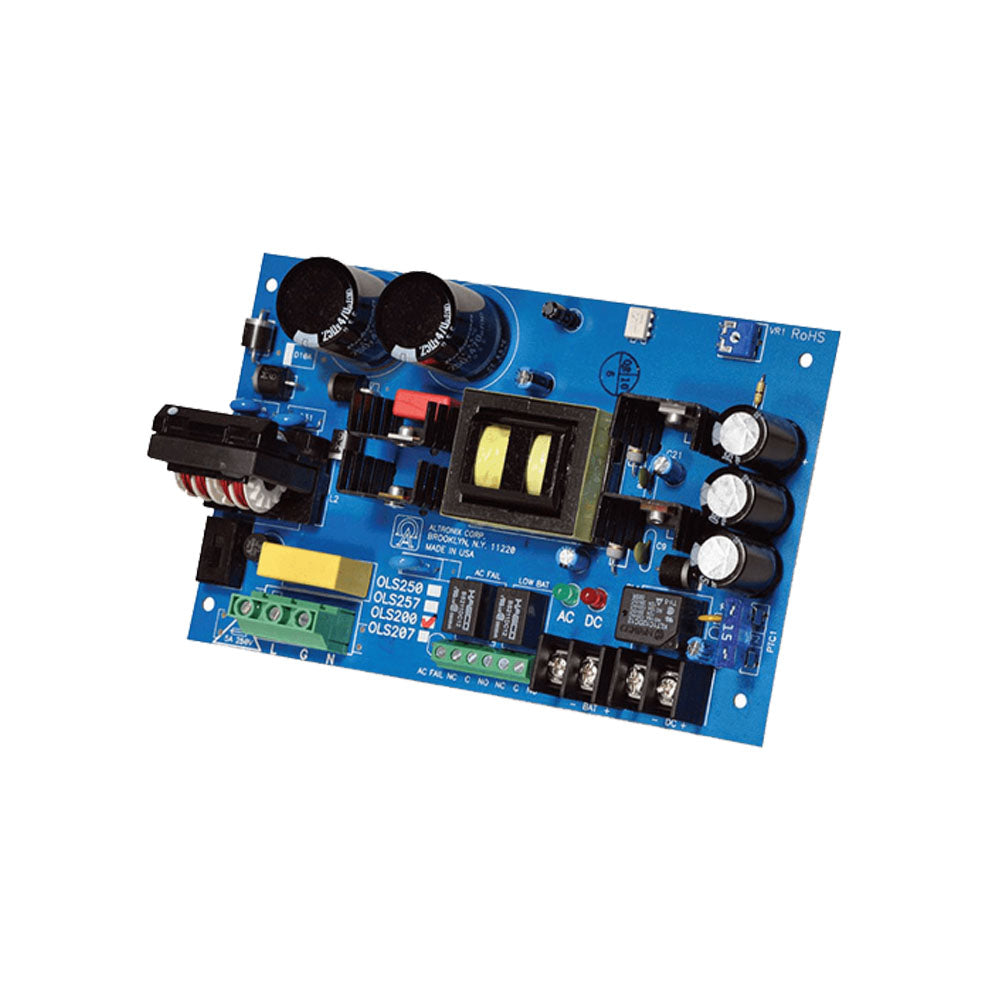

Altronix - OLS200220 - Offline Switching Power Supply Board - 220VAC at 0.95A Input

Altronix - OLS200220 - Offline Switching Power Supply Board - 220VAC at 0.95A Input

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• 220VAC (working range 198VAC-256VAC), 50/60Hz, 0.95A.

Output:

• 12VDC output.
• 10A continuous supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Supervision:

• AC fail supervision (form "C" contacts).
• Low battery supervision (form "C" contacts).

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.

Visual Indicators:

• AC input and DC output LED indicators.

Features:

• Power ON/OFF switch.
• Includes battery leads.

Temperature:

• Operating: 0° C to 55° C (32° F to 131° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.): 61 BTU/Hr.
• System AC input VA requirement: 209.0VA.

Dimensions (approximate):

• 4.5"W x 7.25"L x 1.75"H (114.3 mm W x 184.1 mm L x 44.45 mm H).

Download:

• Installation Instruction
