Altronix  |  SKU: ALX-PDS8CBK1

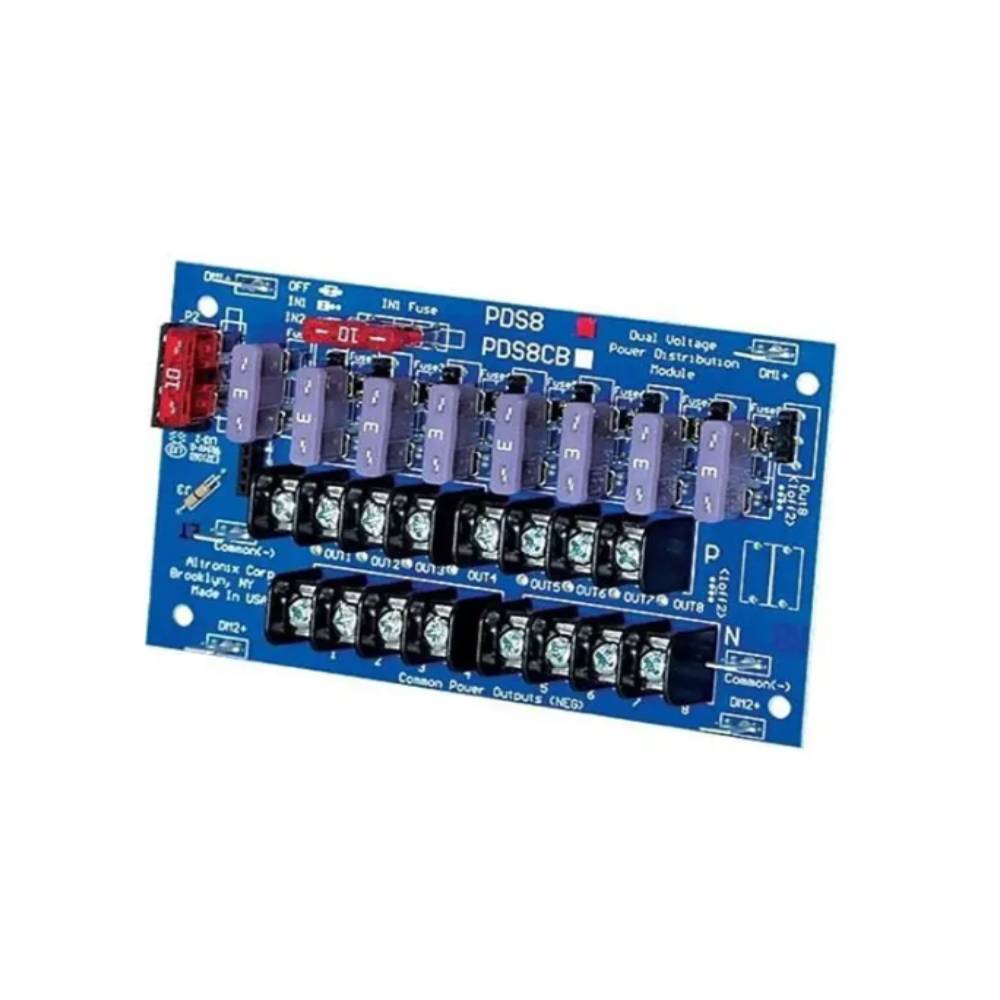

Altronix - PDS8CBK1 - Voltage Regulator with Dual Input Power Distribution Kit PDS8CB and VR6 Voltage Regulator

$11049 $13259
Shipping calculated at checkout.
Trust Guard Security ScannedSecure transaction

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more

Description

Altronix - PDS8CBK1 - Voltage Regulator with Dual Input Power Distribution Kit PDS8CB and VR6 Voltage Regulator

VR6 Voltage Regulator and PDS8CB Power Distribution. Altronix VR6 Voltage Regulator converts a 24VDC input into a regulated 5VDC or 12VDC selectable output at up to 6A supply curent. It reduces the cost of adding an additonal power supply to achieve 24VDC and 12VDC or 5VDC simultaneously. / Altronix PDS8CB dual input power distribution module is designed to steer the power from either two (2) low voltage AC or DC power sources. This power is distributed over a total of eight (8) PTC protected outputs.

VR6

Power Input / Output:
  • Input: 24VDC @ 1.75A – Output: 5VDC @ 6A.
  • Input: 24VDC @ 3.5A – Output: 12VDC @ 6A.
Output:
  • 5VDC or 12VDC regulated output.
  • Output rating 6A max. non power-limited.
  • Surge suppression.
LED Indicators:
  • Input and output LEDs.

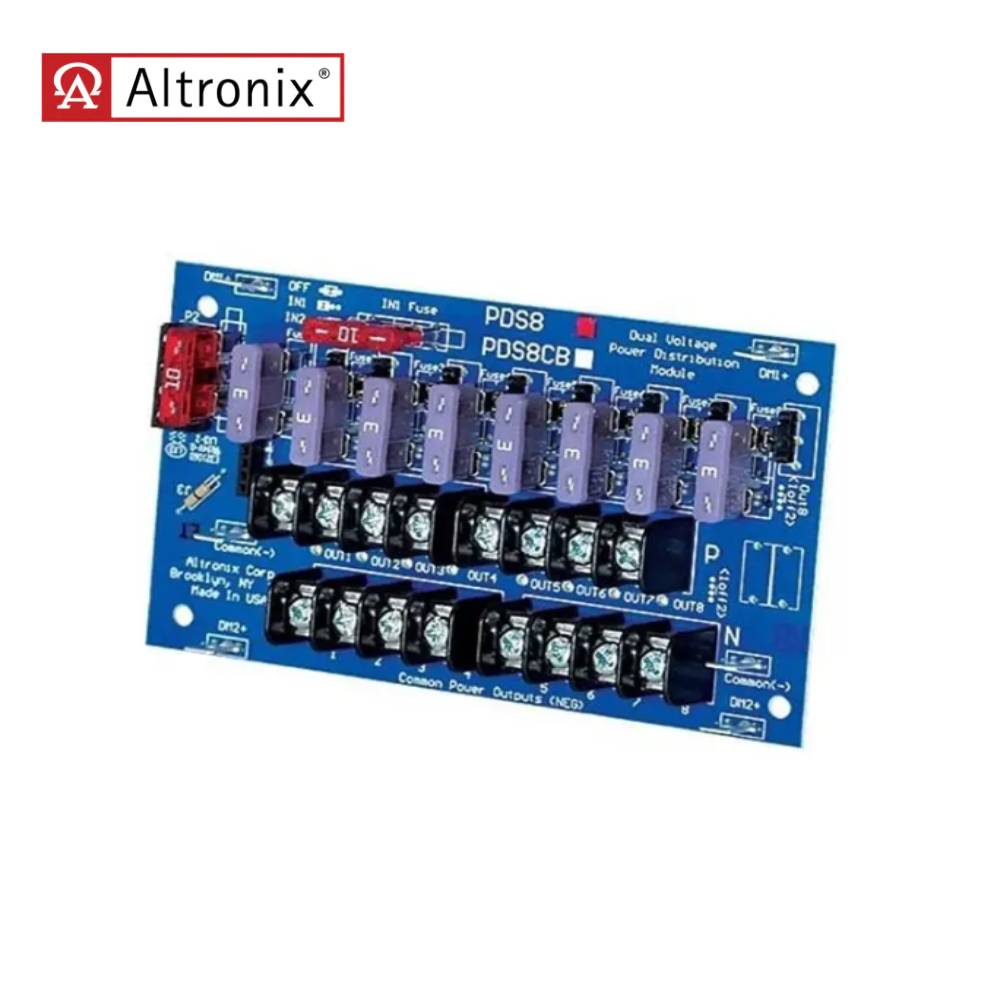

PDS8CB

Power Input 1 and Input 2 Voltage Range:
  • 5VDC to 24VDC up to 9A each or 16VAC to 28VAC up to 9A each.
Output:
  • Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2.
  • Individual outputs may be set to OFF position for servicing.
  • PTC protected outputs rated @ 2A. (total output current should not exceed max current rating of power supply employed).
  • Surge suppression.
LED Indicators:
  • Individual voltage LED indicates 12VDC (Green) or 24VDC (Red/Green).
Product Specifications:
Vendor Altronix Corporation
Manufacturer Altronix
SKU PDS8CBK1
UID ALTPDS8CBK1
Installation Commercial
Unit of Measure Each
Product Type Power Supplies
