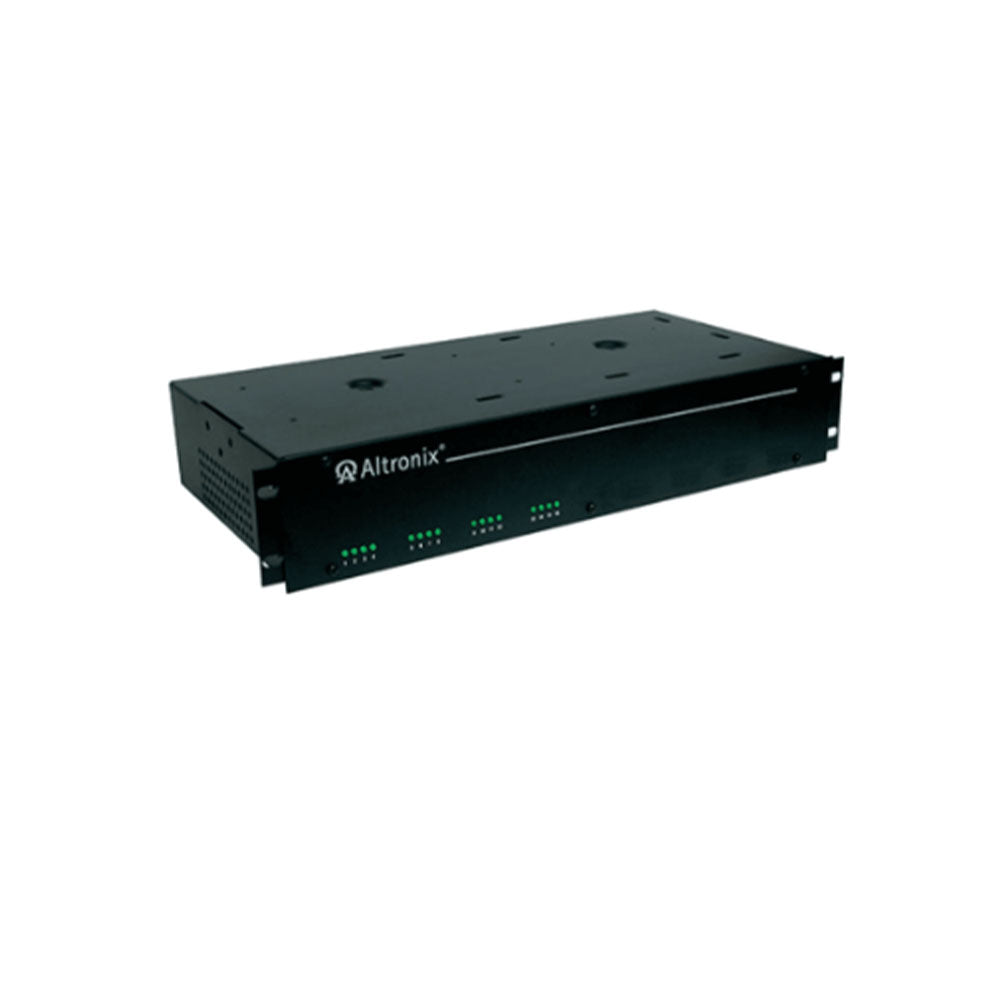

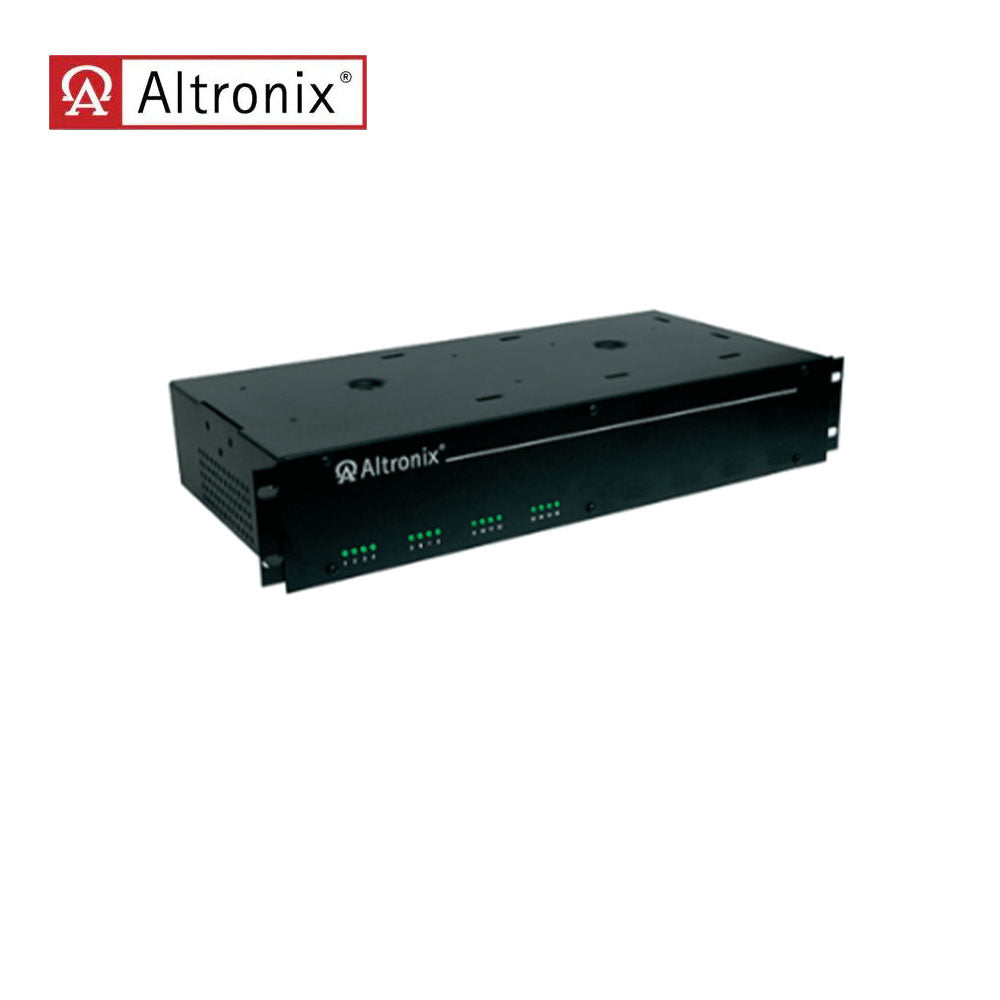

Altronix - R615DC616ULCB - CCTV DC Rack Mount Power Supply - 16 PTC Protected Class 2 Outputs with 1.5A Input

Altronix - R615DC616ULCB - CCTV DC Rack Mount Power Supply - 16 PTC Protected Class 2 Outputs with 1.5A Input

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Features:

• Sixteen (16) power LEDs.
• Illuminated master power disconnect circuit breaker with manual reset.
• 3-wire grounded line cord.
• Removable terminal blocks with locking screw flange.

Input:

• 115VAC, 50/60Hz, 1.5A.

Output:

• Sixteen (16) Class 2 Rated PTC protected outputs (auto-resettable).
• 6-15VDC @ 6A total output current. (0.375A per device, 2.5A max.)
• Outputs are rated @ 2.5A.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.

Temperature:

• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.): 18-46 BTU/Hr.
• System AC input VA requirement: 172.5VA

Enclosure:

• Modular 2U standard EIA 19" rack mount chassis.
• Dimensions 19.12"W x 3.25"H x 8.5"D (486 mm W x 83 mm H x 216 mm D).
• Allow 1/2U space on top and bottom of the unit for ventilation.
