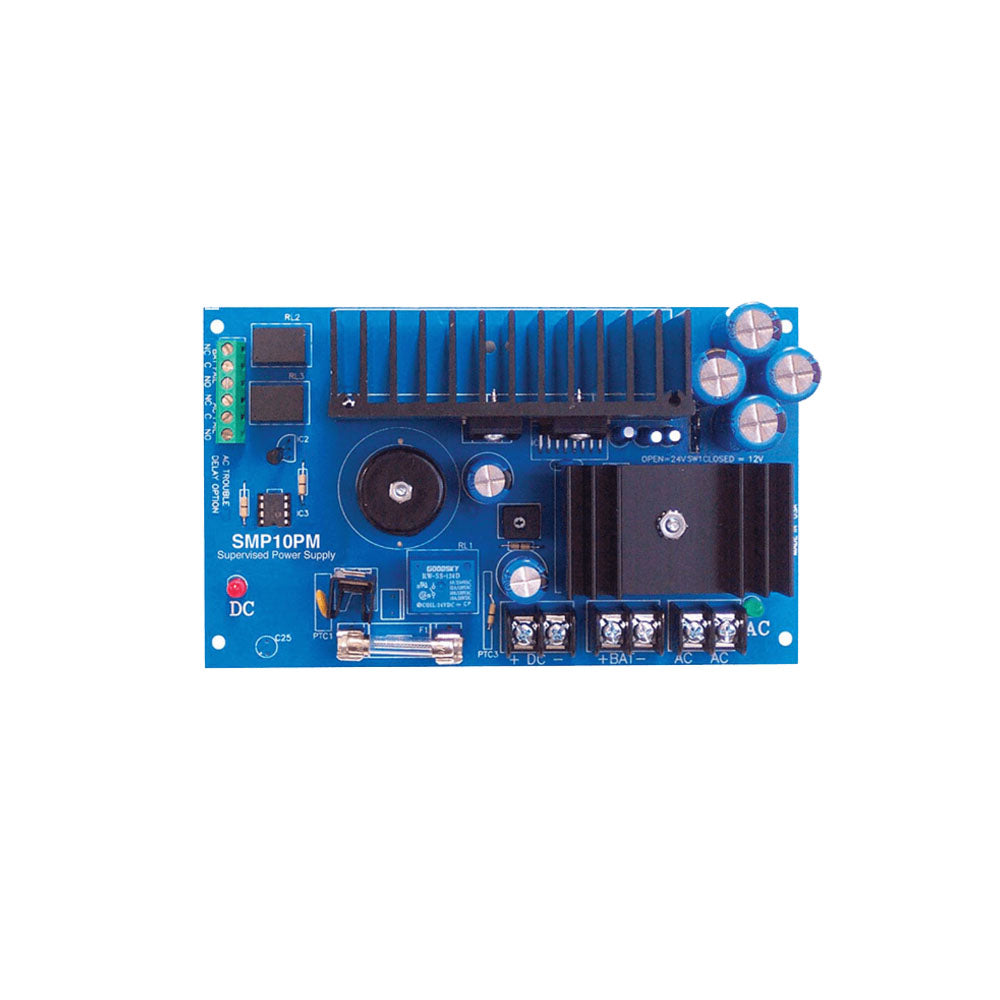

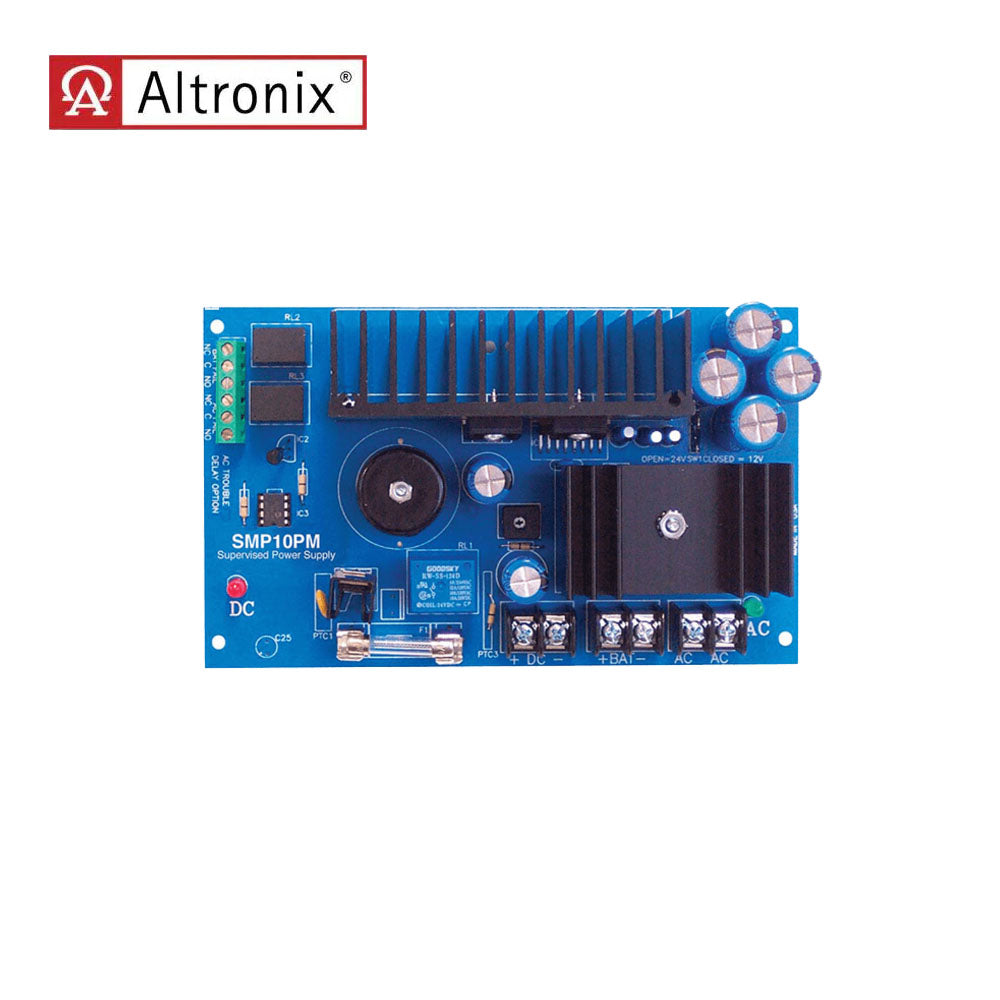

Altronix - SMP10PM - Power Supply Charger Board with Single Output - 12 or 24VDC at 10A

Altronix - SMP10PM - Power Supply Charger Board with Single Output - 12 or 24VDC at 10A

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• Input 24/28 VAC.(Voltage Output/Transformer Selection Table).

Output:

• 12VDC or 24VDC selectable output.
• 10A supply current.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Zero voltage drop when switching over to battery backup.

Visual Indicators:

• AC input and DC output LED indicators.

Temperature:

• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.):
  12VDC: 61 BTU/Hr.
  24VDC: 123 BTU/Hr.

Dimensions (approximate):

• 7"W x 4.25"L x 1.25"H (177.8 mm W x 107.9 mm L x 31.75 mm H).

Download:

• Installation Instruction
