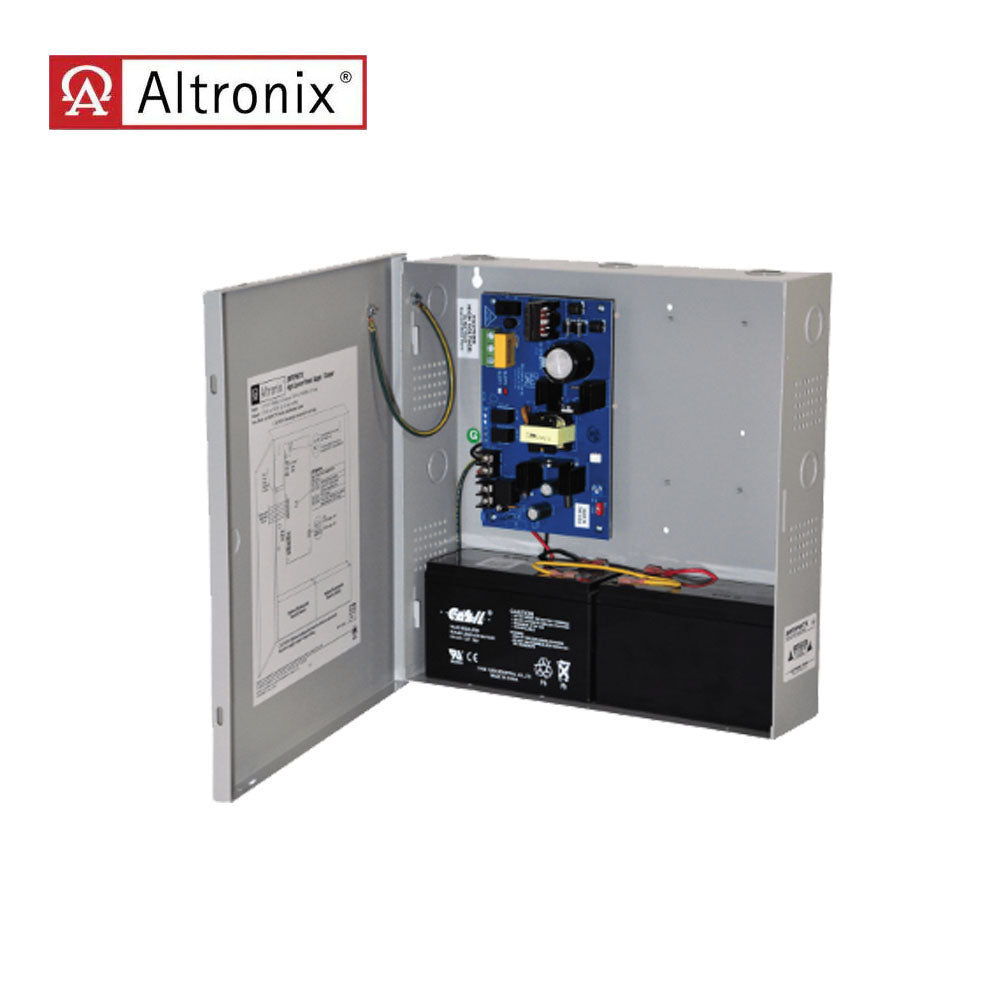

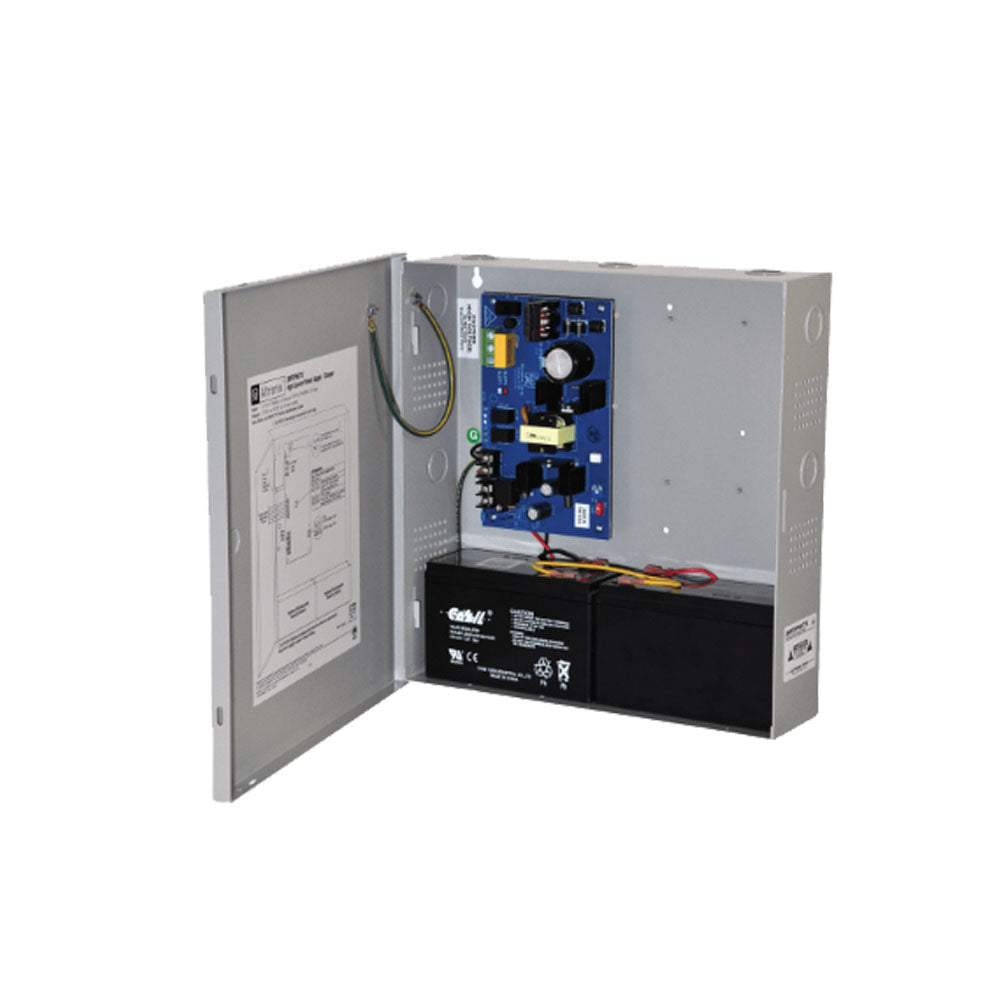

Altronix - SMP3PMCTX - Supervised Power Supply Charger with 12 or 24VDC at 2.5A Output - Grey Enclosure

Altronix - SMP3PMCTX - Supervised Power Supply Charger with 12 or 24VDC at 2.5A Output - Grey Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• Input 115VAC, 50/60Hz, 0.65A or 230VAC, 50/60Hz, 0.35A.

Output:

• 12VDC or 24VDC selectable output.
• 2.5A supply current.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.

Supervision:

• AC fail supervision (form "C" contacts).
• Low battery supervision (form "C" contacts).

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Zero voltage drop when switching over to battery backup.

Visual Indicators:

• AC input and DC output LED indicators.

Temperature:

• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.):
  12VDC: 15 BTU/Hr.
  24VDC: 31 BTU/Hr.
• System AC input VA requirement:
  115VAC: 74.75VA.
  230VAC: 80.5VA

Enclosure:

• Wall mount enclosure for indoor use.
• Accommodates up to two (2) 12VDC/7AH Batteries.
• Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
• 1/2" and 3/4" combination knockouts.

Download:

• Installation Instruction
