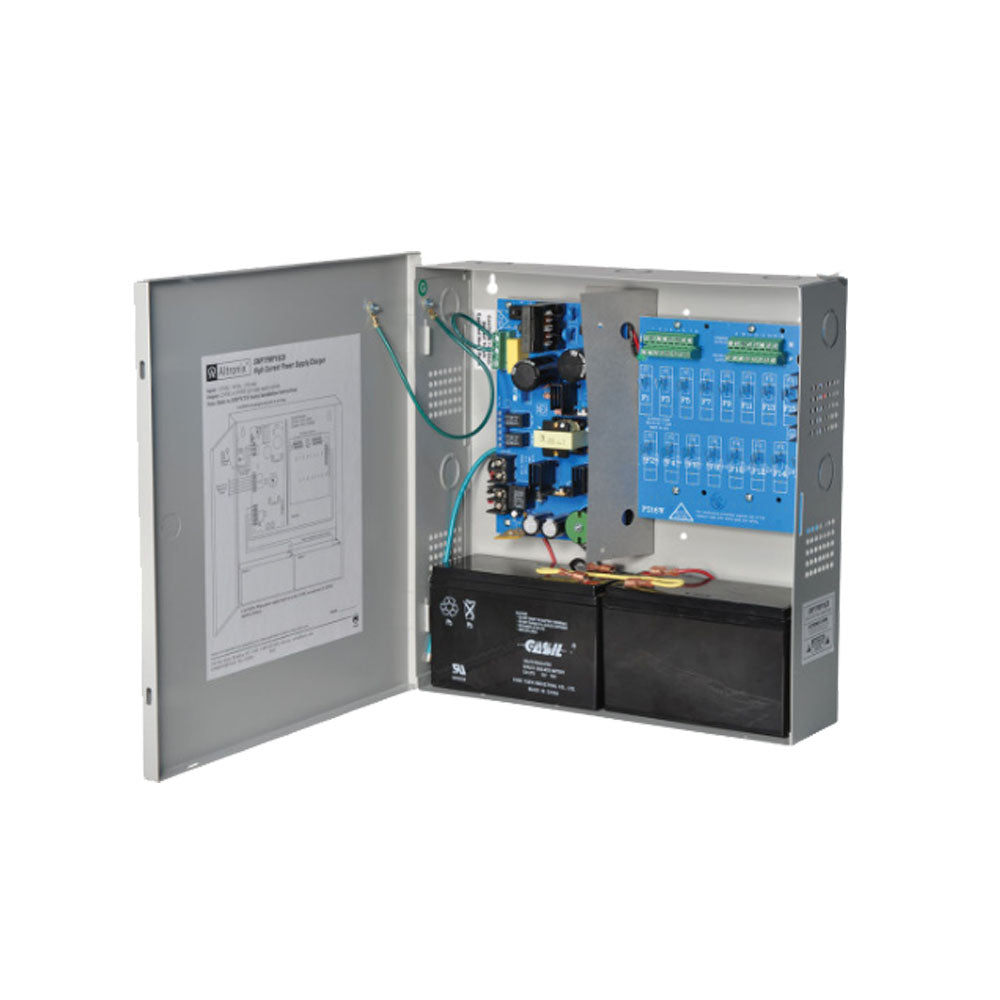

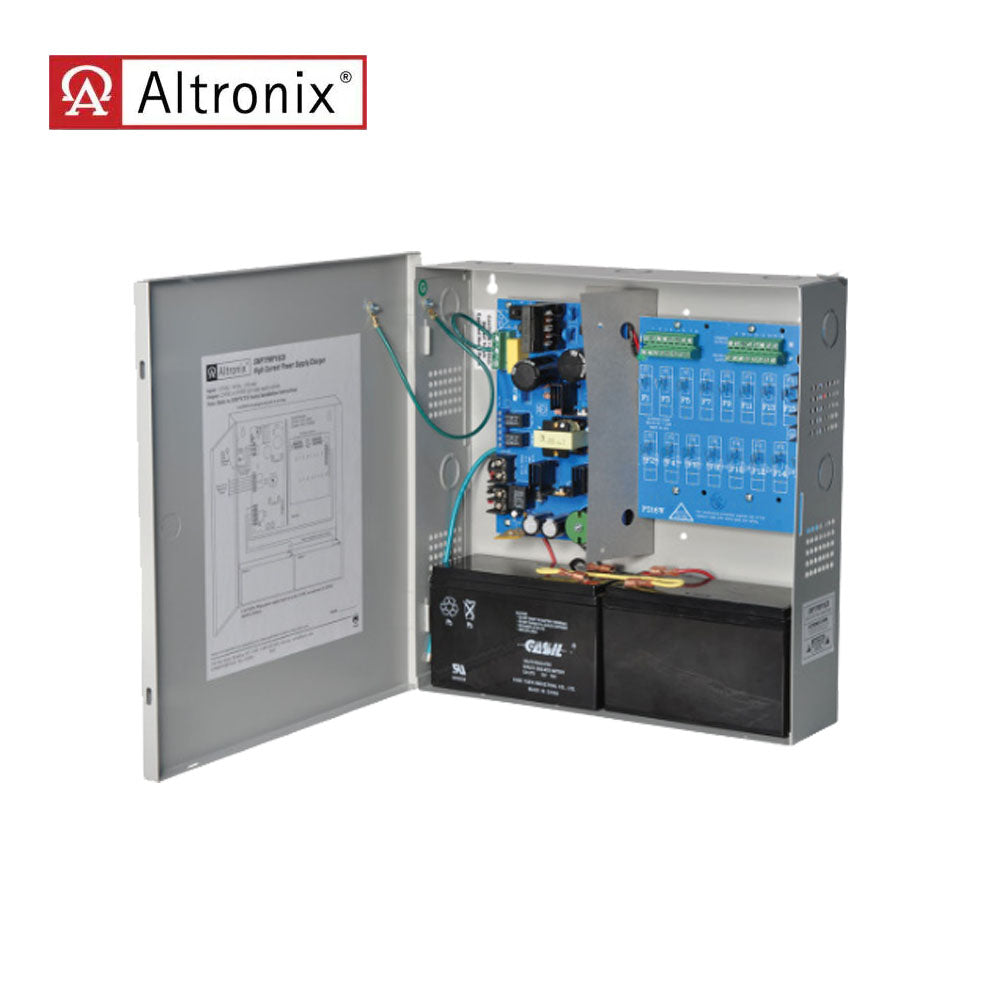

Altronix - SMP7PMP16CB - Supervised Power Supply Charger with 16 PTC Protected Outputs - 12 or 24VDC at 6A Output - 2.5A Max per Output - Grey Enclosure

Altronix - SMP7PMP16CB - Supervised Power Supply Charger with 16 PTC Protected Outputs - 12 or 24VDC at 6A Output - 2.5A Max per Output - Grey Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• Input 115VAC, 60Hz, 2.5A.

Output:

• 12VDC or 24VDC selectable output.
• 6A supply current.
• Sixteen (16) PTC protected outputs (auto-resettable).
• Outputs are rated @ 2.5A.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.

Supervision:

• AC fail supervision (form "C" contacts).
• Battery presence and low battery supervision (form "C" contacts).

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Zero voltage drop when switching over to battery backup.

Visual Indicators:

• AC input and DC output LED indicators.

Temperature:

• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.):
  12VDC: 37 BTU/Hr.
  24VDC: 74 BTU/Hr.
• System AC input VA requirement: 287.5VA.

Enclosure:

• Wall mount enclosure for indoor use.
• Accommodates up to one (1) 12VDC/12AH Batteries.
• Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
• 1/2" and 3/4" combination knockouts.
