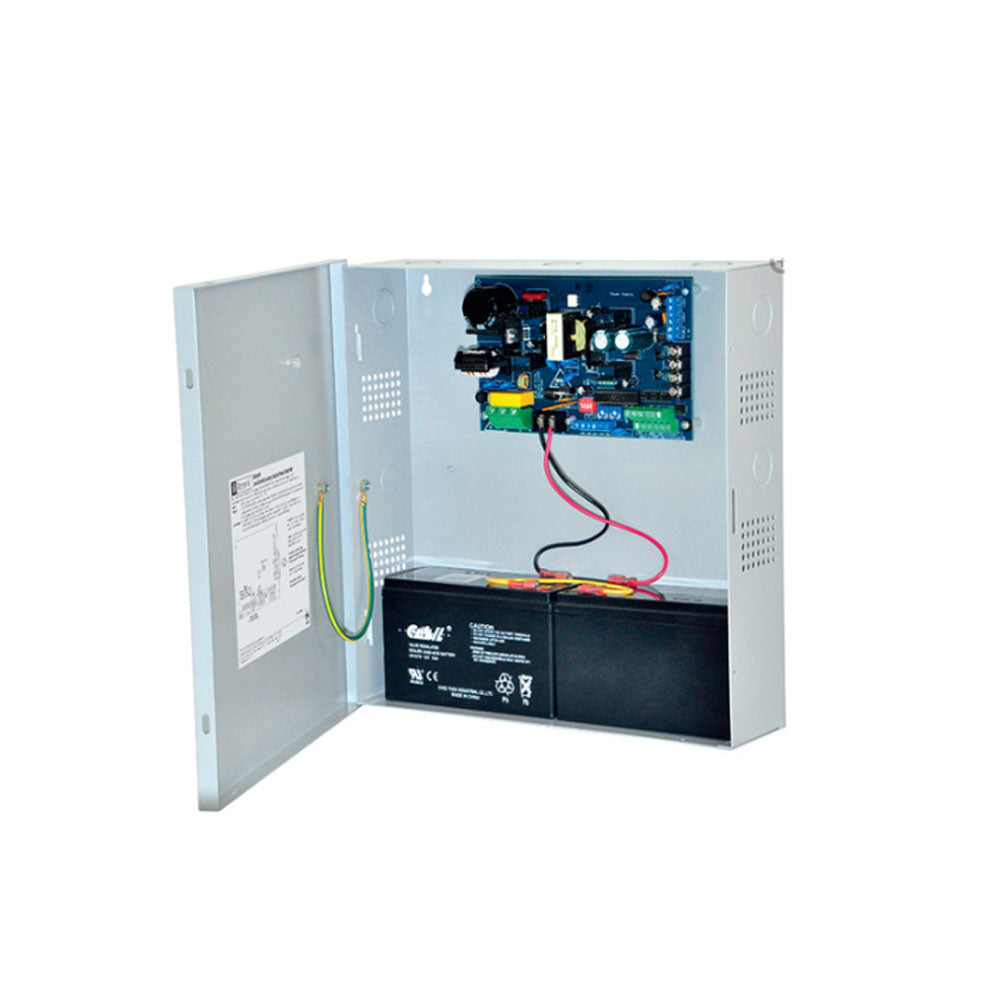

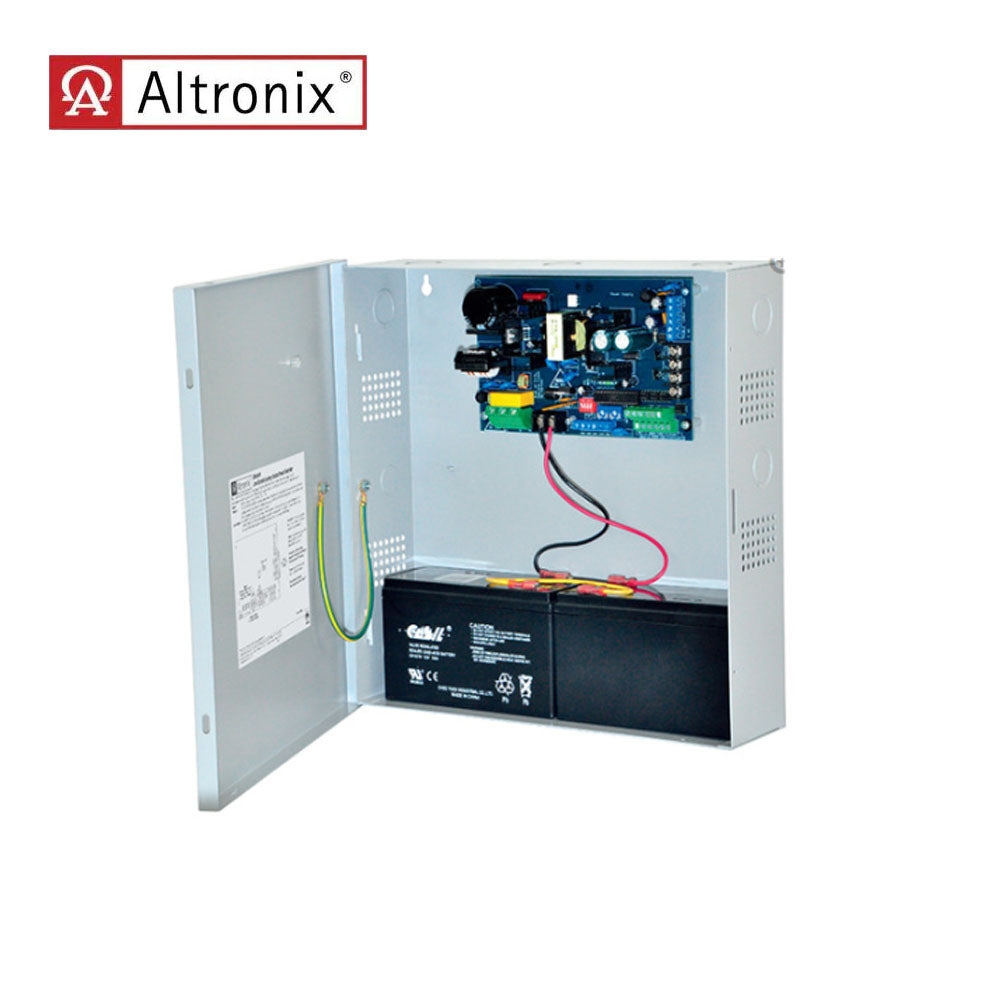

Altronix - STRIKEIT4 - Pabic Device Power Controller with Low Current Locking - Operates Up To 2 Low Current

Altronix - STRIKEIT4 - Pabic Device Power Controller with Low Current Locking - Operates Up To 2 Low Current

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• Input 115VAC, 60Hz, 2.5A or 230VAC, 50Hz, 1.5A.
• Two (2) Normally Open (N.O.) trigger inputs (Input 1 and Input 2).
• FACP Normally Closed (N.C.) input.
• Two normally open ADA inputs for special mode of interfacing with automatic door operators.

Output:

• Two (2) 19.8VDC-26.4VDC rated individually controlled lock outputs configurable for fail-secure or fail-safe electronic locking hardware for applications with battery back-up. 24VDC-26.4VDC rated for applications without battery back-up (US applications only). Current rating 2A combined.
• One (1) 19.8VDC-26.4VDC @ 0.8A rated filtered regulated auxiliary output for applications with battery back-up, 24VDC-26.4VDC @ 0.8A rated for applications in US not requiring battery back-up. Not affected by FACP trigger.
• One (1) 12VDC filtered regulated auxiliary output rated 0.5A. Not affected by FACP trigger.
• Two (2) follower Normally Open relay outputs for controlling ADA actuators/accessories rated 28VDC @ 0.5A.
• Two momentary door operator activation relay outputs.
• Trouble relay output indicating low AC voltage trouble and battery trouble.

Battery Backup:

• Battery leads included.
• When 7AH batteries are used, battery capacity for emergency stand-by is 30 minutes.
• Built-in charger for sealed lead acid batteries.
• Maximum charge current 650mA.
• Automatic switch over to stand-by battery when AC fails.

Visual Indicators:

• Green AC Power LED indicates AC presence.
• Red trigger output LEDs indicate panic device status / opened (activated, short circuit).
• Green Fire Alarm Interface (FAI) LED indicates FACP interface is activated.
• Red Battery LED indicates low battery during AC failure and battery test.
• Green AC status LED indicates loss of AC power.

Fire Alarm Disconnect:

• Normally Closed FACP trigger input.
• Programmable Fire Alarm Disconnect options:
  • Removes power to outputs and disables delayed follower relays.
  • Connects power to lock outputs and enables delayed follower relays.

Temperature:

• Operating 0° C to 49° C (32° F to 120° F).
• Storage - 20° C to 70ºC ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr (approx.): 120 BTU/Hr.

Enclosure:

• Wall mount enclosure for indoor use.
• Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
• 1/2" and 3/4" combination knockouts.
