Altronix - T2428100CP - AC Power Supply - 120VAC 50 or 60Hz at 0.95A Input - 24VAC at 4A or 28VAC at 3.5A Supply Current - BC100 Enclosure

Altronix - T2428100CP - AC Power Supply - 120VAC 50 or 60Hz at 0.95A Input - 24VAC at 4A or 28VAC at 3.5A Supply Current - BC100 Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• 115VAC 50/60 Hz, 0.95A.
• In-line fuse rated @ 3.5A/250V.
• Fused input protection.

Output:

• 24VAC @ 4A @ 28VAC @ 3.5A supply current.

Features:

• Green grounding lead.

Temperature:

• Operating 0° C to 49° C (32° F to 120° F).
• Storage - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.): 50 BTU/Hr.
• System AC input VA requirement: 110VA.

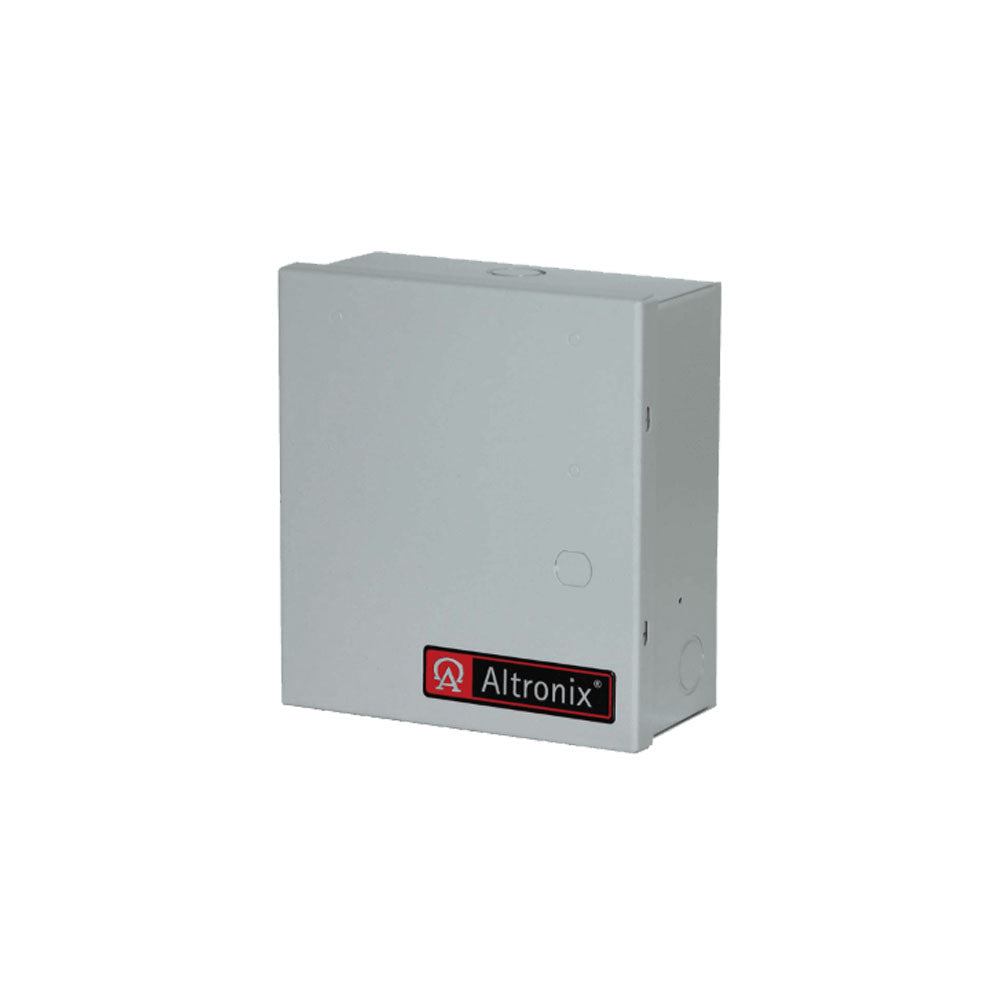

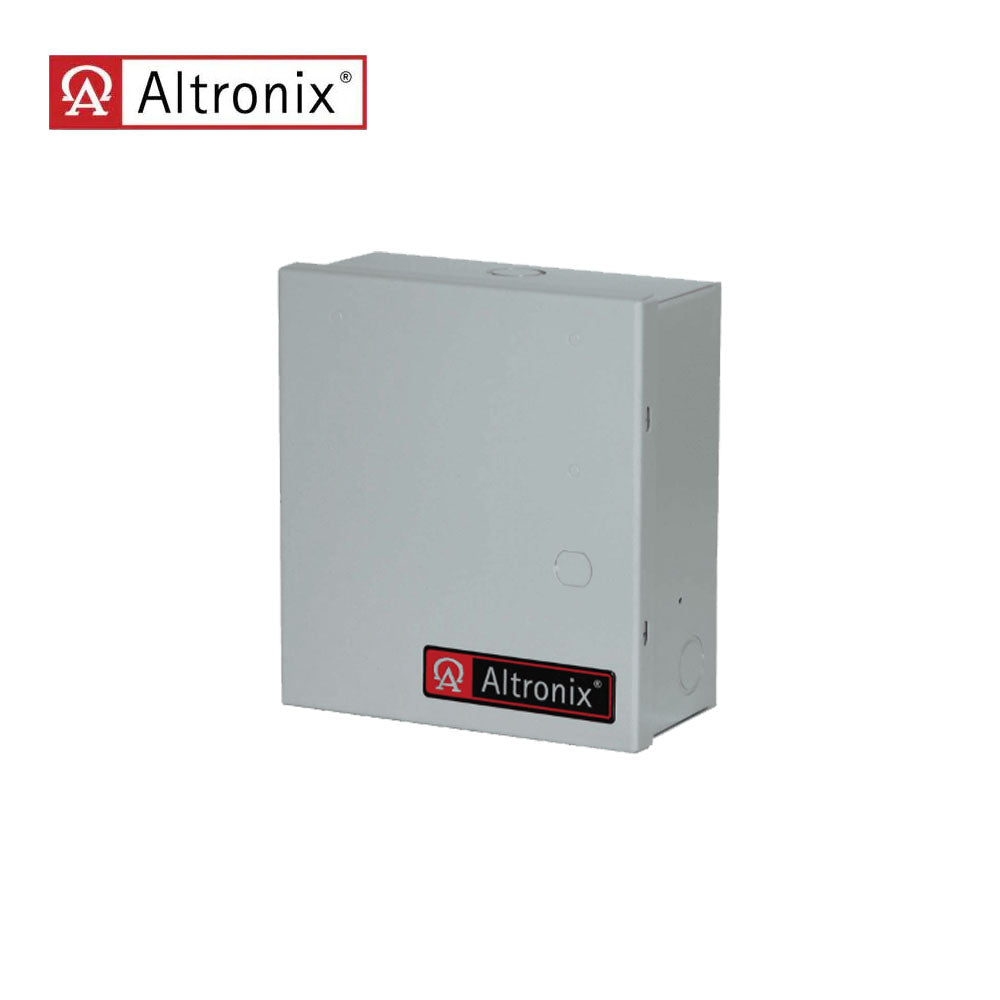

Enclosure:

• Wall mount enclosure for indoor use.
• Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
• 1/2" and 3/4" combination knockouts.

Download:

• Installation Instruction
