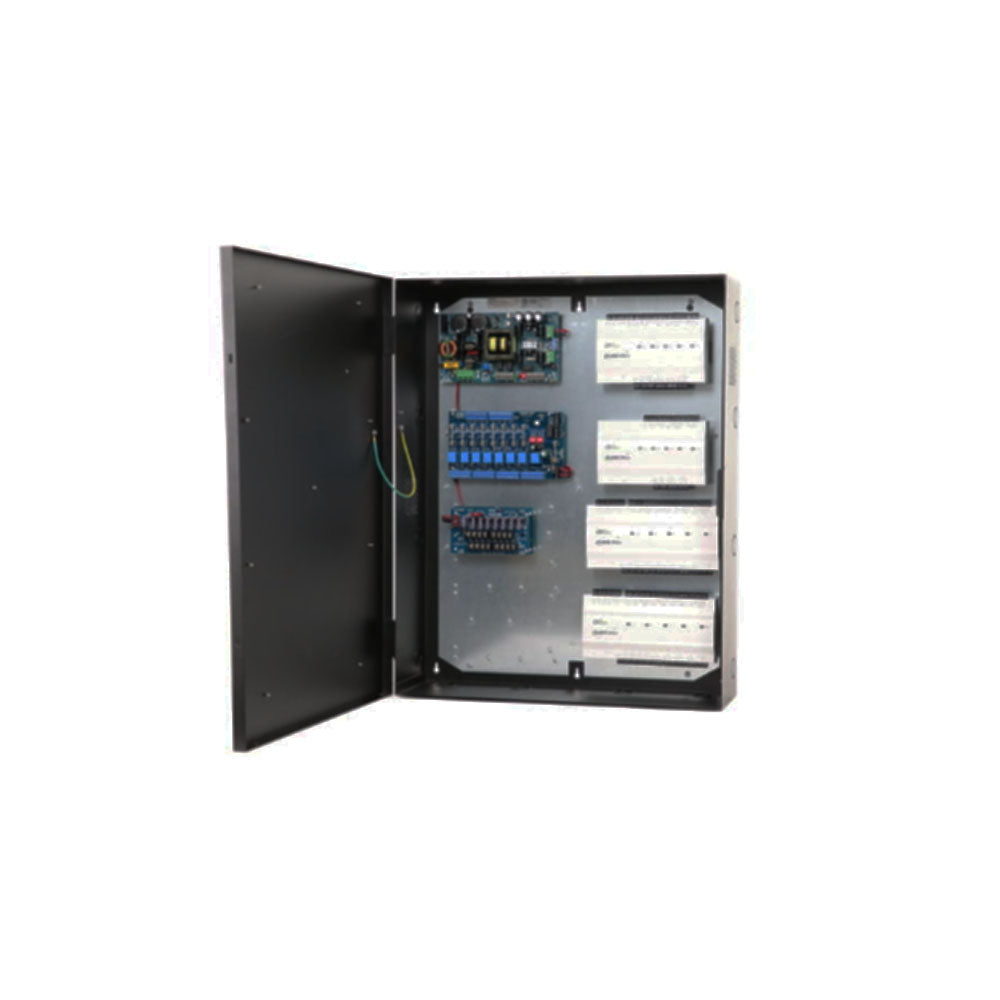

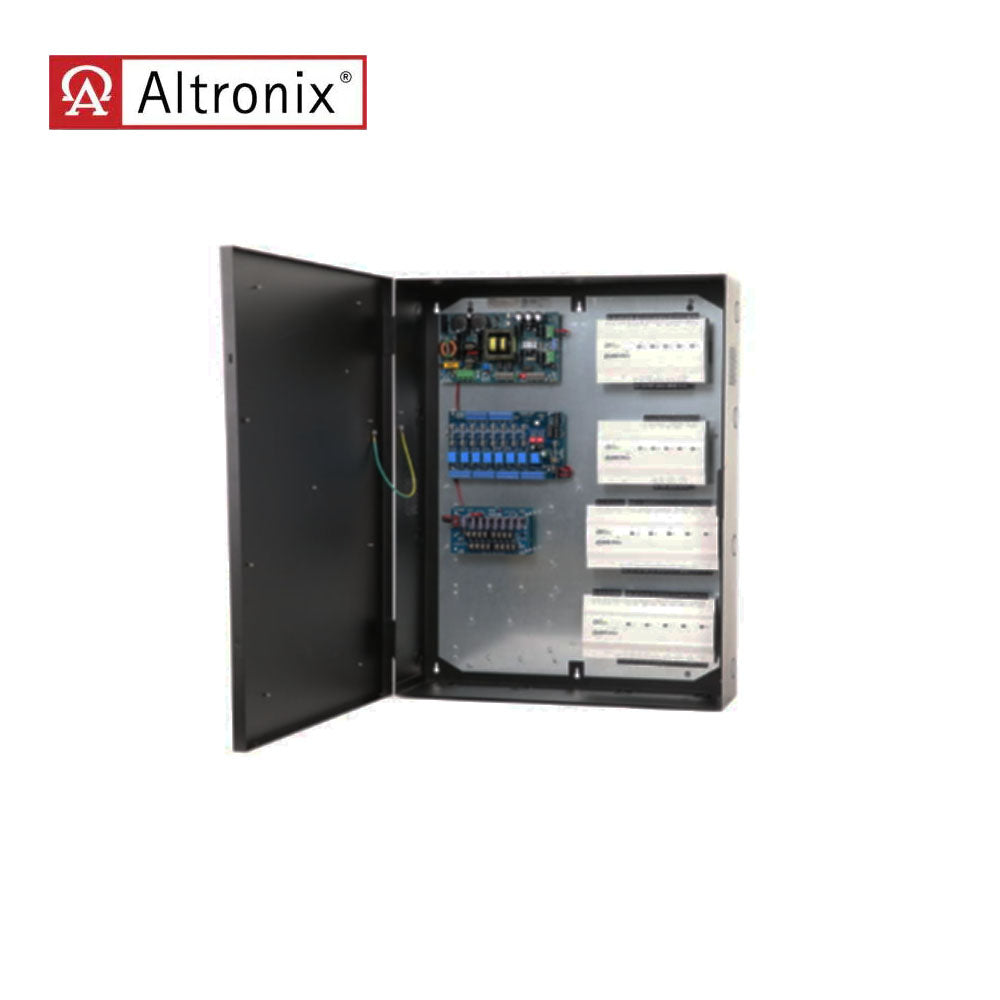

Altronix - T2ZK7F8 - Trove 2V2 8 Door 10Amp Fused
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
Altronix - T2ZK7F8 - Trove 2V2 8 Door 10Amp Fused
Description
Description
Altronix - T2ZK7F8 - Trove 2V2 8 Door 10Amp Fused
Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:
- General Use
- CCTV
- Fire Alarm
- POIP
eFlow104NB Power Supply/Charger:
Input:
- Voltage: 120VAC, 60Hz, 4.5A max.
- Main Fuse: 6.5A / 250V.
Output:
- Voltage: 24VDC.
- Current: 10A continuous.
- Auxiliary: Class 2 power-limited @ 1A (unswitched).
- Other: Overvoltage protection. Filtered and regulated.
Battery Backup:
- Capacity: 12AH/12VDC (2 within enclosure), 40AH/65AH (requires separate enclosure).
- Type: Sealed lead acid or gel type.
- Fuse Rating: 10A / 32V.
- Failover: Upon AC loss, instantaneous.
Fire Alarm Disconnect:
- Supervised: Latching or non-latching.
- EOL: 10K Resistor.
Supervision:
- AC Failure: Form “C” contacts.
- Battery: Form “C” contacts.
- Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units. Prevents deep battery discharge.
Indicators LED:
- Input: 120VAC is present.
- DC Output: Powered.
PDS8 Dual Input Power Distribution Module:
Input:
- Voltage: 24VDC from eFlow104NB and 12VDC from VR6.
- Main Fuse: 10A / 32V.
Output:
- Voltage: 12 and/or 24VDC.
- Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
- Individual outputs may be set to OFF position for servicing.
- Output Fuses: 3A / 32V.
Indicators LED:
- DC Output: Eight (8) individual output LEDs.
- Green: 12VDC
- Red: 24VDC.
ACM8 Access Power Controller:
Input:
- Voltage: 24VDC from eFlow104NB.
- Main Fuse: 10A / 32V.
Output:
- Voltage: 12VDC.
- Eight (8) 24VDC independently controlled fused outputs:
- a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
- b) Auxiliary power outputs (unswitched).
- c) Any combination of the above.
- Output Fuses: 3.5A / 32VDC.
Indicators LED:
- Red LEDs: Outputs are triggered (relays energized).
- Blue LED: FACP disconnect is triggered.
VR6 Voltage Regulator:
Input:
- Voltage: 24VDC from eFlow104NB.
Output:
- Voltage: 12VDC.
- Current: 6A continuous.
- Other: Surge suppression.
Indicators LED:
- Input: 24VDC is present.
- Output: Powered.
Environmental:
Temperature:
- Operating: 0° C to 49° C (32° F to 122° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 128 BTU/Hr.
