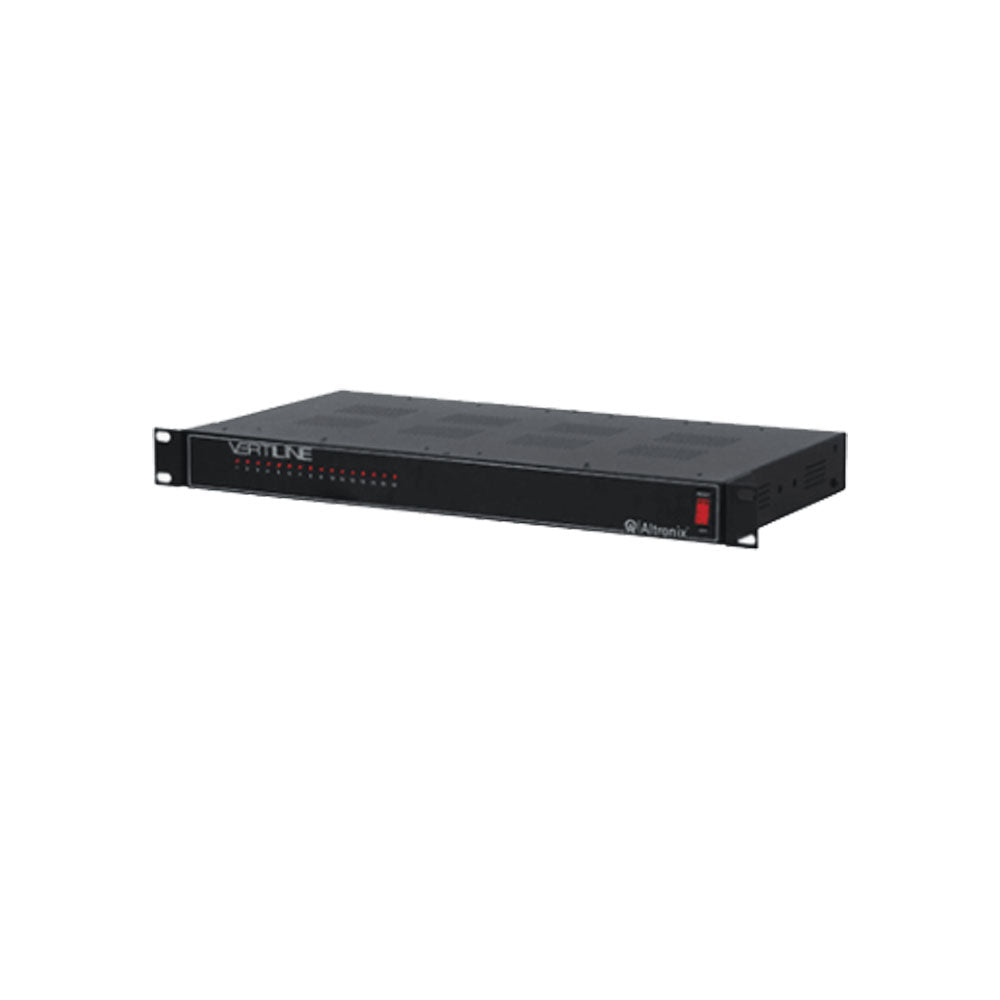

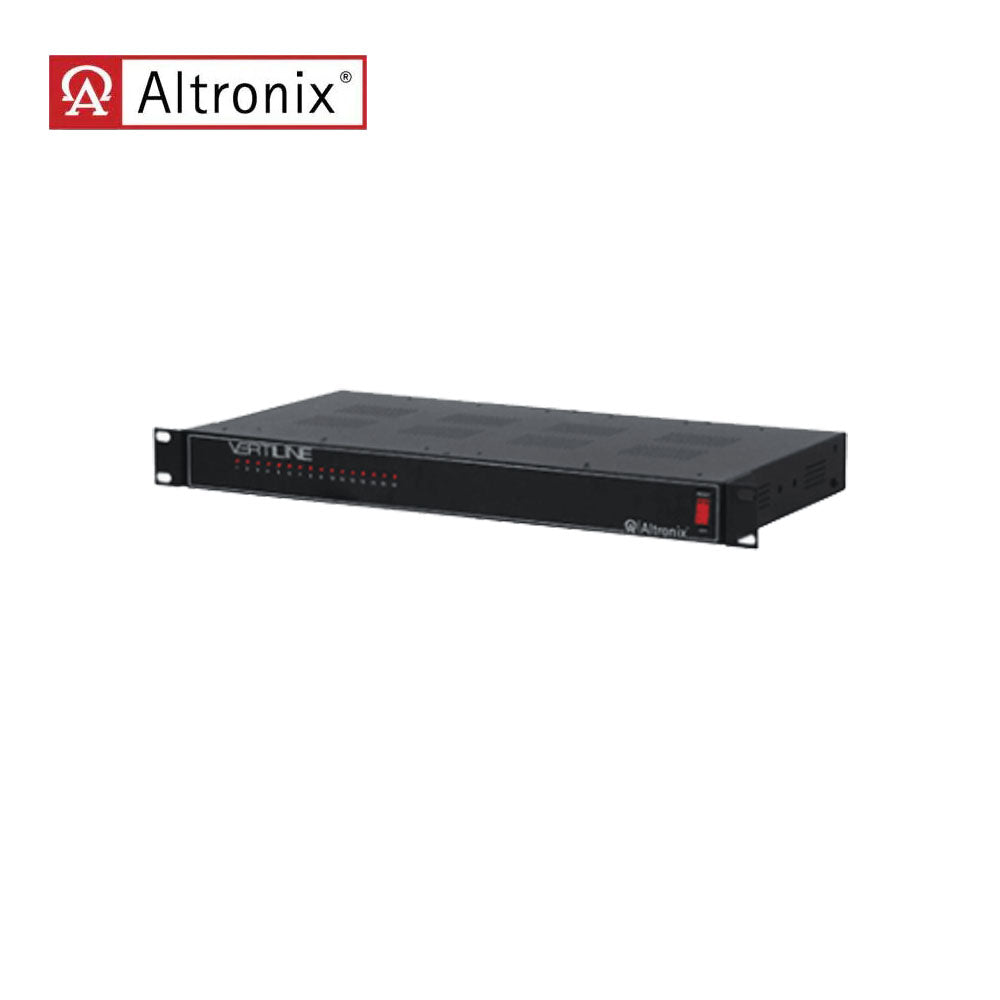

Altronix - VERTILINE33DV - DC CCTV Rack Mount Power Supply - 220VAC 50 or 60Hz at 0.75A Input - 16 PTC Protected Outputs 12VDC at 8A Max

Altronix - VERTILINE33DV - DC CCTV Rack Mount Power Supply - 220VAC 50 or 60Hz at 0.75A Input - 16 PTC Protected Outputs 12VDC at 8A Max

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• 220VAC, 50/60 Hz, 0.75A. input.

Output:

• 12VDC outputs rated @ 8A total current max. (0.5A per device, 2.5A max.).
• Sixteen (16) PTC protected power outputs.
• Filtered and electronically regulated.

Features:

• Sixteen (16) power LEDs.
• Illuminated master power disconnect circuit breaker with manual reset.
• IEC 320 - 3-wire grounded line cord (detachable).
• Removable terminal blocks with locking screw flange.

Temperature:

• Operating 0° C to 49° C (32° F to 120° F).
• Storage - 20° C to 70ºC ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr (approx.): 49 BTU/Hr
• System AC input VA requirement: 165VA.

Enclosure:

• Modular 1U standard EIA 19" rack mount chassis.
• Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).

Download:

• Installation Instruction
