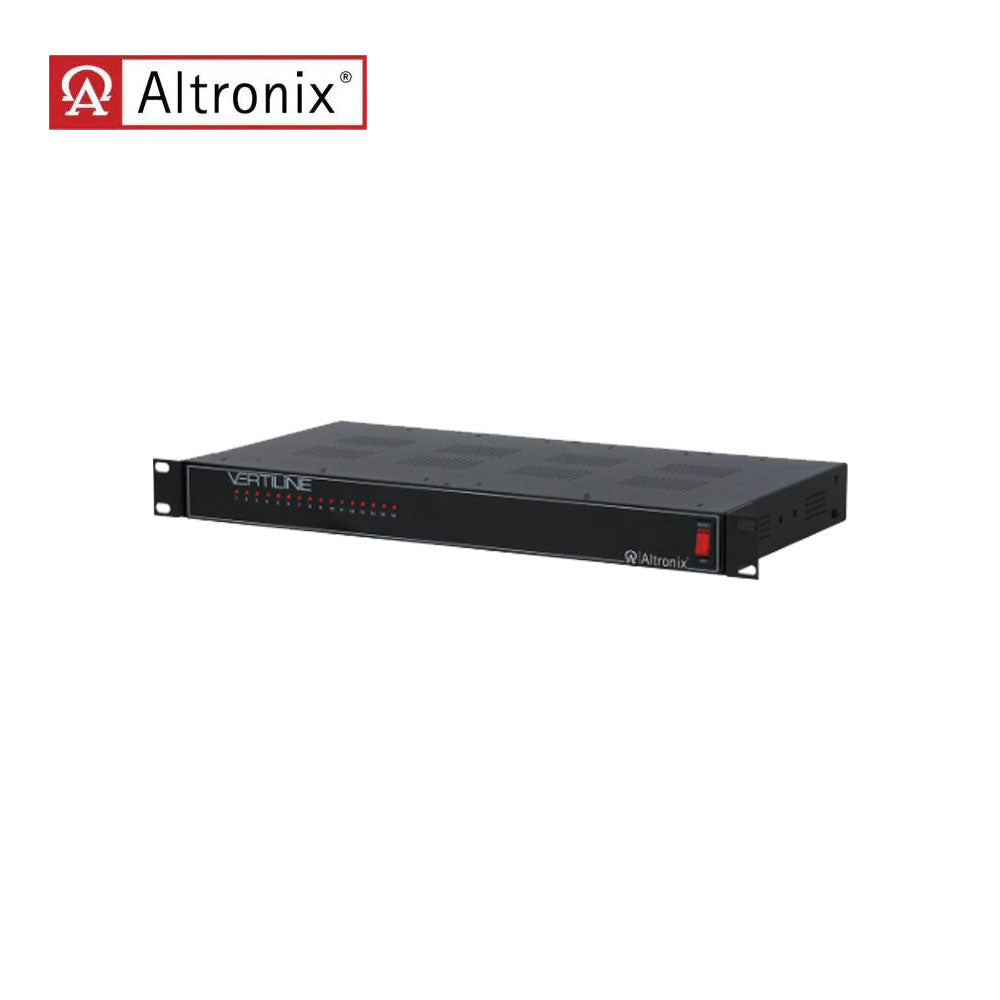

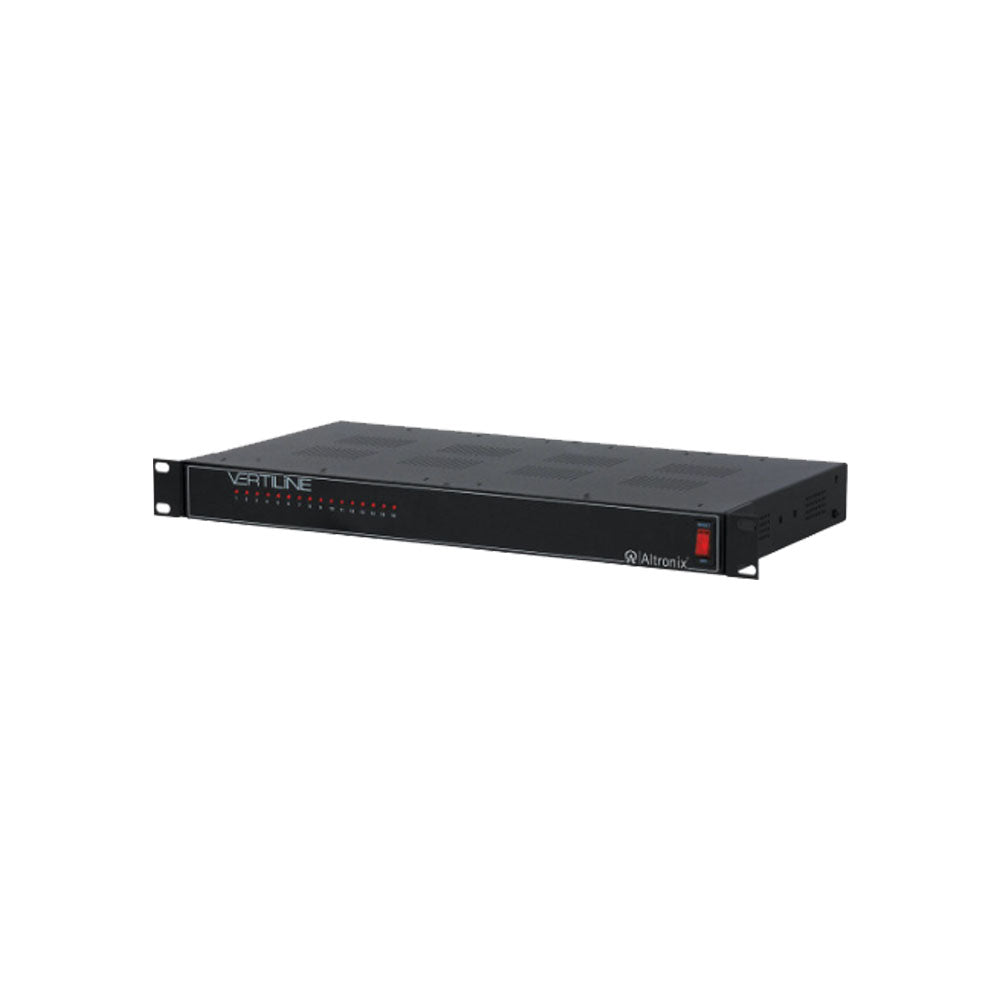

Altronix - VERTILINE63TDV - DC CCTV Rack Mount Power Supply - 220VAC 60Hz at 3A Input - 16 PTC Protected Outputs 24VDC at 16A Max

Altronix - VERTILINE63TDV - DC CCTV Rack Mount Power Supply - 220VAC 60Hz at 3A Input - 16 PTC Protected Outputs 24VDC at 16A Max

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• 220VAC 60 Hz, 3A input.

Output:

• 24VDC outputs rated @ 16A total current max. (1.0A per device, 2.5A max.).
• Sixteen (16) PTC protected power outputs.
• Filtered and electronically regulated.

Features:

• Sixteen (16) power LEDs.
• Illuminated master power disconnect circuit breaker with manual reset.
• IEC 320 - 3-wire grounded line cord (detachable).
• Removable terminal blocks with locking screw flange.

Temperature:

• Operating 0° C to 49° C (32° F to 120° F).
• Storage - 20° C to 70ºC ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.): 197 BTU/Hr.
• System AC input VA requirement: 660VA.

Enclosure:

• Modular 1U standard EIA 19" rack mount chassis.
• Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).

Download:

• Installation Instruction
