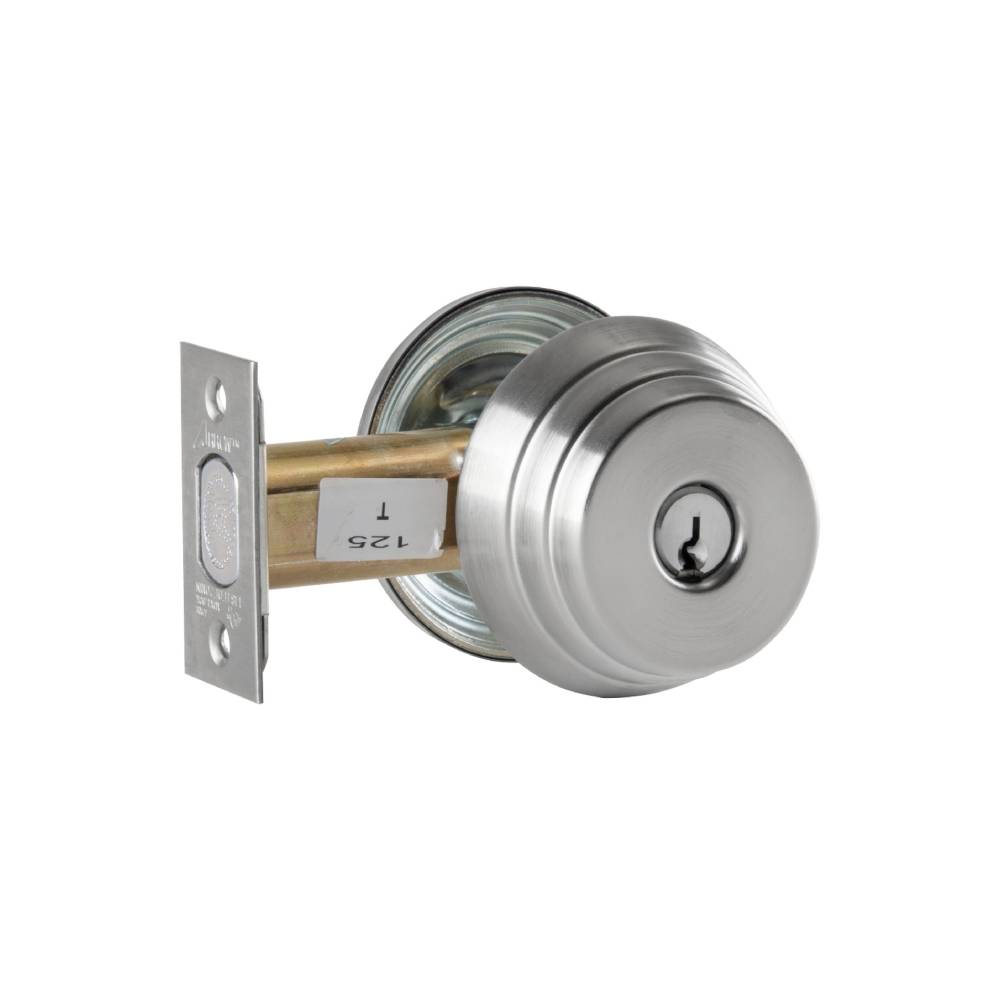

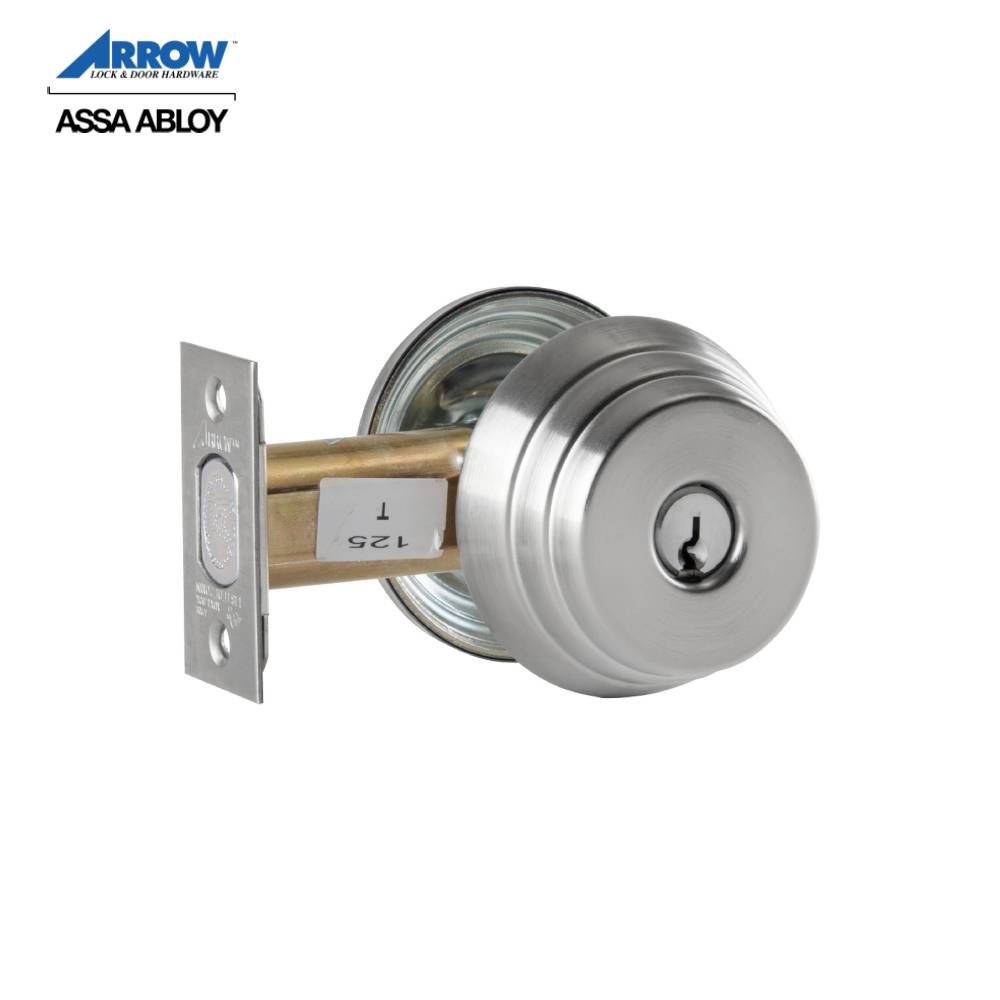

Arrow - E61-26D - Single Cylinder Deadlock - 2 3/8" Backset - Field Reversible - Satin Chrome Finish - Grade 2
Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.
- Housing: Two-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.
- Thru-bolting: supplied with two 1/4" (6.35 mm) steel thru-bolts.
- Deadbolt: 1" (25.40 mm), solid steel deadbolt throw with hardened steel pin insert.
- Backset: 2-3/8" (60.32 mm), 2-3/4" (69.85 mm
- Deadbolt fronts: 2-1/4" (57.15 mm) x 1" (25.40 mm) standard for 2-3/8" (60.32 mm) backset
- Doors: 1-3/8" (34.925 mm) to 1-3/4" (44.45 mm) thick standard.
- Strikes: Supplied standard with #395 strike pack (metal and wood).
- Handing: All functions are reversible.
- Cylinder, Standard:Solid brass, Arrow “A” deyway, drilled for 6 pins, pinned to 5 for stock. E41/42 is available 5 pin, Arrow AR and Schlage C only. Supplied with two keys. Available in Schlage CS keyway and other competitive keyways.**Product will accept other manufacturers' cylinders but cannot be ordered with the product.
- Cylinder Options: Accepts 6 or 7 pin interchangeable cores. Supplied less cores. Will accept Best™ or Falcon™ type cores.
|Unit of Measure||Each|
|Function||61-Single Cylinder Deadbolt|
|Cylinder Type||Conventional Cylinder|
|Num Pins||6-pin, Keyed 5|
|Std. Keyway||Arrow A|
|Keying||Keyed Alike Group of 4|
|Num of Keys||2|
|Door Thickness||1-3/8" - 1-3/4"|
|Std. Latch Number||141|
|Std. Latch Type||Deadbolt|
|Std. Latch Backset Dim||2-3/8"|
|Lock Face Size||2-1/4 In. x 1 In.|
|Bolt Projection||1" Deadbolt|
|Std. Strike Number||395 (345 & 346)|
|Std. Strike Type||Flat Strike|
|Std. Strike Height||2-3/4"|
|Std. Strike Width||1-1/8"|
