Arrow - MK33BD-10B - Asylum Cylindrical Ball Knob Locks - 2-3/8” Standard Backset - Oil-Rubbed Bronze - Grade 2

  • Product SKU: ARW-MK33BD-10B
  • Order within

    and choose FedEx 2Day® Shipping

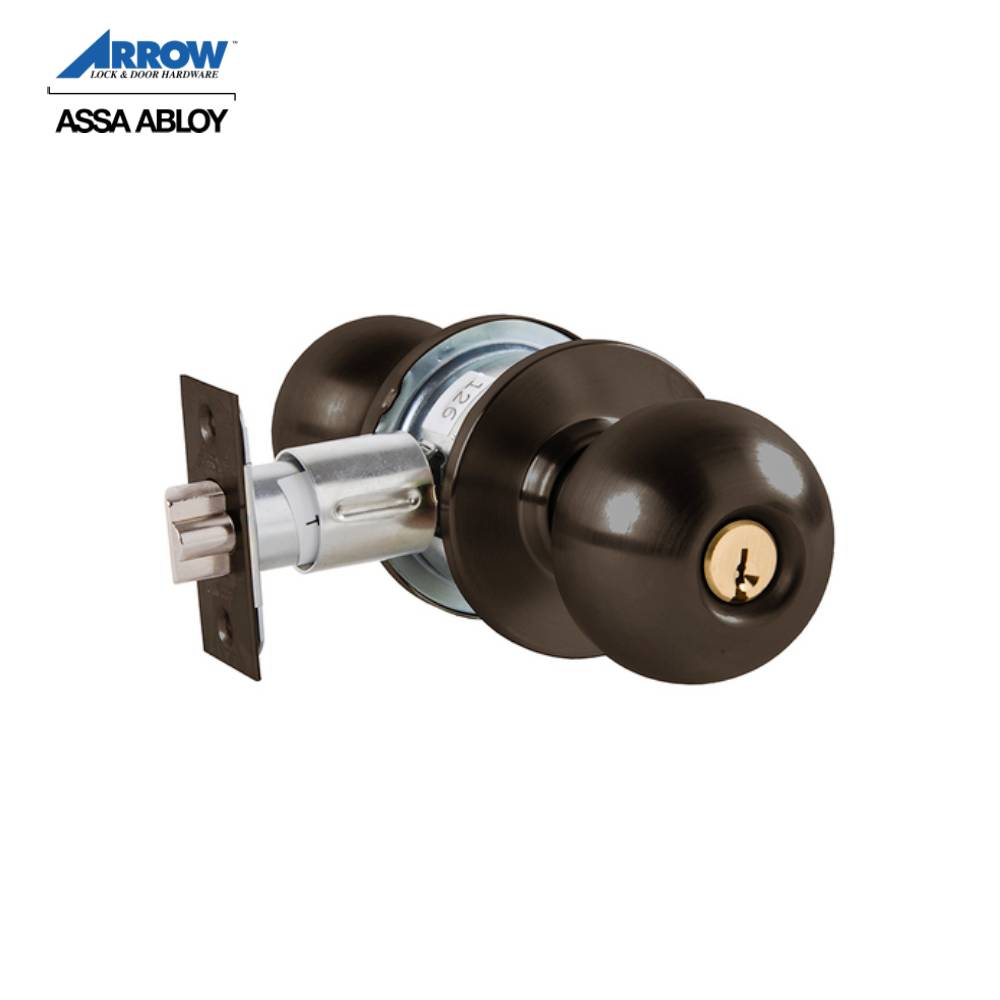

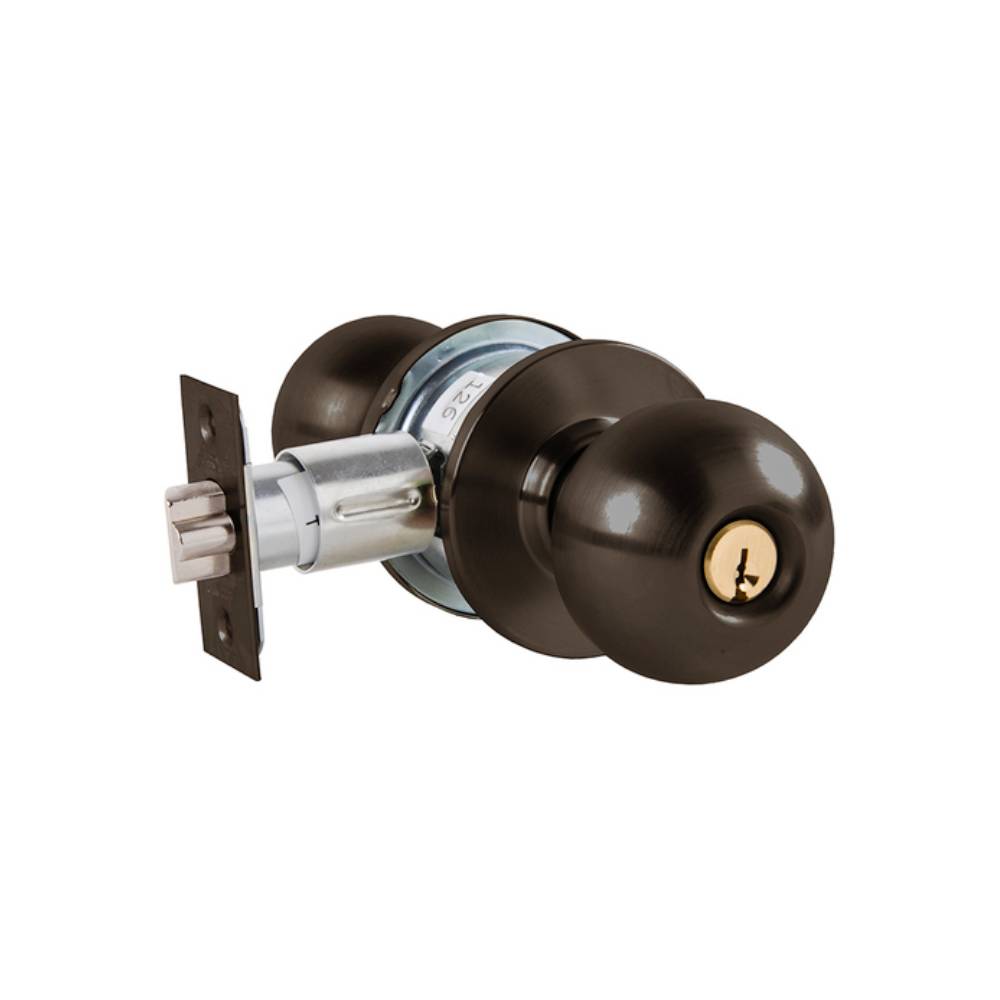

Arrow - MK33BD-10B - Asylum Cylindrical Ball Knob Locks - 2-3/8” Standard Backset - Oil-Rubbed Bronze - Grade 2

The MK Series is available in several finishes and functions that make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.

  • Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8"(53.97 mm) bore through door.
  • Backset: 2-3/8"(60.32 mm) standard. 2-3/4"(69.85 mm), 3-3/4"(95.25 mm) available.
  • Door Thickness: 1-3/8"(34.92 mm) to 1-3/4"(44.45 mm) Latch – Brass with 1/2"(12.7mm) throw.
  • Latch: Latch housing is steel, with zinc dichromate finish for corrosion resistance. 7/8"(22.225 mm) bore in edge of door is required.
  • Latch Front: Brass or bronze. Standard faceplate for 2-3/8"(60.32 mm) backset measures 2-1/4"(57.15 mm) x 1"(25.40 mm), with a flat front, for 2-3/4"(69.85 mm) standard faceplate measures 2-1/4"(57.15 mm) x 1-1/8"(28.57 mm), with a beveled front 1/8"(3.17 mm) in 2"(50.8 mm).
  • Strike: Brass, bronze or stainless steel. Standard “T” strike measures 2-3/4"(69.85 mm) x 1-1/8"(28.57 mm). Optional ANSI A115.1 strike measures 4-7/8"(123.82 mm) x 1-1/4"(31.75 mm). All strikes have a 1-1/4"(31.75 mm) lip to center dimension.
  • Handing: Reversible.
  • Cylinder, Standard: Solid brass 6 pin cylinder with Arrow "A” keyway, keyed to 5 pin for stock. Supplied with two 5 pin brass keys for stock.
Product Specifications:
Vendor Assa Abloy
Manufacturer Arrow
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
Base Material Bronze
UL Listing Type BHMA A156.2, Series 4000, Grade 2, UL Listed
ANSI Number F87
Technical Specifications:
Function 33-Asylum
Function Family Institutional
ANSI Function F87 - Asylum
Lever/Knob Design BD - Ball Knob
Lever/Knob Design Family Ball Knob
Rose/Escutcheon Design 2-9/16" Rose Diameter
Rose/Escutcheon Dimensions 2-9/16"
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/8"to 1-3/4"
Std. Latch Number 114
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8"
Lock Face Size 1-1/8"x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 300
Std. Strike Type T-Strike
Std. Strike Height 2-3/4"
Std. Strike Width 1-1/8"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
