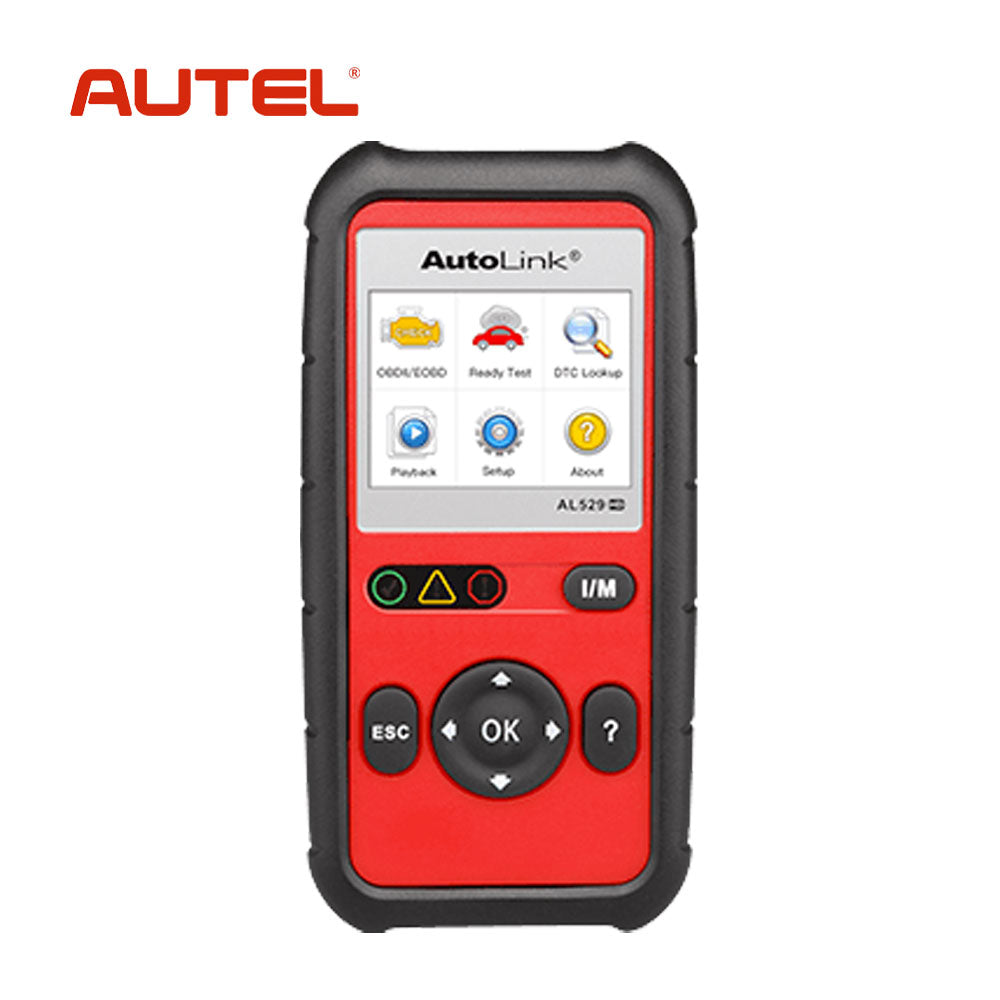

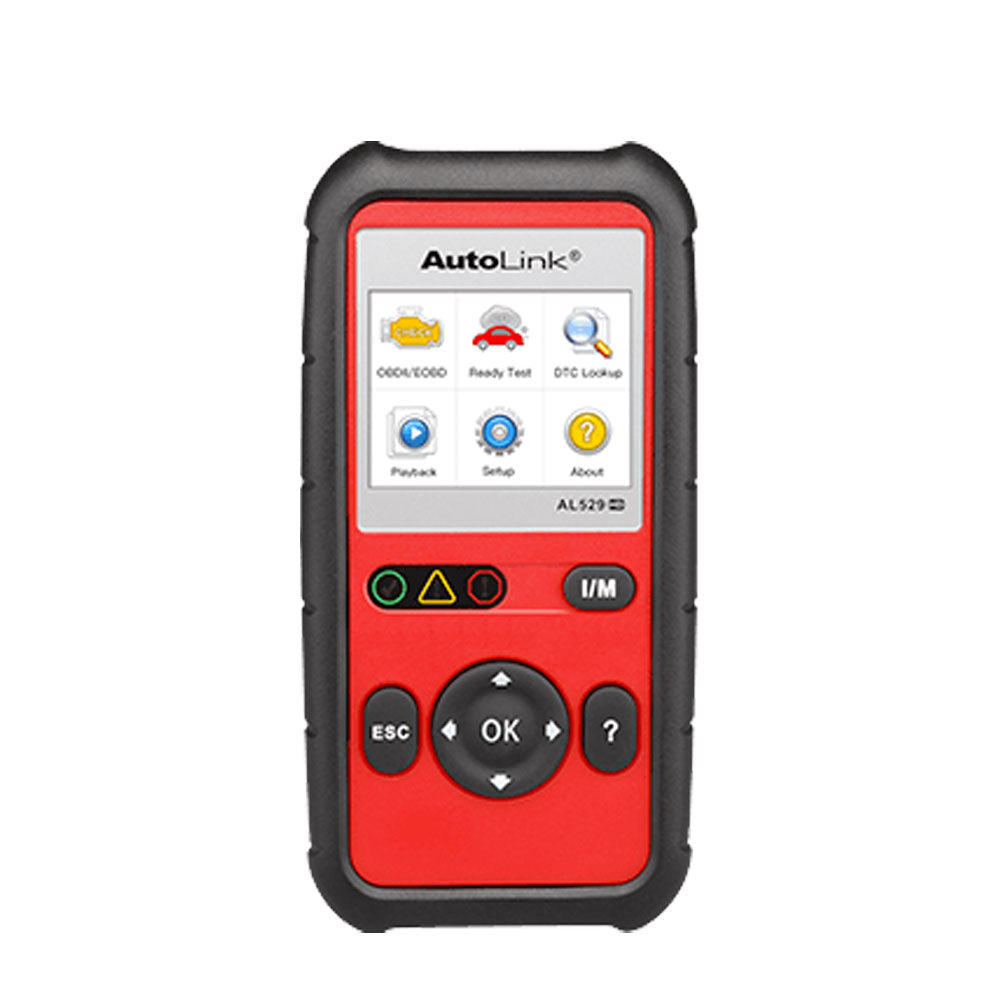

Autel AutoLink AL529HD OBD2 OBD2/EOBD Heavy Duty Code Scanner and Emission Tester

Autel AutoLink AL529 OBD2 Code Scanner and Emission Tester

The AutoLink AL529 OBDII Code Reader supports all 10 modes of OBDII test for complete vehicle diagnostics. The easy-to-use tool features a TFT color display and built-in speaker for visual and audible message cues and the patented One-Click I/M Readiness Key for quick State Emissions.

Description:

• Compatible with Heavy Duty Vehicles utilizing SAE-J1939 and SAE-J1708 protocols
• Compatible with domestic, Asian and European vehicles, 1996 and newer. OBDII/EOBD compatible
• Vehicles (ISO9141, ISO14230, ISO15765, SAE-J1850 VPW, SAE-J1850 PWM)
• AutoVIN function for quick manufacturer-specific code identification
• Reads enhanced codes in Powertrain system for Ford, GM and Chrysler
• Enhanced OBDII Mode 6 access
• Retrieves generic (P0, P2, P3 and U0), manufacturer-specific (P1, P3 and U1) and pending codes
• Retrieves vehicle identification information (VIN, CALID and CVN)
• Easily determines the cause of the Check Engine Light/ Malfunction Indicator Light (MIL)
• Turns off Check Engine Light, clears codes and resets monitors
• Views freeze frame data
• Reads live PCM data stream
• Displays live O2 sensor test data
• Graphs data
• Reads, stores and plays back live sensor data
• Troubleshooter code tips aid technician in efficient vehicle diagnostics and repair.
• Patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification
• Color-coded LEDs and built-in speaker provide visual and audible tone for readiness verification
• Multilingual (including English, Spanish and French) menus and DTC definitions.
• Internet Updatable
• Prints data via Windows PC

Specification

Download:

• AL529&529HD Quick Guide V1.00.pdf

• Autel AutoLink AL529HD User Manual
