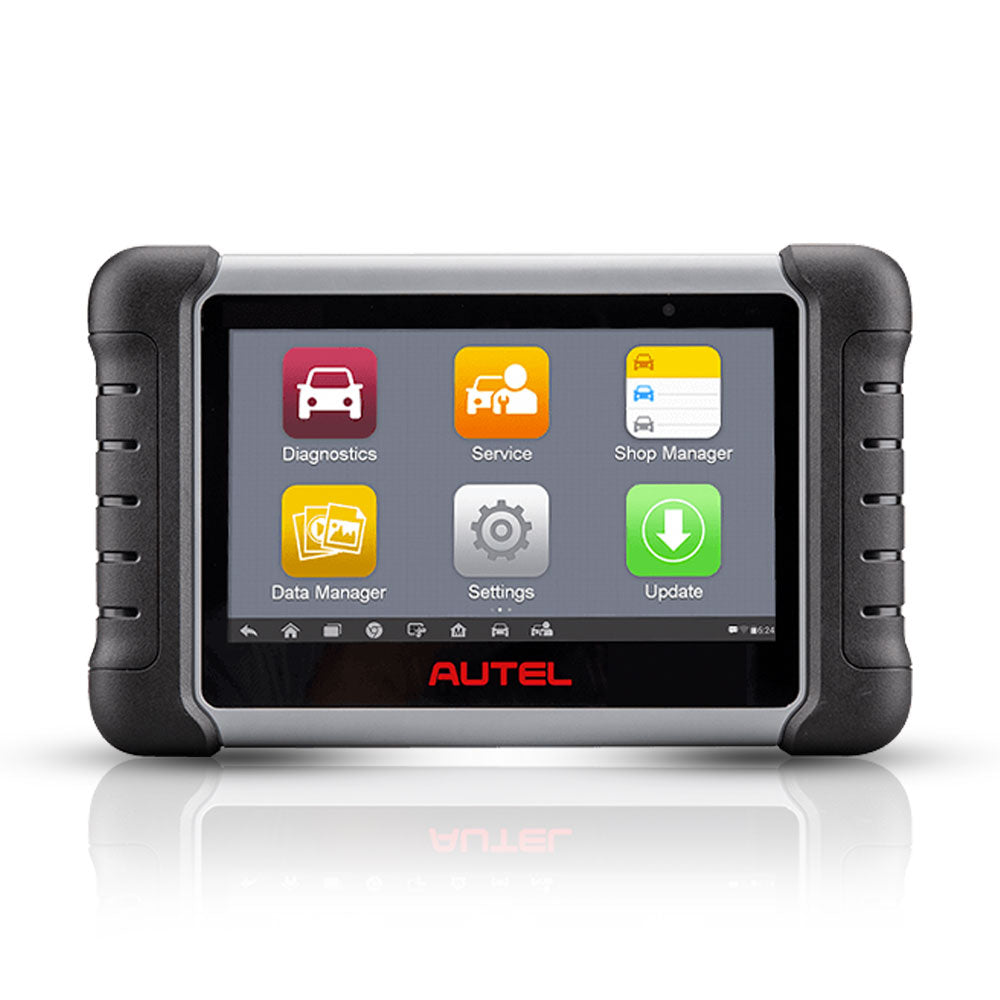

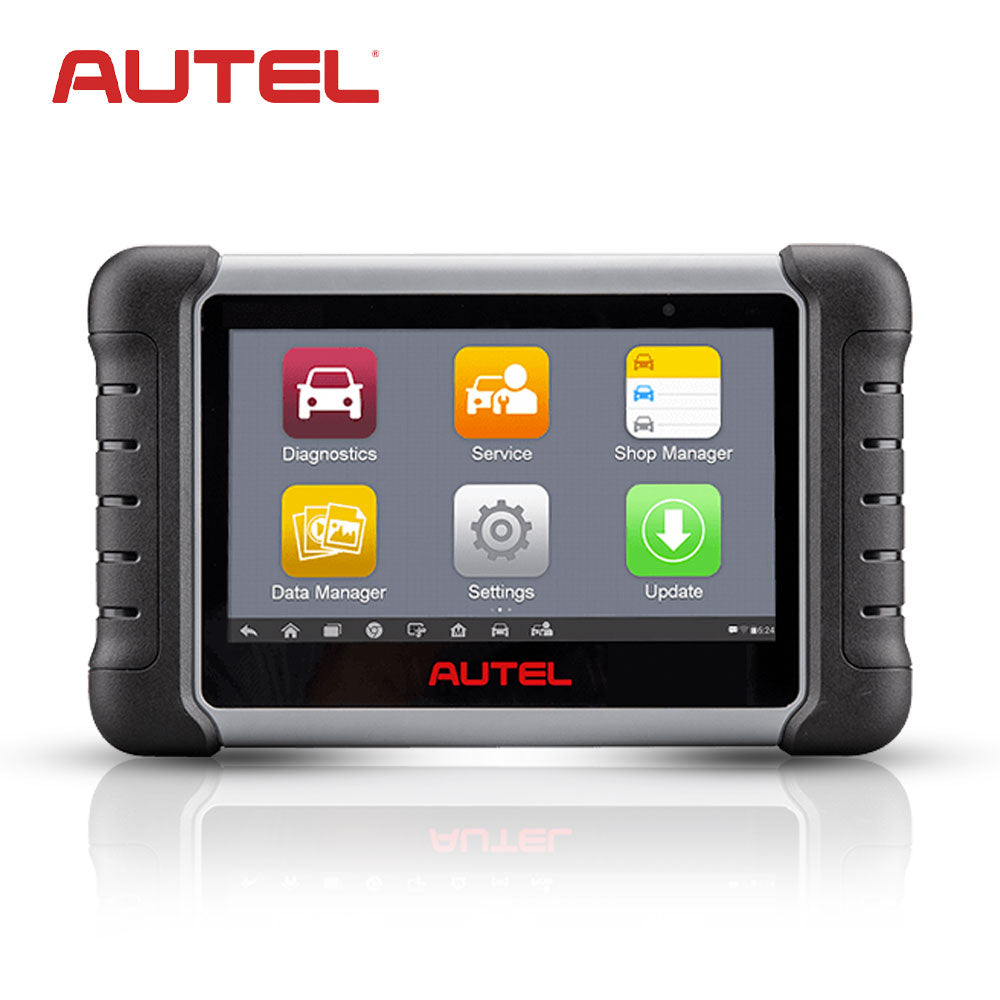

Autel MaxiCOM MK808 Ultra-Portable Diagnostic System
Please note: The USA version of this machine Autel MaxiCheck MX808 OBD2 All System Diagnostic Scanner will be shipped instead.
Autel MaxiCOM MK808 and Autel MaxiCheck MX808 have the same appearance and functionality but only different names.
- Read/clear codes for all available systems
- NEW! Support active test and complete special functions
- Display live data in text, graph & analog for easy data review
- Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time
- Relearn parking brake pad after replacement
- Support IMMO functions
- Support forced DPF regeneration and adjusting injectors
- Reset Steering Angle Sensor (SAS)
- Reset service mileage and service intervals
- Support TPMS sensor relearn
- Support battery registration and reset
- NEW！Compatible with Videoscope
|Operating System||Android™ 4.4.4|
|Processor||Cortex-A9 processor(1.6 GHz)|
|Display||7-inch LCD capacitive touchscreen with 1024x600 resolution|
|Connectivity||Mini USB 2.0
Micro SD card (supports up to 32GB)
|Sensors||Ambient light sensor for brightness auto adjust|
|Audio Input/Output||Input: N/A
|Power and Battery||3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply
|Tested Battery Life||Around 4.5 hours of continuous use|
|Battery Charging Input||5V/1.5A|
|Power Consumption||500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V|
|Operating Temp||0 to 55°C(14 to 131°F)|
|Storage Temp||-20 to 60°C (-4 to 140°F)|
|Dimensions(WXHX D)||237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)|
|Net Weight||788 g (2.42 lb.)|
|Supported Automotive Protocols||ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN,fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6|
