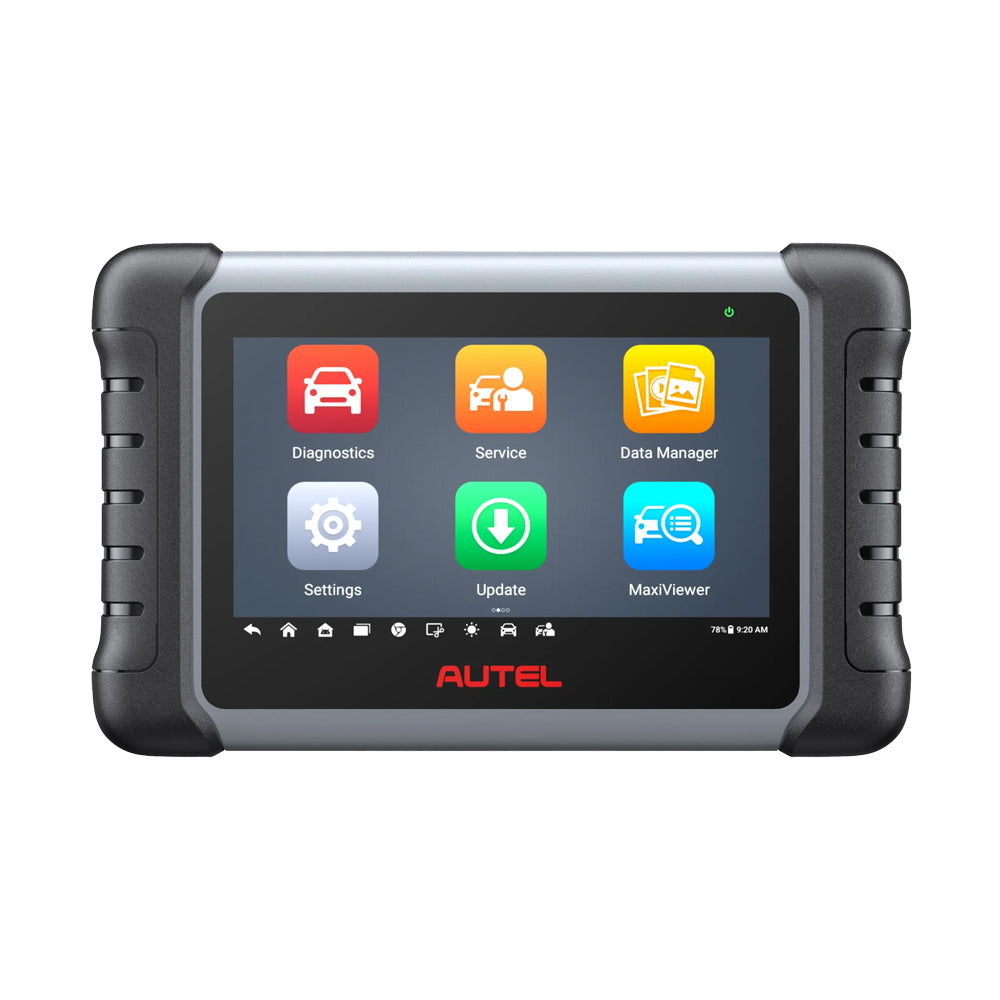

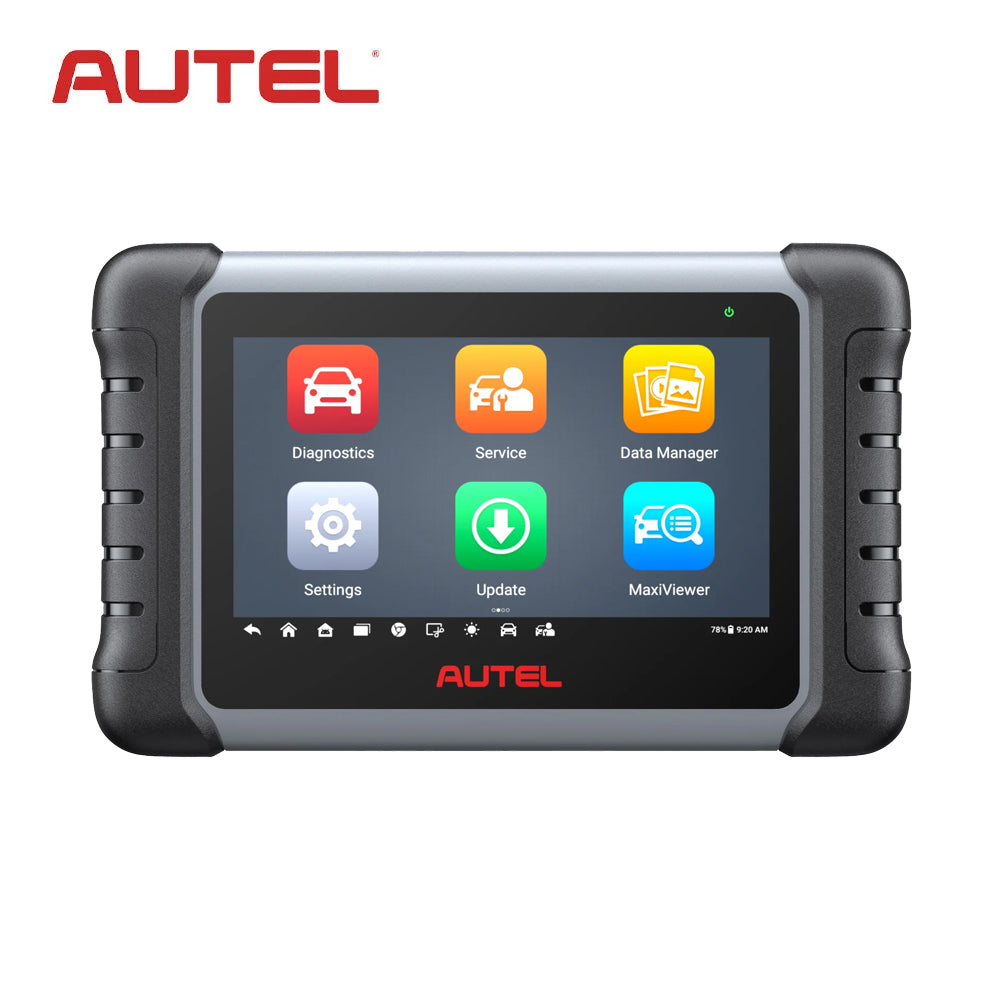

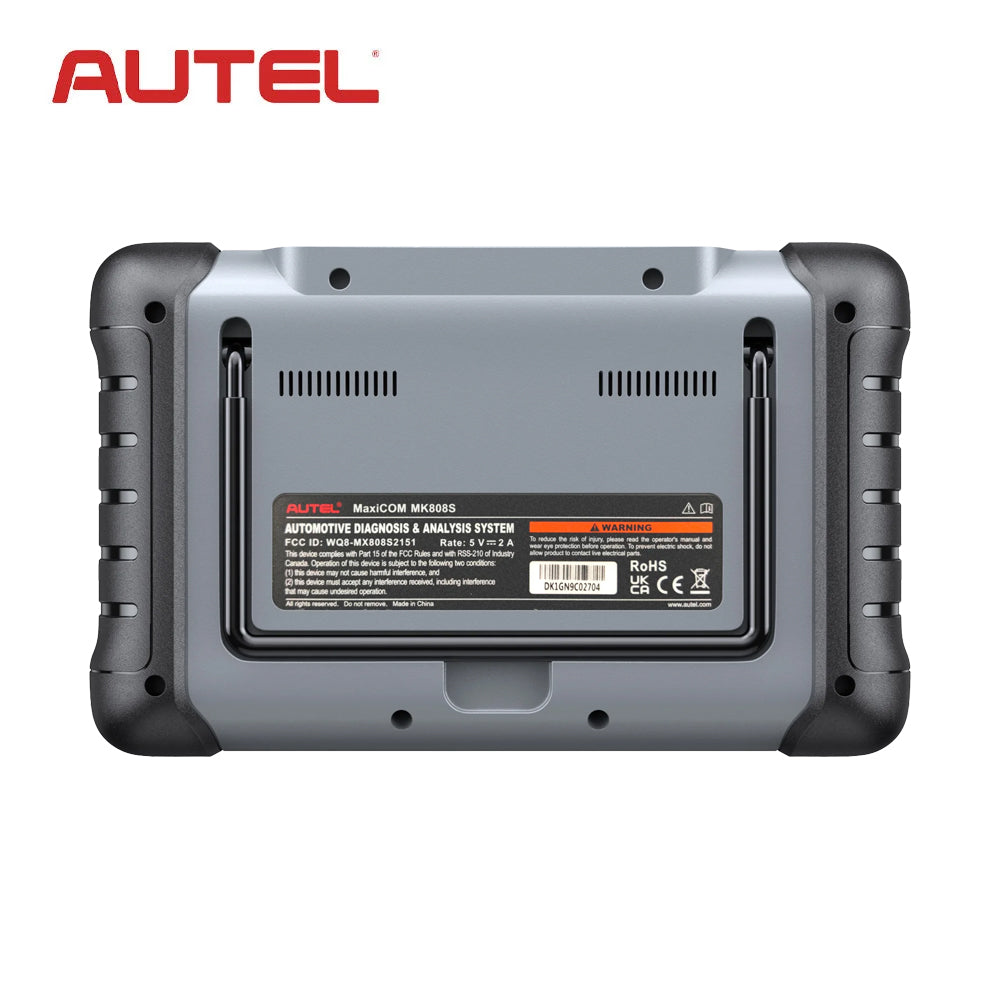

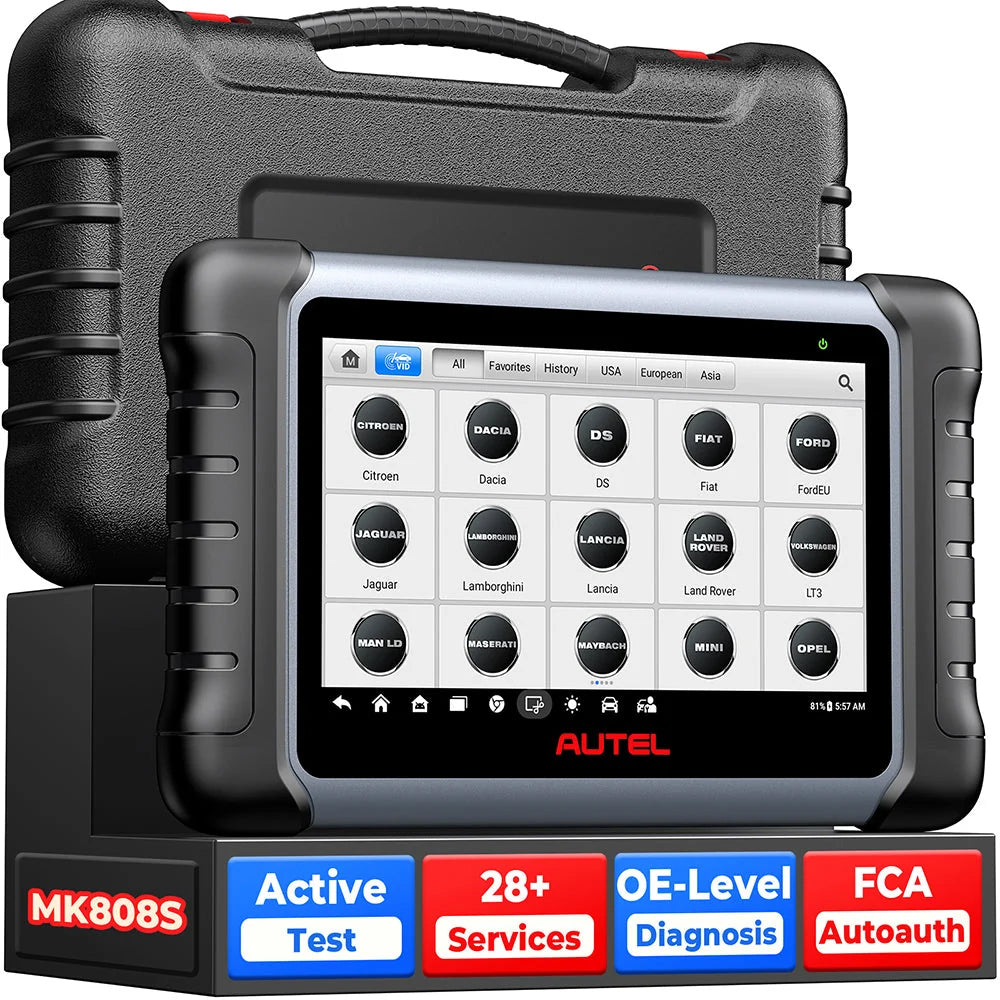

Autel MaxiCOM MK808S Bidirectional Scanner with OE-Level All System Diagnostic, 28-Plus Services, AutoVIN, FCA and Android 11 OS

Autel MaxiCOM MK808S Bidirectional Scanner with OE-Level All System Diagnostic, 28-Plus Services, AutoVIN, FCA and Android 11 OS

When it comes to ultra-portability, MaxiCOM MK808S is your perfect companion. Installed with a fast quad-core processor, MK808S offers maximum convenience and swift diagnosis. The intuitive user interface makes using the device effortless, with a 7-inch LCD touchscreen that displays at 1024 x 600 resolution. Together with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, MK808S provides you with superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), DPF (Diesel Particulate Filter), and TPMS (Tire Pressure Monitoring System).

MaxiCOM MK808S is a Professional-grade diagnostics in a user-friendly device-ideal for mechanics and DIYers alike. Save time, reduce costs, and tackle any repair with confidence.

Key Highlights:

• Bi-Directional Active Test
• 28+ Special Services for 10,000+ Vehicles
• Full-System Diagnostics
• Built-In FCA Auto Auth
• Videoscope Compatibility
• Cloud Report Management
• Auto VIN Technology
• Remote Support & 1-Year Warranty

Specifications:

Key Features:

The most cost-effective device with high-end capabilities

Hardware & Software Upgrades Improve Diagnostic Speed by 5 Times:

• CPU: From ROCKCHIP RK318 to ROCKCHIP RK3566
• Storage: From 1G & 32G to 4G &64G
• OS: From Android 4.4.4 to Android 11
• Special Functions: From 25+ to 28+

Bi-Directional Control - Your 2-Way Diagnostic Highway

Unlike ordinary scanners that only read data from your car's computer, the Autel MK808S bidirectional scan tool enables two-way communication. It doesn't just receive information-it sends commands directly to your vehicle's onboard modules, triggering specific tests and functions to pinpoint issues with precision.

Key Bi-Directional Functions:

• Fuel Pump Activation: Send a single command to pressurize the fuel pump instantly, eliminating guesswork about fuel delivery issues.
• Variable Valve Timing Test: Actuate the VVT solenoid and observe real-time changes in engine sound or RPM to verify performance.
• Component Health Checks: Test warning lights, solenoids, and even windshield wiper intervals to ensure every system operates as intended.

Turn vague symptoms into clear solutions. With Autel MK808S bi-directional control, you're not just scanning for codes-you're actively testing components to diagnose and fix issues faster, saving time and reducing costly trial-and-error. It's the ultimate tool for professional-grade diagnostics in a portable, affordable package.

More Than Just Diagnostics

Pair this powerful bi-directional control with the MK808S's core strengths:

• Full-System DTC Management: Read and clear trouble codes for all vehicle modules in seconds.
• 20+ Special Services: Handle oil resets, EPB calibration, SAS alignment, BMS registration, DPF regeneration, and TPMS programming with ease.
• Ultra-Portable & User-Friendly: 7-inch HD touchscreen, quad-core processor, and intuitive interface make swift diagnostics effortless for technicians and DIYers alike

28+ Special Services - Your All-in-One Automotive Maintenance Solution

Tired of overpaying for basic repairs? Frustrated by entry-level scanners that lack key reset functions or can't keep up with new car models? The 2026 Autel MK808S diagnostic scanner solves these headaches and more, delivering professional-grade maintenance tools to DIYers, home mechanics, and repair shops alike.

From routine upkeep to complex fixes, the MK808S covers it all:

• Routine Maintenance: Oil Reset, TPMS Programming, Throttle Adaption
• Safety Systems: ABS Bleed, Airbag Reset, SAS Calibration
• Battery & Electrical: BMS Registration, EPB Service
• Engine & Performance: DPF Regeneration, Injector Coding, Turbocharging Adjustment
• Vehicle Calibrations: Suspension Calibration, Headlight Matching, Gear Learning
• Convenience Features: Sunroof Initialization, Seat Calibration, Language Change

Whether you're fixing your family car or running a busy repair shop, the Autel MK808S special services turn costly, time-consuming maintenance into quick, affordable tasks. Ditch the limited entry-level scanners and upgrade to the tool that does it all.

Why Choose the Autel MK808S?

• Save Thousands on Shop Costs: Handle 28+ maintenance tasks at home instead of paying premium repair shop fees.
• 10,000+ Vehicle Compatibility: Works with most domestic, Asian, and European brands - no more brand-specific tools needed.
• Constantly Updated Software: Regular free updates ensure support for the latest 2025 car models, keeping your scanner future-proof.
• User-Friendly for All Skill Levels: Intuitive interface and step-by-step guides make even complex resets easy for DIYers, while professionals appreciate the efficiency gains.

Add-on Features:

• Work with MV105S/MV108S: visual inspection in hard-to-reach areas.
• Remote Desk: helps you get connected with instant pro advice remotely right on the spot.
• Autel Cloud Report: upload diagnostic reports to Autel Cloud and share easily.

21+ Languages Menu

English, German, Spanish, French, Traditional Chinese, Japanese, Polish, Portuguese, Russian, Italian, Korean, Dutch, Swedish, and many others.

Full-System Diagnostics, OE-Grade Performance at Your Fingertips

Modern vehicles are complex networks of interconnected systems-engine, brakes, electrical, and more-making quick, accurate diagnostics a challenge for technicians and DIYers alike. The Autel MK808S full-system scanner acts as your trusted diagnostic assistant, delivering comprehensive coverage and professional-grade insights that match expensive OEM tools, all in a portable, user-friendly package.

Diagnose 99% of Vehicles, Covering All Critical Systems

From engine performance to safety systems, the MK808S leaves no stone unturned:

• Powertrain: Engine (lubrication, cooling), fuel system (evaporative emission), ignition system, drive train (transmission)
• Safety & Control: Brake system, suspension and steering, airbag (SRS), ABS
• Electrical & Comfort: Electrical system (starting, charging, lighting), frame and body controls
• Emissions: Exhaust system (emission control)

Key Diagnostic Functions to Simplify Repairs:

• Read & Clear Codes: Retrieve DTCs (Diagnostic Trouble Codes) and ECU info, then clear codes and turn off MILs (Malfunction Indicator Lights) once repairs are done. Live Data Streaming: Monitor real-time data from all systems to spot anomalies, like irregular engine RPM or brake pressure fluctuations.
• OE-Level Accuracy: Get the same deep system insights as dealership scanners, but at a fraction of the cost-ideal for repair shops, mobile mechanics, and serious DIYers.

Auto VIN:

Manually entering the car's VIN code wastes time and may lead to mistakes, which will bring unnecessary trouble to the diagnosis. Therefore, the importance of the Auto VIN function is self-evident. You only need to connect the diagnostic scanner and the vehicle, and the diagnostic scanner will automatically scan the VIN, display the relevant information, and guide you to make the system diagnostics.

Graphic Live Data Stream for Instant System Insights

Tired of guessing what's wrong with your car? The Autel MK808S diagnostic scanner delivers OE-grade live data diagnostics in a user-friendly format, letting you monitor every system's real-time status at a glance-no more blind troubleshooting.

4 Display Modes for Every Diagnostic Need

Switch between modes to view data as graphs, tables, or numerical readouts, depending on your preference. Whether you're a DIYer or a pro mechanic, you can quickly spot anomalies in engine RPM, throttle position, oxygen sensor output, and more.

Proven Features to Save Time & Money

• Real-Time Data Streaming: Monitor live parameters like accelerator pedal position, oxygen sensor voltage, and coolant temperature to catch intermittent issues before they escalate.
• Data Record & Freeze Frame: Capture and save critical data points during a code, even if the issue disappears-ideal for diagnosing intermittent problems that vanish under normal conditions.
• Instant Error Log Access: View detailed error logs immediately after a scan, eliminating the need to wait for a technician's report.

Vehicle Coverage 150+ Brands, 1984-2025 Models

• America: Chrysler, Dodge, Ford, GM, Jeep, Buick, Cadillac, Chevrolet, Holden, Lincoln, Mercury
• Europe: Abarth, Alfa, Aston Martin, Audi, Bentley, Benz, BMW, Bugatti, Citroen, Dacia, Ferrari, Fiat, Ford-EU, Jaguar, Lamborghini, Lancia, Land Rover, LT3, Maserati, Maybach, Mini, Opel, Peugeot, Porsche, Rolls-Royce, Saab, Seat, Skoda, Smart, Vauxhall, Volvo, V-W, V-W CV
• Asia: Acura, Daewoo, Daihatsu, Fuso, Honda, Hyundai, Hyundai CV, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Perodua, Proton, Samsung, Scion, Ssang Yong, Subaru, Suzuki, TATA, Toyota

NO-IP Limitation, Use Worldwide

Use anywhere in the world, without worrying about whether some features will not work in your area.

FCA Auto Auth

Fiat Chrysler Automobiles (FCA US) has implemented an SGW module, starting with most 2018 model-year vehicles, to safeguard its vehicles from cyberattacks. AutoAuth is the solution created to give IAM tools like MK808S the ability to open the SGW and perform all applicable diagnostic repairs.

Renault Security Gateway

Renault SGW is used to secure vehicular networks and control access. Without an account or a trusted partner token, you might not be able to process diagnostics and matchings for Renault vehicles. Thus, we add this feature to MK808S, allowing you to perform diagnostics on Renault vehicles smoothly.

2026-Ready Diagnostic Scanner with Lifetime Free Updates

Struggling to keep up with diagnostics for the latest car models? The Autel MK808S is your future-proof solution, offering OE-level diagnostic coverage for 2022-2024+ vehicles with 1 year of unlimited free upgrades-no renewal fees, no extra tools needed.

Expanded Coverage to Power Your Auto Repair Business

Looking to expand your diagnostic capabilities and boost repair shop efficiency? The Autel MK808S is your all-in-one solution, with expanded car model support and brand-specific functions that grow your service offerings.

Brand-Specific Diagnostic Functions

• Renault: Full coverage for Tango II, Clio V, Kangoo, Duster, Traffic III, and more
• GM: Read ECU info, trouble codes, live data, and perform oil reset
• Chrysler: Upgrade ECU info, configure ECU, read/erase codes, and monitor live data
• VW/Audi/Skoda: Active test, basic setting, adaptation, security access, and advanced ID
• Honda: A/F setting, 18 manual oil reset methods, and control unit reset

Downloads:

• User Manual
