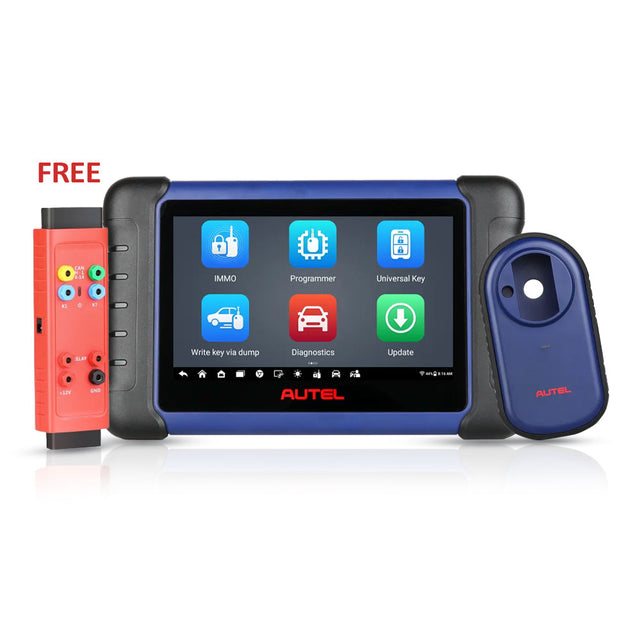

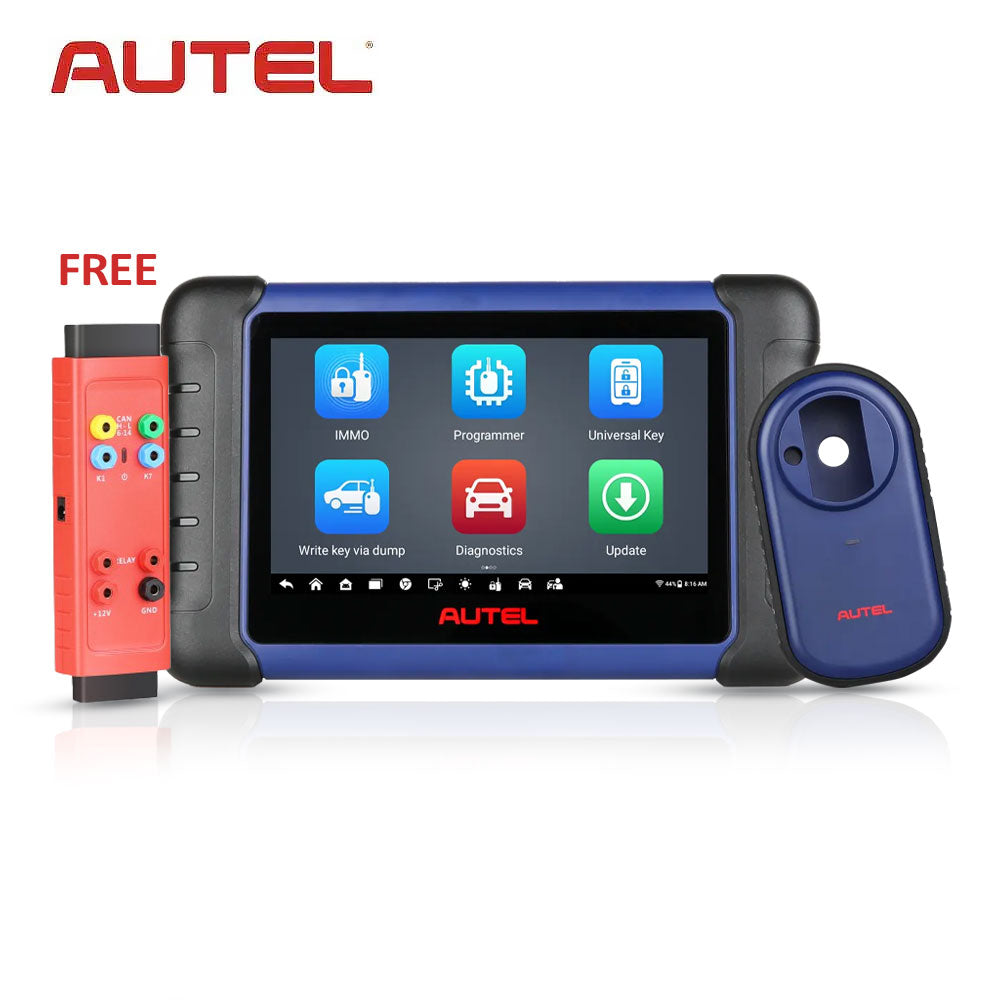

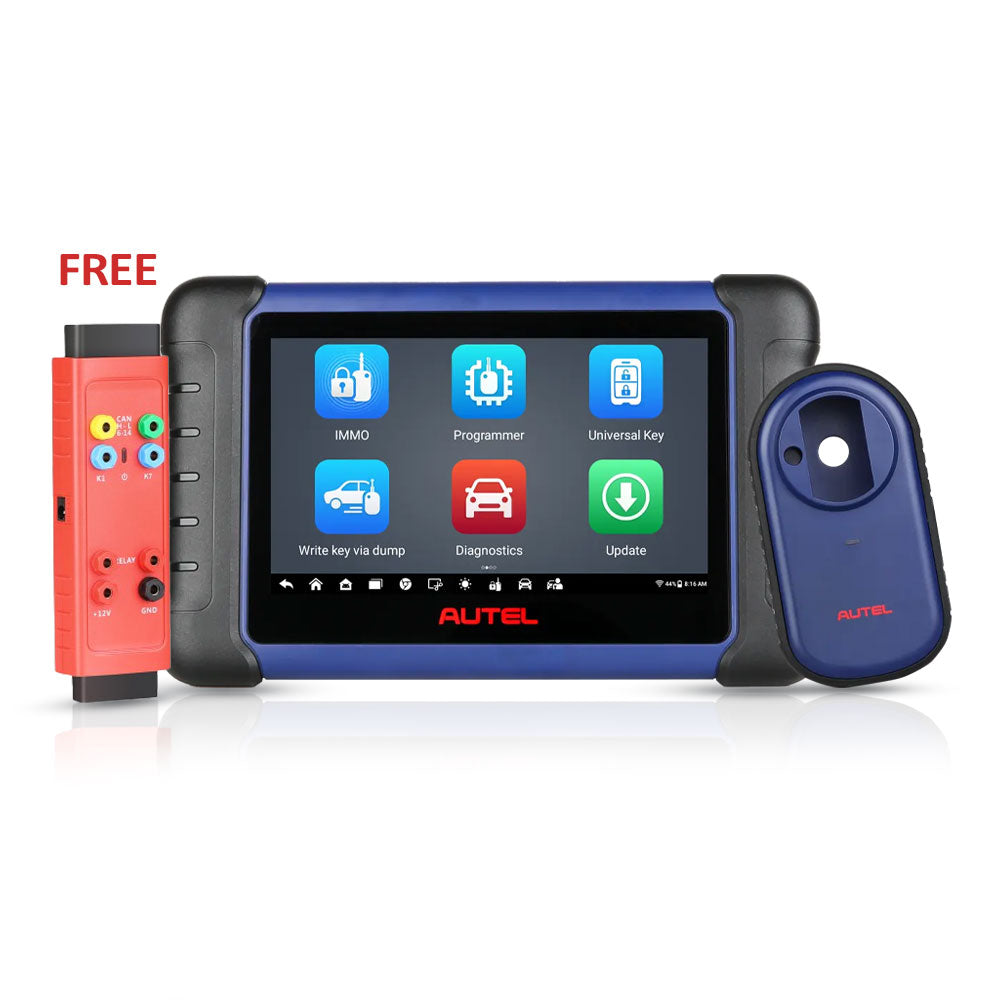

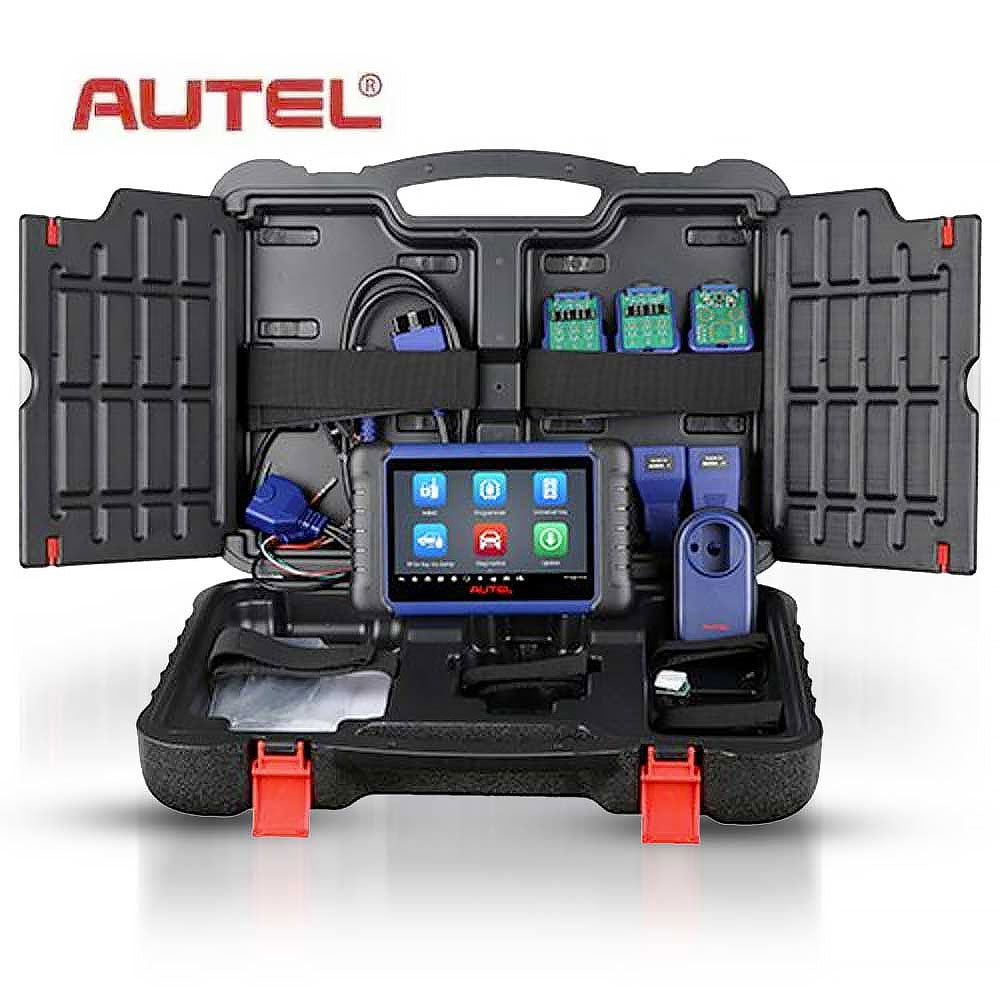

Autel MaxiIM IM508S Key Programming and Diagnostic Tool with G-BOX3
- Product SKU: AUTEL-IM508S-GBOX3
-
Order within
and choose FedEx 2Day® Shipping
Autel MaxiIM IM508S Key Programming and Diagnostic Tool with G-BOX3
Includes:
Autel MaxiIM IM508S Key Programming and Diagnostic Tools with One Year Update
Autel IM508S is a professional car key programmer and immobilizer that combines key programming, all systems diagnosis and advanced service functions. It could perform all keys lost, add key, key learning, remote control add, remote control learning, key chip read and write and other car related functions
*Wifi is required for key programming and diagnostics*
Highlights:
- Global Version without IP Blocking Problem
- One Year Free Update Online. After One Year, IM508 Software Subscription Cost 350USD per year
- Function IMMO+ Diagnose: Powerful combination of key programming/all system diagnostics/ advanced maintenance services
- Vehicle Supported: Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
- Advanced Maintenance Services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn
Hardware:
Processor | 4x 1.8GHz |
OP System | Android 11 |
RAM | 4 GB |
ROM | 64 GB |
Display | 7 inches, 1024*600 |
Connectivity | Wi-Fi |
Camera | No |
VCI | Wired |
Programmer | XP200 |
Battery | 5000 mAh |
Weight | 0.78 kg |
Software:
Main Features | 1.Support auto select car 2.Support guilding function 3.Support IMMO Status scanning |
IMMO | |
ve IMMO functions | |
Diagnostics | |
Basic diagnostic function | |
Remote Expert | |
N/A |
Keytool Function:
Key generation | Support |
Chip simulation |
Via APB112 |
Diagnostic:
Auto VIN | Support |
Read/Clear Codes | Support |
Live Data | Support |
Freeze Frame | Support |
ECU Information | Support |
Active Test | No (Support in Aug) |
Service Functions | 36 Kinds |
Service Functions | No (Support in Aug) |
Online Coding | Support (Partial) |
Coding | Support (Partial) |
Hidden Function Renewal | Support (Via MV105/108) |
Guilding Function | Support (Via MV105/108) |
Online Programming | Support (Via MV105/108) |
Scan VIN/License | Support (Via MV105/108) |
Protocol | Support (Via MV105/108) |
Optional:
Videoscope | Support (Via MV105/108) |

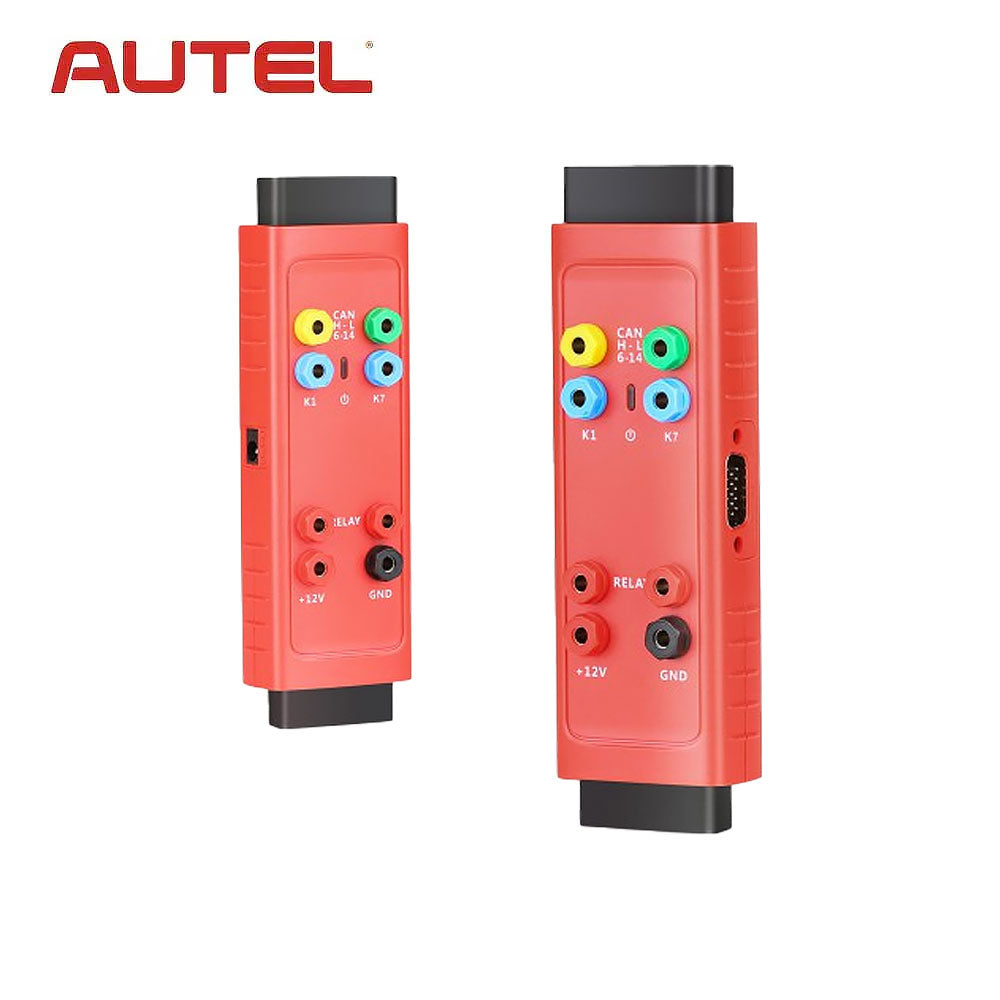

Autel G-BOX3 Key Programming Adapter for Mercedes and BMW Vehicle All Key Lost Work with Autel MaxiIM IM608 PRO II/ IM608 PRO/ IM608 II/ IM508/ IM508S
Description:
The Autel G-Box3 adapter, compatible with the MaxiM IM608Pro, IM608, and IM508 (with an additional purchase of XP400), offers faster and more secure reading and writing of Bosch EDC17, MEx17, MD1, and MG1 CUs and supports on-vehicle and on-bench Fast Mode in Mercedes-Benz All Keys Lost scenario.
What's New in Autel G-box3:
- FASTER, MORE SECURE
- Supports on-vehicle and on-bench Fast Mode in an All Keys Lost scenario for Mercedes-Benz vehicles using the DA S3 EIS/EZS.
- Bosch engine ECU read and write on BMW F-chassis, PSA group and Volkswagen MQB vehicles
G-BOX 3 FEATURES:
- Faster password calculation for Mercedes-Benz All Key Lost scenario
- 8x faster password calculation for Mercedes-Benz W172, W204 and W207 ElS types
- 4X faster password calculation for Mercedes-Benz W209 and W211 El S types
- BMW ME/DDE ISN reading for 20 types of ECUs, including EDC17, MEVD17, MSV90, and MSD87
- Volkswagen CM IMMO data reading and data synchronization for 18 types, including MQB EDC17 and MED17 ECUs
- Bosch engine ECU read and write on Volkswagen, BMW, and PSA group vehicles.
Functions:
- COMPATIBLE WITH THE MAXIM IM608, IM6O8PRO AND IM508 (WITH THE PURCHASE OF THE XP400).
- Supports on-vehicle and on-bench Fast Mode in an All Keys Lost scenario for Mercedes-Benz vehicles using the DAS3 EIS/EZS
- Bosch engine ECU read and write on BMW F-chassis and Volkswagen MQB vehicles
Gbox 2 vs Gbox3:
- Gbox2 makes Mercedes all keys lost faster, Gbox3 makes it 4x/8x faster
- Gbox3 offers faster and more secure reading and writing of Bosch EDC17, MEx17, MD1, and MG1 ECUs and supports on vehicle.
Package List:
- 1pc x Autel G-box3
