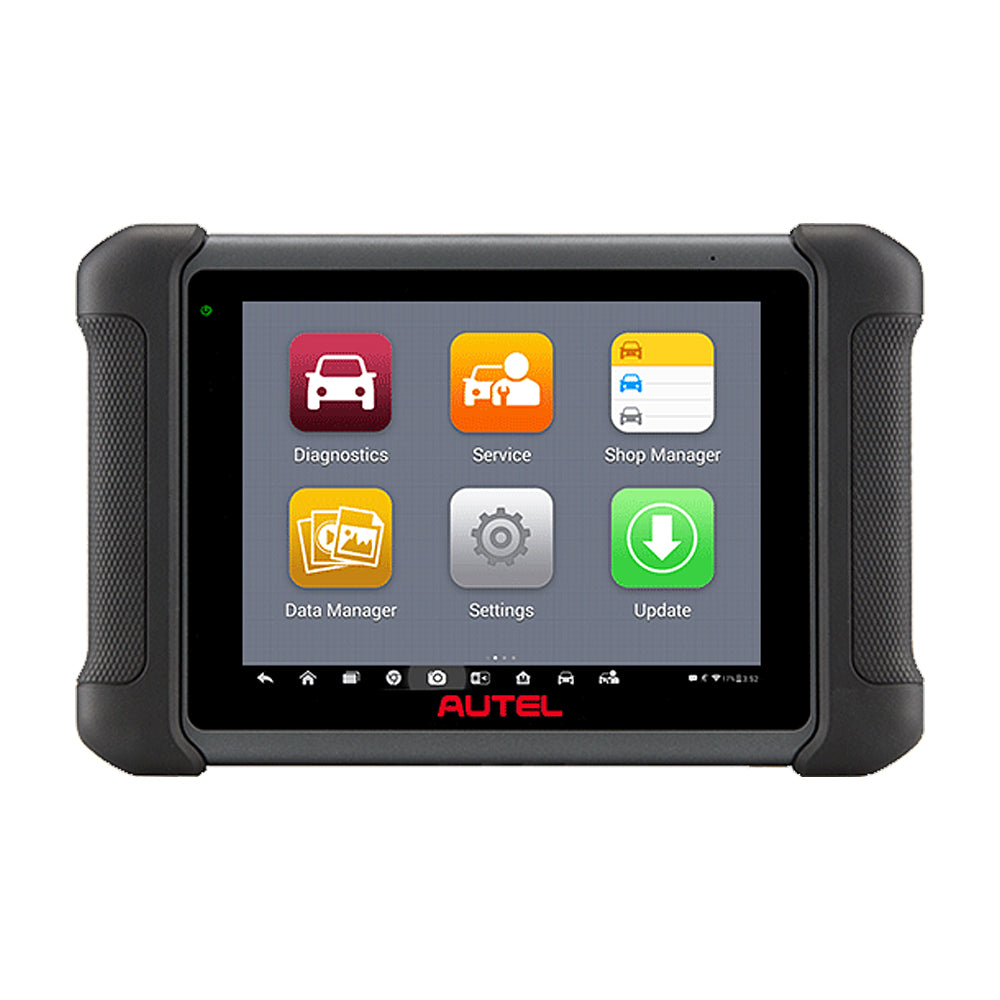

Autel MaxiSys MS906 Diagnostic System
MaxiSys MS906 is based on the Android operating system and is featured with an extensive coverage of OE-level diagnostics at an affordable price. Built with Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), a 32G SSD hard drive and an 8” capacitive HD touch screen, MaxiSys MS906 efficiently provides comprehensive vehicle diagnostics and analysis.
Description:
- Extraordinarily powerful Samsung Exynos Hexa-core processor
- 8.0” 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology
- Internal reliable 32GB SSD for better performance
- Built-in 8-megapixel rear camera with autofocus and flashlight
- 802.11b/g/n Wi-Fi to access your favorite web resources
- Unique ergonomic design with rubberized outer protection and a rugged internal housing
- Built-in rechargeable lithium-polymer battery for up to 6 hours of continuous operation
- Open source Android Operating System for fast boot-up and multitasking
- Easy and intuitive navigation makes finding what you need simple and fast
- Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
- Exceptional OE-Level system coverage for all electronic systems
- Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
- Smart AutoVIN technology for identifying vehicles easily
- Automatic system and software updates with real-time push message notifications via Wi-Fi
- Instant remote control tech support anytime, anywhere
- Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
- Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
- Convenient data management system for managing internal program applications and reviewing data
Specifications
| Operating System | Android™ 4.4.2, KitKat |
| Processor | Samsung Exynos 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15) |
| Memory | 2 GB RAM & 32 GB ROM |
| Display | 8.0" LED capacitive touch screen with 1024x768P resolution |
| Connectivity |
Wi-Fi (802.11 b/g/n) DB16 DLC SD Card (Support up to 32GB) |
| Camera (rear) | Rear-facing, 8.0 Megapixel, AF with Flashlight |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone, Single Speaker |
| Power and Battery | 3.7V/5000 mAh lithium-polymer battery, Charging via 12 V AC/DC power supply |
| Input Voltage | DC/12 V (9-35 V) |
| Power Consumption | 5 W |
| Operating Temperature | -10 to 55°C (14 to 131°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Housing | Rubberized outer protection and rugged internal housing |

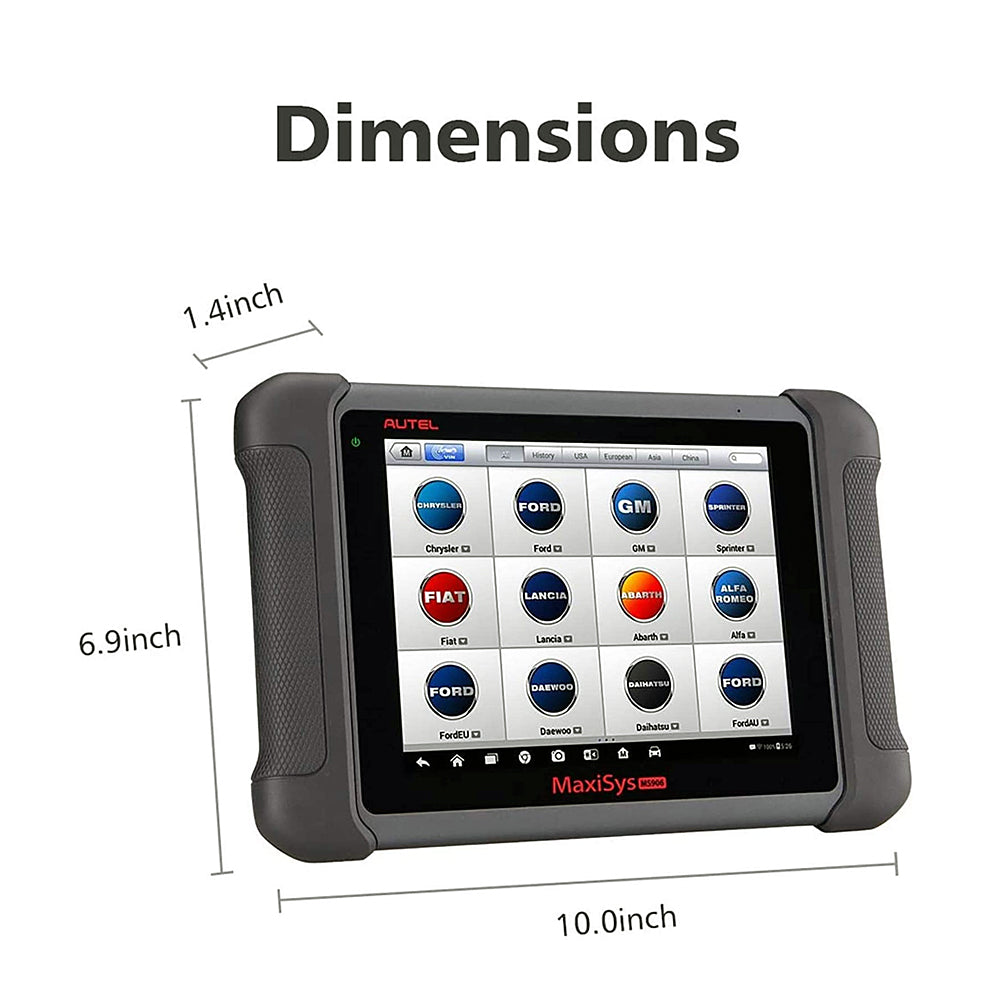

| Dimensions (W x H x D) | 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0mm (1.4”) |
| Weight | NW: 0.93 kg (2.05 lb.) |
