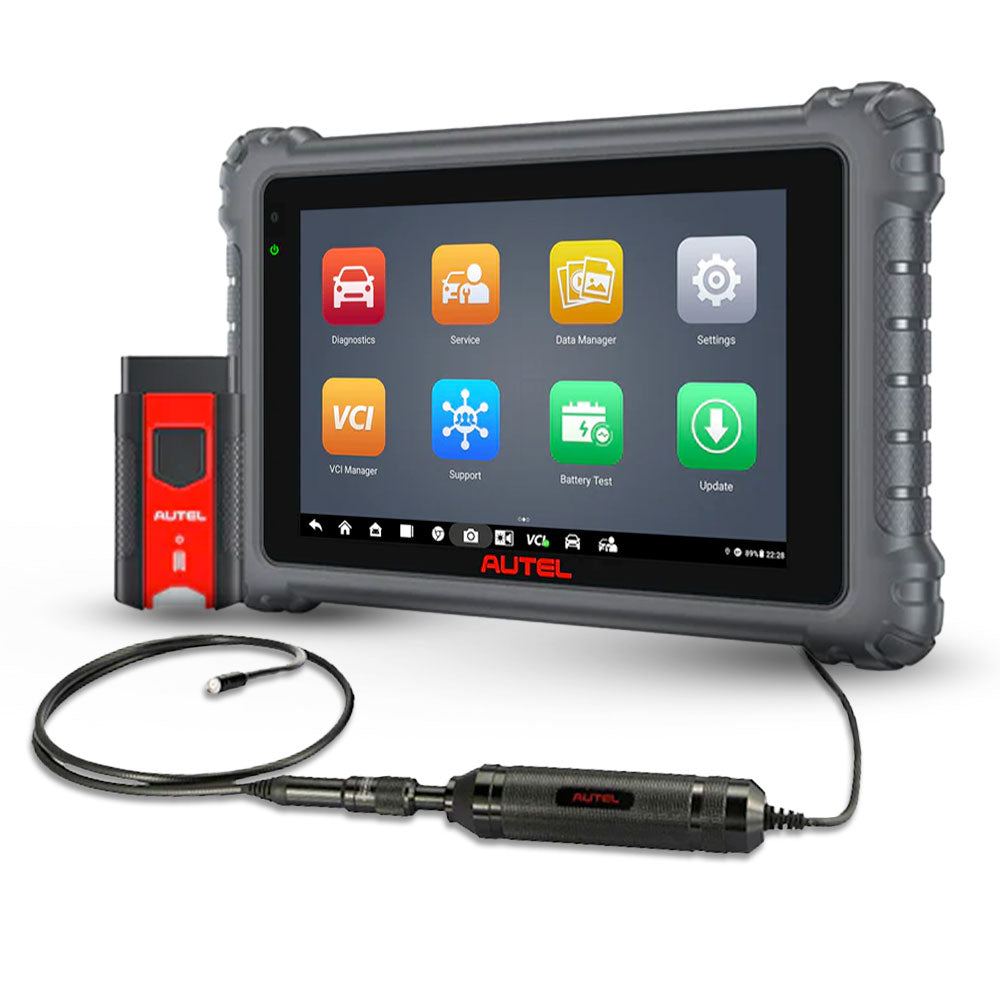

Autel MS906 Pro Diagnostic Scanner and Key Programmer with MV105S Digital Portable Inspection Camera
Includes:

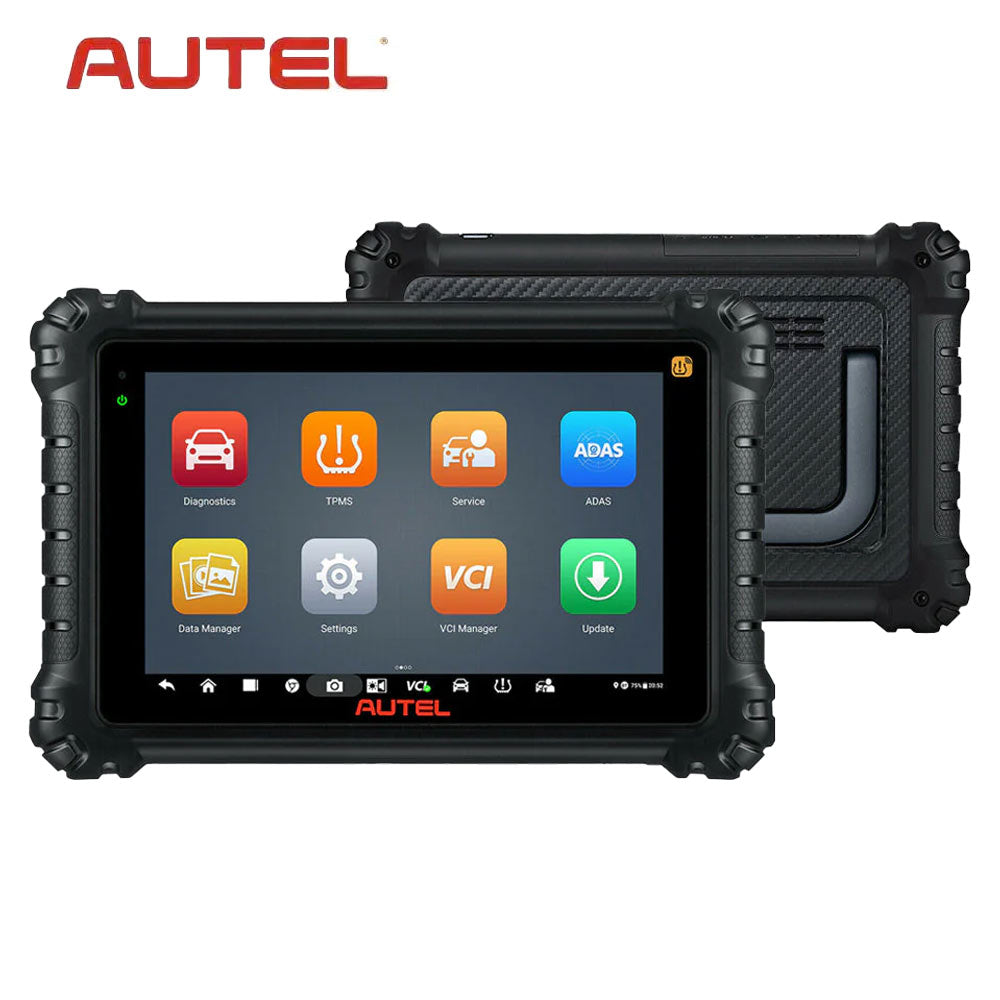

Autel MaxiSYS MS906 Pro OBD2/OBD1 Bi-Directional Diagnostic Scanner and Key Programme
MaxiSYS MS906Pro is an advanced diagnostic tablet compatible with U.S., Asian and European vehicles, 1996 and newer. This 8-inch wireless Android-based touchscreen tablet performs extensive vehicle diagnostics including an all systems scan with ADAS identification, the ability to read/erase codes, view freeze frame and live data, bi-directional control including active testing, coding and adaptations. Includes customizable Pre/Post scans, extensive service menu with 25 of the most of common maintenance tasks. FCA Access via AutoAuth account, starting and charging system analysis with MaxiBAS BT506 Bluetooth tester and terminal cables purchase, ADAS Calibrations capable (frame system and software upgrade required).
Hardware:
- 8-inch, 1920 x 1200 high-resolution touchscreen tablet, Qualcomm 660 Octa-core processor with 128 GB storage and running Android 10.0 operating system.
- Long-lasting 11,600 mAh rechargeable battery, 16 MP front camera and 16 MP rear camera.
- MaxiVCI V200 wireless Bluetooth vehicle communication interface supporting the latest communication protocols
Software:
- Comprehensive diagnostics on 1996 and newer U.S., Asian and European vehicles
- AutoScan: Scan all available systems, including ADAS identification
- Read/Erase Codes, View Freeze Frame and Live Data
- Perform Active Tests (bi-directional controls), Coding and Adaptations
- AutoVIN/Scan VIN for rapid vehicle identification
Perform ADAS (inc. Camera/s, Radar, LiDAR, Night Vision) Systems Calibrations with additional purchase.
New Software Features:
- Battery analyzation capability*
- Cloud-based Reports and Data Management.
- Remote Expert (coming soon).
* With additional purchase of the MaxiBAS BT506 battery and electrical system tester.
** With purchase of ADAS calibration frame system and software.
Specifications:
| Hardware | |
| CPU |
Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory | 4/128GB |
| Android | Android 10.0 |
| LCD | 8” 1920*1200 |
| Battery | 11 600 mAh |
| Camera |
Front:16 Megapixel Rear: 16 Megapixel |
| Diagnostic Functions | |
| Special Function | 26 |
| Guide Function | Support Volkswagen,Audi |
| Coding and Adaptation |
BMW F and E chassis coding Porsche Coding Ford offline adaptation |
| Expanded Function | |
| TPMS | No |
| ADAS | Support |
| Battery and Electrical System Testing | Support |
| Cloud Services | Support |
| Remote Expert(Coming Soon) | Support |
| Cloud Report Storage | Support |
Download:

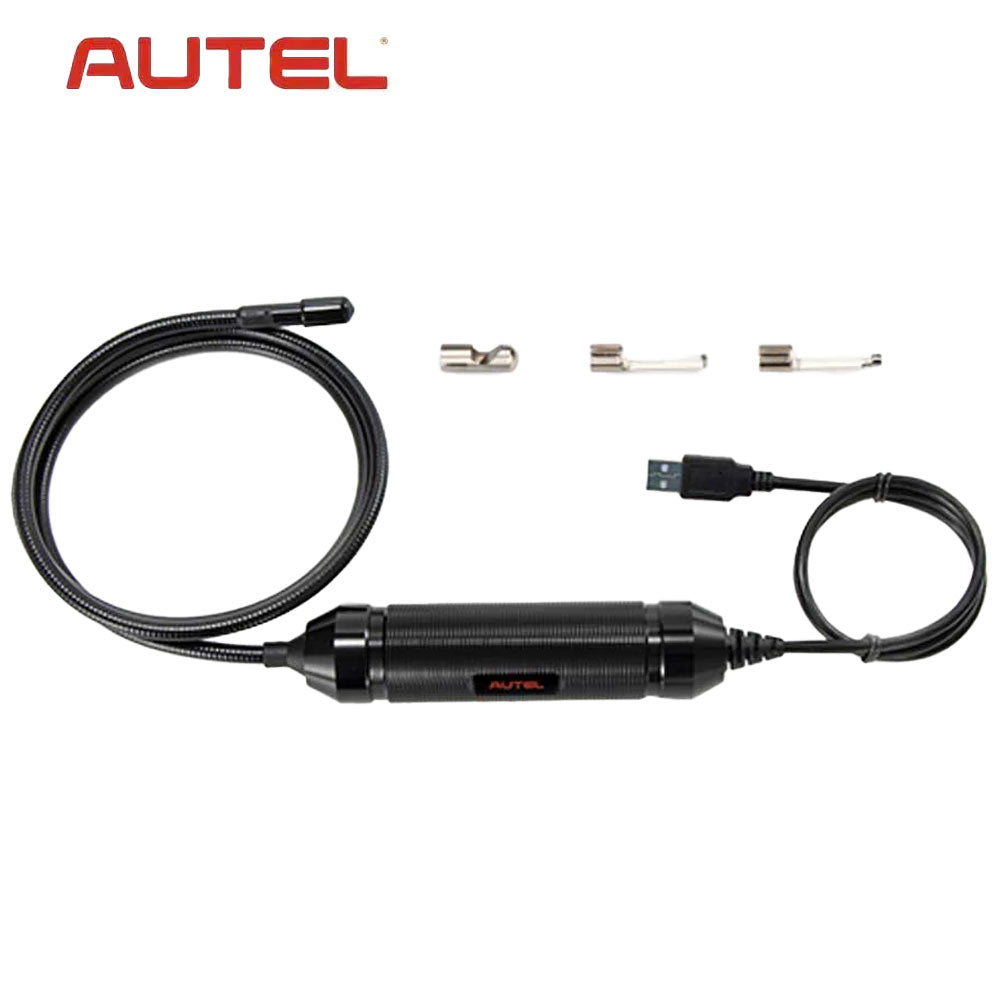

Autel - MaxiVideo MV105S - 5.5 mm - Digital Portable Inspection Camera for MS906PRO and MS906BT
The MV105S/108S digital inspection camera is designed to work with Autel diagnostic tablets. It turns your Autel tablet into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.
Description:
- White LED lights to illuminate the inspection areas.
- Small diameter allows it to be used in the tight spaces.
- Wonderful for up-close visual inspections in confined areas, such as engine cylinders and small part inspections.
- Powerful and perfect for inspecting most spark plug holes.
- Super bright LED and high resolution provide crystal clear images.
Specifications:
| Imager Head Distance | MV108S: 8.5 mm; MV105S: 5.5 mm |
| Camera | MV108S: 2 MP; MV105S: 1 MP |
| Resolution | MV108S: 1920 x 1080 |
| MV105S: 1280 x 720 | |
| Depth of Field | MV108S: 3cm to 8cm (1.18” to 3.15”) |
| MV105S: 2cm to 10cm (0.79” to 3.94”) | |
| LED Beads | 8 pcs |
| Imager Head Cable Length | 1 m (39.37") |
| Waterproof Level (Imager Head) | IP67 |
| Operating Temp. | -10 °C to 70 °C (14 °F to 158 °F ) |
| Storage Temp. | -10 °C to 70 °C (14 °F to 158 °F ) |
Comparison:
| MV108S | MV105S | MV108 | MV105 | |
| Imager head distance | 8.5mm | 5.5mm | 8.5mm | 5.5mm |
| Depth of field | 3~8cm | 2~10cm | 2~6cm | 2~6cm |
| Angle of view | 81° | 90° | 70° | 70° |
| Imager head cable length | 1m | 1m | 1m | 1m |
| Camera | 2MP | 1MP | 0.3MP | 0.3MP |
| Connection | USB2.0 | USB2.0 | USB2.0 | USB2.0 |
| Waterproof level (Imager head) | IP67 | IP67 | IP67 | IP67 |
| Operating Temp. | （-10℃~70℃） | （-10℃~70℃） | （-10℃~70℃） | （-10℃~70℃） |
| Storage Temp. | （-10℃~70℃） | （-10℃~70℃） | （-10℃~70℃） | （-10℃~70℃） |
| Reflector | Yes | Yes | Yes | Yes |
| Magnet | Yes | Yes | Yes | Yes |
| Hook | Yes | No | Yes | No |
