Autel MaxiSys MS909 Diagnostic Tablet with Maxiflash VCI and FREE ILCO Flash 008 Mechanical Key Cutting Machine
Pickup available at MIAMI MAIN WAREHOUSE
Usually ready in 2 hours
Delivery and Shipping
Delivery and Shipping
All in-stock items ship within 24 hours or less, Monday through Friday, between 9:00 AM and 6:00 PM EST. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more about our shipping and return policy.
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
Autel MaxiSys MS909 Diagnostic Tablet with Maxiflash VCI and FREE I...
Description
Description

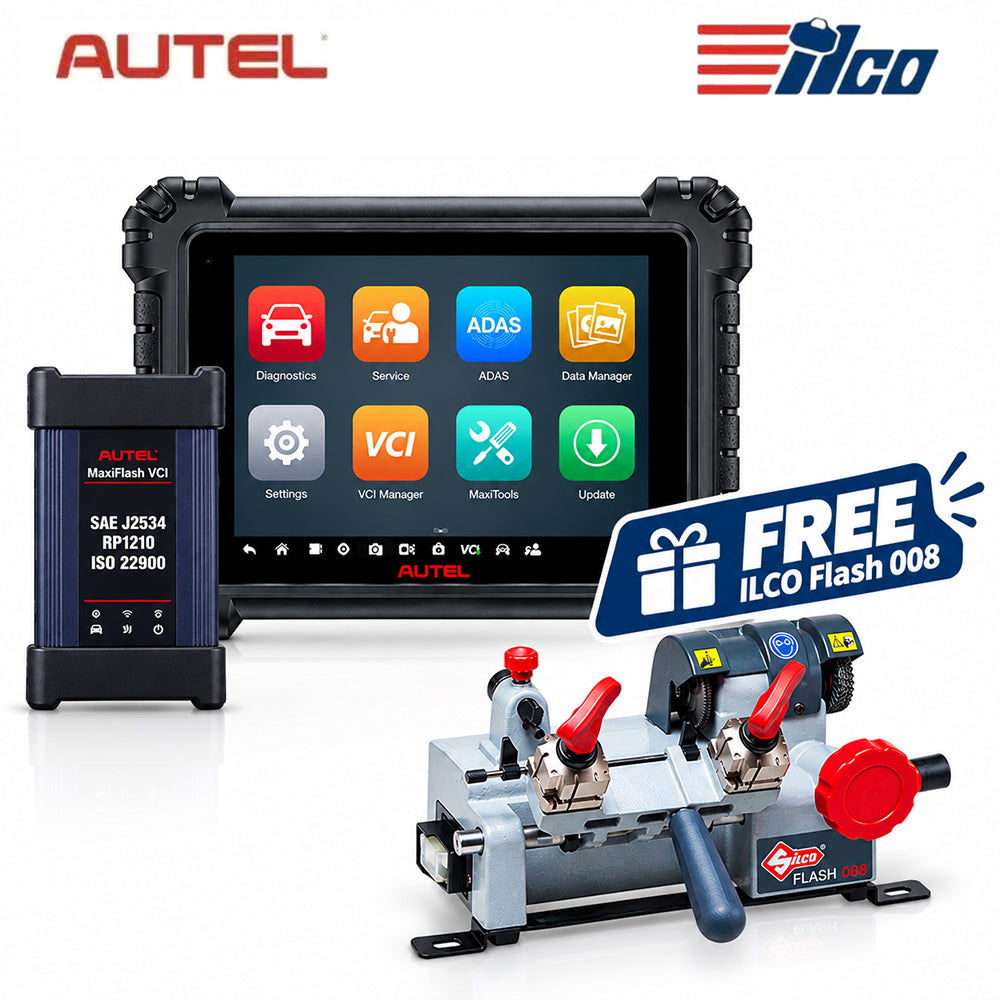

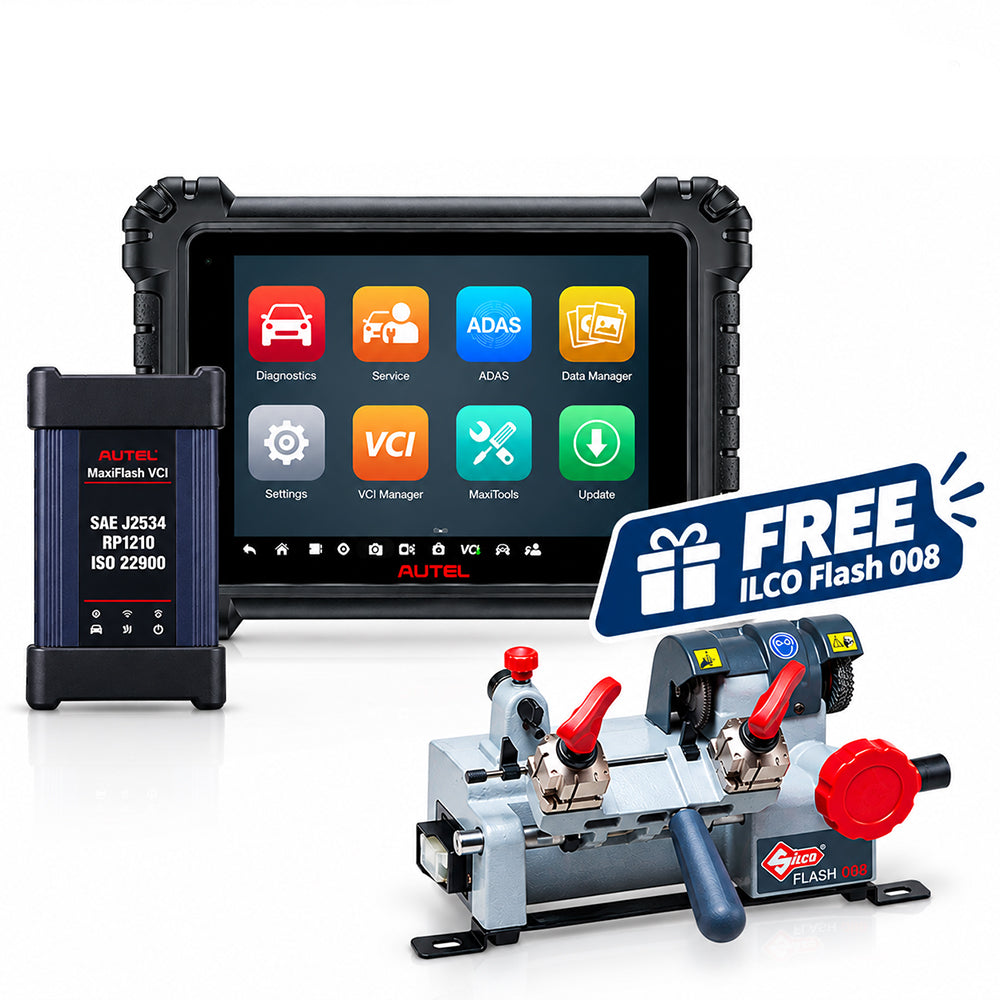

Autel MaxiSys MS909 Diagnostic Tablet with Maxiflash VCI and FREE ILCO Flash 008 Mechanical Key Cutting Machine
Includes:
- Autel MaxiSys MS909 Diagnostic Tablet with Maxiflash VCI
- ILCO Flash 008 Mechanical Key Cutting Machine

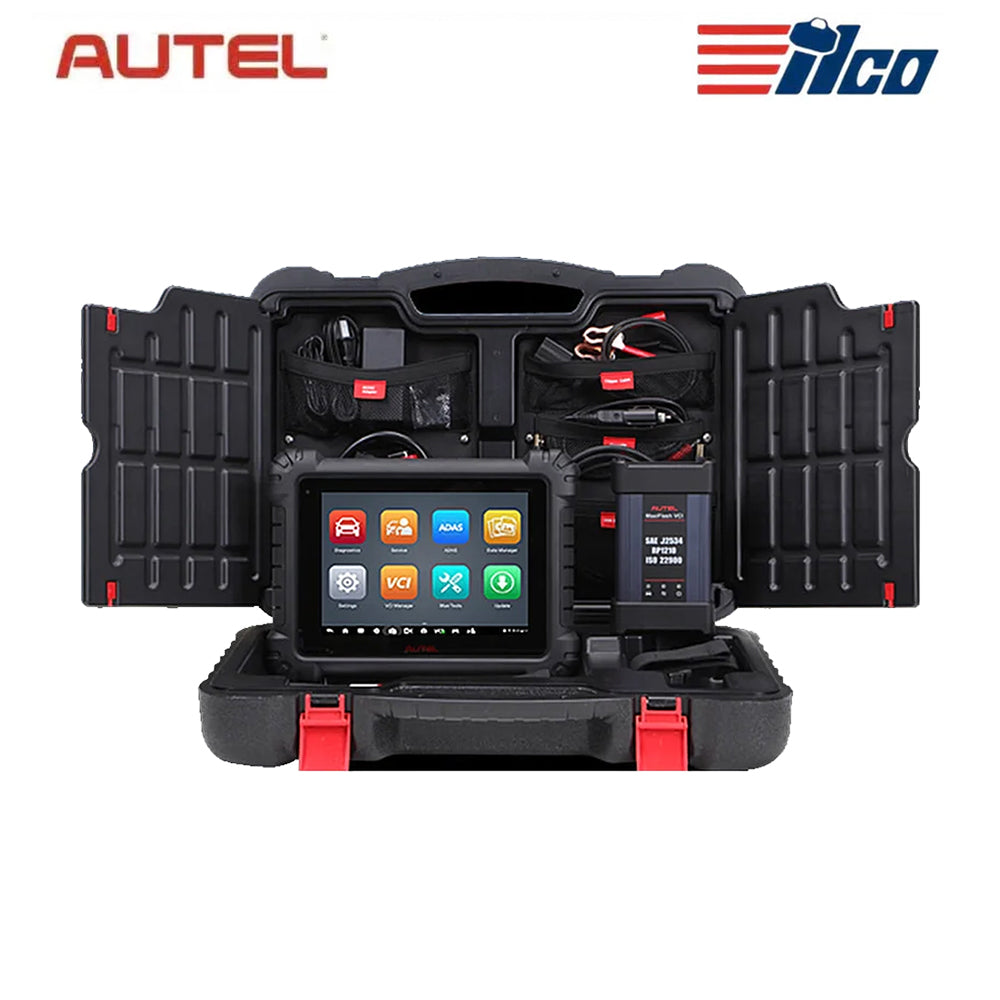

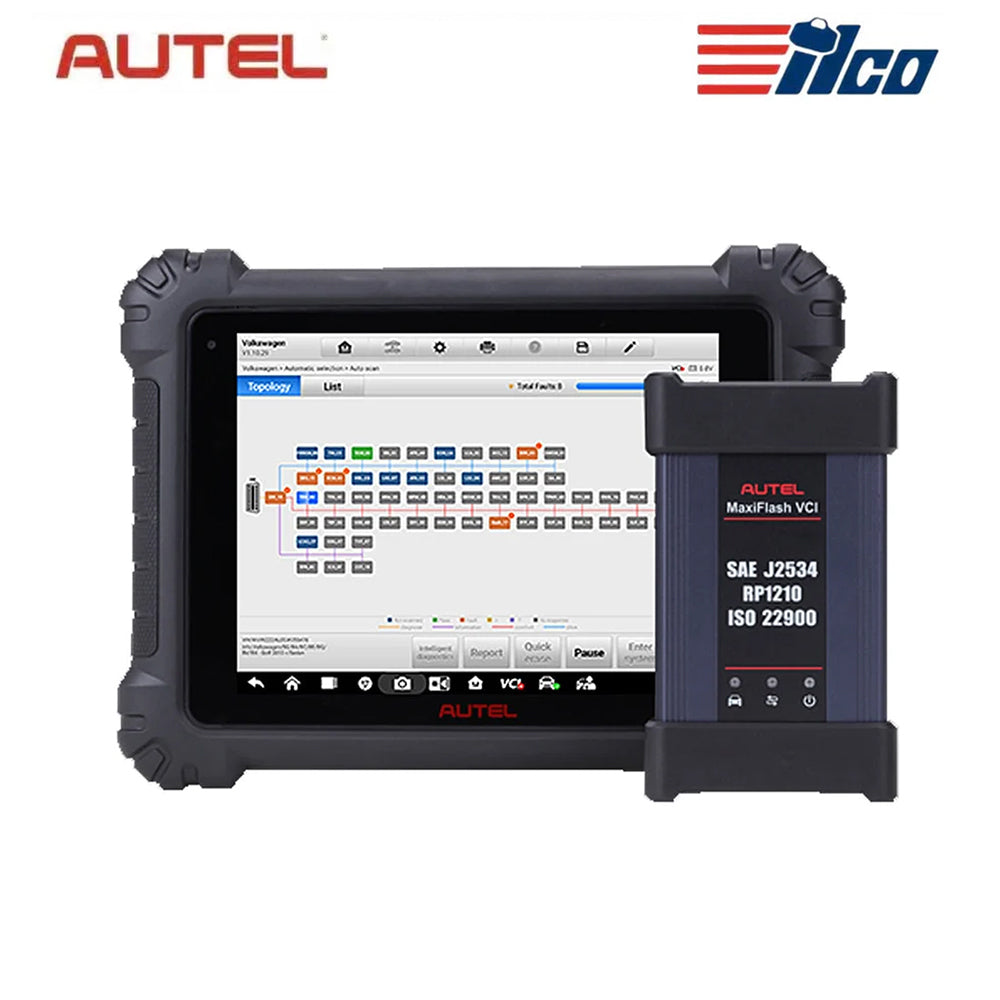

Autel MaxiSys MS909 Diagnostic Tablet with Maxiflash VCI
The MaxiSYS MS909 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor (2.2GHz Quad + 1.8GHz Quad), 128GB memory and features an advanced VCI supporting latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The MS909 features topology module mapping capability for supported vehicles and its Intelligent Diagnostics feature that guides the technician from code to repair to test with detailed repair information and illustrations. The MS909 features a rechargeable Lithium battery providing 8 hours of continues use, and front and rear cameras.
Features:
- Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
- Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
- Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize
- Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
- Dynamic Module Topology Interface: Color Coded All System Status Screen (for supported vehicles)
- Remote Expert-ready: contract with expert programmers and diagnosticians with OE tools and subscriptions for module programming, ADAS calibration, and gateway access.
- ADAS Calibration Software Capable (purchase required)
- Includes MaxiFlash VCI with J2534, RP1210, ISO 22900, D-PDU, DoIP/CAN FD & Mega CAN Protocols
- Includes Connector Kit, Carry Case & 1YR Warranty/Software Subscription
Specifications:
| Operating System | Android 10.0 |
| Processor | Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73+ 1.8GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen |
| Connectivity |
|
| Camera |
|
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output |
|
| Power and Battery |
|
| Input Voltage | 12V/1.3A Adapter |
| Operating Temperature | <0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions(W x H x D) | 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67") |
| Weight | 1.66kg (3.66 lb.) |
| Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
Downloads:

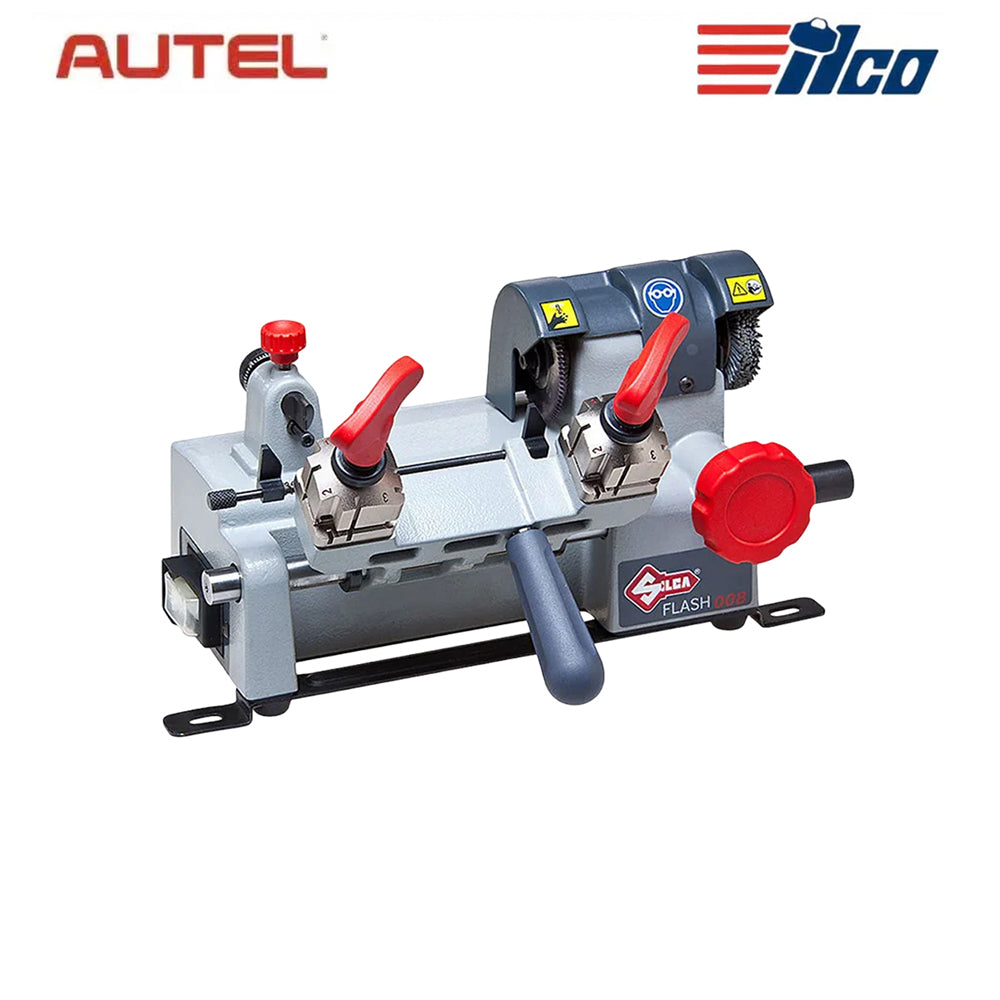

ILCO Flash 008 Mechanical Edge Cut Key Cutting/Duplicator Machine
Lightweight, Compact, Portable, this mechanical, edge cut key duplicator model is an ideal choice for on-site, mobile jobs or counter tops where space may be limited. The Flash 008 will easily duplicate most edge cut cylinder, cruciform, large bow and long blade keys; including the larger, oversize style automotive keys.
Features:
- Four sided, nickel plated jaws for clamping the majority of all edge cut/flat type keys
- Smooth jaw rotation by simply twisting into position
- Slotted jaw surfaces accommodate tip stop bars and rigid shoulder gauge design allow for greater accuracy when loading and gauging keys
- Wide spacing 3 1/2" (88.9 mm) spacing between clamps accommodate large bow (head) and long blade keys, including flip style keys
- Depth tracer system with micro adjustment for precise calibration
- AlTiN (Aluminum Titanium Nitride) coated cutter for longer life and oxidation resistance even at temperatures up to 800
- Nylon deburring brush
- Electromagnetic - main- safety switch with separate cutter motor switch for easy access.
- Mounting bracket included for securing the machine to counter
- Two year warranty
Specifications:
- Power Supply: 120V-60Hz
- Maximum absorbed power: 1.2 Amp, 130 Watt
- Cutter motor: single phase and speed
- Movements: by rectified carriage shaft and rack
- Tool Speed: 2900 rpm
- Carriage Runs: 1.65" (42 mm)
- Cutter: AlTiN coated
- Brush: Nylon
- Dimensions: Width: 12.2" (310 mm) Depth: 9.5" (240 mm) Height: 8.7" (200 mm)
- Weight: 14 lbs. (6.4 kg)
Downloads:
