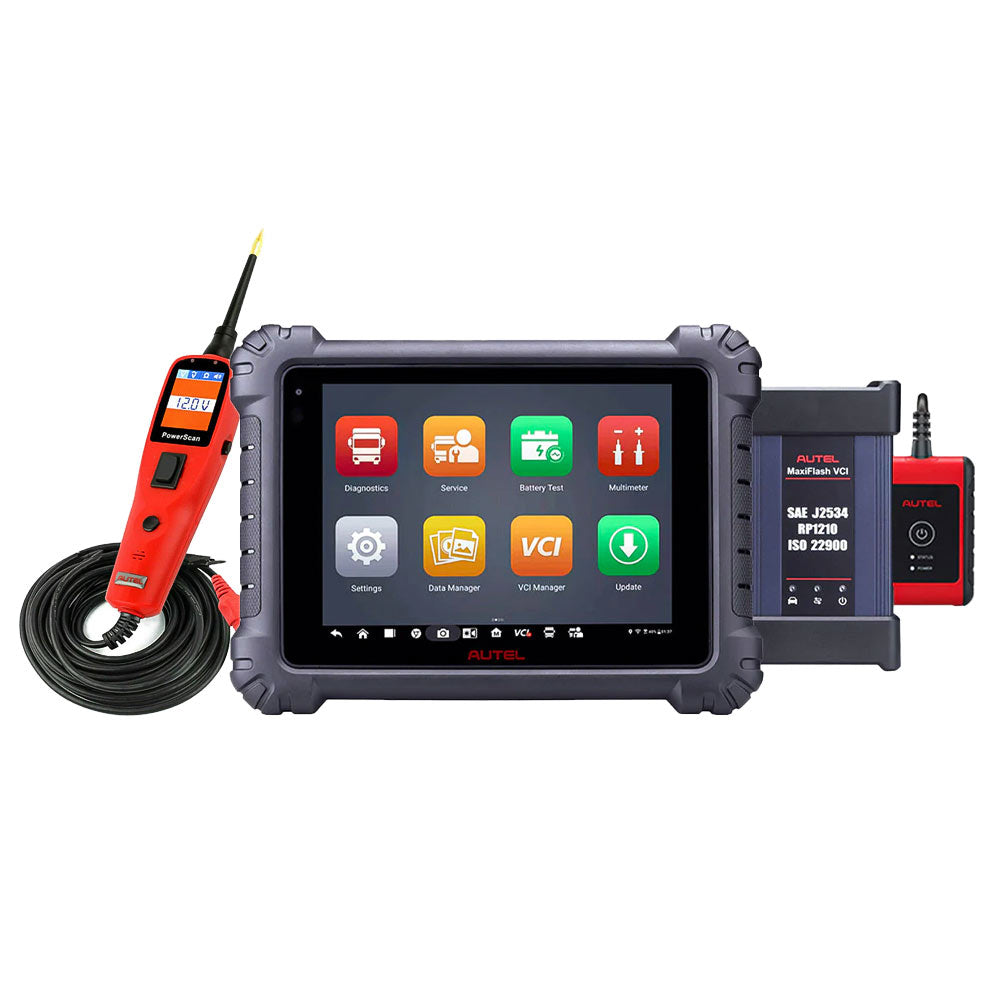

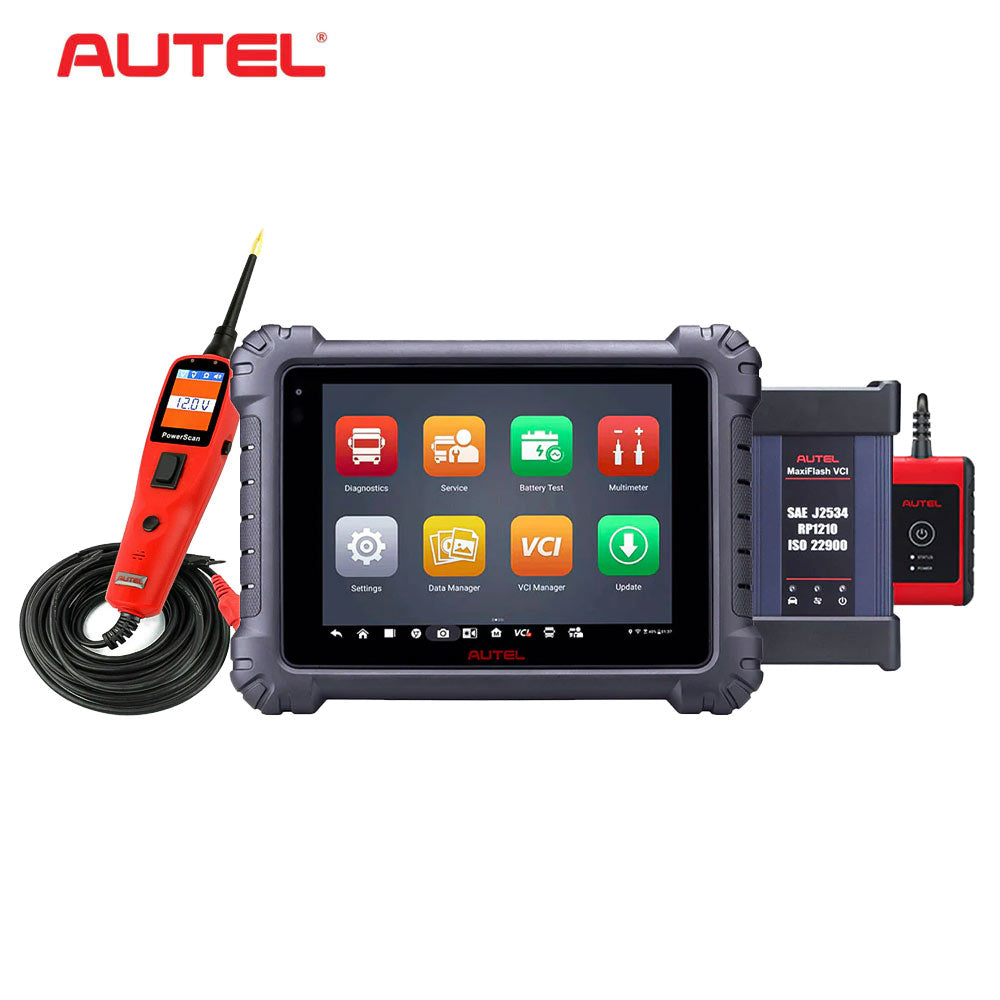

Autel MaxiSys MS909CV Programming Device and Power Scan PS100 Electrical System Diagnosis Tool

Autel MaxiSys MS909CV Programming Device and Power Scan PS100 Electrical System Diagnosis Tool

Includes:

• MaxiSys MS909CV Programming Device
• Power Scan PS100 Battery Tester

Autel MaxiSys MS909CV 3-1 Heavy Duty Repair Programming Device

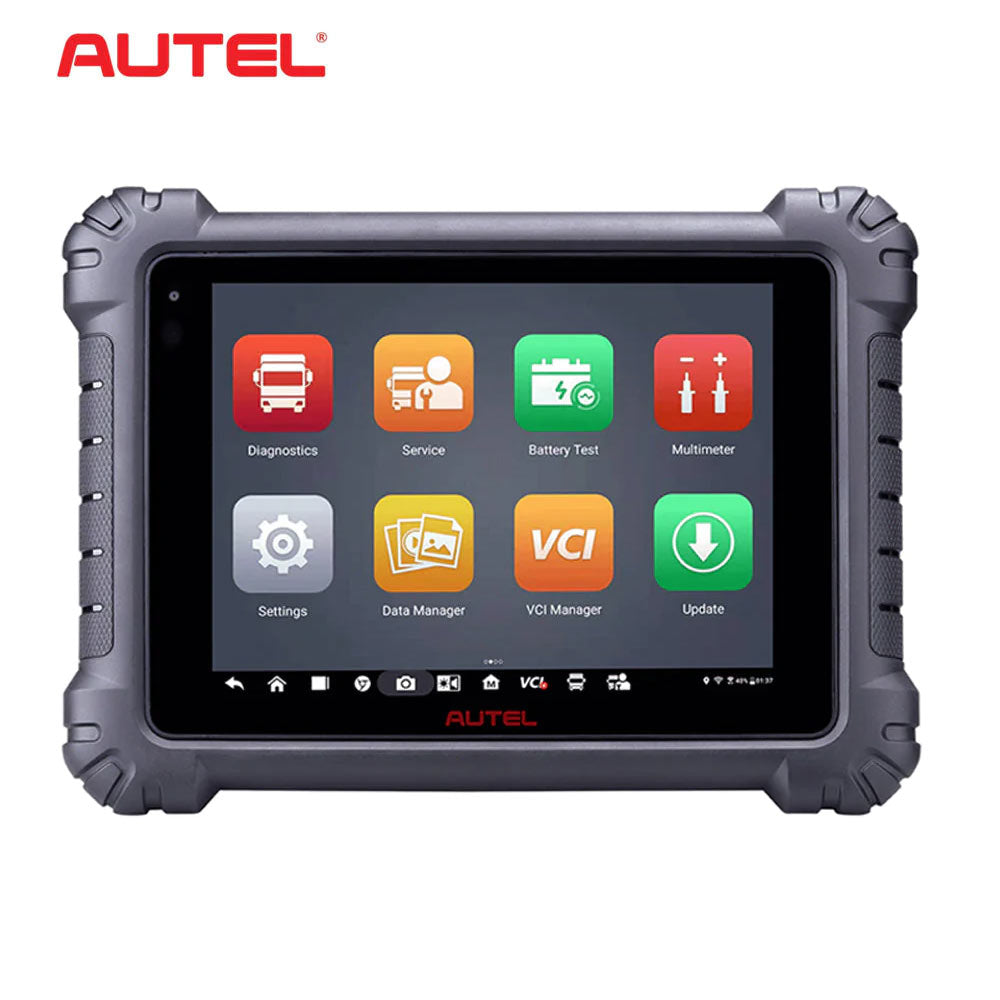

Autel MaxiSYS MS909CV is an advanced commercial vehicle diagnostic tablet compatible with 80+ models of light, medium and heavy-duty vehicles. The 9.7-inch wireless Android-based touchscreen tablet performs extensive diagnostics including the ability to read/erase codes, view/graph live data, and perform active tests. The tablet includes a Bluetooth-enabled vehicle communication interface (VCI)/J2534 pass-thru device, the MaxiBAS B200 battery/starting/charging system test device, alligator clamps, multimeter and amp clamps. The tablet features ADAS Calibration Software for Class 3-5 vehicles and Class 6-8 vehicles with dynamically calibrated systems. The MS909CV includes one year limited warranty and a year of free software updates.

Description:

• Upgraded Octa-Core processor and 128GB storage and Android 10.0 Operating System with 9.7” Touchscreen and the whole-new MaxiFlash VCI to deliver smooth operation
• MaxiSYS MS909CV performs enhanced system diagnostics on more than 80 models of light, medium, and heavy duty commercial vehicles.
• Intelligent Diagnostics with Module Topology on Select Vehicles and Enhanced AutoSCAN / VINScan and DTC Analysis / Repair Guided Assist
• ADAS Calibration with new Class 6-8 Dynamic Calibration, Supporting Class 3-5 Complete ADAS Coverage. The Class 6-8 Static Calibration (coming soon)
• Support heavy Duty Battery Test & Health Report
• Wireless Vehicle Communication Interface (VCI)/J2534 passthru programming device
• Advanced diagnostics with Dynamic Module Topology, and the ability to perform Active Tests and Special Functions
• Rapid Vehicle Identification via VINscan and AutoVin
• Includes One Year Limited Warranty and Free Software Updates

Specifications

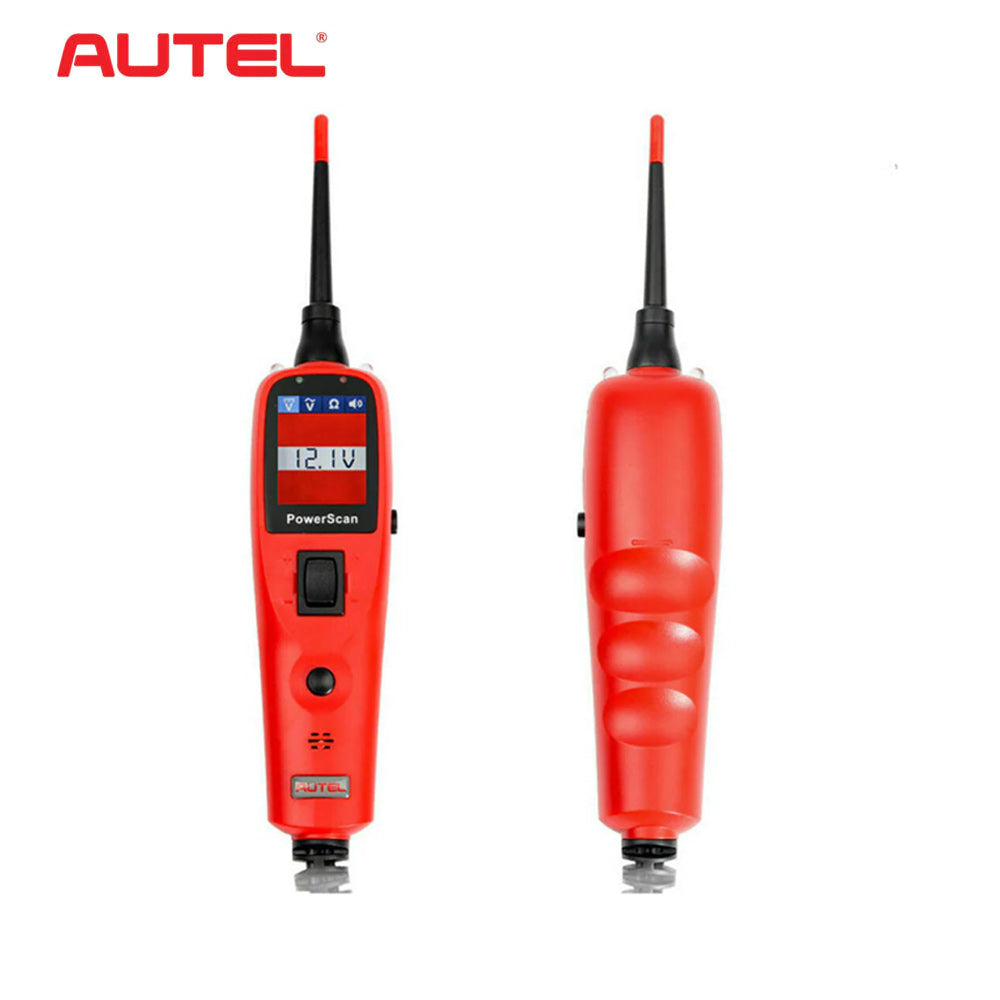

Autel Power Scan PS100 Electrical System Diagnosis Tool Car Circuit Battery Tester

Highlights:

• Built-in Flashlight enables you to work in the dark
• Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip
• Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation
• With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.
• Simultaneously uses the hot lead and the ground lead to activate components right in your hand
• Autel PS100 circuit tester contain 20ft (extendable) cable provides excellent accessibility to test along the vehicle

Why Buy Autel PowerScan PS100?

Autel PowerScan PS100 is the best electrical tester for reducing diagnostic time in all 6- to 30-volt vehicle electrical systems. After a simple hook-up of the tool to the vehicle's battery, you can:

• Determine at a glance if a circuit is positive, negative, or open without having to reconnect clips from one battery pole to another.
• Test for continuity with its built-in auxiliary ground lead.
• By depressing the power switch, conduct a positive or negative battery current to the probe tip for testing the function of an electrical component without the use of jumper wires.
• Test for poor ground contacts instantly without performing voltage drop tests. The tool is also short-circuit protected; its internal circuit breaker will trip if it becomes overloaded.
• PS100 follow and locate short circuits without wasting fuses. The tool's long cable allows you to test along the entire length of the vehicle without constantly searching for suitable vehicle grounds.

Autel PowerScan PS100 is the most revolutionary circuit tester to date. Featuring AVOmeter, test light, built-in flashlight, short circuit indicator, relay/ component tester, continuity tester and bad ground indicator, the PowerScan is truly the ultimate in power and affordability, allowing users to check circuitry in one single step. An absolute must for every technician looking for a fast and accurate solution to electrical system diagnostics.

Feature and Functions:

• Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation
• Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip
• With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.
• Simultaneously uses the hot lead and the ground lead to activate components right in your hand
• Instantly identifies positive, negative and open circuits
• Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses
• Instantly checks continuity of switches, relays and diodes
• Circuit breaker protected
• Built-in Flashlight enables you to work in the dark
• Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment
• 20ft (extendable) cable provides excellent accessibility to test along the vehicle
• Extremely easy to use and highly reliable

Autel PowerScan PS100 Specifications：

• Display: TFT color display (160 x 128 dpi)
• Operating Temperature: 0 to 60°C (32 to 140°F)
• External Power: 12.0 or 24.0 V power provided via vehicle battery

Autel PowerScan PS100 Package List：

• 1 × PowerScan PS100
• 1 × Rugged Blow Molded Case
• 1 × 20ft. Extension Cable
• 1 × Probe Tip
• 1 × Battery Hookup Clips
• 1 × Cigarette Lighter Adapter
• 1 × User Manual
