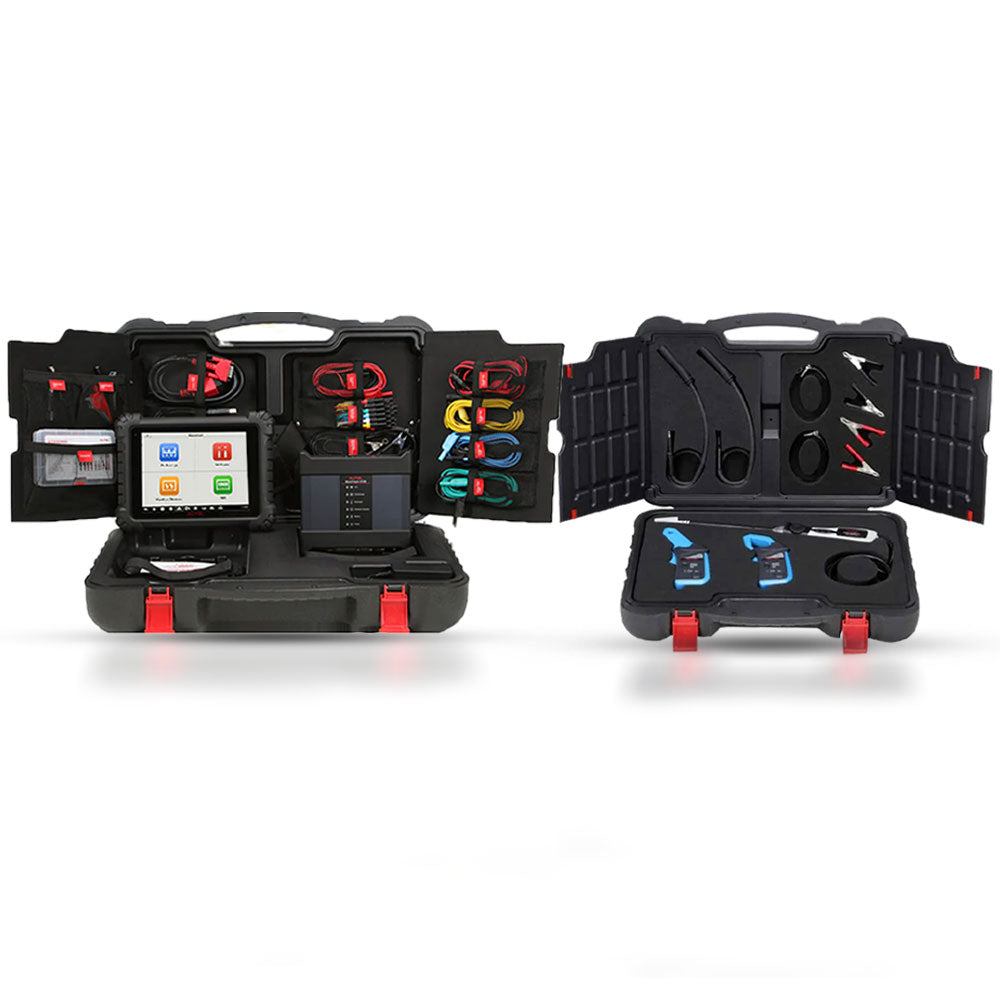

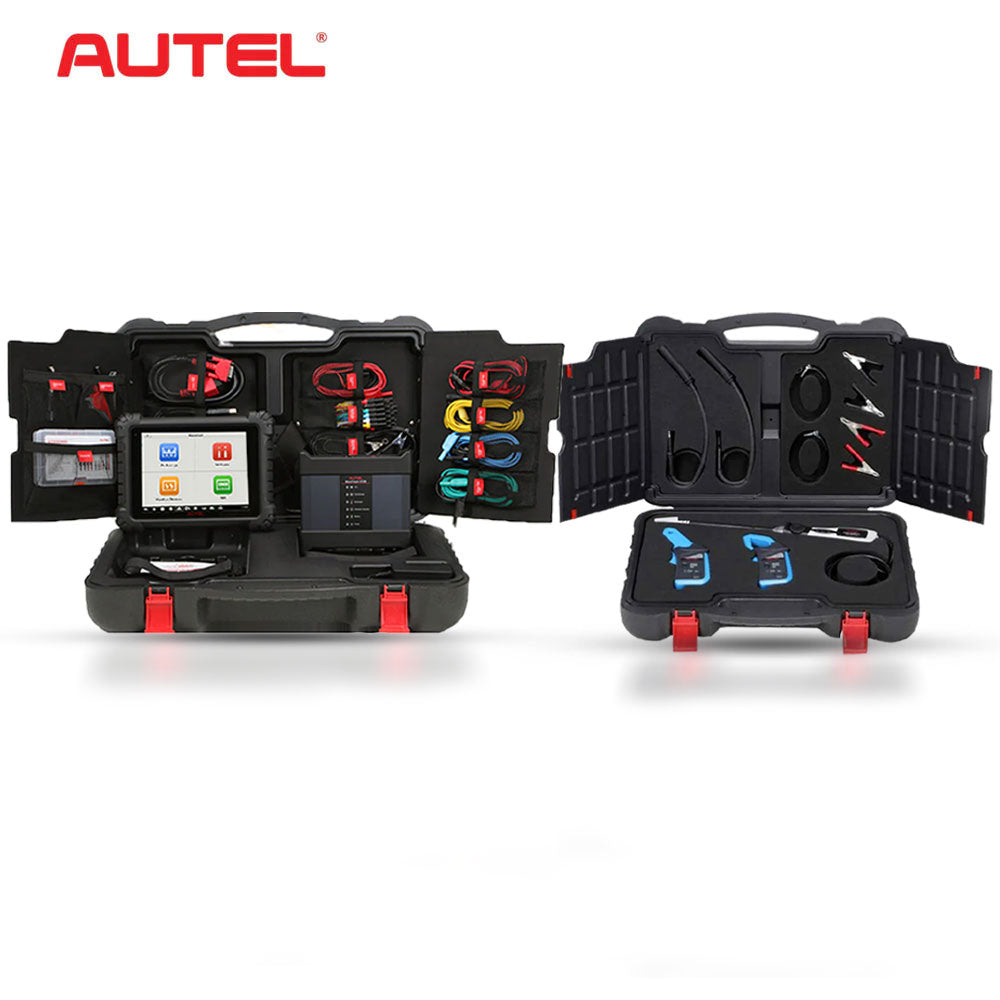

Autel MaxiSys MS919 Diagnostic Tablet with MaxiFlash VCMI and Oscilloscope Accessory Kit
Includes:

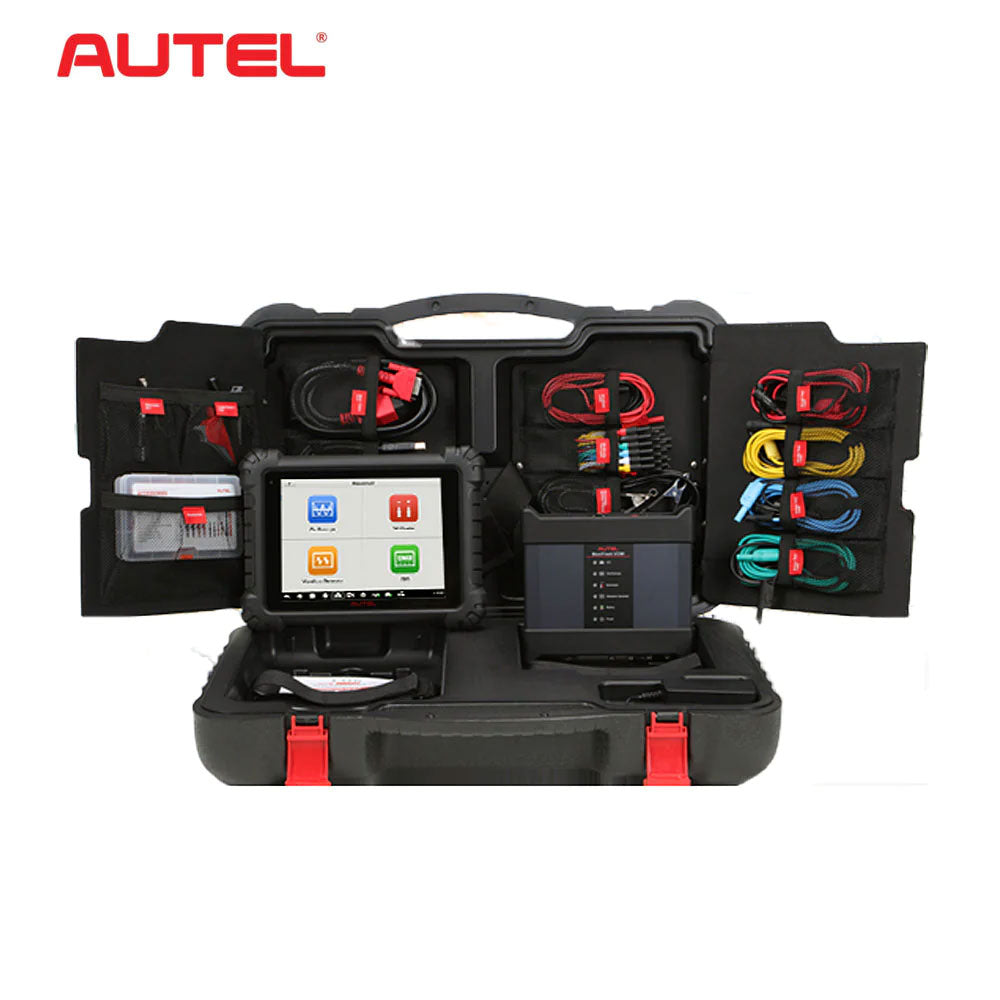

Autel MaxiSys MS919 Diagnostic Tablet with Advanced MaxiFlash VCMI

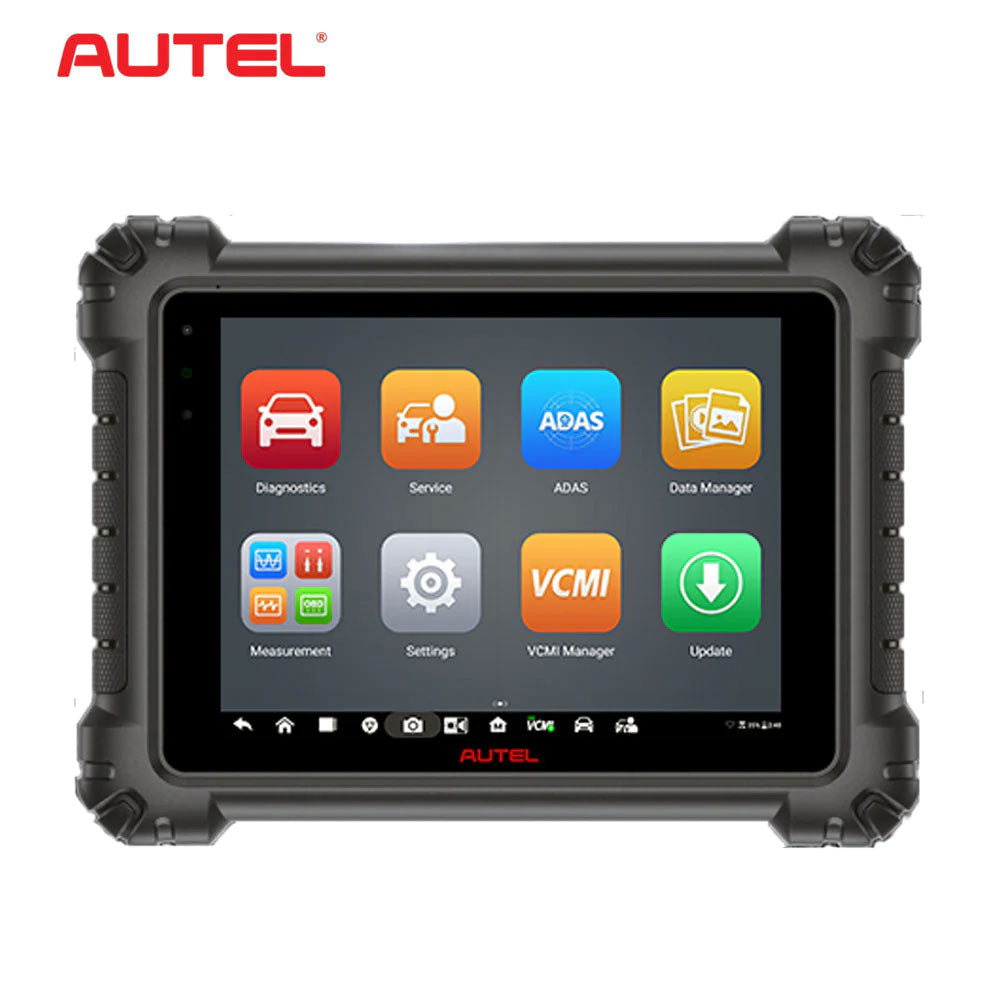

MaxiSYS MS919 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor (2.2GHz Quad + 1.8GHz Quad), 128GB memory and features the MaxiFlash VCMI, a 5-in-1 communication and testing tool providing wireless vehicle communications between the vehicle and tablet and supporting the latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The VCMI also functions as a 4-channel oscilloscope, waveform generator, multimeter and Can BUS tester. The MS919 features dynamic topology module mapping for supported vehicles and its Intelligent Diagnostics feature that guides the technician from code to repair to test with detailed repair information and illustrations, and Oscilloscope preset guides and tests and waveform library. The MS919 features a rechargeable Lithium battery proving 8 hours of continues use, and front and rear cameras.
Features:
- Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
- Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
- Automatic system and software updates with real-time push message notifications via internet
- Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
- Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
Specifications:
| Operating System | Android 10.0 |
| Processor | Qualcomm 660 Octa-coreProcessor (2.2GHzQuad-coreA73 +1.8GHzQuad-core A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen |
| Connectivity |
|
| Camera (rear) |
|
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output |
|
| Power and Battery |
|
| Input Voltage | 12V/1.3A Adapter |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions (WxHxD) | 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67") |
| Weight | 1.66kg (3.66lb.) |
| Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
MaxiSYS Comparison:
Download:
- MaxiSys MS919 Specifications
- MaxySys Comparison Chart
- MaxiSys MS919 Quick Guide
- MaxiSys MS919 Manual
- MaxiSys MS919 Accessories
- MaxiSys MS919 Sales Flyers

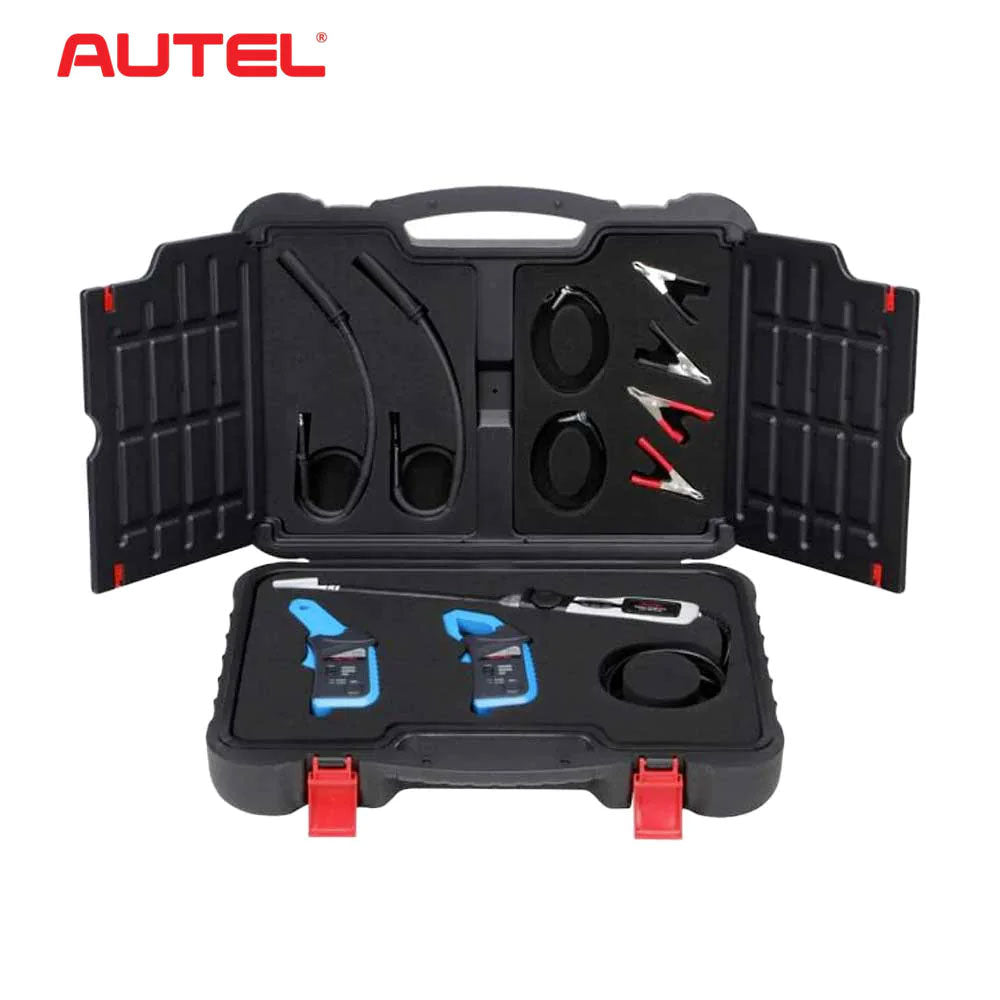

Autel Oscilloscope Accessory Kit Compatible with MaxiSys Ultra & MaxiSys MS919
Includes:
- 65A AC/DC Current Clamp
- 650A AC/DC Current Clamp
- Coil On Plug Probe
- HT Extension Lead (2pcs)
- Battery Clip (2pcs)
- Blow-molded carrying case
