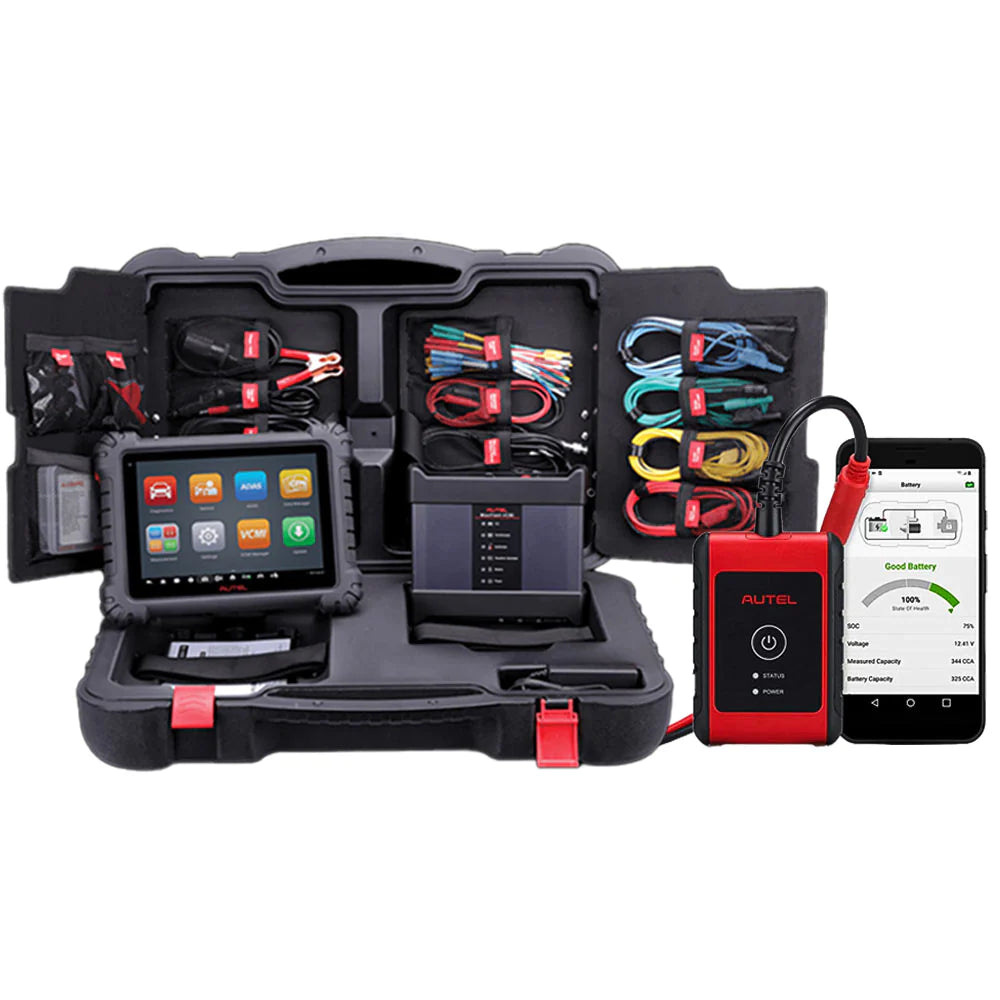

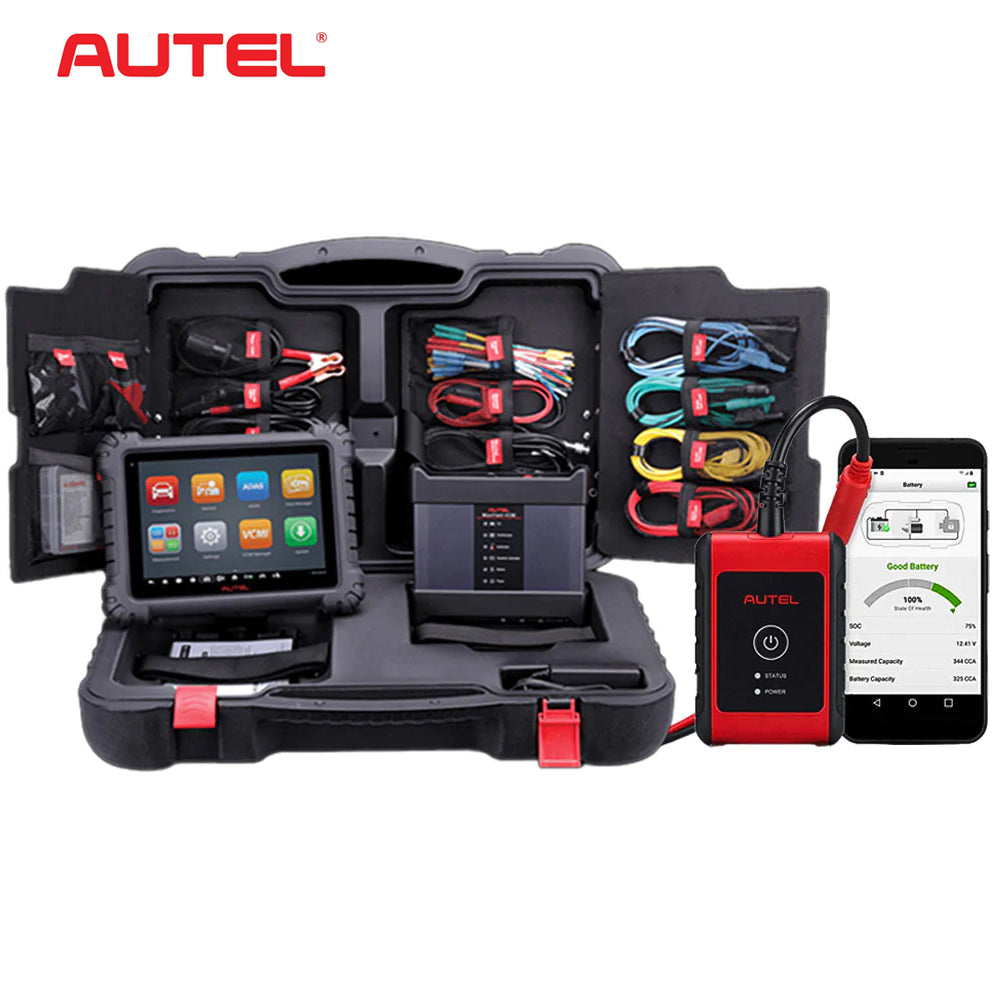

Autel MaxiSys MS919 Diagnostic Tablet with MaxiFlash VCMI and MaxiBAS BT506 Battery Tester
Includes:

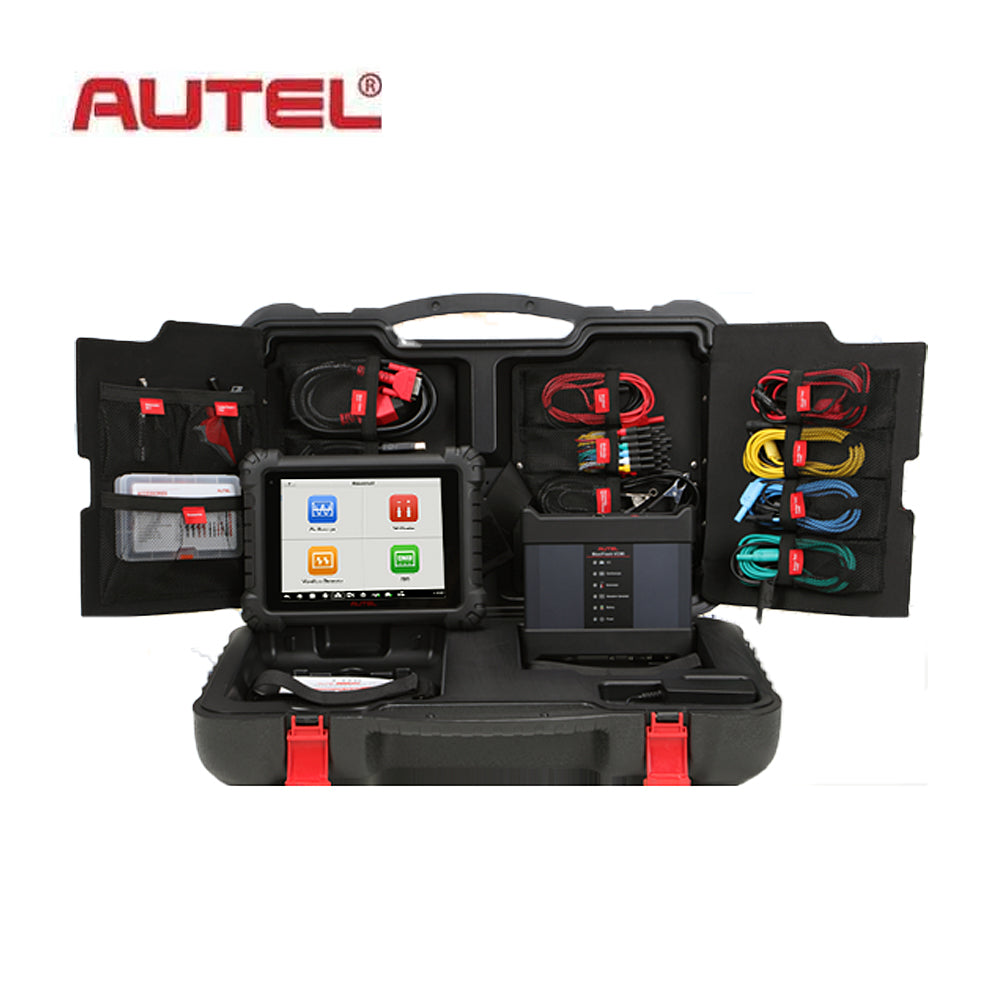

Autel MaxiSys MS919 Diagnostic Tablet with Advanced MaxiFlash VCMI
MaxiSYS MS919 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor (2.2GHz Quad + 1.8GHz Quad), 128GB memory and features the MaxiFlash VCMI, a 5-in-1 communication and testing tool providing wireless vehicle communications between the vehicle and tablet and supporting the latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The VCMI also functions as a 4-channel oscilloscope, waveform generator, multimeter and Can BUS tester. The MS919 features dynamic topology module mapping for supported vehicles and its Intelligent Diagnostics feature that guides the technician from code to repair to test with detailed repair information and illustrations, and Oscilloscope preset guides and tests and waveform library. Utilize Remote Expert to contract with expert programmers and diagnosticians with OE tools and subscriptions for module programming, ADAS calibration, and gateway access. The MS919 features a rechargeable Lithium battery proving 8 hours of continues use, and front and rear cameras.
Features:
- Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
- Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
- Automatic system and software updates with real-time push message notifications via internet
- Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
- Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
- 9.7’’ Touchscreen (1536 x 2048) / Android 7.0
- Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform
Specification:
| Operating System | Android 10.0 |
| Processor | Qualcomm 660 Octa-coreProcessor (2.2GHzQuad-coreA73 +1.8GHzQuad-core A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen |
| Connectivity |
|
| Camera (rear) |
|
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output |
|
| Power and Battery |
|
| Input Voltage | 12V/1.3A Adapter |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions (WxHxD) | 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67") |
| Weight | 1.66kg (3.66lb.) |
| Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
MaxiSYS Comparison:
Download:
- MaxiSys MS919 Specifications
- MaxySys Comparison Chart
- MaxiSys MS919 Quick Guide
- MaxiSys MS919 Manual
- MaxiSys MS919 Accessories
- MaxiSys MS919 Flyers

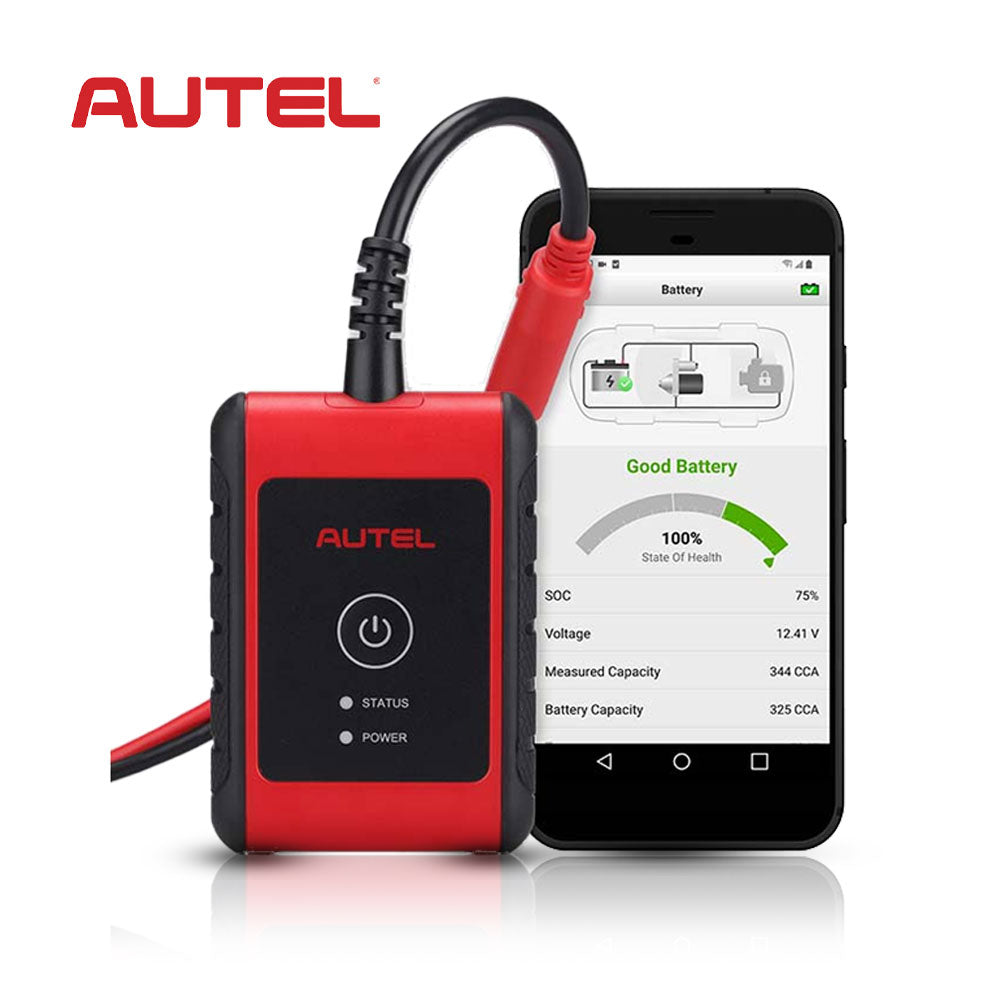

Autel MaxiBAS BT506 Battery Tester Electrical System Diagnostic & Analysis Tool
The BT506 is a battery and electrical system analysis tool that use as Adaptive Conductance an advanced battery analysis method, to produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. The BT506 enables technicians to view the health status of vehicle's battery and electrical system. Download the free and easy-to-use mobile app, available for iOS and Android devices, to use with the BT506 to perform testing and display test results.
Features:
- Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries
- Test 12-volt batteries: 100 - 2000 CCA
- Test 12-volt cranking/charging systems
- Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
- Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA
Specification:
| Recommended Use | Indoor |
| Connectivity | USB 2.0, Type C Bluetooth V3.0 BR/EDR+ V4.2 LE Dual-Mode |
| Input Voltage | 5 V DC |
| Working Current | <150 mA at 12 V DC |
| Internal Battery | N/A |
| CCA Range | 100 to 2000 A |
| Voltage Range | 6 to 36 V |
| Working Temperature | -10°to 50° C (14° to 122° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Dimension (L x W x H) | 107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included) |
| Weight | 320 g (0.7 lb.) |
