Autel - MaxiSys Ultra Automotive Diagnostic Tablet With Advanced MaxiFlash VCMI

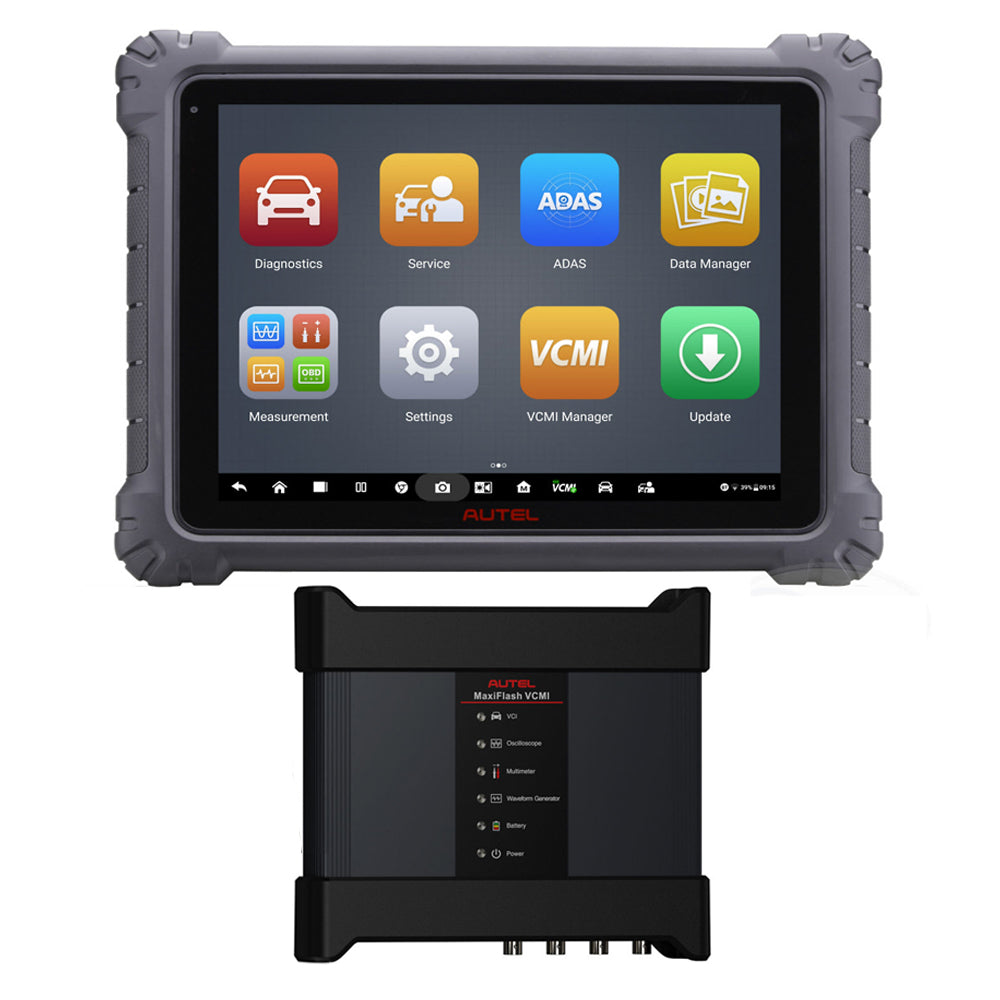

The MaxiSYS Ultra is Autel’s most ambitious diagnostics tablet to date, featuring a 12.9-inch touchscreen Android-based tablet powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory and features the MaxiFlash VCMI, a 5-in-1 communication and testing tool providing wireless vehicle communications between the vehicle and tablet and supporting the latest DoIP, D-PDU, and Mega CAN vehicle communication protocols. The VCMI also functions as a 4-channel oscilloscope, waveform generator, multimeter, and CanBUS tester. The Ultra offers the most advanced approach to vehicle diagnostics with its dynamic topology module mapping for supported vehicles combined with its Intelligent Diagnostics feature that guides the technician from code to repair to test with detailed repair information and illustrations, and Oscilloscope preset guides and tests and waveform library. The Ultra features a rechargeable Lithium battery proving 8 hours of continuous use, a convenient docking station, and front and rear cameras.

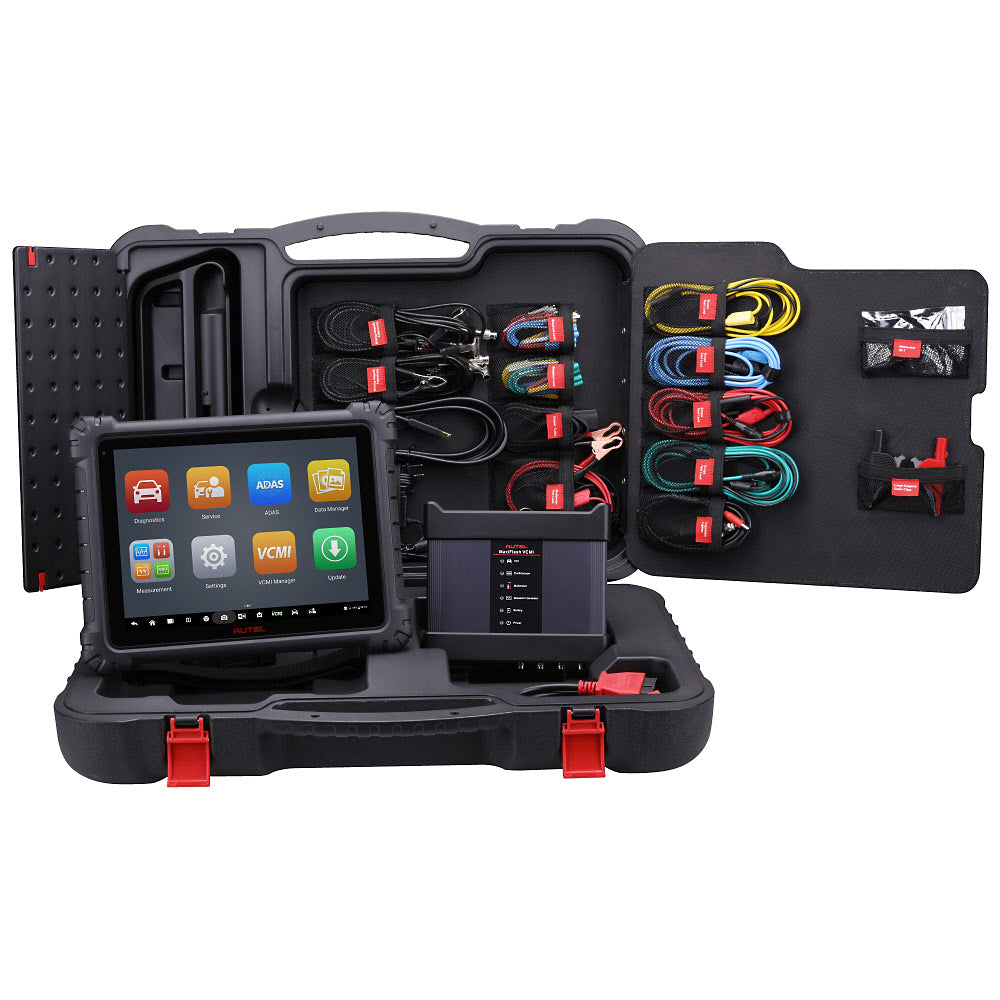

Includes:

- Main Unit
- MaxiFlash VCMI
- Main Cable V2.0
- USB 2.0 Cable V2
- AC/DC Adapter(12V)
- Cigarette Lighter
- Light Fuse 6x30mm 2 PCS
- Clipper Cable
- Scope Test Lead 4 PCS
- Multimeter Test Lead 2 PCS
- Secondary Ignition Pickup 2 PCS
- Attenuator 20:1 2 PCS
- Breakout Lead 4x6 PCS
- Multimeter Probe 1x2 PCS
- Flexible Back-pinning Probe 2x2 PCS
- Back-pinning Probe - Red/Green/Blue/Yellow/Black 1x5 PCS
- Back-pinning Probe Screw 2 PCS
- Back-pinning Probe Replacement Needle 20 PCS
- Small Crocodile Clip 2x2 PCS
- Large Dolphin Clip 1x2 PCS
- Quick Reference Guide
- Packing List
- Soft Cloth
- Tool Box 177 x 102.5 x 23.5 mm
- Carrying Case 687 x 170 x 470 mm

Packing List - Click Here

MaxiSYS Ultra includes 12 Months of updates and 12 months of warranty.

The annual update is available for $1,695 that will add 12 more months of updates and 12 more months of warranty.

Specifications:

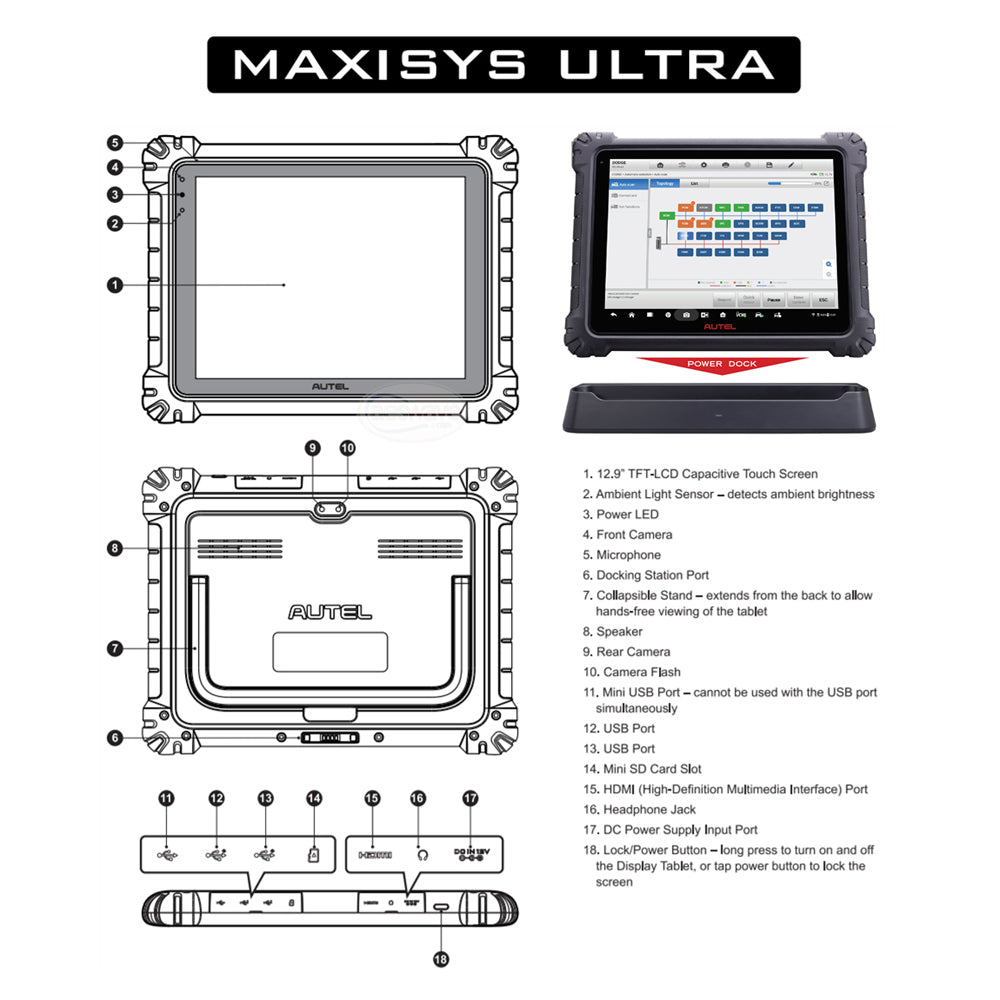

- Large 12.9’’ Touchscreen (2732 x 2048) / Android 7.0
- 2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory

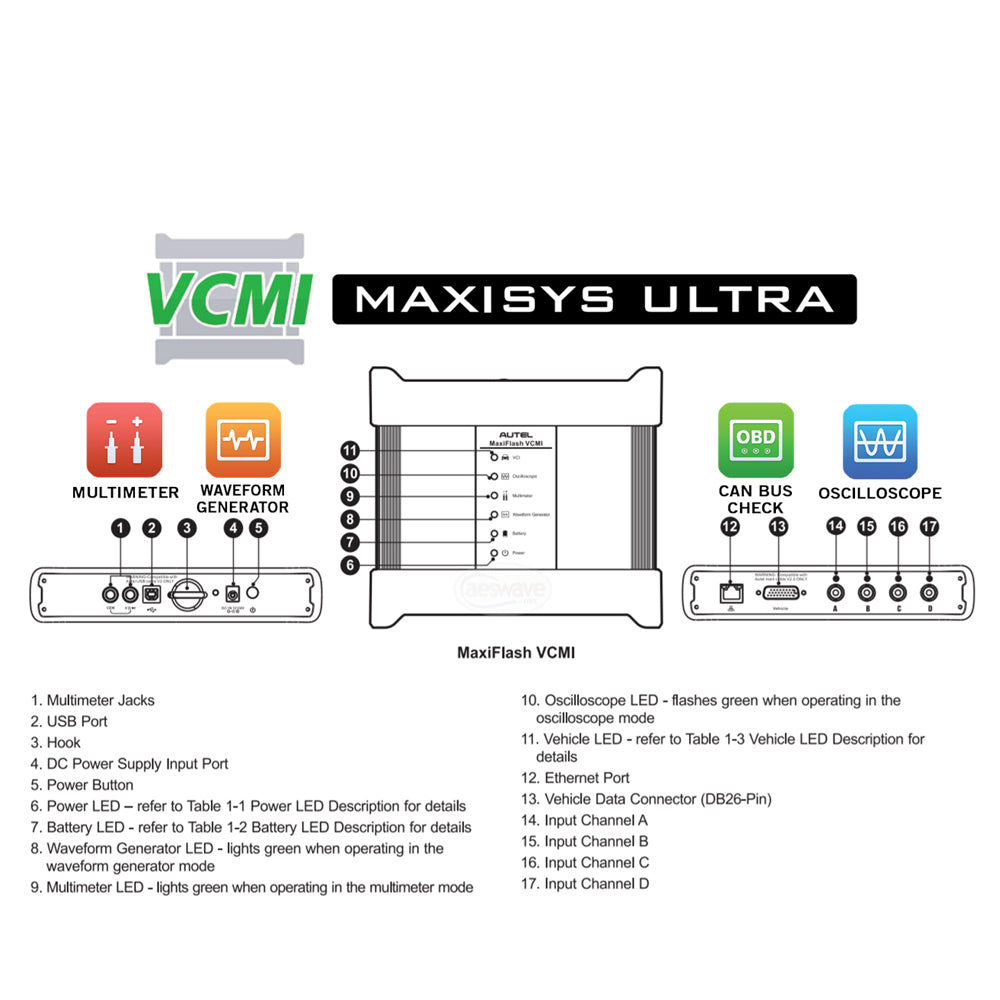

- Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check
- Oscilloscope Preset Guided & Component Tests / Waveform Library
- New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
- Split Screen Multi-Application Function / Dual Wi-Fi Connection
- Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
- Relevant Cases: DTC Troubleshooting / Repair Tips Video Library
- Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions
- Code-Related Technical Service Bulletins (on select vehicles) / License Plate Reader
- ScanVIN: Barcode or Text Recognition with Camera
- Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account

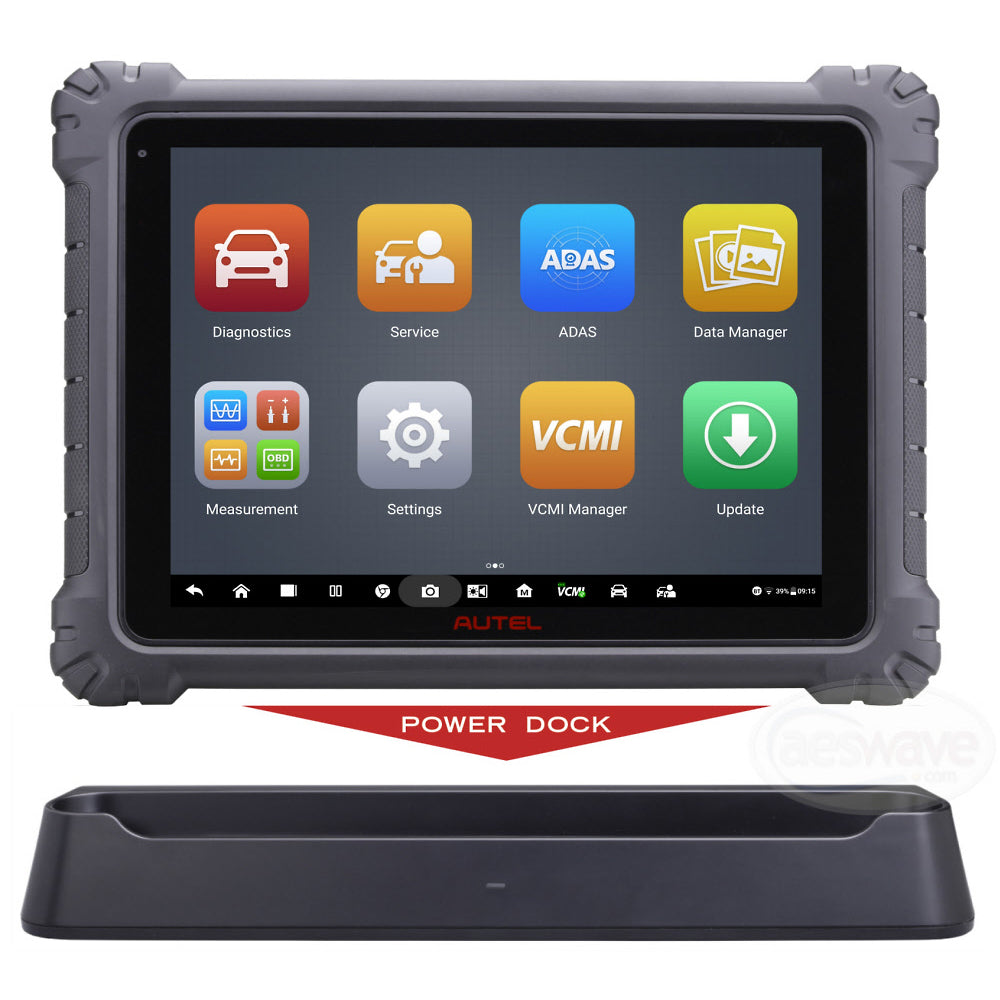

- Includes Docking Station, Cables, Scope Connectors, Carrying Case, 1YR Warranty & Software Subscription
- Enhanced Diagnostic Reports: PreSCAN & PostSCAN
- 18000mAh - 8hrs Continuous Use / 16MP Rear Camera & 5MP Front Camera
