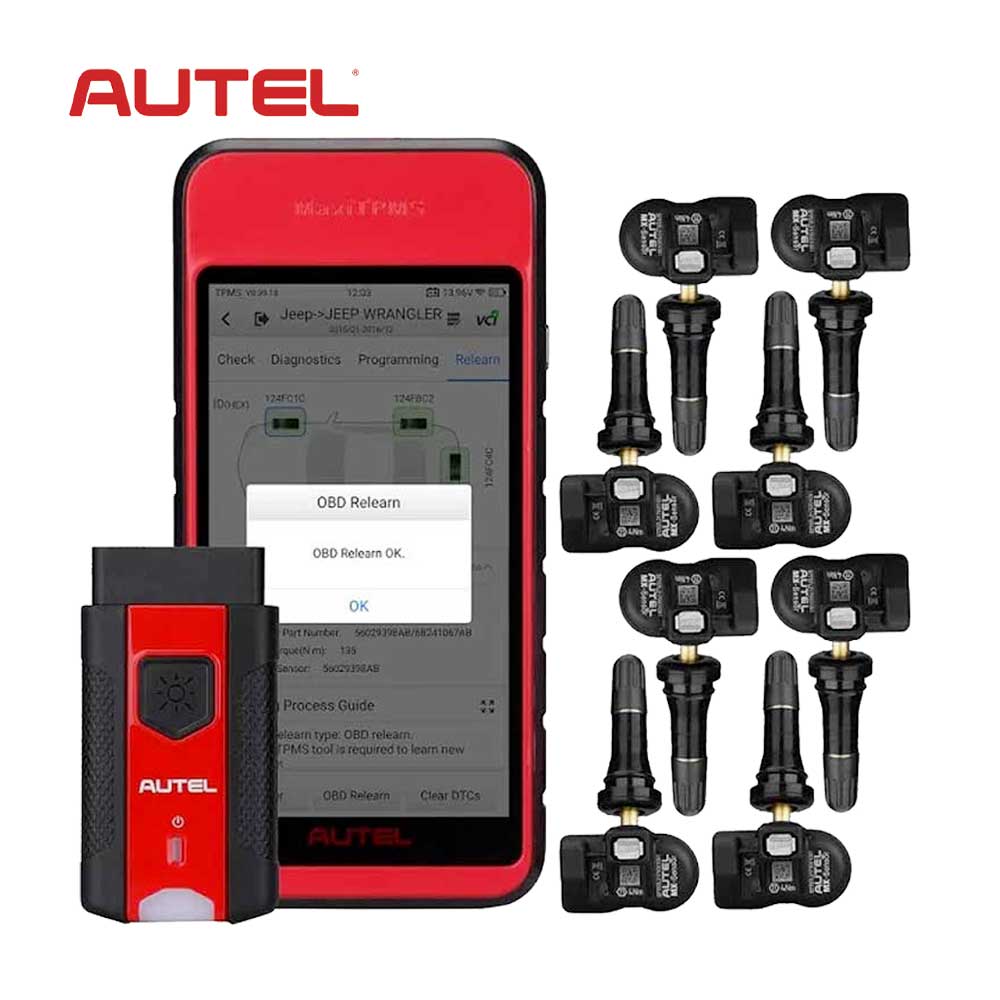

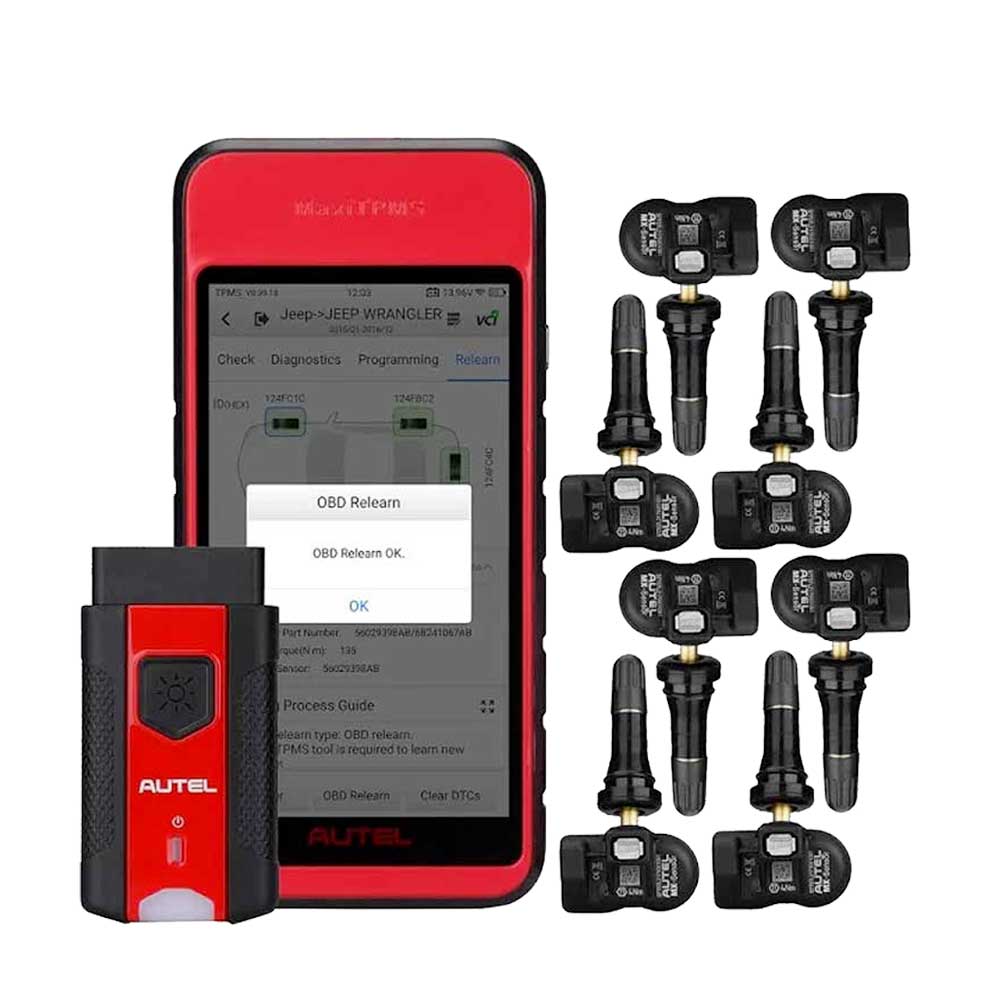

Autel MaxiTPMS ITS600K8 kit with the ITS600 tablet and eight 1-Sensors
The MaxiTPMS ITS600K8 kit includes the ITS600 tablet and eight 1-Sensors. The MaxiITS600 is a wireless, touchscreen Android-based tablet that offers complete TPMS diagnostics and service functions. The tablet features a 5.5-inch color display and Bluetooth vehicle communication interface (VCI). Compatible with U.S, Asian, and European TPMS-equipped vehicles, the ITS600 features an enhanced TPMS status screen, VINscan for rapid vehicle identification, four MX-Sensor programming options, OBDII relearn functionality, and onscreen relearn instructions for all vehicles. The ITS600 can activate, read and relearn all known sensors, perform an all vehicle systems diagnostics and perform four common maintenance services. The ITS600 is compatible with Autel’s TBE200 Tire Tread & Brake Disc Wear Analysis tool, sold separately. The ITS600 includes one-year free TPMS software updates and a year limited warranty.
MaxiTPMS ITS600K8 Kit
- Includes ITS600 TPMS Service and Diagnostic Tablet with (8) 1-Sensors
- Wireless Touchscreen Android-based Tablet Tool
- Activates, Reads and Relearns All Known Sensors
- Four MX-Sensor Program Modes; Batch Program Up to 20 MX-Sensors
- 5.5 Inch Color Display; Android 9.0 OS
- Includes Wireless Bluetooth Vehicle Communication Interface (VCI)
- Enhanced, At-a-Glance Diagnostics Status Screen
- Rapid VIN Acquisition Via Optical VINscan Function
- Program MX-Sensors to replace 99% of OE Sensors
- Read/Erase All System Codes and Perform OLS, BMS, SAS and EPB
|Operating System||Android 9.0|
|Processor||Quad-core processor (1.5 GHz)|
|Memory||1 GB RAM DDR4 & 64GB ROM|
|Display||5.5-inch LCD capacitive touchscreen with 1280×720 resolution|
USB 2.0, Type C
|Sensors||Light sensor for brightness auto adjust|
|Audio input/output||Input: N/A
|Power and Battery||3.8 V/5000 mAh lithium-polymer battery
Charges via 5 V AC/DC power supply
|Battery Charging Input||5 V/2 A|
|Power Consumption||600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V|
|Operating Temp.||-10 to 45ºC (14 to 113ºF)|
|Storage Temp.||-20 to 60ºC (-4 to 140ºF)|
|Dimensions (W x H x D)||183.0 mm (7.2″) x 89.0 mm (3.5″) x 22.0 mm (0.87″)|
|Net Weight||368 g (0.8 lb.)|
|Protocols||ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code,
SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed,
Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,
GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66
|TPMS & TIRE SERVICE|
|Worldwide Vehicle Coverage 99%, Always Up-to-date||•||•||•||•|
|Easy Vehicle Identification||AutoVIN, VINscan, QR code/Barcode scan, Plate Scan, Manually select/input||AutoVIN, Manually select/input||Manually select||Manually select|
|Activate, Read, Relearn All Known TPMS Sensors||•||•||•||•|
|Four Programming Options||•||•||•||•|
|Autel Sensor Batch Programming||Up to 20 sensors||Up to 16 sensors||Up to 16 sensors||Up to 16 sensors|
|OBDII Relearn / Automatic Relearn / Stationary Relearn||•||•||•||•|
|Relearn Procedure Guide||•||•||•||•|
|Exclusive TPMS Status Screen||•||•||•||•|
|Indicate sensor OE part number||•||•||•||•|
|check MX-Sensor Information (ID, Battery, etc.)||•||•||•||•|
|Tire Pressure Placard Value Reset||•||•||•||•|
|Unlock TPMS ECU for old Toyota/Lexus, Integrated into OBD relearn||•||•||•||•|
|Test Remote Key Entry (RKE)||•||•||•||•|
|Read/Clear Codes for TPMS System||•||•||•||•|
|Special Functions (e.g View Live Data for TPMS System)||•||•|
|DOT Scan, Tire Expiration Notice, Tire Recall Lookup||•||Coming soon with Autel-cloud based app|
|Test Report||•||•||View on PC||View on PC|
|TPMS Software Update||Free Update||Annual Update Fee||Free Update||Free Update|
|All System Diagnostics & All Maintenance Service||Free OLS, SAS, BMS, EPB; Optional purchase of Pro Upgrade for All System Diagnostics & All Maintenance Service||•|
|Diagnostic Software Update||All System Diagnostics and Services updates is FREE for 1 Year with Pro Upgrade purchase. New software updates for these features will require a new ITS600 Pro Upgrade purchase.||Annual Update Fee|
|Operating System||Android 9.0||Android 4.4|
|Display||5.5 inch TFT LCD-touch, 1280×720||7 inch TFT LCD-touch, 1024×600||2.8 inch TFT LCD, 320×240||2.8 inch TFT LCD, 320×24|
|Flash / RAM / SD||64GB / 1G; SD card up to 64G (Opitional)||32GB / 1G; SD card up to 32G (Opitional)||16M / 3M||16M / 3M|
|Vibration reminder, Microphone voice remote assistance||•|
|Tread Depth & Brake Disc Wear Examiner TBE200 / TBE100||Sold Separately|
|Thermal Printer||Sold Separately|
