BEA | SKU:
BEA-10MAGLOCK3UL
17% off

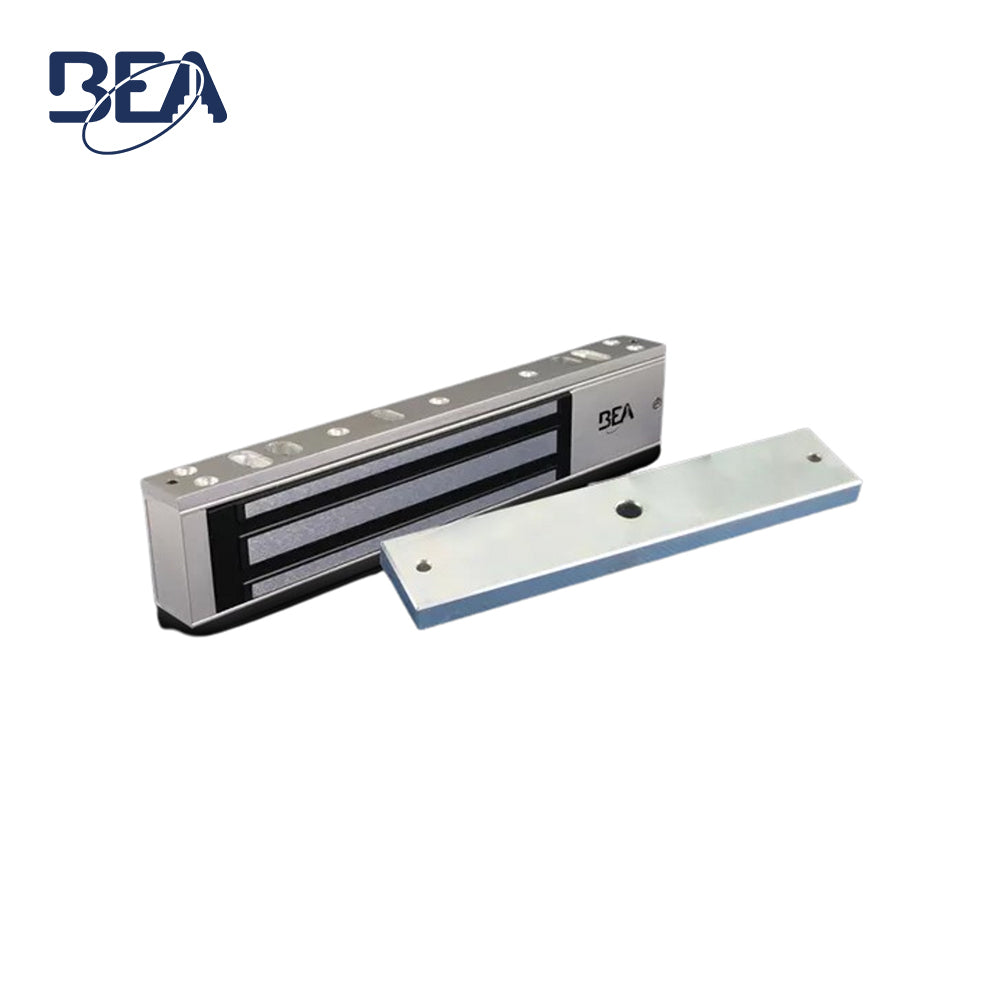

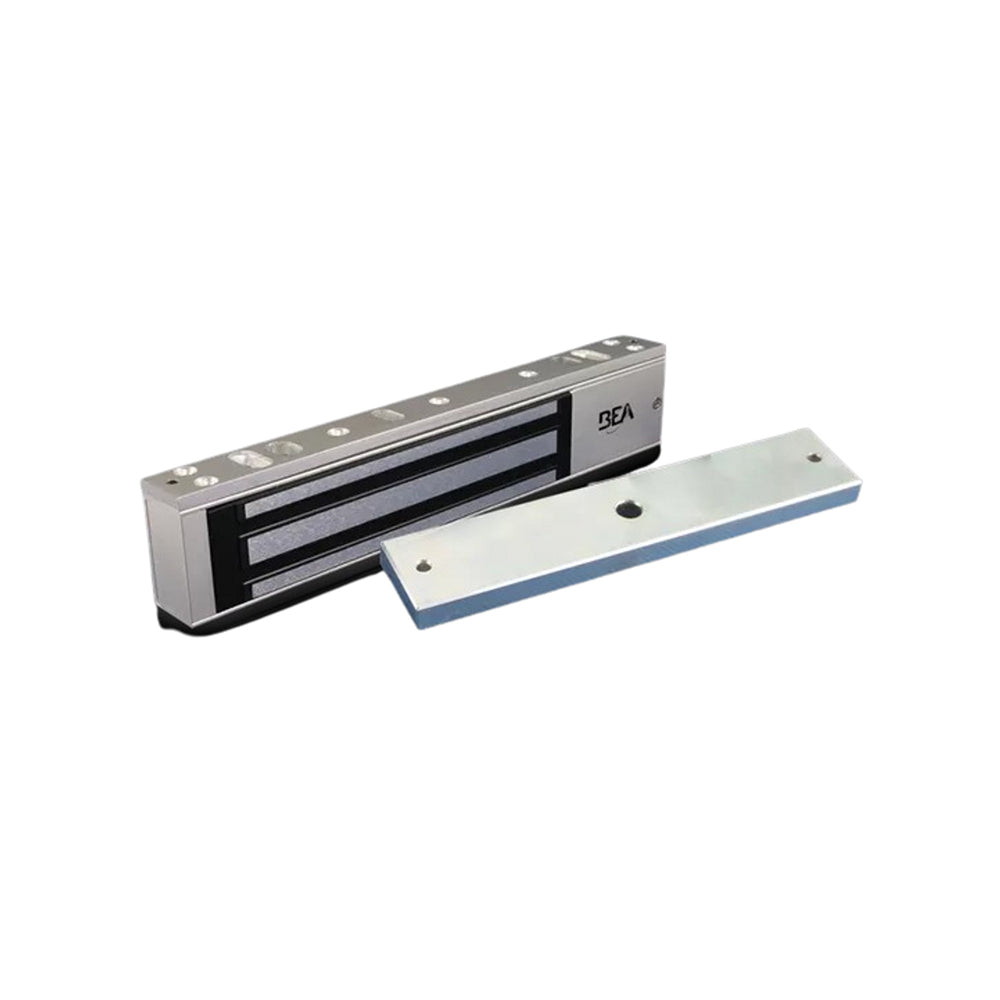

BEA - 10MAGLOCK3UL - Single Electromagnetic Surface Mount Lock with Adjustable Relock Time Delay System, 600 LB
$14076
$16891
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
BEA - 10MAGLOCK3UL - Single Electromagnetic Surface Mount Lock with...
$14076
$16891
Unit price
/
Unavailable
Description
Description
BEA - 10MAGLOCK3UL - Single Electromagnetic Surface Mount Lock with Adjustable Relock Time Delay System, 600 LB
BEA’s electromagnetic locks provide reliability and durability in areas for authorized individuals or doorways leading to an emergency exit. Common applications include access control or egress doors using a sensor or a switch to release the locking device.
Features:
- Customizable Adjustable zero to 90 second relock time delay
- Enhanced Reliability Lock status sensor with visible LED offers either normally open or normally closed output configurations
- UL Listed Input voltage of 12 / 24 VDC, must be used with UL Listed power supply
- Mounting Accessories Variety of mounting hardware available
- Convenient Packages Available Available in access control packages with request-to-exit sensor, logic module, actuator, power supply, and MAGLOCK
Specifications:
| Lock | Single |
| Input Voltage | 12 or 24 VDC |
| Relay Rating | 1.0 A at 24 VDC resistive |
| Reed Switch Rating | SPDT 0.5 amp at 30 VAC / VDC resistive |
| Power Consumption | 505 mA × 2 at 12 VDC 260 mA × 2 at 24 VDC |
| Certification | UL1034 |
| Operating Temperature | 14 – 131 °F |
| Operating Humidity | 0 – 95% |
| Dimensions | 9 27⁄32" (W) × 1 21⁄32" (H) × 1" (D) |
