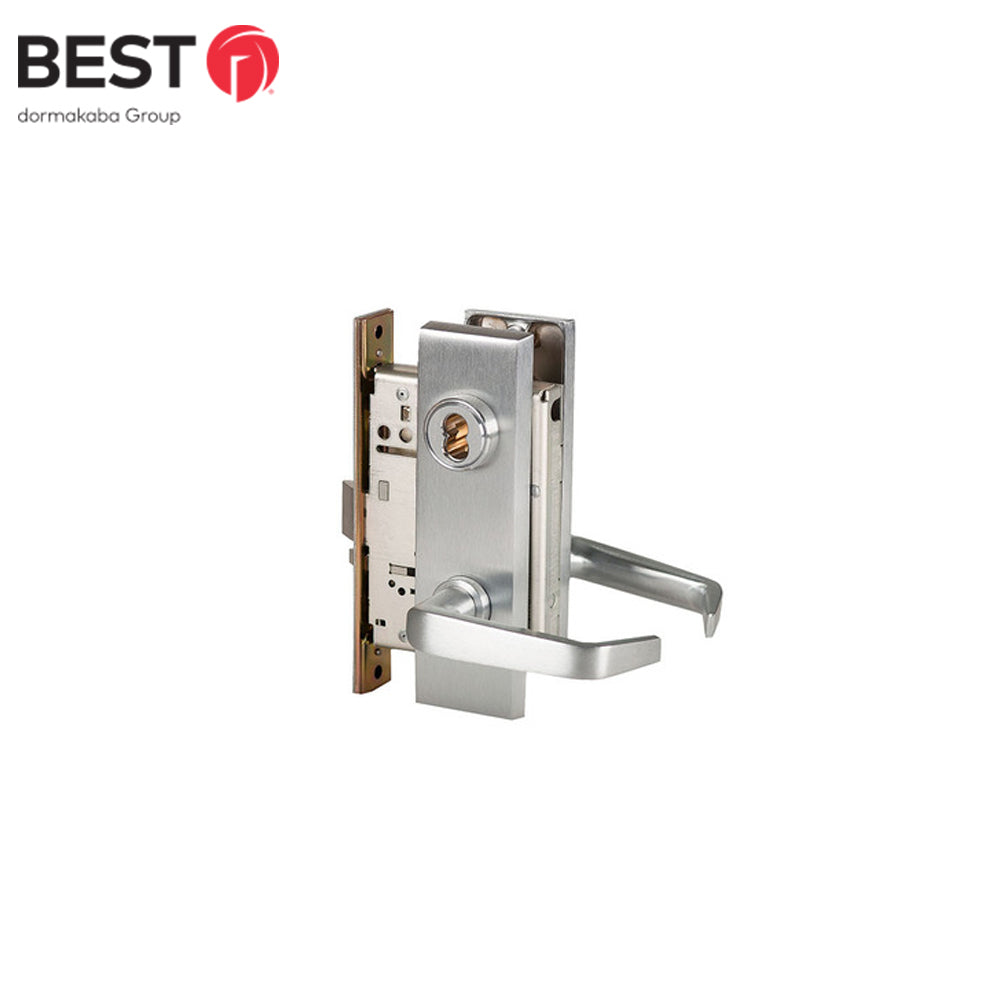

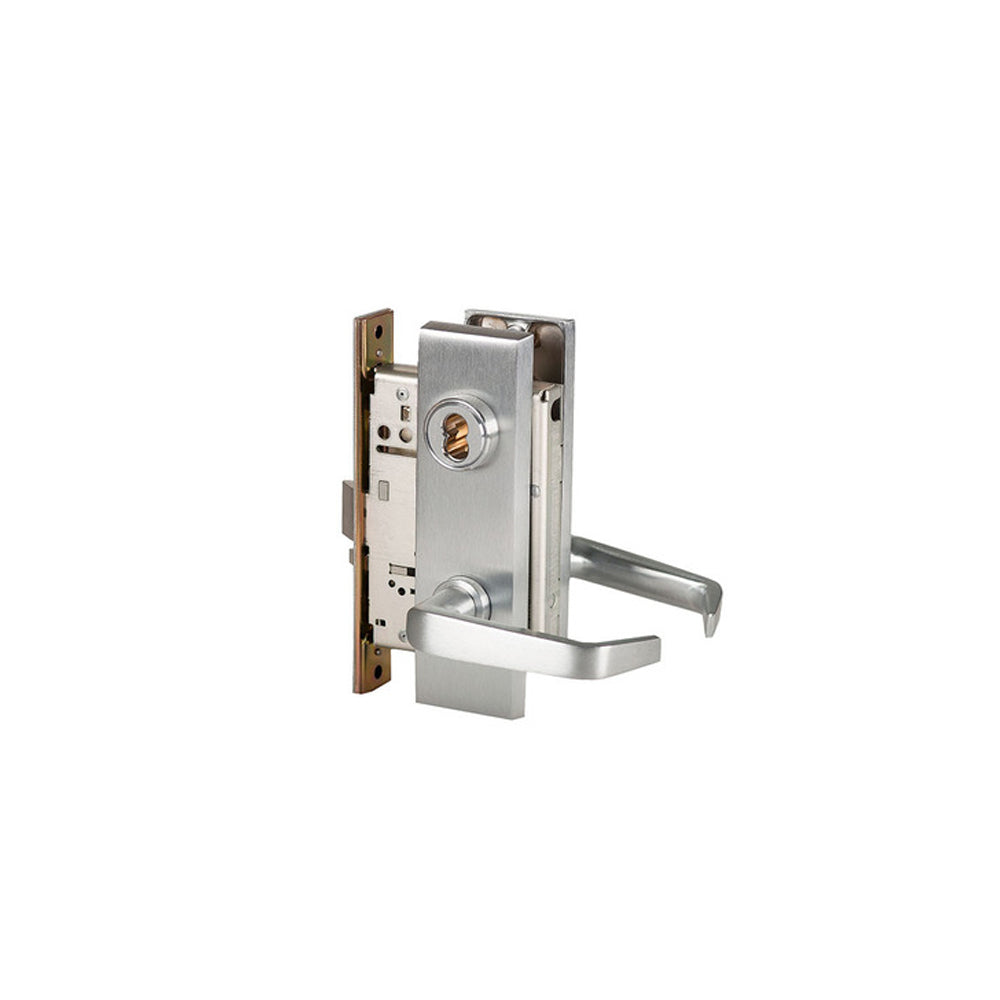

BEST - 45H7D15M626 - Mortise Lock for Storeroom with 15 Lever and SFIC Less Core - Grade 1 - 626 (Satin Chrome)
45H Series Mortise Locks Mortise locks and deadbolts delivering exceptional strength, security, and durability. With precision-engineered components and robust design features, BEST's 45H mortise lock series is ideal for high traffic applications. Installation is quicker and easier thanks to carefully designed features that simplify handing changes, alignment, and assembly.
- Superior strength and security. A solid one-piece stainless steel latch that provides 50% more surface contact with the strike to make the lock stronger and more secure.
- Reliable performance. The 45H series locks deliver smooth, wear-resistant operation via a roller bearing hub mechanism,
- Premium materials. Featuring a case, cover, and armored front manufactured from 0.095" cold rolled steel with a corrosion-resistant coating.
- Varied aesthetics. The 45H series is visually compatible with different architectural styles and aesthetics due to itswide variety of lever styles and trims.
- Enhanced durability. The precision-engineered curve on the latch reduces wear to the strike and enhances cycle life.
- Easy to install. The reversible latch rotates 180 degrees, enabling easy handing changes without opening the 45H series case. The self-aligning trim makes installation easy, fast and accurate.
Product Specifications:
| Vendor | DormaKaba |
| Manufacturer | BEST |
| SKU | 45H7D15M626 |
| UID | BES10045H7D15M626 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.13, Series 1000, Grade 1, UL Listed |
| ANSI Number | F07 |
| BAA Qualified | Yes |
| Limited Warranty | Limited Lifetime Warranty |
| Fire Rated | 3 Hours {A} |
Technical Specifications:
| Function | D-Storeroom |
| Function Family | Storeroom |
| ANSI Function | F07 - Storeroom/Exit |
| Lever/Knob Design | 15 Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design | M Escutcheon |
| Rose/Escutcheon Dimensions | 2-1/8" x 8" |
| Cylinder Type | SFIC Prep Less Core |
| Num Pins | 7 |
| Handing | Field Reversible |
| Door Thickness | 1-3/4" |
| Std. Latch Number | 45H |
| Std. Latch Type | Faceplate |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" Latch |
| Std. Strike Number | 40HST1 |
| Std. Strike Type | ANSI Curved Lip Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Dust Box | Plastic |
| Screws | Wood/Machine Screws |
| Product Type | Mortise Lock |
