BorgLocks BL7701 MG Pro ECP External Heavy Duty Lever Keypad with Tubular Latch - Key Override and On-Door Code Change - Black Marine Grade Finish

BorgLocks BL7701 MG Pro ECP External Heavy Duty Lever Keypad with Tubular Latch - Key Override and On-Door Code Change - Black Marine Grade Finish

The BL7000 ECP is our solution to the heavy duty specification, ideal for high traffic areas.

Coming in our black MG Pro 2 finish, this unit offers increased UV resistance and enhanced protection against the elements, allowing it to withstand even the toughest conditions. This finish has been tested to withstand 1,000 hours of saltwater exposure.

Designed to provide a reliable solution for such a application, the BL7000 ECP was designed to share a footprint with other popular heavy duty locks on the market, such at the Unican 1000 & 5000 to make switching over easy. Code changing was also made far easier with the Easicode Pro system, allowing a on the door code change and free passage function from the internal handle preventing any unauthorized code change attempts.

The BL7700 ECP models have a built-in key override in the lever/knob handle; this utilises a SFIC (small format interchangeable core) cylinder. This is a new type of key override system for Borg Locks, whereby rotation of the key engages the lever/knob handle, making it ideal for use with potentially heavily sprung third-party locks. The keypad lever/knob is free rotating and only engages with the clutch and 5/16" spindle drive until the correct code of key is entered.

This lock was manufactured with stainless steel coding to ensure it's longevity and allowing it to operate externally. This variation on the BL7001 series comes with a tubular latch, with 2-3/8" backset or 2-3/4" backset options.

A cover plate is available to retrofit on Unican setups to cover all existing drilling holes and paint marks left behind.

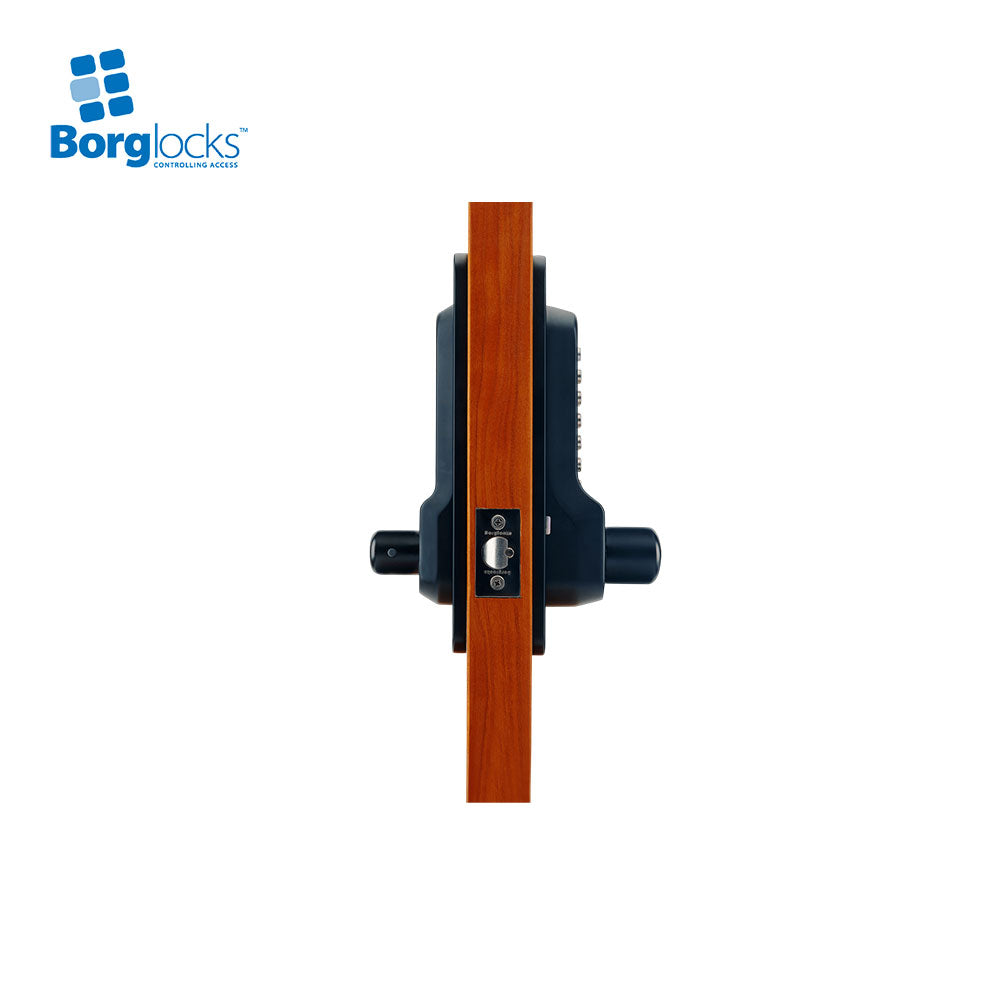

The unit is a heavy duty lock and is suitable for use internally and externally on wooden, composite and steel doors.

Features:

• Mechanical Digital Heavy Duty Single Lever Keypad with matching internal lever design
• Patented On-Door "Easi-Code Pro" ECP-10 Second Code Change
• Key Over-ride-prepped for Small Format Interchangeable Core (SFIC) less core
• SFIC Core purchased separately, keyed different, alike or masterkeyed
• Convenient Free Passage Mode, easy to activate and deactivate from keypad
• Size: Keypad Body 2-1/2" wide x 8-1/8" length x 3-7/16" thick from door to front of lever
• Edge of Case to end of lever: 5-9/16" width, with return to door
• Interior Plate with Lever is: 2-1/2" width x 8-1/8" length
• Applications: Wood & Hollow Metal Doors
• Type: Tubular latch 2-3/4", 2-3/8" backset (purchase cylindrical cartridge separately)
• Storeroom Function Standard, Passage Mode built-in
• Covers 2-1/8" door prep
• Optional Machined Cover Plates for replacing or repairing door prep BL-CP-7000-MGPRO
• Environment: External, great for harsh environment, passed 1000-hour Salt Spray & UV Ray tests
• Finish: Marine Grade Pro - Black
