Description
Description

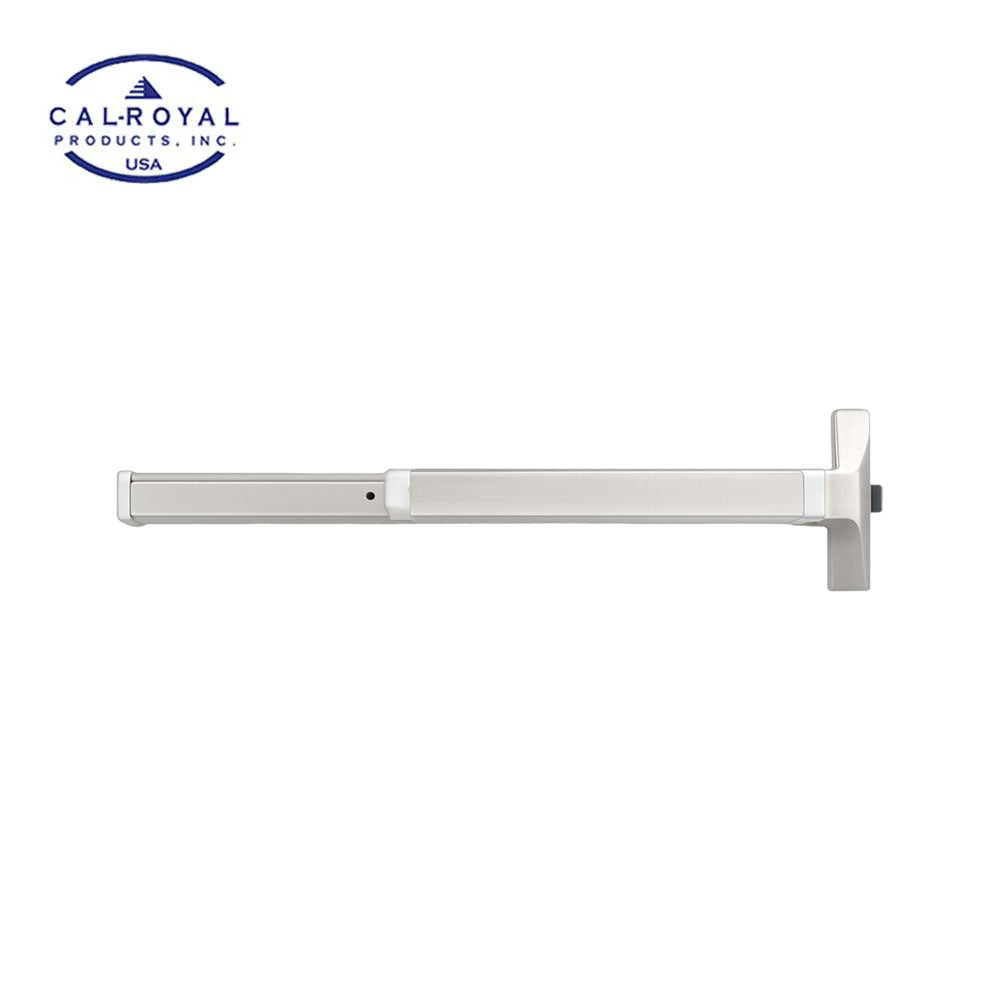

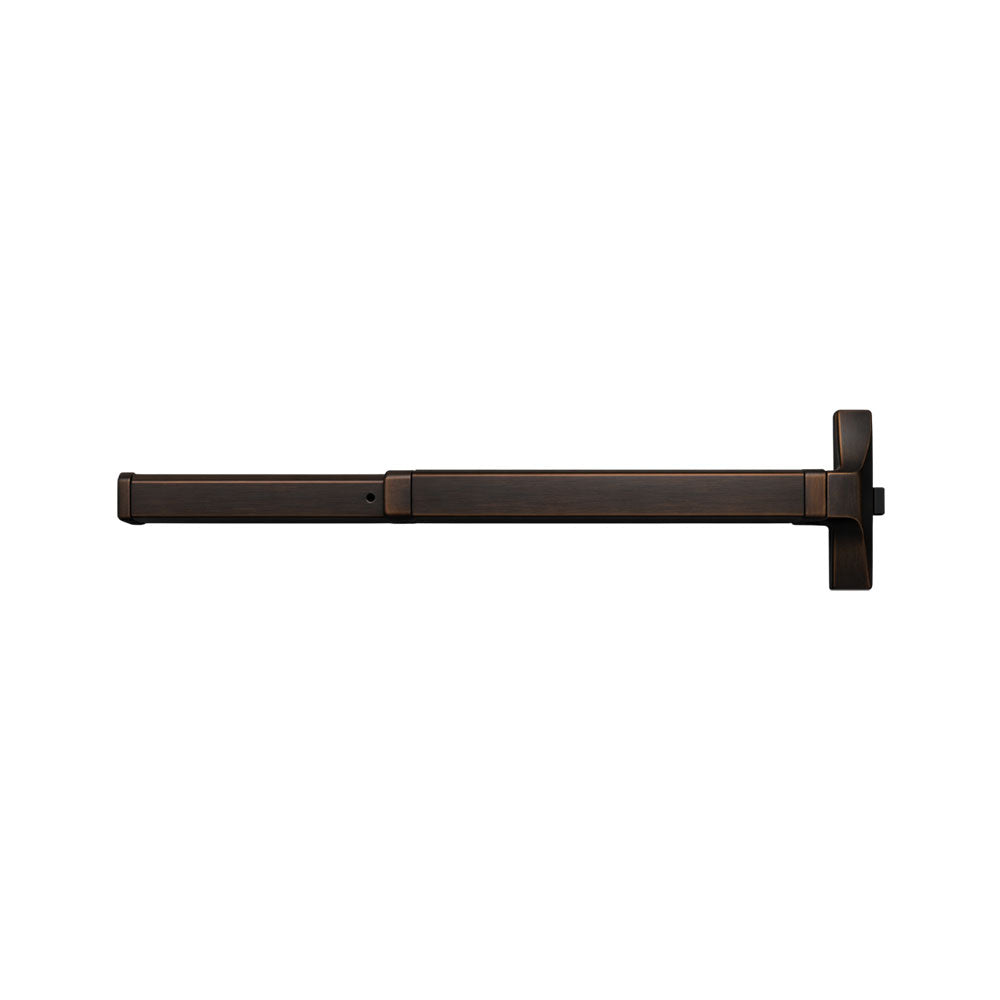

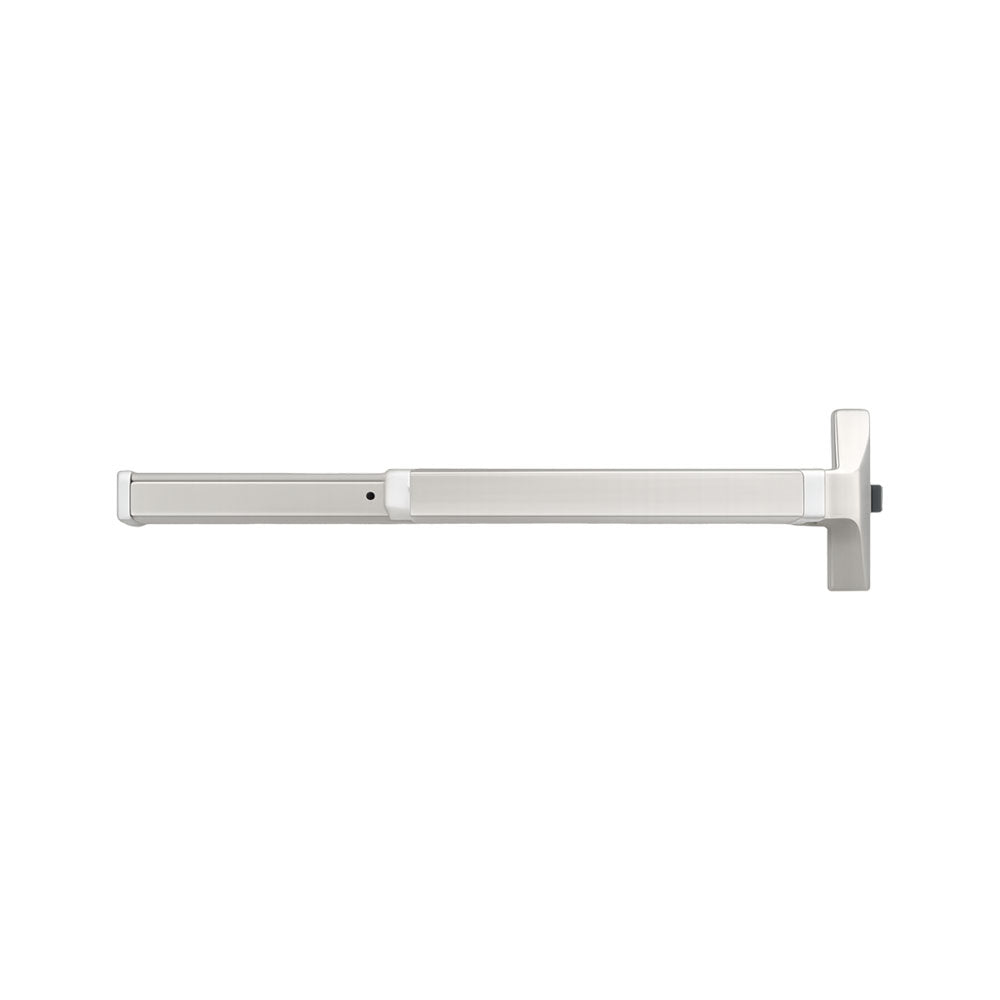

Cal-Royal - 9800 Series GLS Narrow Stile Rim Exit Device - Grade 1
Features:
- Designed for narrow stile aluminum door applications
- Compatible with 7700 and 9800 Series exit devices
- Complements CVR and SVR vertical rod device designs for a consistent appearance
- Durable construction for dependable performance in commercial applications
- Clean, streamlined design ideal for modern storefront installations
Specifications:
| For Doors | Wood, Metal or Aluminum Glass doors with 1 3/4" minimum stile width, 1 3/4" thickness for single or double door application |
| Chassis | Steel Material |
| Chassis Cover | Zinc Material |
| Mounting | Furnished standard with wood and machine screws. Thru-bolts available upon request. |
| End Cap | Aluminum Material |
| Hand | Non-Handed |
| Latch Bolt | Stainless Steel, 3/4" throw |
| Spring | Steel Material |
| ANSI Standard | A156.3, Grade 1 |
| Rail Assembly | Aluminum Material |
| Strike | 246 (Copper), Optional 247 Strike (Copper) |
| Dogging Feature | Allen-type key furnished standard. Cylinder Dogging kit available for 36" bar only. Use PART# 48CD7700 |
| Mullion | Available |
| UL and ULC Listed | N-GLS7700 Series for Panic & Safety, N-FGLS7700 Series for Fire Exit hardware for all types of 4' x 8' single doors and 8' x 10' double doors for up to 3 hour fire labeled installations. Conforms to ANSI/UL 10C, ANSI/UL 305 standards |
