Description
Description

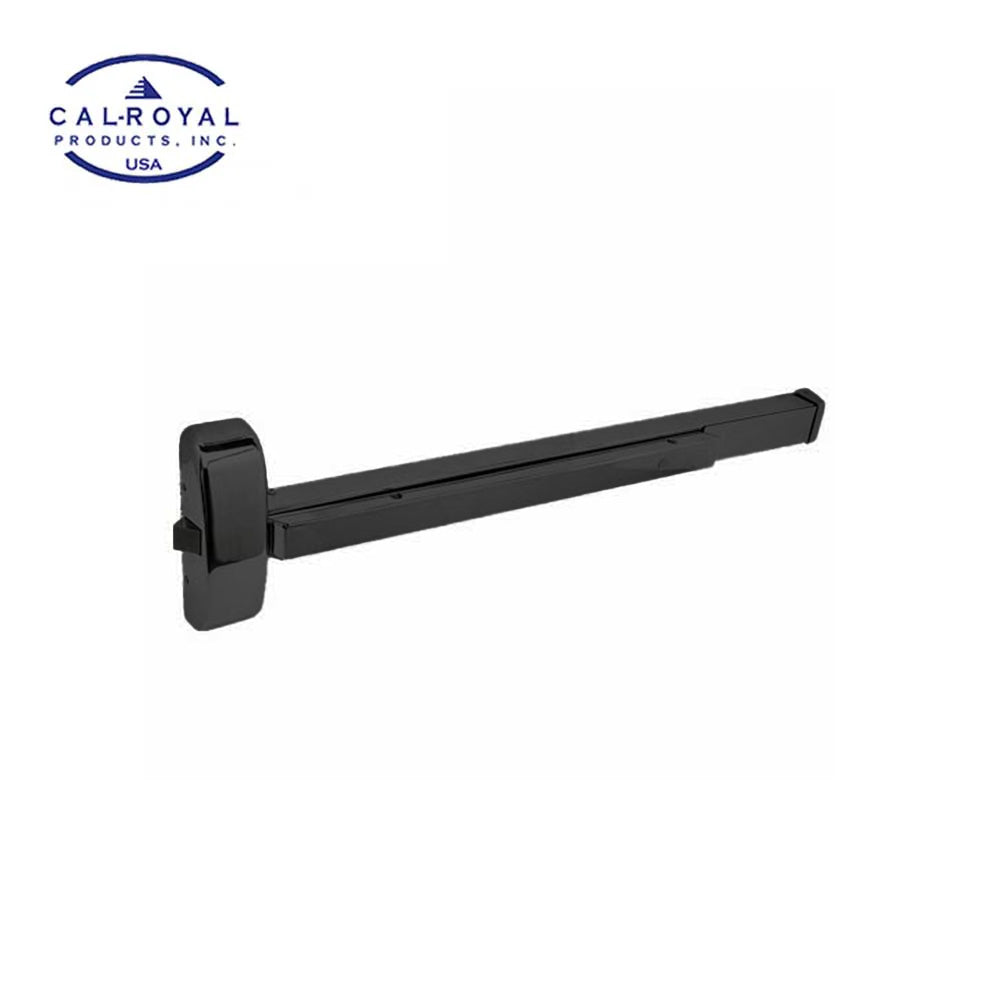

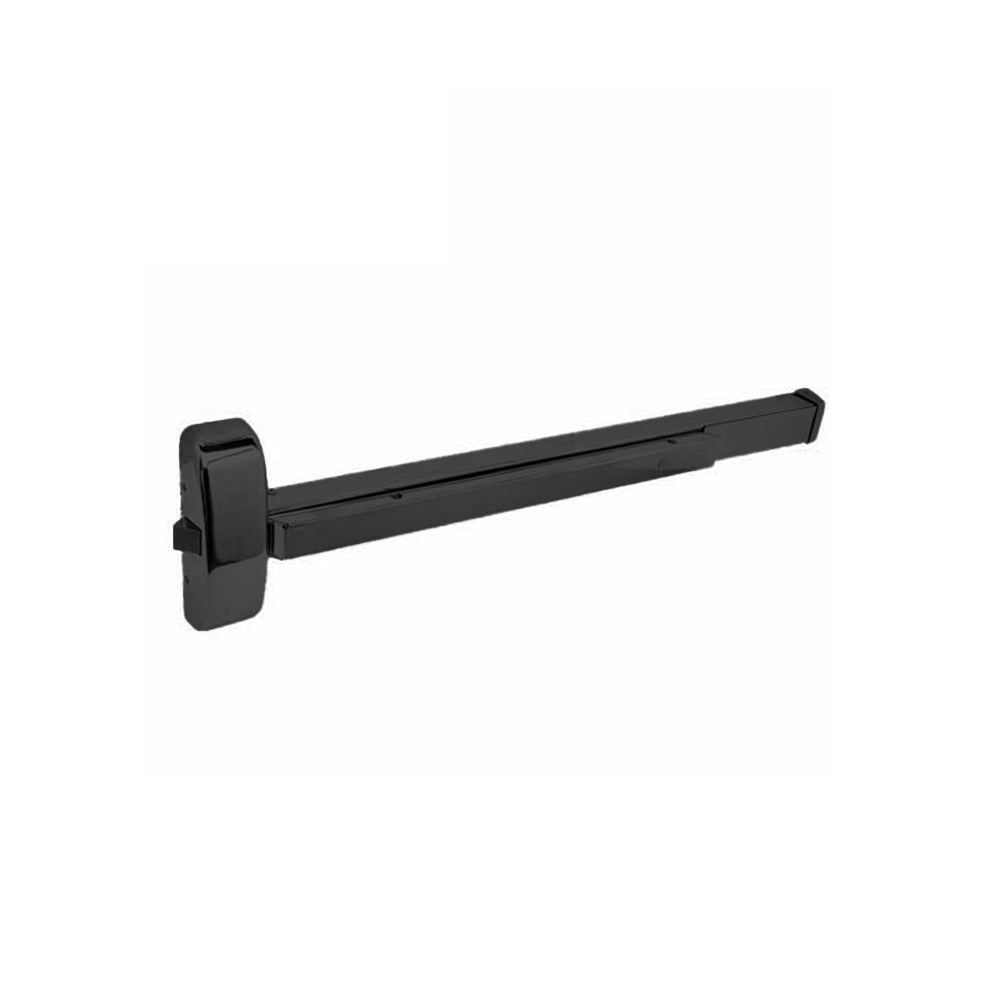

Cal-Royal - A9800EO36 - Rim Exit Device with 36" Door Width - Grade 1 - US1 - Flat Black Coated (622)
Features:
- ANSI A156.3, GRADE 1 heavy-duty exit device in surface vertical rod and rim designs.
- Retrofits Sargent 8800 Series using 9800 Escutcheon trim.
- Rail assemblies and end caps are made of brass, bronze, or stainless steel. Rail travels in direction of the door swing.
- Trims are thru bolted for additional security.
- Conforms & Meets ADA Regulations.
- Americans with Disability Act (ADA) Compliant, 5 lbs. opening force.
- UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
- Non-Fire Rated.
- Uncompromising security and safety in single and double-fire exit doors.
- Chassis-mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible.
Specifications:
| Chassis | Non-ferrous alloy (Panic Grade) |
| Cover | Brass, Bronze, or Stainless Steel. Covers stock hollow metal doors with 161 cut out. |
| For Doors | 1-3/4" thick standard, optional 2-1/4" thick. 4-1/2" minimum stile width for single or double door application using standard 239 strike and pull or lever, thumb piece, and escutcheon trim. 2-3/4" backset. |
| Mounting | Furnished with wood and machine screws. Available with thru-bolts on request. Thru bolts are included and standard packaging on fire-rated devices. |
| Handing | Non-handed, center hub |
| Latch Bolt | Stainless Steel 3/4" throw |
| Spring | Stainless Steel throughout |
| ANSI Standard | A156.3, Grade 1 |
| End Cap | Brass, Bronze, or Stainless Steel construction |
| Dogging Feature | Allen-type key furnished standard on non-fire labeled devices. Cylinder dogging available. |
| UL and ULC Listed | A9800 Series for panic |
| Finish | US1 - Matte Black (622) |
Download:
