Cal-Royal - C2-LON05 - Cylindrical Clutch Mechanism Storeroom Tusca...
Description
Description

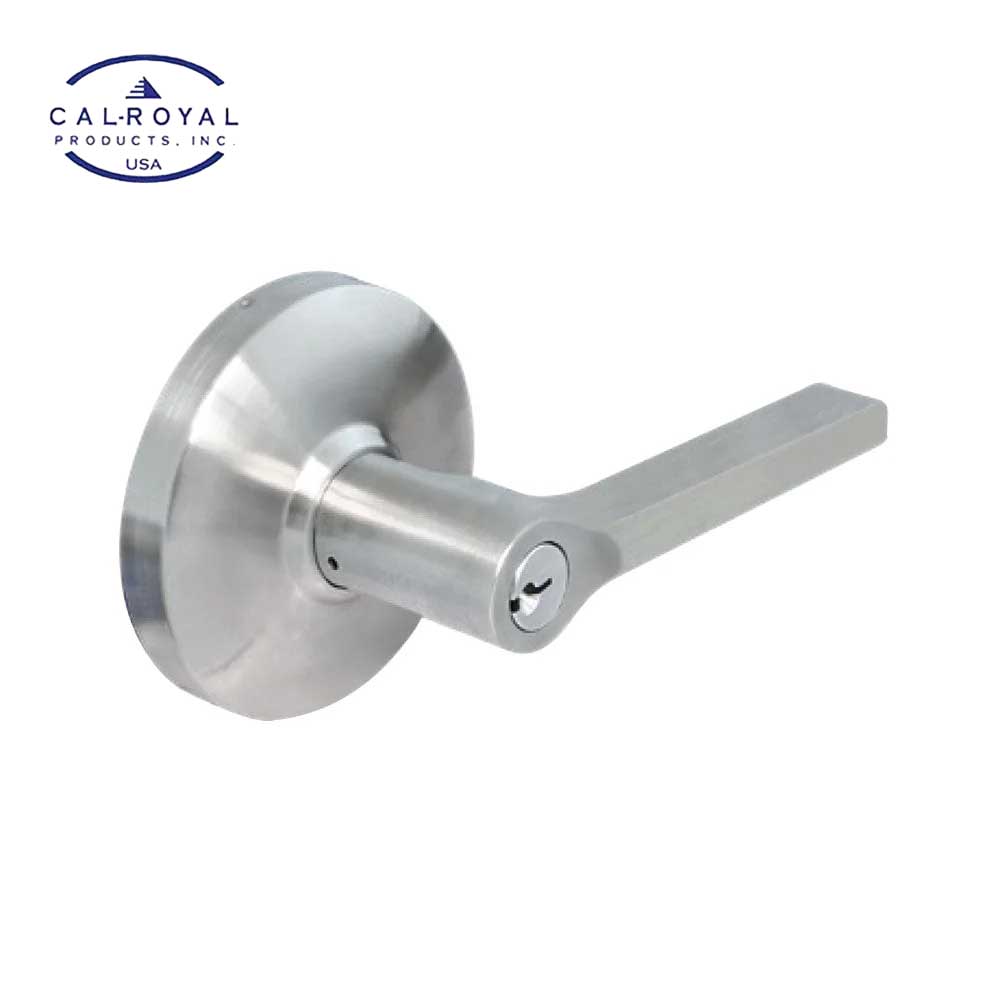

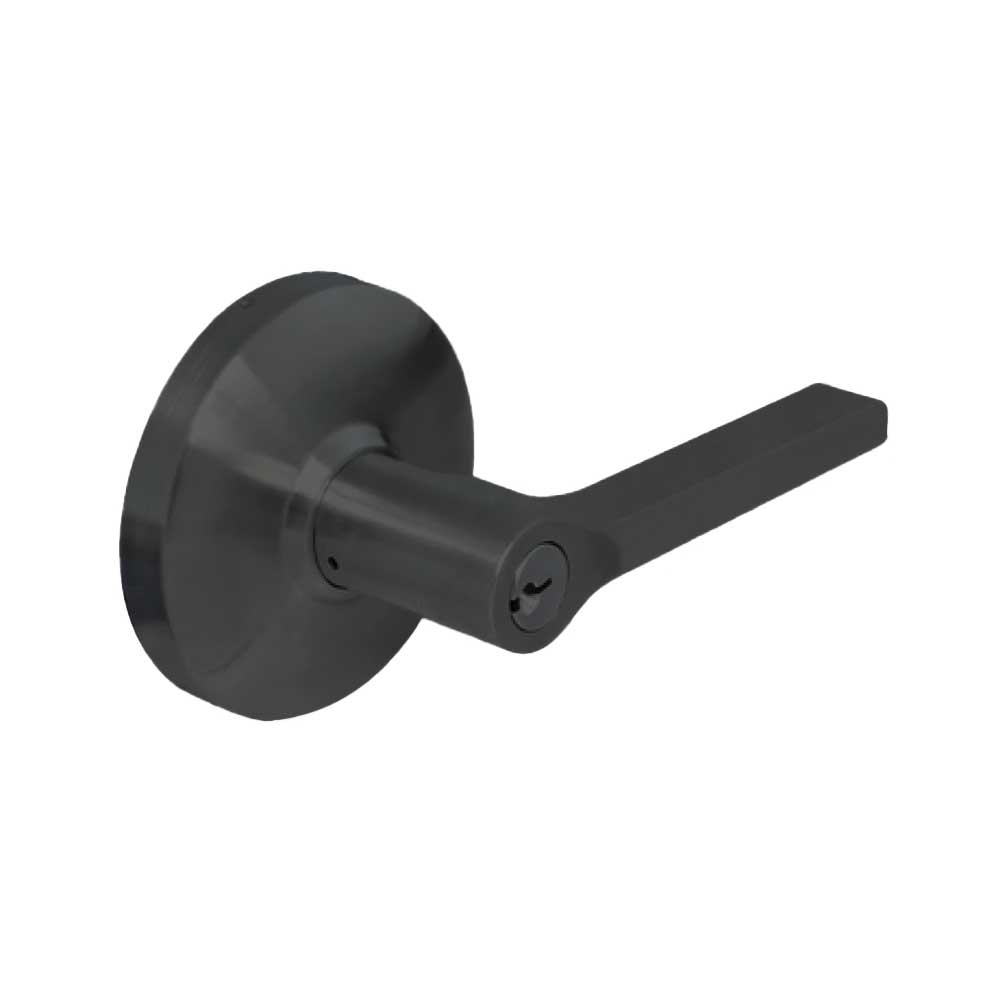

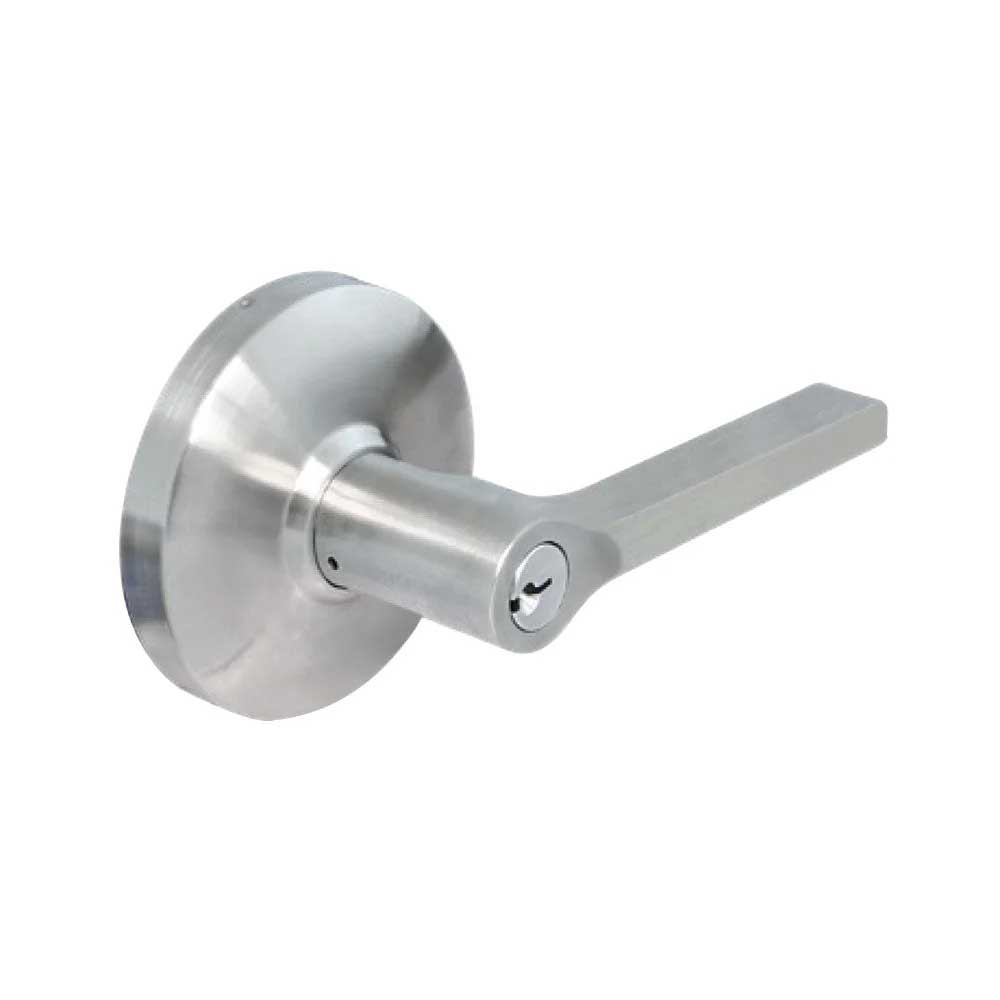

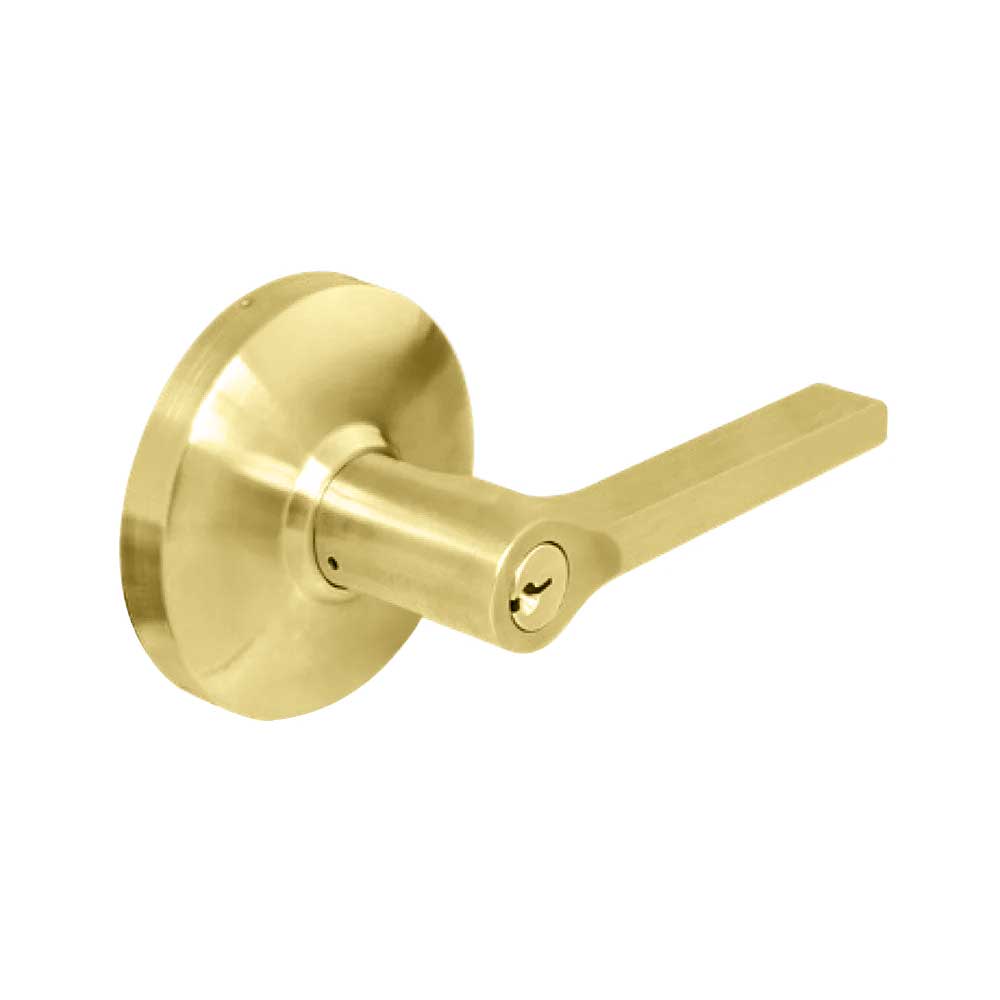

Cal-Royal - C2-LON05 - Cylindrical Clutch Mechanism Storeroom Tuscany Series Lever Lock - Grade 2
Storeroom Lock - Deadlocking latch bolt operated by key in the outside lever or by rotating the inside lever. The outside lever is always fixed, while the inside lever allows free exit, making it ideal for secured areas requiring controlled access.
Features:
- ANSI F86 Grade 2 Storeroom Lock
- Deadlocking latch
- Outside lever always locked; key required for entry
- Inside lever always free for exit
- Designed for secured areas
- Full-length 4-3/4" lever handle with 3/8" return
- Non-handed levers for left- or right-hand doors
- Concealed mounting screws for a clean appearance
- Key-removable outside lever for quick and easy re-keying
- Durable construction designed for commercial applications
- Meets or exceeds BHMA/ANSI A156.2 Series 4000 standards
Specifications:
| Applications | Offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings |
| Product Type | Storeroom Lock |
| ANSI Grade | Grade 2 |
| ANSI Standard | BHMA/ANSI A156.2 Series 4000 (FF-H 106C) |
| Locking Function | Deadlocking latch |
| Clutch | Yes (Free-turning handle) |
| Door Thickness | 1-3/8" to 1-3/4" (Standard), 2" to 2-1/4" (Optional) |
| Lever Length | 4-3/4" |
| Lever Return | 3/8" |
| Rose Diameter | 3-3/8" |
| Bore Diameter | 2-1/8" |
| Backset | 2-3/4" (Standard), 2-3/8", 3-3/4", 5" (Optional) |
| Latch Faceplate | 2-1/4" x 1-1/8" |
| Latch Throw | 1/2" (Standard brass latch) |
| Strike Plate | ASA 1-1/4" x 4-7/8" (Standard) |
| Cylinder | 6-pin solid brass |
| Keyway | "C" keyway (Standard) |
| Housing Material | Cold-rolled steel with zinc dichromate finish |
| Retractor | Precision cast steel |
| Handing | Non-handed |
| Mounting | Concealed screws; optional thru-bolted trim |
| Fire Door Options | Anti-friction deadlatch available for paired fire doors |
| Finish | US26D, US1, US10BE, US10, US3, US26, US4 |
