Cal-Royal - CR9298D05 - Smart Mortise Lock - Storeroom - Clutch Mec...
Description
Description

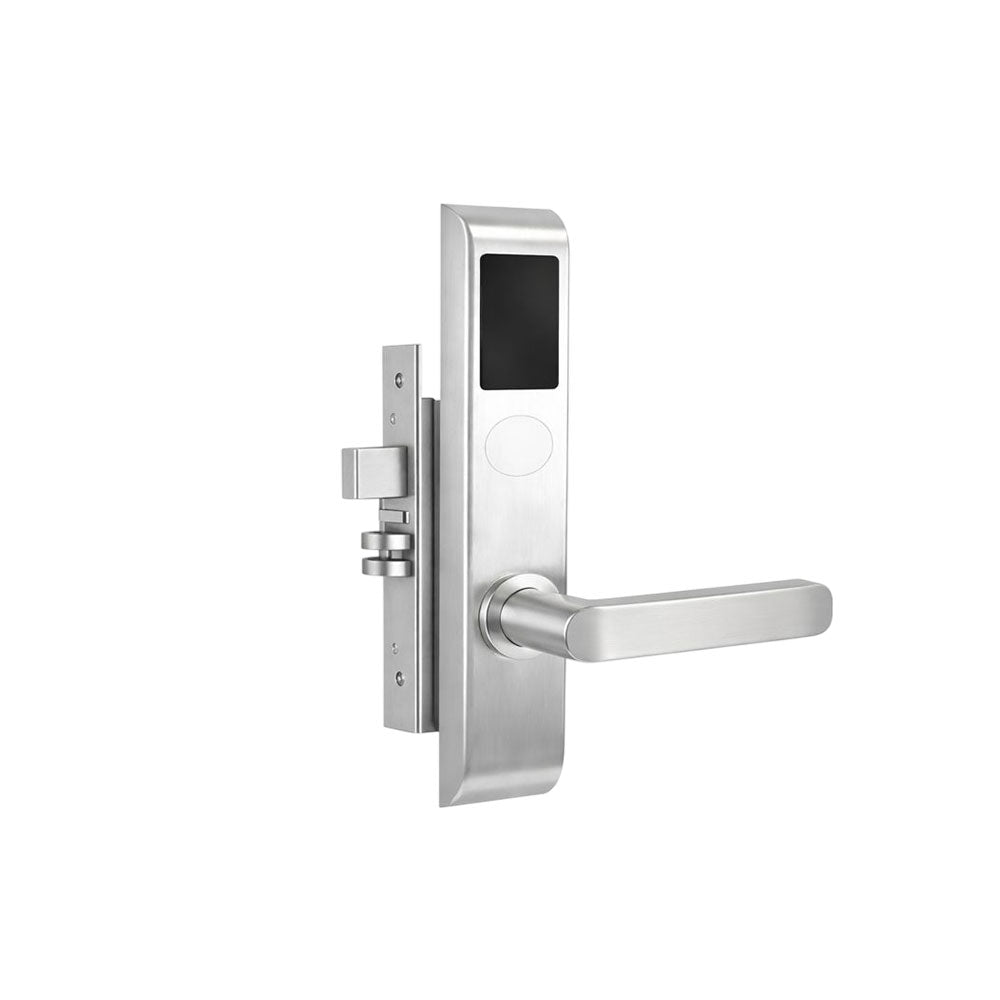

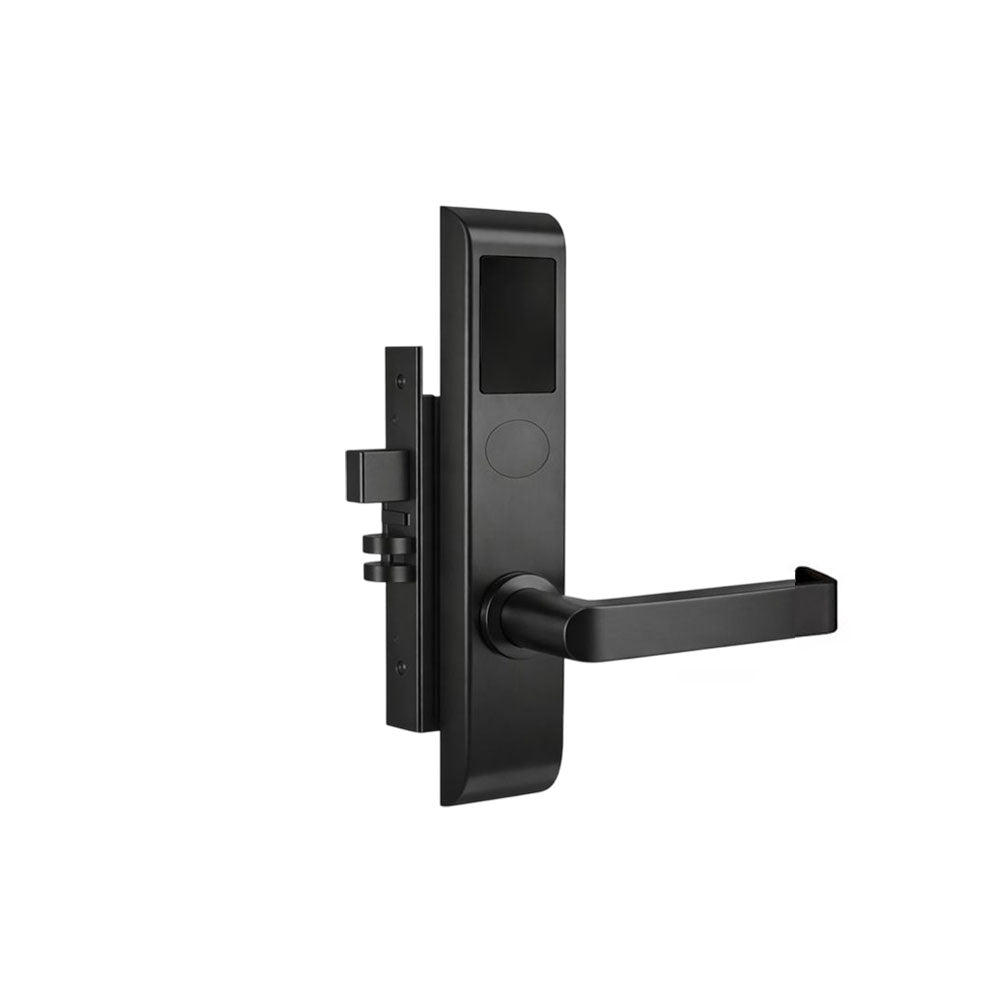

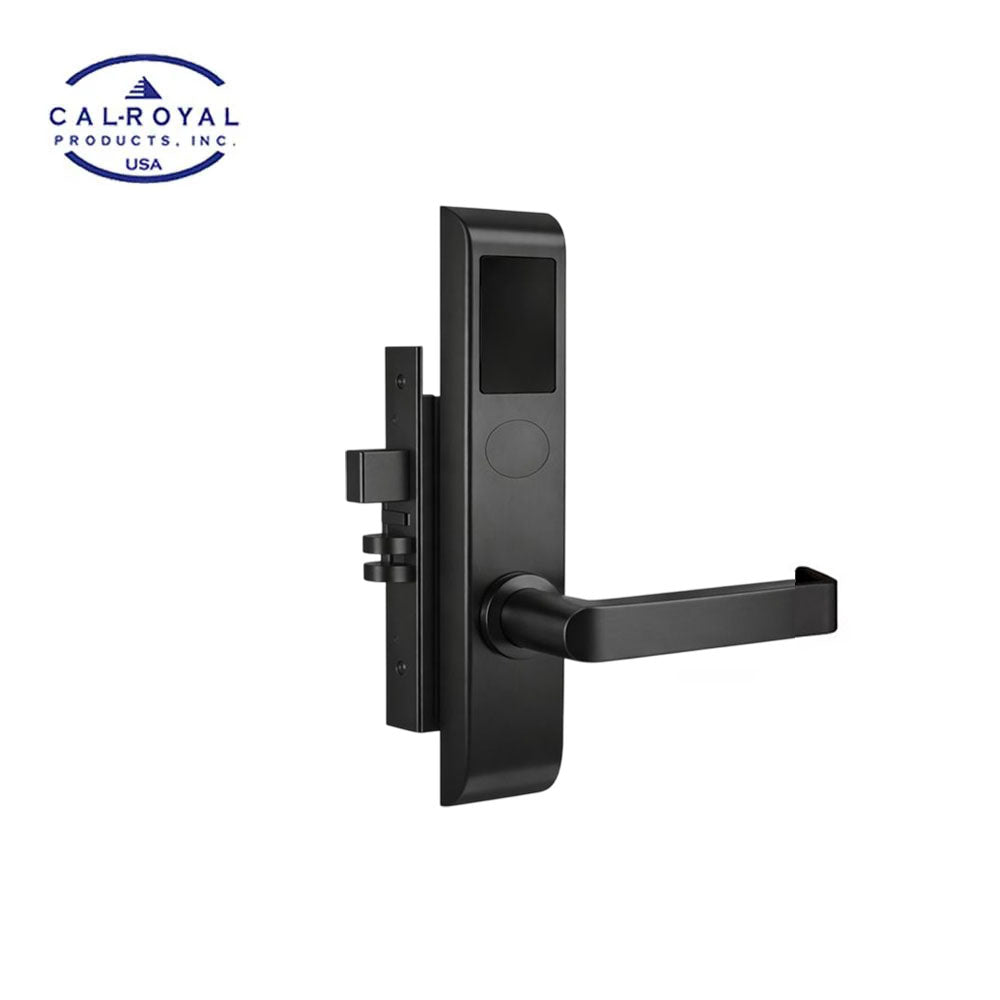

Cal-Royal - CR9298D05 - Smart Mortise Lock - Storeroom - Clutch Mechanism with Cylinder Override - Right Hand Reverse - Grade 2
Features:
- Apple and Android Compatible - iPhones with iOS 13.0 and above; Android 5.0 or above with smartphone connectivity capability.
- TTLOCK App - Lock can be managed and synced using the app.
- Gateway Connectivity - Optional gateway device allows compatible locks to connect to the internet for remote lock management.
- Admin Phone - Only one administrator phone is allowed at a time. Only smartphones can serve as the administrator. One admin phone can add a second-level admin and manage up to 250 locks.
- Access Log (Audit Trail) - Stores up to 2,000 audit trail entries.
- Passage Mode - Keeps the smart lock unlocked for an extended period and can be controlled via smartphone when nearby or through Wi-Fi when remote.
- Optional Auto Re-Locking - Automatically relocks from 5 to 60 seconds or longer.
- Restricted Access Right - Can be programmed to specify access periods or user intervals.
- Low Battery Warning - Alerts users when battery power is low.
- Key / Thumb-Turn Turning Detector - Detects mechanical operation such as key use or thumb-turn rotation and records it in the access log.
- Factory Setting Construction Pass - A construction passcode is available for use during construction, with an optional Construction Engineering Card.
Specifications:
| Applications | For offices, apartments, hotels/motels, residential, and commercial use. |
| Door Thickness | 1 1/2" (38mm) - 2 3/8" (60.3mm) standard. |
| Backset | 2 3/4" (70mm) standard. |
| Latch Faceplate | 8" (203mm) x 1 1/8" (28mm), square corner. |
| Strikes | 4 7/8" (124mm) x 1 7/8" (48mm) ASA strike. |
| ANSI Standards | Meets ANSI / BHMA A156.2 Series 4000, Grade 2 strength and operational requirements. |
| Cylinder | 6-pin solid brass "Schlage C" mortise cylinder with two brass keys per lock. Optional master key system available. |
| Clutch Mechanism | Clutch technology allows the lever to turn without retracting the latch, reducing stress on the spindle and extending lock life. |
| Thumbturn | ADA ergonomic thumbturn. |
| Low Battery Indicator | Blinking sound alerts when internal 4 AAA alkaline batteries are low. Battery percentage is also displayed in the app. |
| Power Source | Powered by 4 AAA alkaline batteries (included in the box). |
| Emergency Power Back-Up | Type-C USB emergency power cable. |
| Weather Resistant | Weather resistant for operating temperatures from -4°F to 149°F (-20°C to +65°C). For outdoor front panel use, the back panel should not be exposed to outdoor conditions. Optional rubber seal included for enhanced outdoor weather resistance. |
Download:
- RFID Card (2X)
- Optional Rubber Seal for Outside and Inside Unit
- Magnetic Cylinder Cap Remover
- 4X AAA Batteries
- Installation Instruction
- Installation Instruction CR929M Trim 2
Includes:
