Cal-Royal - JE-40C - Smart Digital Touch Screen, RFID and Smart Con...
Description
Description

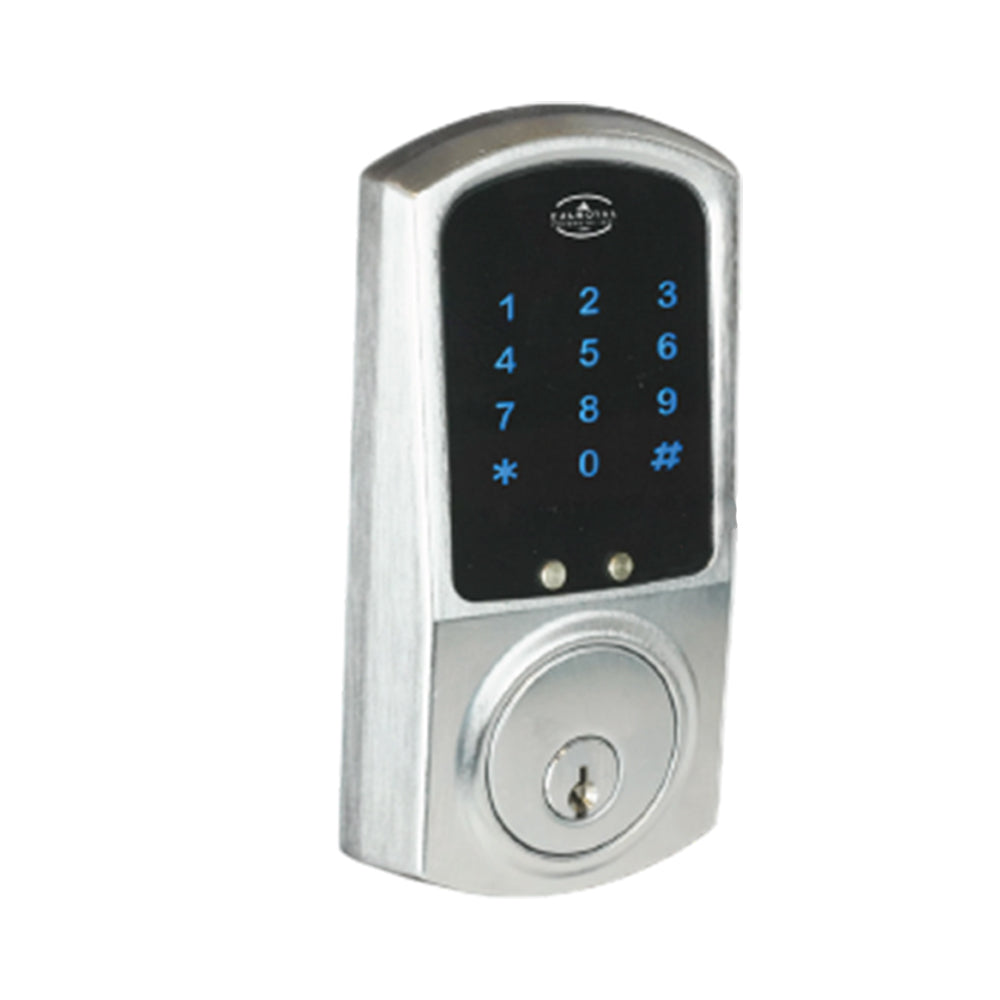

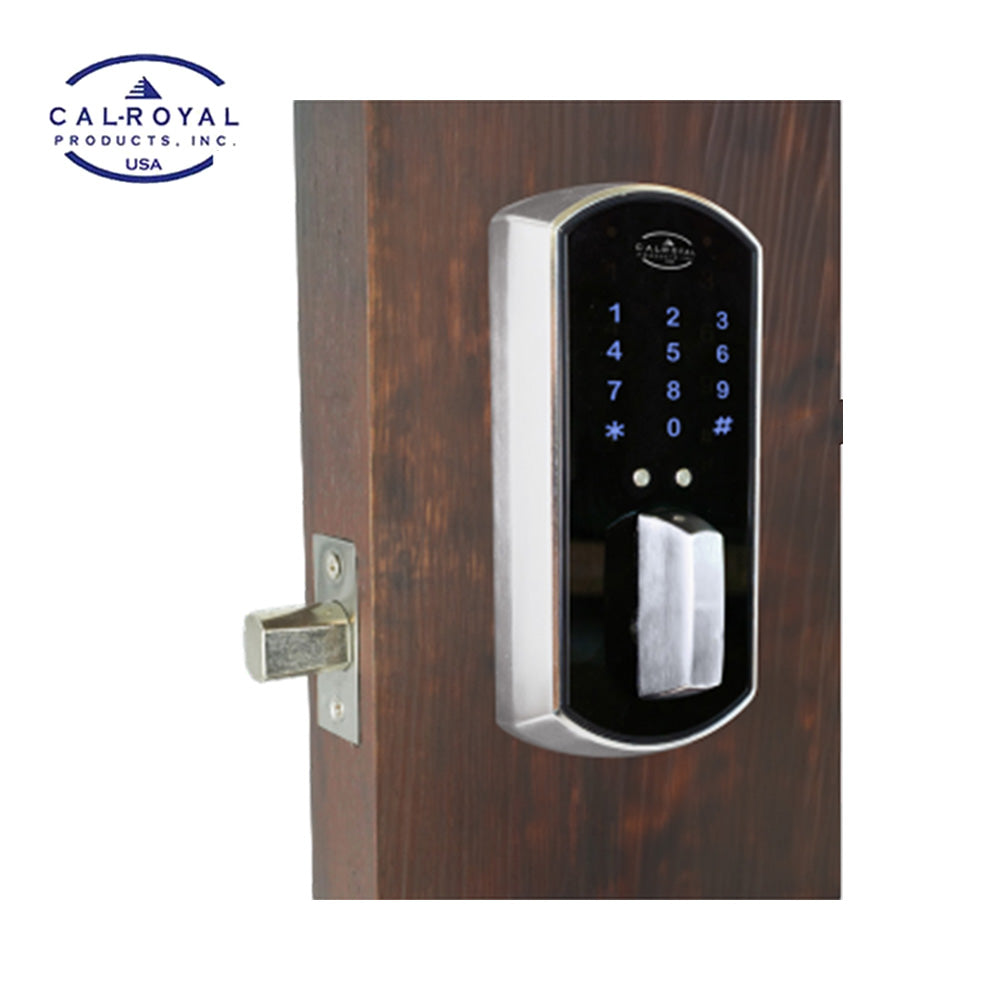

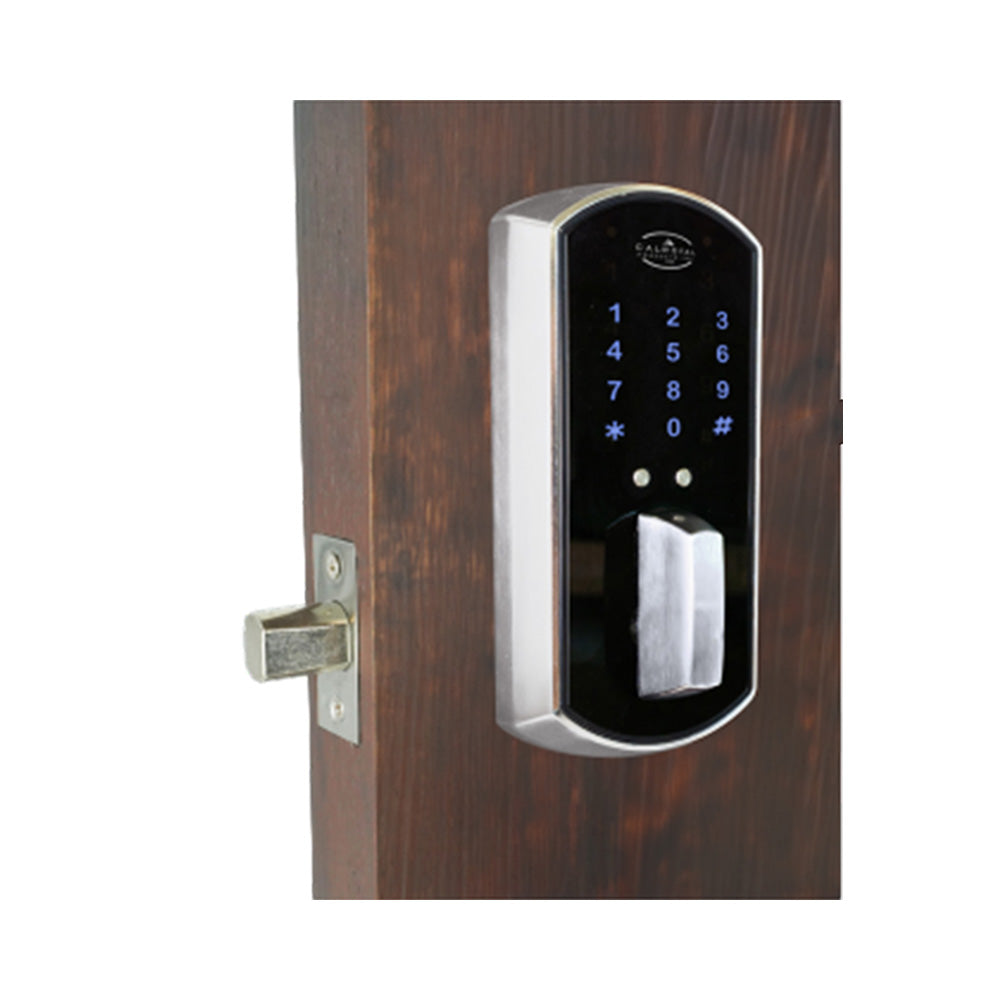

Cal-Royal - JE-40C - Smart Digital Touch Screen, RFID and Smart Connect Clutch Deadbolt Lock - Grade 2
The Cal-Royal JE-40C Digital Touch Screen / RFID Deadbolt Lock is a modern access control solution featuring a durable clutch locking mechanism for extended lock life. Designed for residential and commercial use, it supports touchscreen PIN access, RFID cards
Features:
- Master code management
- Supports up to 500 user codes per lock
- Supports up to 500 RFID cards/keyfobs per lock
- 2 one-time user codes
- 4-6 digit code combination
- Passage mode
- Weather resistant design
- 9V battery emergency power port
- Anti-tamper lock-out protection
- Lock-out mode
- Clutch locking mechanism
- Non-handed, reversible design
- Standard proximity RFID card (13.56 MHz)
- Optional RFID keyfob
- Touchscreen interface to wake up or lock the door
- 2-year manufacturer warranty
Specifications:
| Applications | For offices, apartments, condo units, residential, commercial, and public buildings |
| Door Ranges | 1.38" to 1.75" standard |
| Deadbolt | UL-Listed adjustable backset latch (2.75" or 2.38"), 1.00" throw; brass with hardened steel pin insert |
| Latch Faceplate | Standard 2.25" x 1.00" faceplate, packed with 0.13" plastic filler for 1.13" door preparations |
| Strikes | 2.75" x 1.13" square corner deadbolt strike, packed with (2 pcs) 3.00" screws and wood frame reinforcer |
| ANSI Standards | Meets ANSI/BHMA A156.5, Grade 2 requirements |
| Clutch | Clutch technology allows turning of thumb turn without retracting latch, reducing stress on the spindle and extending lock life |
| Proximity RFID Card (Standard) | 2 pcs included; compatible with MIFARE infrastructures; operates at 13.56 MHz (ISO 14443A); inductive distance up to 1.19" |
| RFID Keyfob (Optional) | Operates at 13.56 MHz (ISO 14443A); inductive distance up to 1.19" |
| Power Supply | 4 AA 1.5V alkaline batteries (included) |
| Weather Resistant | Operating temperature range -30°F to 150°F (-35°C to 66°C) at 85% relative humidity |
| Touch Screen | Human-touch responsive screen for access and programming; reverts to sleep mode after operation |
Includes:
- UL-Listed adjustable deadbolt
- 2.25" x 1.00" faceplate with plastic filler
- 2 RFID cards
- 4 batteries
- 2.75" x 1.13" square corner strike
- (2) 3.00" screws with wood frame reinforcer
