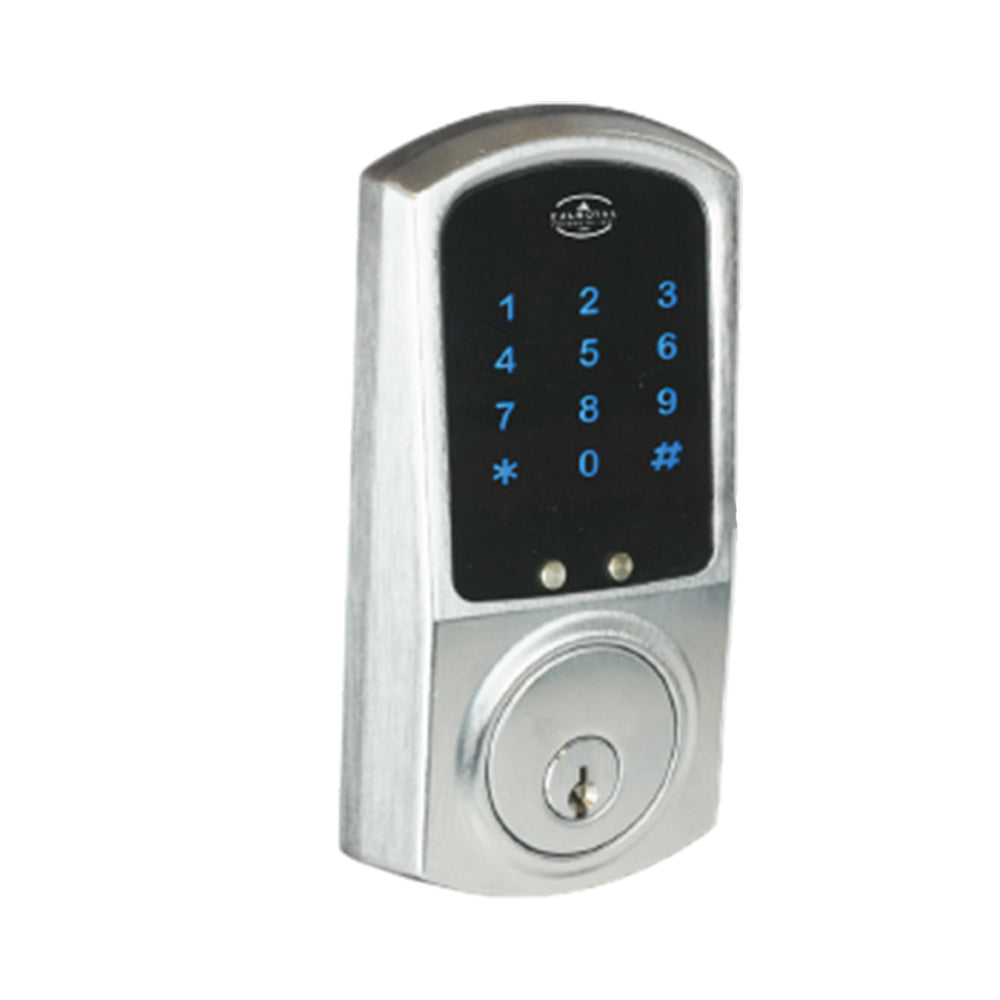

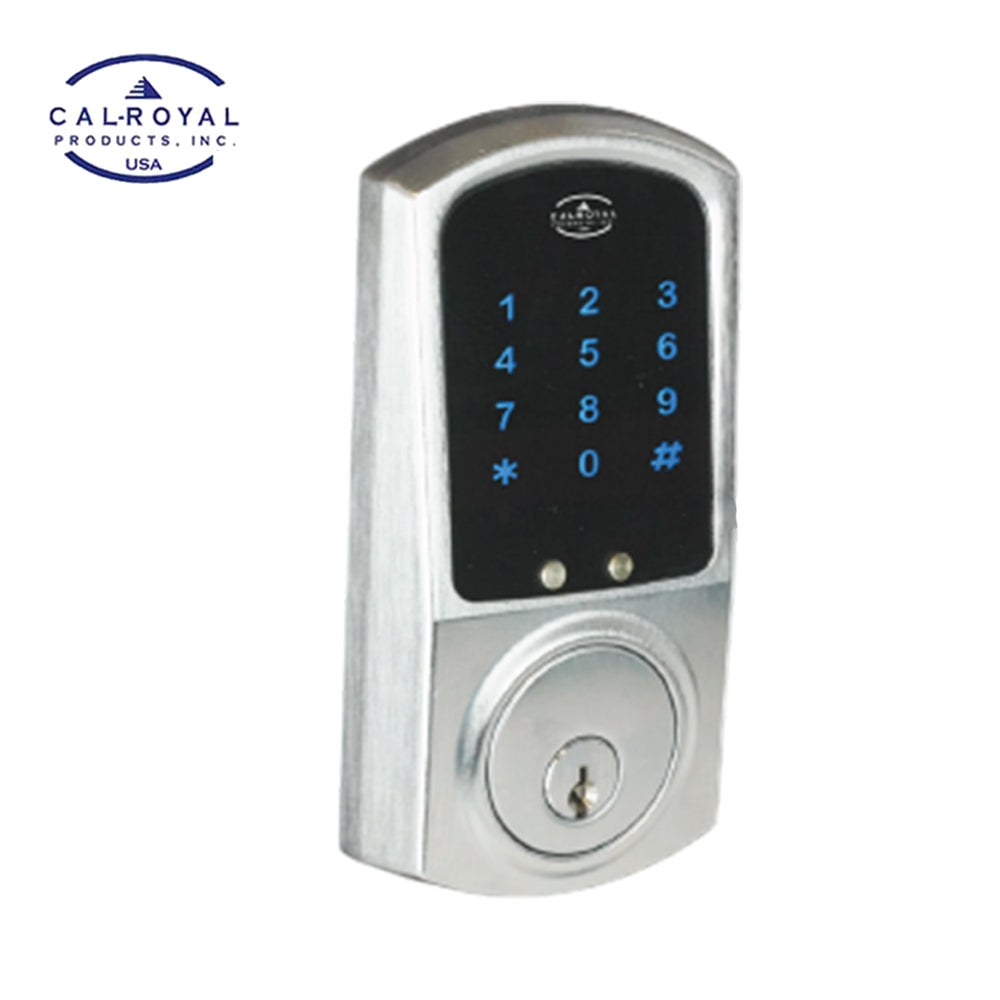

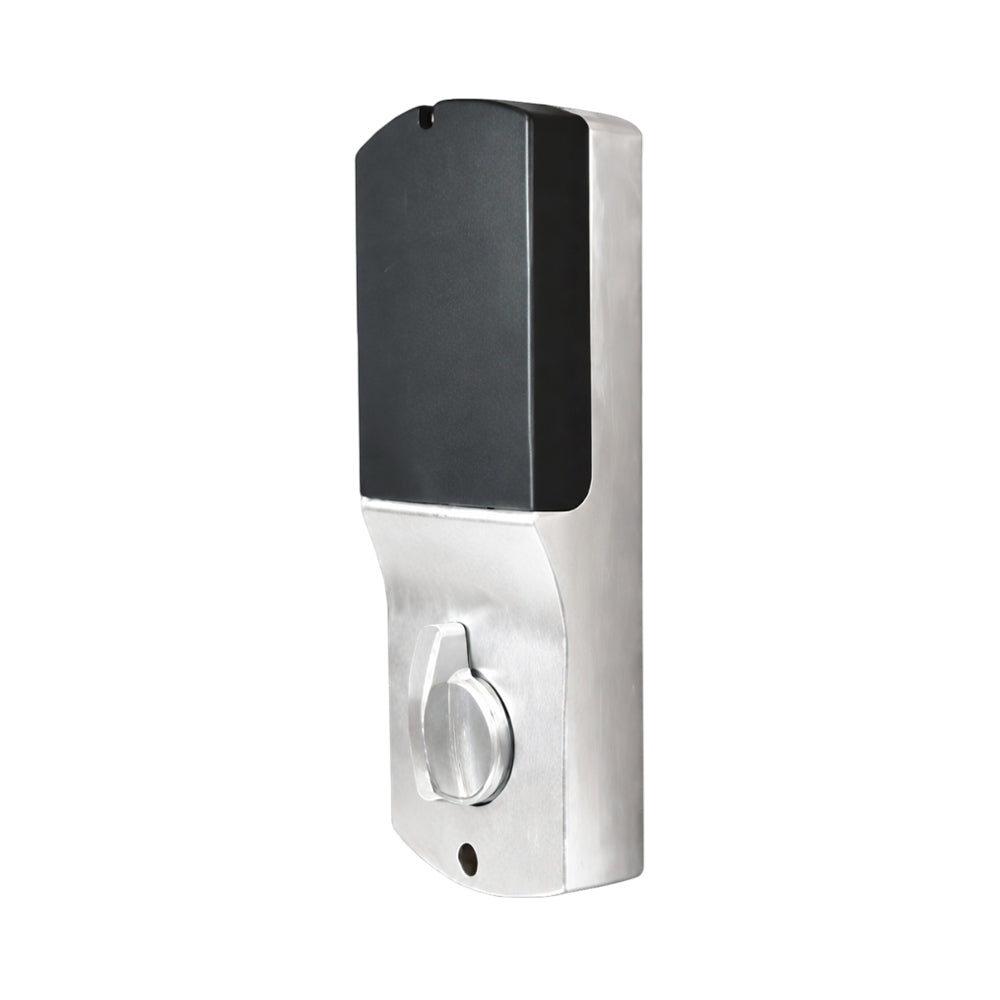

Cal-Royal - JE-80M-SCM - Smart Digital Touch Screen, RFID and Smart Connect Motorized Deadbolt Lock with Smart Connect Module - Grade 2
The Cal-Royal JE-80M-SCM is a smart digital deadbolt lock featuring a touch screen, RFID access, and Smart Connect module for seamless smartphone control. With a motorized locking mechanism, non-handed reversible design, and support for multiple user codes and RFID credentials, this Grade 2 lock delivers advanced security, convenience, and weather-resistant durability for residential, commercial, and public buildings.
Features:
- Mobile app support for Android & Apple devices via ExperienSmart app
- Stores up to 1,000 audit trail entries for access history tracking
- 4-6 digit PIN code combination with programmable master code
- Supports up to 500 RFID cards or keyfobs per lock
- 13.56 MHz proximity RFID card compatible; optional RFID keyfob support
- Stores up to 500 individual user codes per lock
- Includes 2 one-time user codes for temporary access
- Passage mode for continuous unlocked operation
- Weather-resistant construction for indoor and outdoor use
- 9V emergency battery port for power backup access
- Anti-tamper lock-out protection and lock-out mode
- Motorized locking mechanism for smooth, secure operation
- Non-handed, fully reversible design for left- or right-hand doors
- Cylinder/key override for emergency mechanical access
- Touch screen activates to wake up or lock the door
- Backed by a 2-year manufacturer warranty
Specifications:
| Applications | Offices, schools, hospitals, apartments, condo units, hotels/motels, residential, commercial and public buildings |
| Door Thickness | 1.375 in to 1.750 in (standard) |
| Deadbolt | UL-Listed adjustable motorized latch, 2.750 in or 2.375 in backset, 1.000 in throw; brass with hardened steel pin insert |
| Latch Faceplate | Standard 2.250 in x 1.000 in faceplate; includes 1.125 in plastic filler for 1.125 in door preparations |
| Strike | 2.750 in x 1.125 in square corner deadbolt strike; includes (2) 3.000 in screws and wood frame reinforcer |
| ANSI Standards | Meets ANSI / BHMA A156.5 Grade 2 requirements |
| Cylinder | 6-pin solid brass cylinder, Schlage "C" keyway; includes two brass keys per lock |
| Proximity RFID Card (Standard) | (2) cards included; MIFARE compatible; ISO 14443A; 13.56 MHz; read range up to 1.1875 in |
| RFID Keyfob (Optional) | ISO 14443A compliant; 13.56 MHz; read range up to 1.1875 in |
| Power Supply | 4 x AA 1.5V alkaline batteries (included) |

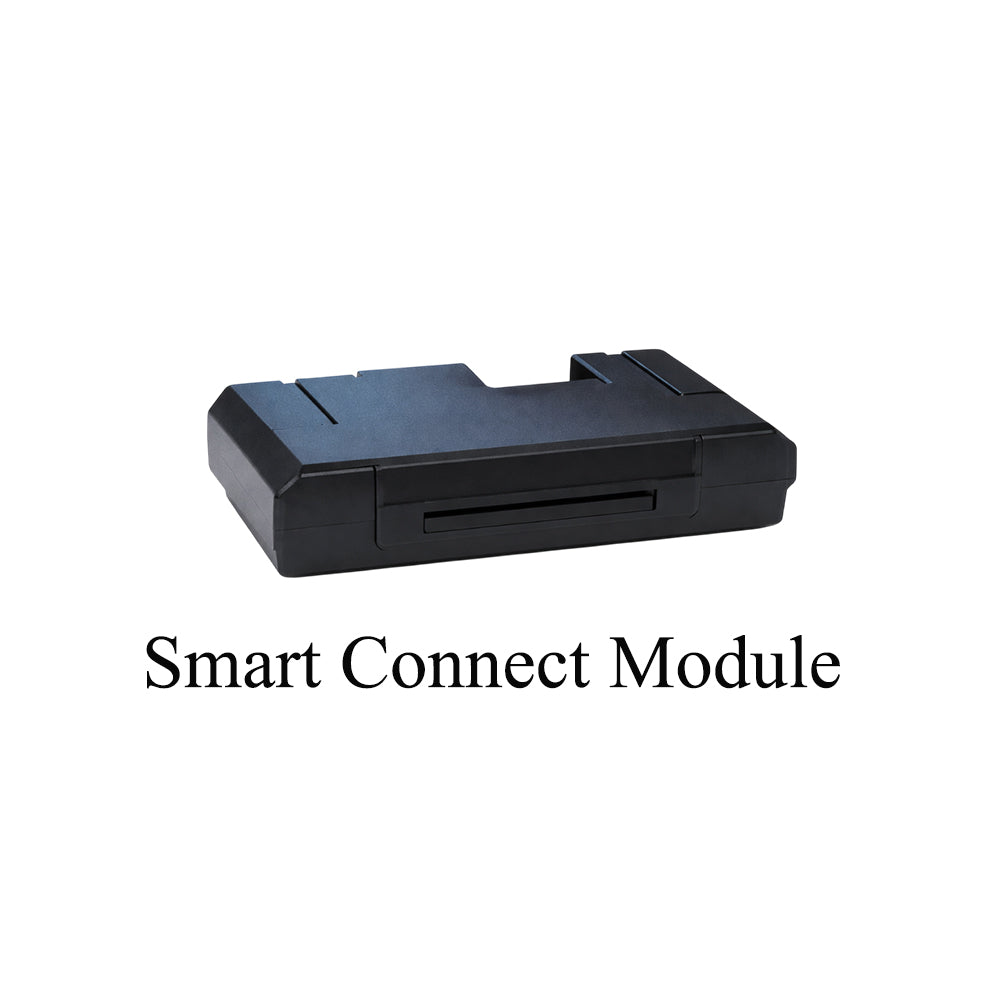

| Smartphone Connectivity | Optional Smart Connect module; managed via ExperienSmart app for Apple iOS and Android |
| Operating Environment | Weather resistant; operating temperature -30°F to 150°F (-35°C to 66°C) at up to 85% relative humidity |
| Touch Screen | Human-touch responsive touchscreen with automatic sleep mode after operation |
Packaging Includes:
- UL-Listed adjustable motorized deadbolt, 2.750 in or 2.375 in backset
- 2.250 in x 1.000 in faceplate with plastic filler
- 6-pin solid brass "C" cylinder
- 2 RFID cards
- 4 x AA 1.5V alkaline batteries
- 2.750 in x 1.125 in square corner deadbolt strike
- (2) 3.000 in screws with wood frame reinforcer
- Rubber insert
