Cal-Royal - NM8466 - NM Series Heavy Duty Store Door Lock Mortise Lockset with 2-3/4" Backset - Grade 1
Function: ANSI F14 -Latch bolt operated by lever from either side. Deadbolt projected or retracted by key on either side. Latch bolt and deadbolt are independent of each other.
Features:
- BHMA Certified Lifetime Warranty, GRADE 1.
- Conforms to federal specification type 86; and to all dimensional and operational performances of ANSI A156.13-1 80, Series 1000, Extra Heavy Duty.
- UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997.
- Optional Interchangeable Core.
- Rust-proof heavy duty 2 3/4" backset lock case.
- Individual spring to prevent lever sag, easily reversible.
- Forged brass lever handles exceed requirements of ADA (American Disability Act).
- Auxiliary latch bolt.
- Armored front plate conceals lock mounting screws.
- 1" throw heavy duty deadbolt with anti-saw hardened pins.
- Heavy duty 3/4" latch bolt with anti-friction latch; easily reversible.
- Optional Electrified Locks available
- Conforms & Meets ADA Regulations
Specifications:
| Function | Storeroom |
| Door Thickness | 1-3/4" |
| Backset | 2-3/4" (70mm) |
| Handing | Right Left |
| Strike | Brass, non-handed curved strike 4-7/8" x 1 1/4" |
| Deadbolt | 1" throw, brass, chrome plated with hardened steel rollers |
| Latch Bolt | Brass, chrome plated with heavy-duty deadbolt |

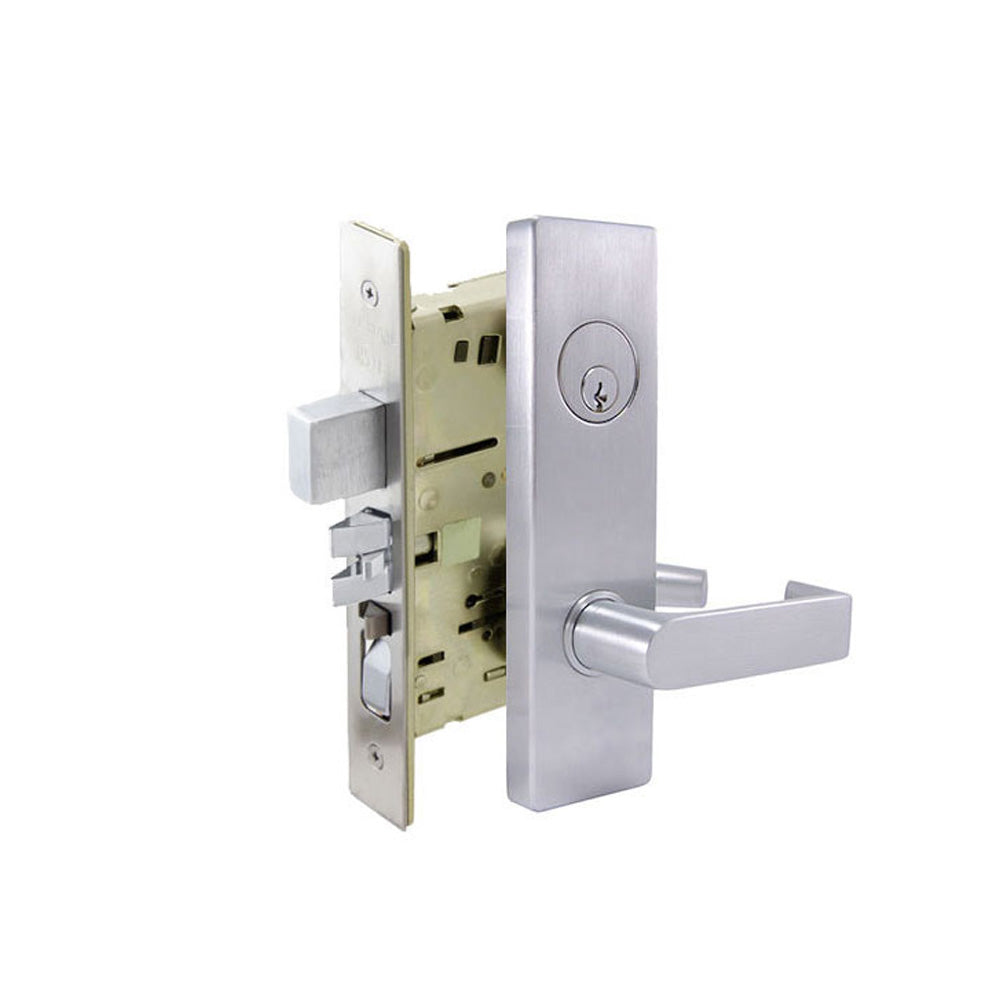

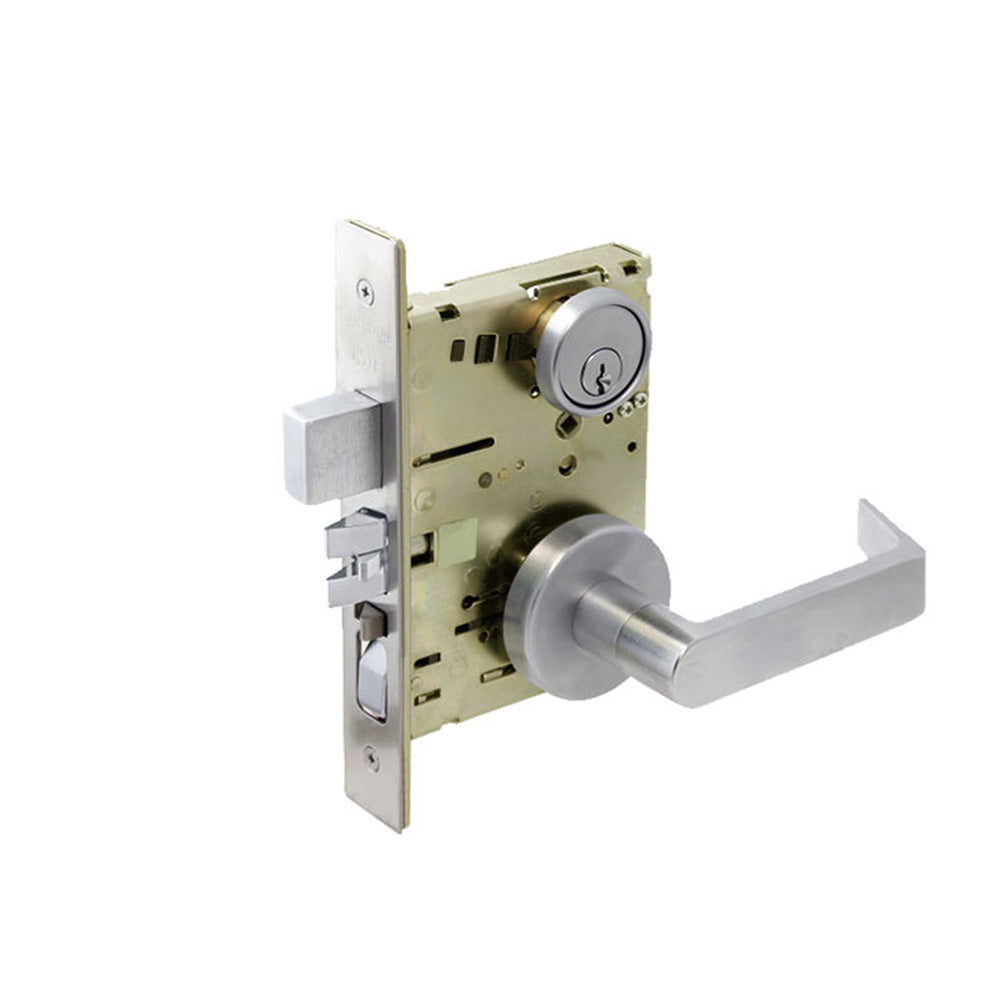

| Trim Design | SS Sectional SE Escutcheon |
| Front | Heavy gauge steel 8" x 1-1/4" x 3/32". Accommodates flat doors and doors beveled 1/8" in 2" |
| Guardbolt | Extruded brass, chrome plated |
| Stopworks | Rocker type, brass, chrome plated |
| UL Listing | UL Listed "A" Label (3 hours), for use on fire doors, single or pair of doors. "F" mark stamped on strike |
| Certifications | Meets ANSI/BHMA A156.13, Series 1000, Operational & Security Grade 1 Standards. Lock body conforms to Federal Specification Type 86; and all dimensional and operational performances, Exceeds 1,000,000 cycles |
Finishes:

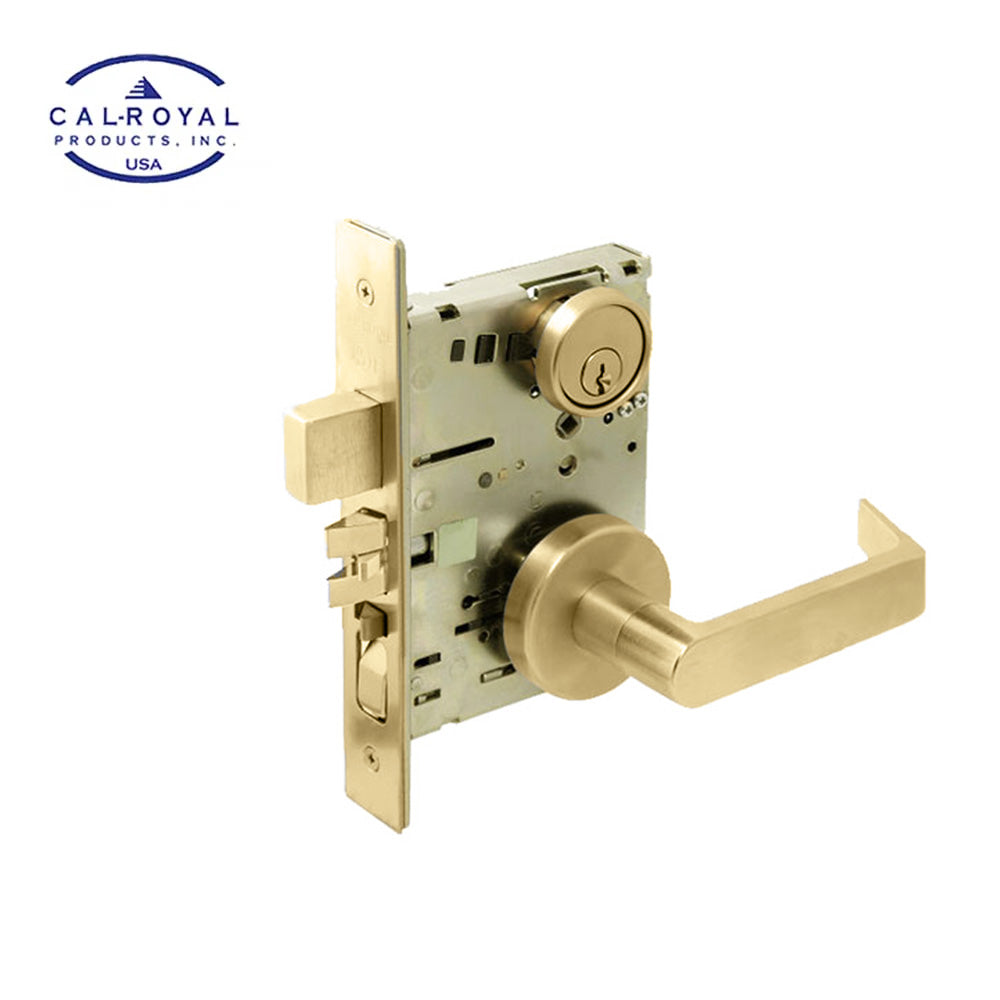

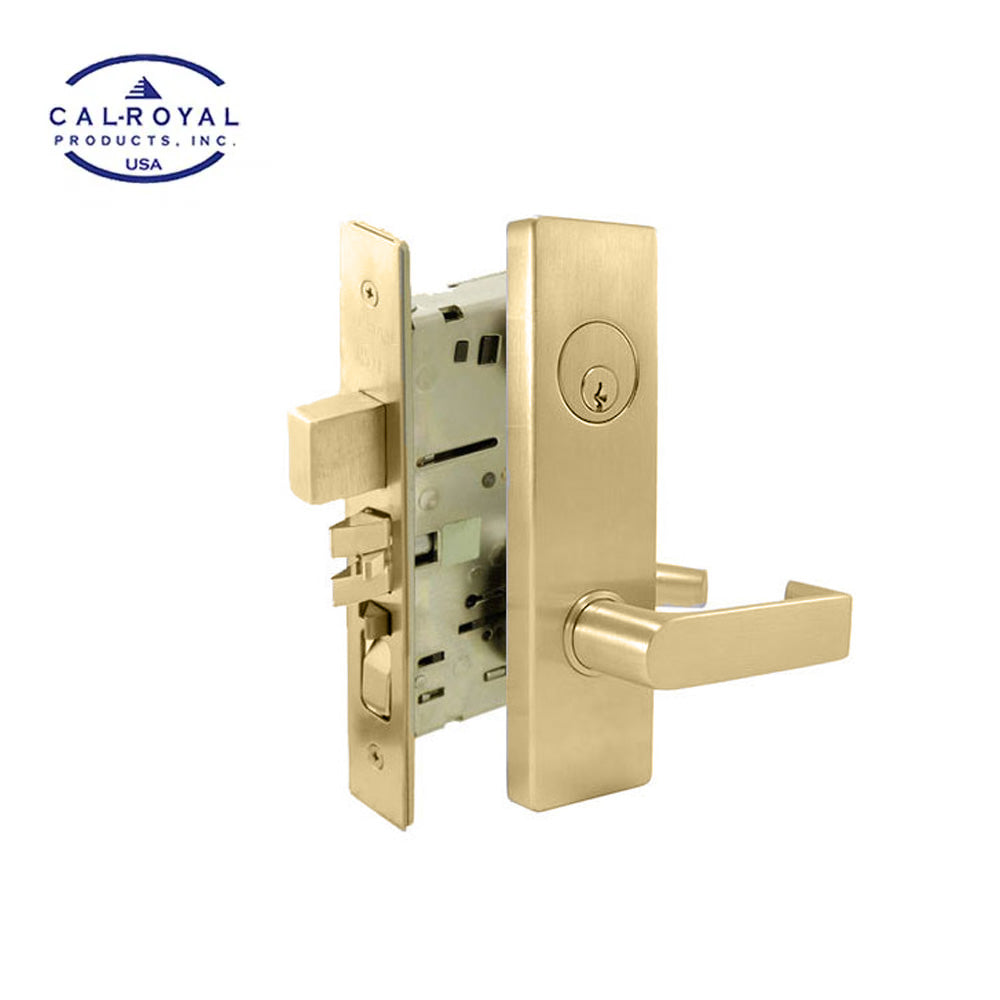

- US3 - Bright Polished Brass (605)
- US4 - Clear Coated Satin Brass (606)
- US10B - Dark Oxidized Satin Bronze Oil Rubbed (613)

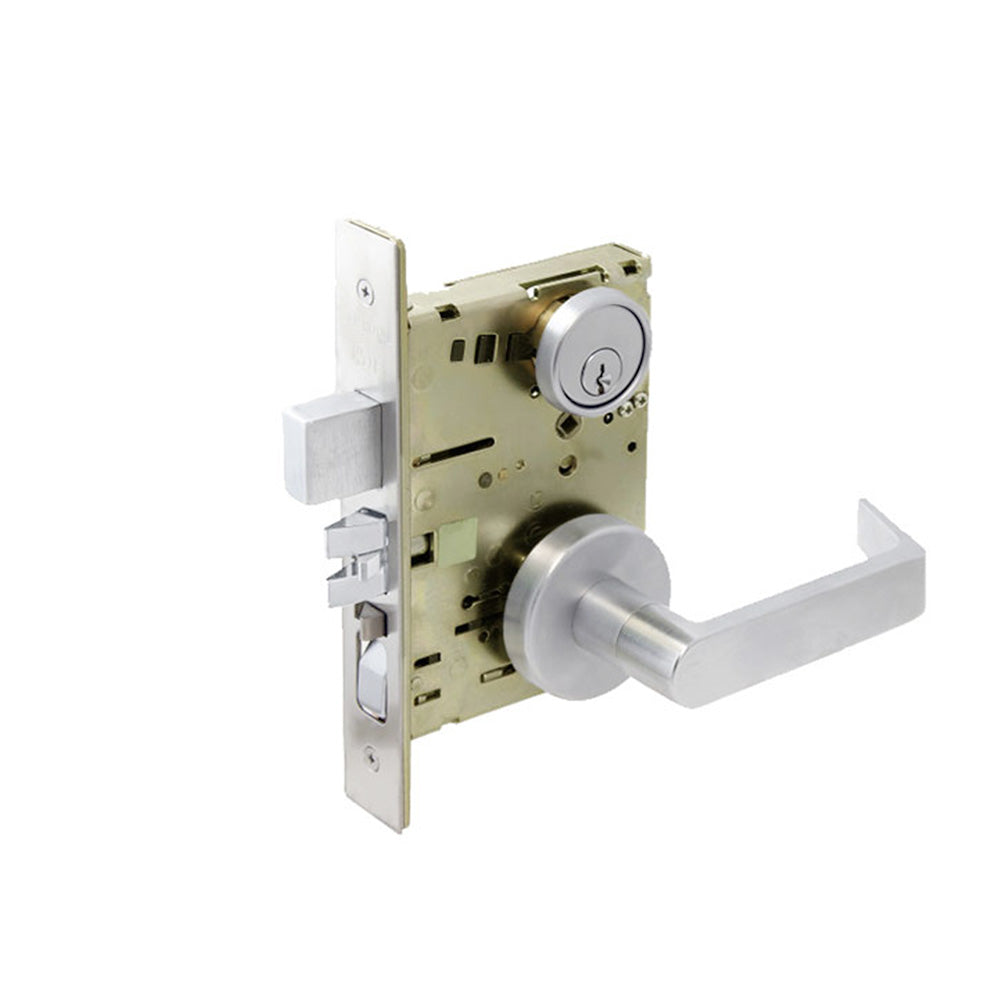

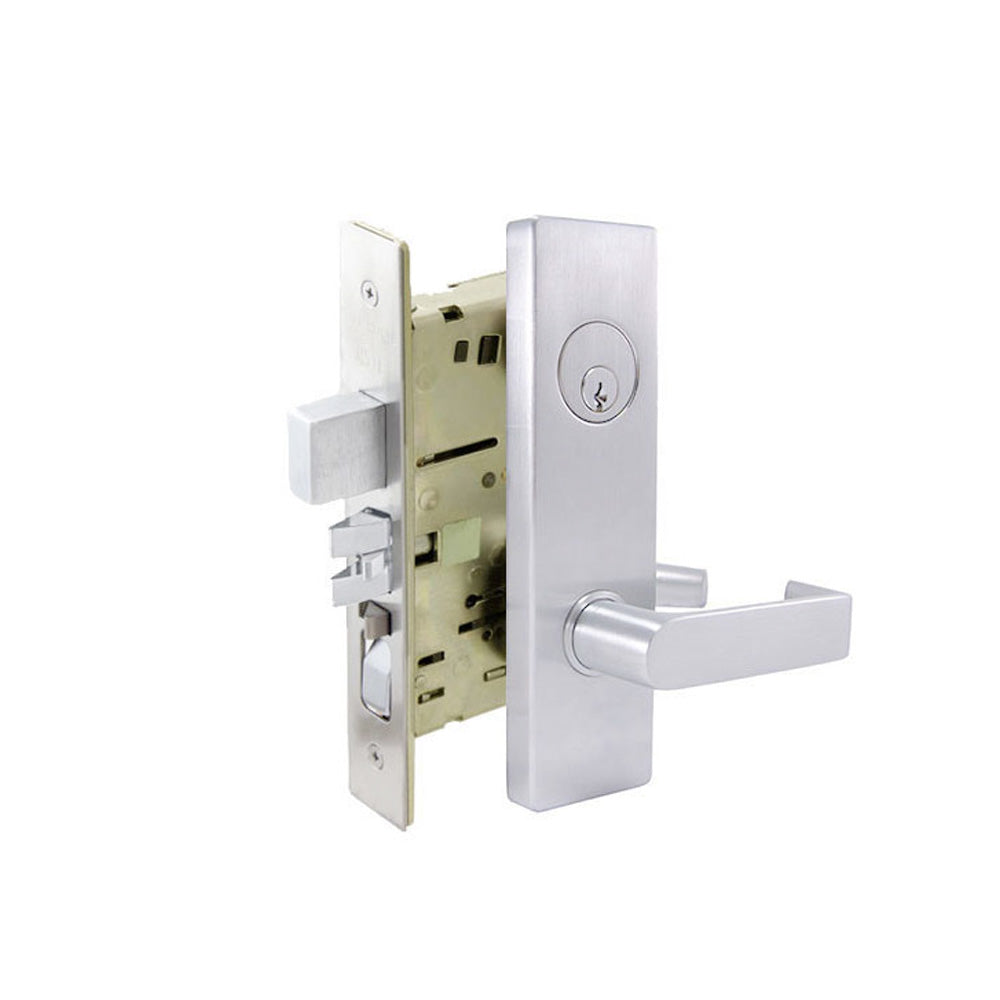

- US26 - Bright Chromium Plated (625)
- US26D - Satin Chromium Plated (626)
- US32D - Satin Stainless Steel (630)
