Camden CM-331/42 SureWave Wired Touchless switch - Hand Icon - Whee...
Description
Description

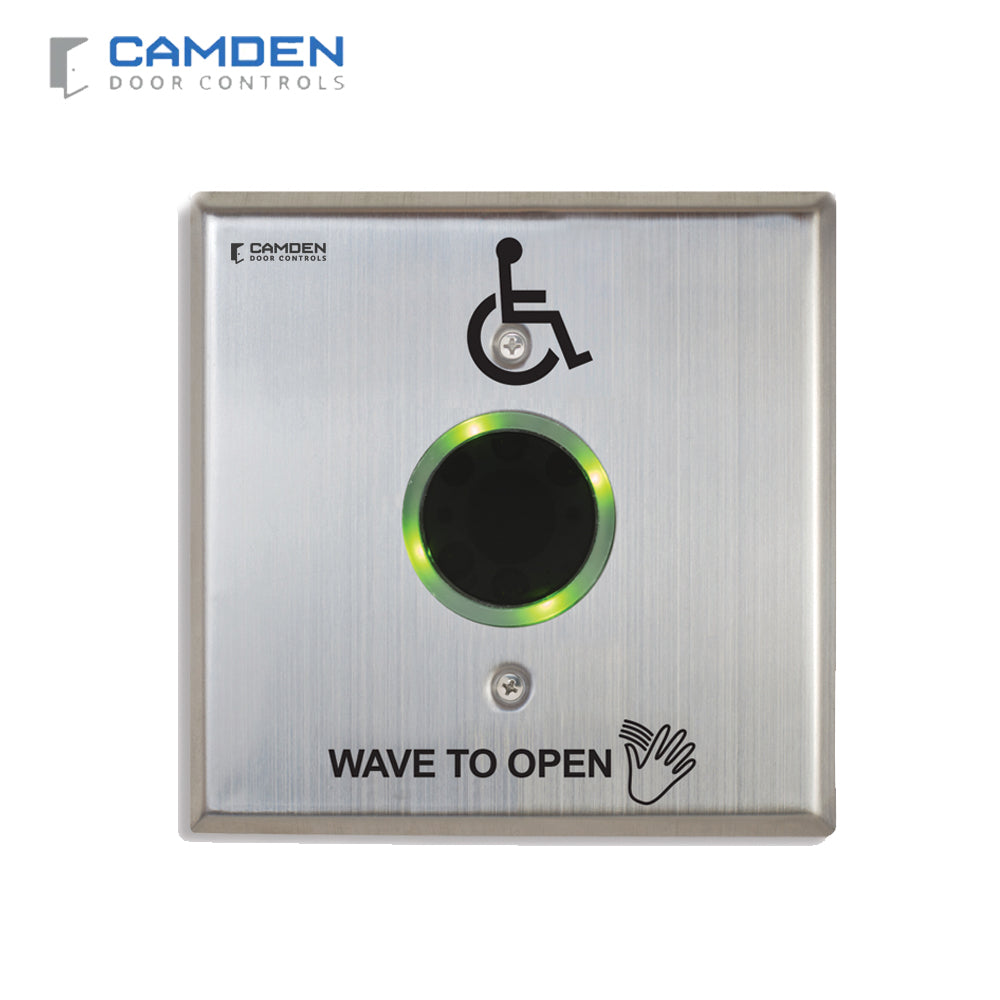

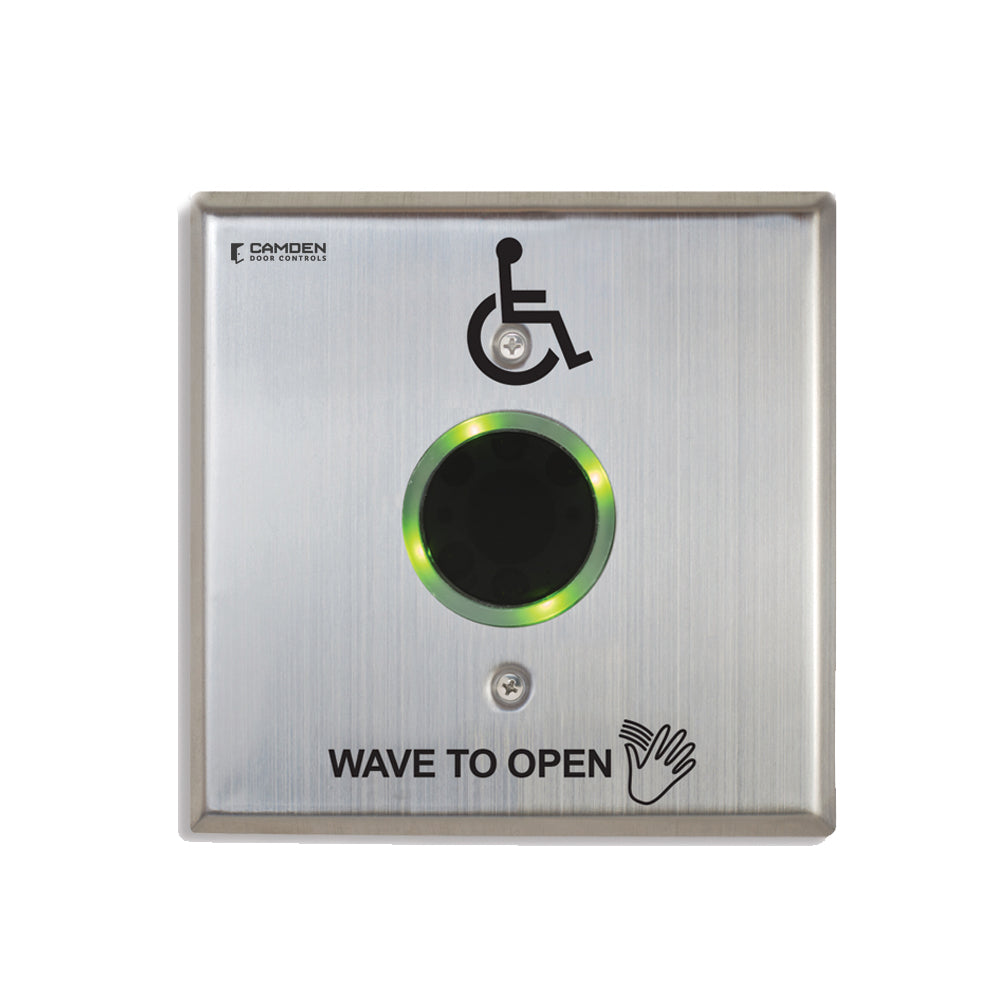

Camden CM-331/42 SureWave Wired Touchless switch - Hand Icon - Wheelchair and Wave to Open Icon
CM-331 touchless switches provide ‘state of the art’ door activation and control while eliminating the spread of germs. These line powered touchless switches offer an adjustable operating range, selectable motion sensing and relay operating modes, hold open timer(s), REX and door position inputs, and the option for a light ring and wireless transmitter.
Features:
- Wired, wireless and hybrid (wirless/wired) models
- Indoor/outdoor use. -4ºF to +153ºF (-20ºC to +85ºC) operating temp. Gasket included in package
- Line powered models offer 12/24V AC/DC operation
- 1 and 2 relay wired models, SPDT, Form 'C'
- Narrow (jamb), single and and double gang faceplates
- Polycarbonate (black) and stainless steel faceplates
- Advanced active infra-red technology with fast response
- Heavy duty 3 or 5 Amp rated relay
- Adjustable operating range up to 28", refer to model specification
- CM-331 Selectable auto range (operation) mode of up to 6"
- Adjustable time delay, refer to model specifcation
- Selectable fail safe/fail secure operation
- CM-331 Active output for external alrm, LED or annunciator
- CM-331 Optional red/blue/green LED light ring with single gang stainless steel faceplate, indicates switch or door status
Specifications:
| Technology: | Active Infra-red, utilizing microburst sensing technology |
| Voltage: | 12-24V AC/DC |
| Contact Type: | SPDT Form 'C' |
| Contact Rating: | 3 Amps @ 30 V |
| Wireless | Optional Plug-In |
| Current Draw: | 40 mA |
| Adjustable Operating Range: | 1"- 28" (25mm-711mm) |
| Time Delay: | 3-30 Seconds |
| Operation: | Selectable Fail Safe/Fail Secure |
| Motion Sensing Modes: | Momentary, Momentary with Alarm, Maintained |
| Relay Operating Modes: | Event, Toggle |
| Input: | REX, Door Contact |
Installation Instruction:
