Camden CM-420RPTE Push/Exit Mushroom Switch - 12/24 VDC
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.Â
Learn more
Description
Description

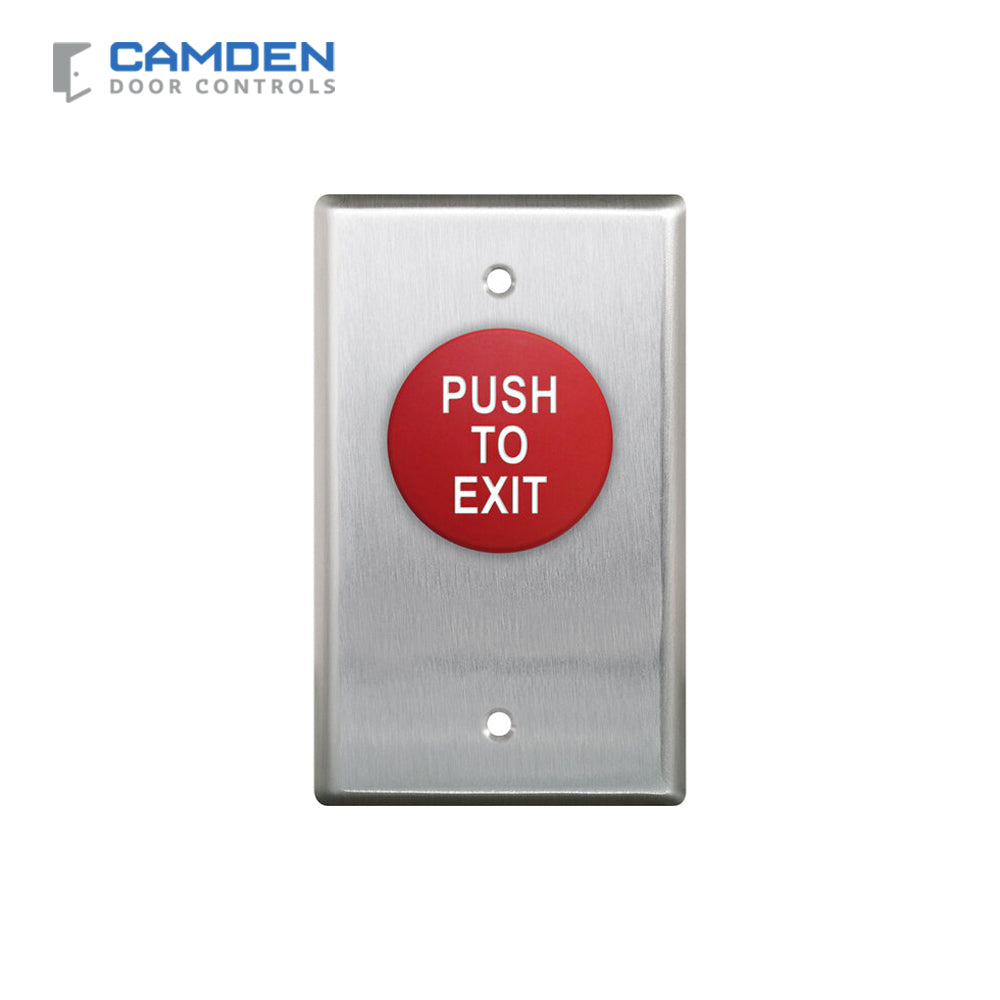

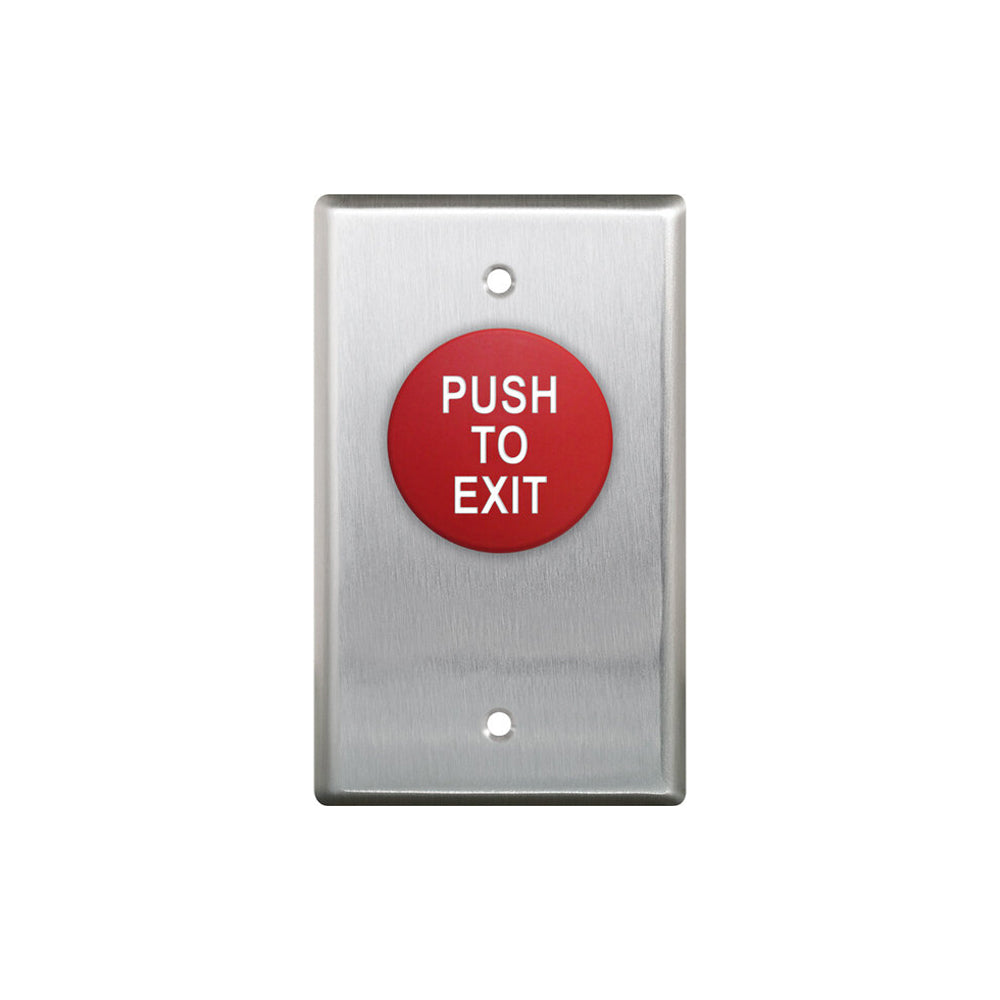

Camden CM-420RPTE Push/Exit Mushroom Switch - 12/24 VDC
CM-400 Series mushroom push buttons are available in red, blue, or green (other colors on request), with a 1-5/8" (40mm) diameter. To protect against vandalism, the buttons are free-spinning. They are supplied with an industrial grade 18 gauge stainless steel faceplate.
Features:
- 1-5/8" (40mm) diameter button
- Vandal resistant free-spinning, heavy-duty button
- Vandal resistant 18 gauge stainless steel faceplate
- Single gang, double gang and narrow faceplates
- 3 year warranty with '2 for 1' replacement
Specifications:
Voltage: | 12/24 VDC |
Contact Rating: | 6 A @ 30 VDC |
Switch Type: | Momentary |
Dimensions: |
CM-400: 4-1/2"H x 2-3/4"W x 1-3/4"D (114mm x 70mm x 44mm) CM-400N: 4-1/2"H x 1-3/4"W x 1-3/4"D (114mm x 44mm x 44mm) CM-400W: 4-1/2"H x 4-1/2"W x 1-3/4"D (114mm x 114mm x 44mm) |
Std. Finish: | US32 / C32D |
Specification Sheets:
Manuals:
Reference Guides:
