Camden CM-5085RPTE Pneumatic Time Delay Push to Exit Button with 2-...
Description
Description

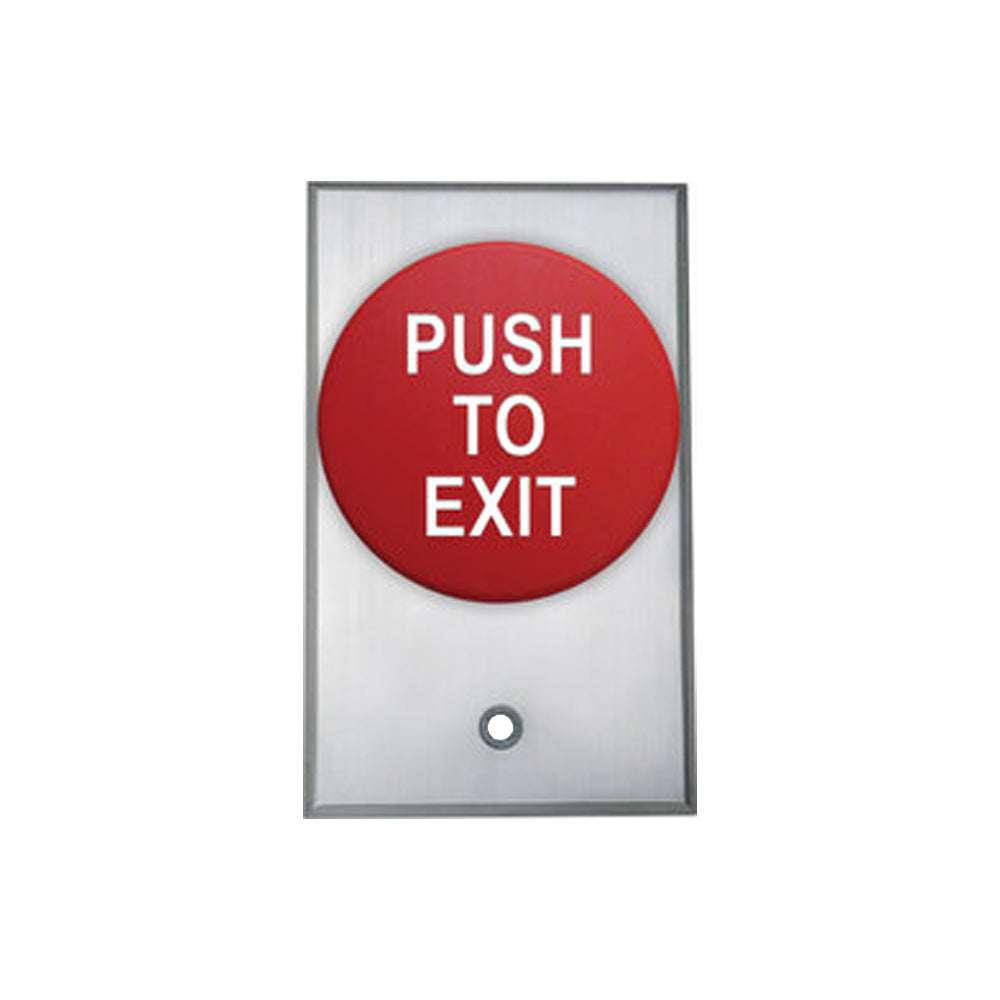

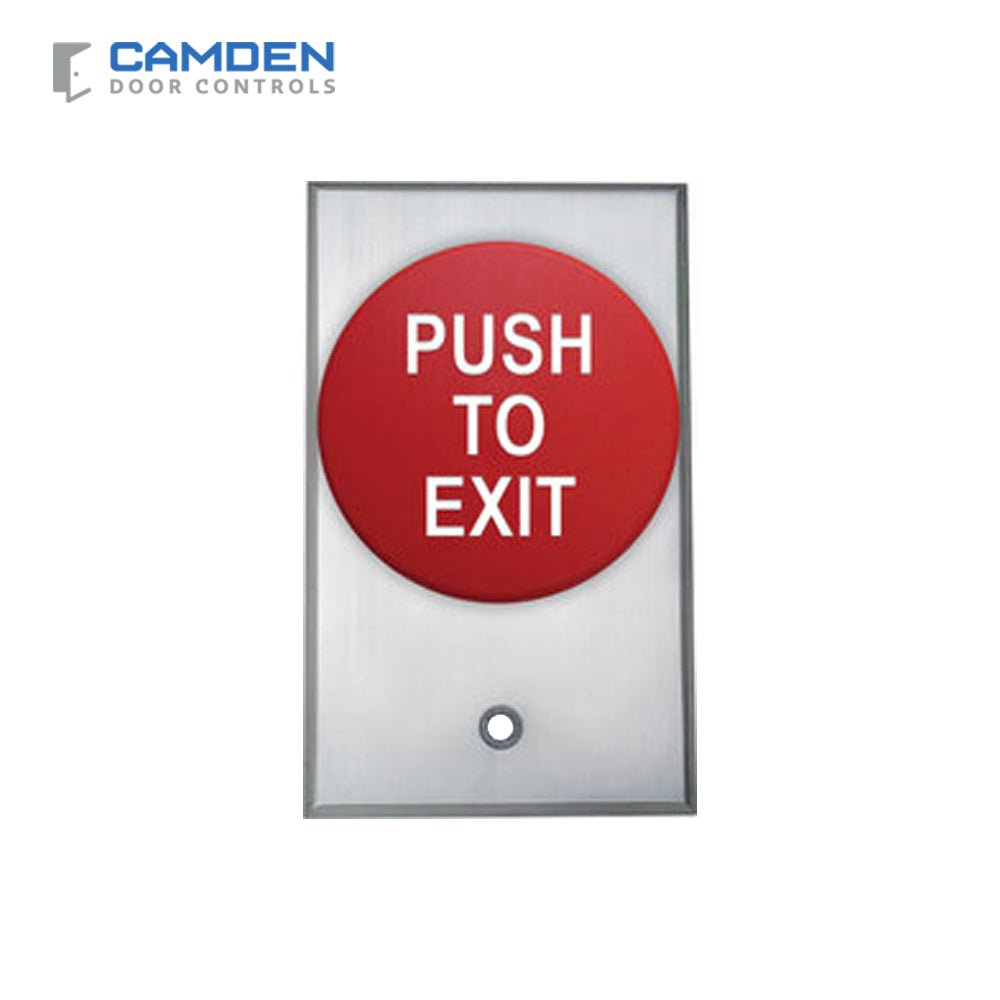

Camden CM-5085RPTE Pneumatic Time Delay Push to Exit Button with 2-3/8" Aluminum Faceplate
CM-5000 Series heavy duty mushroom push buttons are specially designed and manufactured to meet the stringent demands of high traffic exit control applications. Buttons are 2-3/8" (60mm) diameter and available in either green, red or blue. Switches feature 1/4" thick brushed aluminum single gang faceplates. Note: Button engraved graphic options, as shown, are only available on Momentary Switches. Push/Pull and Push/Turn Switches cannot be engraved across the center of the button.
Features:
- Large palm button (red, blue or green)
- Vandal and tamper resistant
- Indoor or outdoor applications
- Large engraved symbols or words
- Spring return, push/pull, or push/turn to release operation
- Available with integrated 1-60 sec pneumatic time delay
- Color coded 18 AWG spade connections
- 3 year warranty with '2 for 1' replacement
Specifications:
| Voltage | 12/24 VDC |
| Contact Type | SPDT and DPST models |
| Switch Type | Momentary / Maintained / Push-Pull / Push-Turn |
| Current Rating | 6 A @ 30 VDC |
| Temp Range | -13°F to 158°F (-25°C to 75°C) |
| Switch Life | 100,000 cycles |
| Dimensions | 4-1/2" x 2-3/4" x 1-3/4" (114mm x 40mm x 44mm) |
| Std. Finish | Brushed Aluminum |
Specification Sheets:
Manuals:
Reference Guides:
