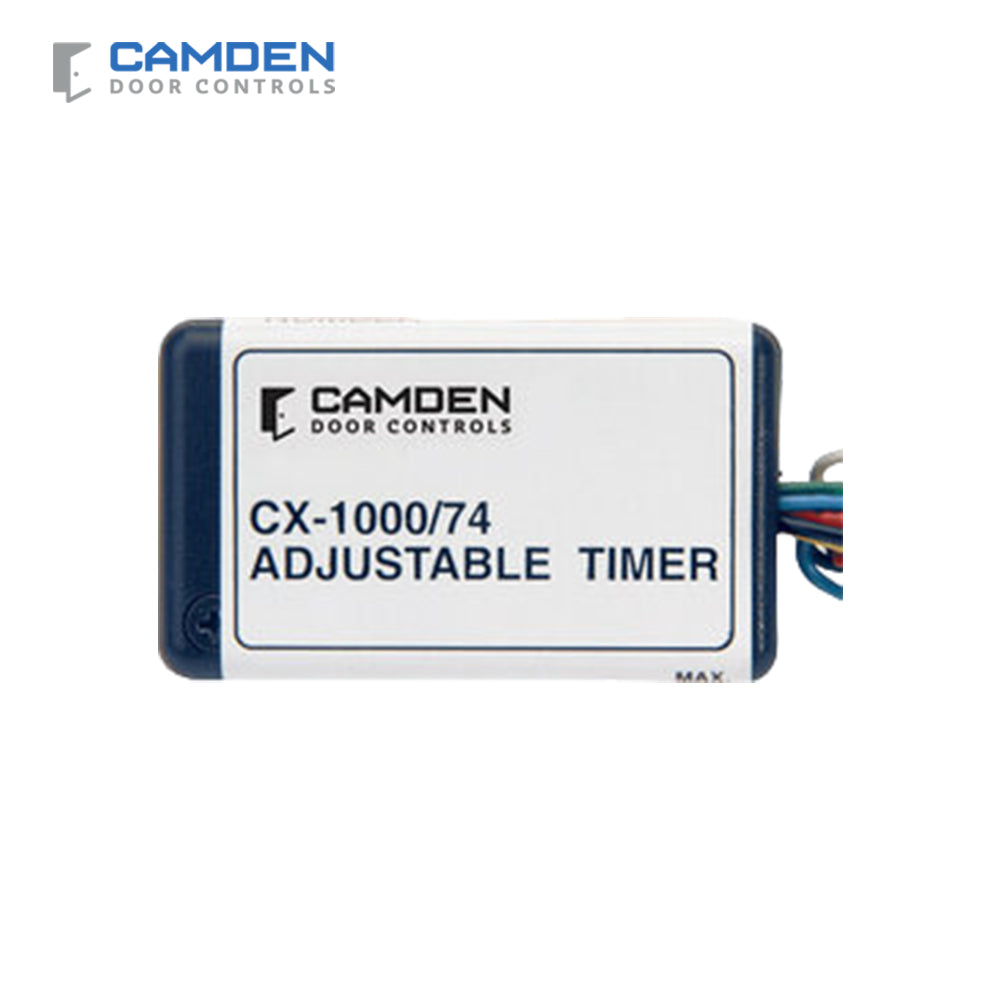

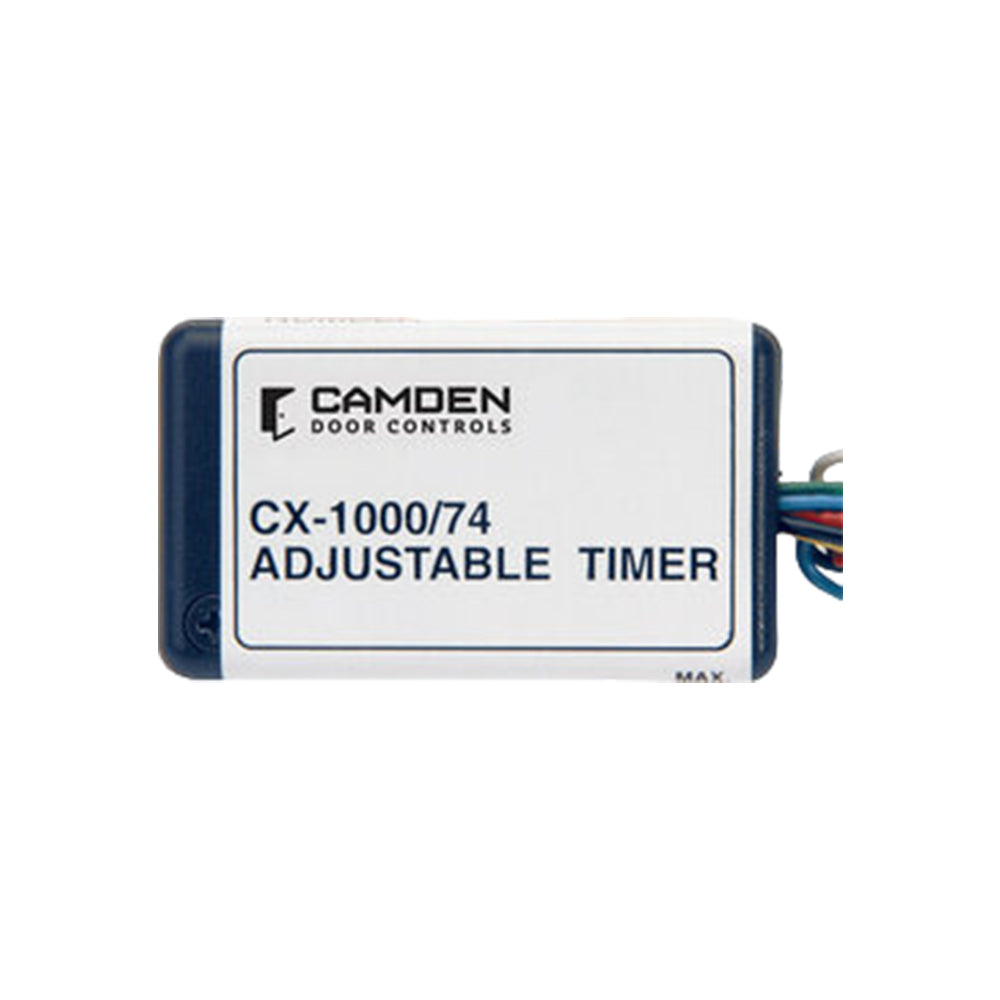

Camden CX-1000/74 MicroMinder Adjustable Time Delay Control - 12/24V AC/DC
Camden's ultra compact and affordable CX-1000/74 is a flexible and easy to operate 'delay on release' timer. The delay time is adjustable from 1 to 30 seconds via a simple potentiometer. Applications: Ideal for control of automatic door operators or de-energizing electrified locks such as strike or magnetic lock. Used where AC and DC operation is required or where an unprotected circuit board timer may be subject to damage.
Features:
- Ultra compact design
- Adjustable delay from 1-30 seconds
- Color-coded leads and plastic case
- 3 year warranty
Specifications:
Voltage: | 12/24V AC/DC |
Current Draw: | 20 mA idle 33 mA operating |
Response Time: | .03 Seconds |
Input: | N/O dry contact |
Output: | Form 'C' (SPDT) |
Contact Rating: | 3 A @ 24 VDC |
Electrical Life: | 100,000 @ Rated Capacity |
Time Delay: | 1 - 30 Seconds |
Mounting: | Double Sided Foam Tape |
Enclosure: | Black Styrene Plastic |
