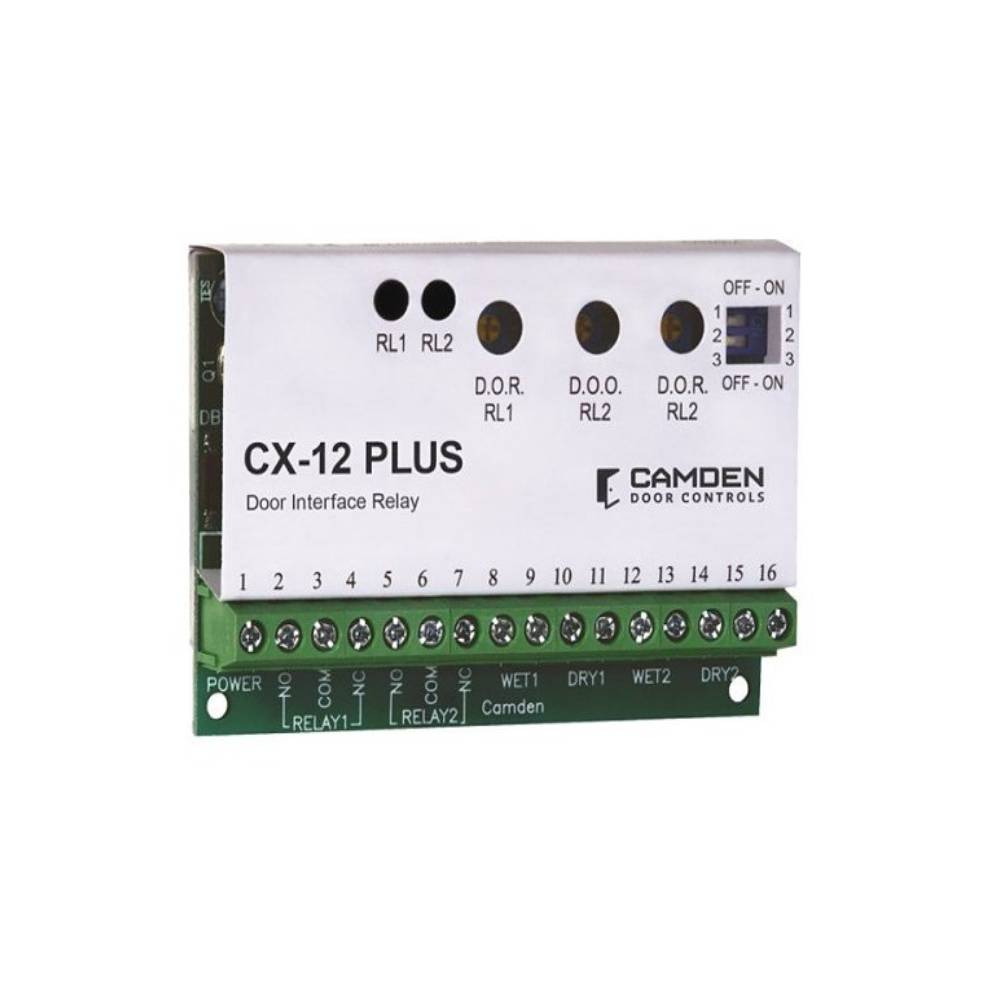

Camden - CX-12PLUS - Door Interface Relay - 12/24 VDC
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
Camden - CX-12PLUS - Door Interface Relay - 12/24 VDC
Description
Description

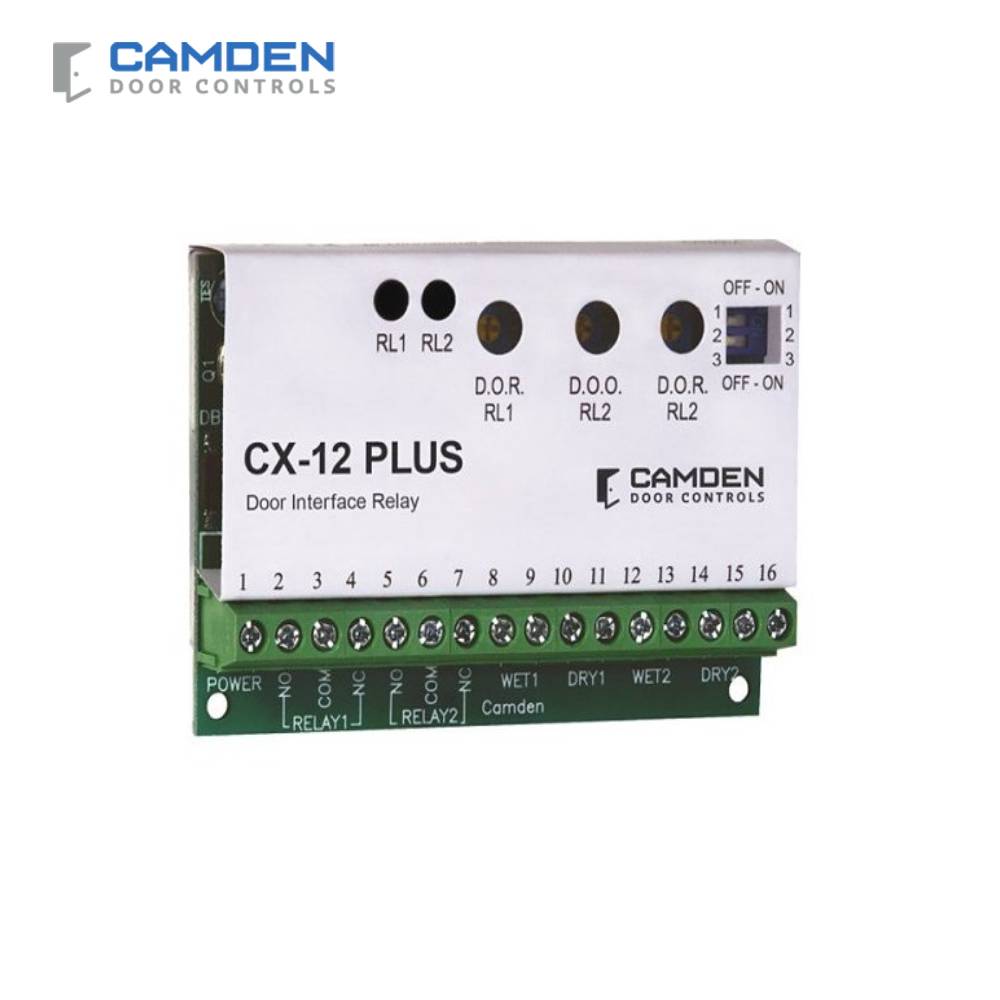

Camden - CX-12PLUS - Door Interface Relay - 12/24 VDC
Camden has combined the industry leading features of our CX-12 Switch Network, including easy system interconnection, and our CX-22 Dual Function Relay, providing bi-directional door sequencing and basic restroom control. CX-12 Plus Door Interface Relay has 8 programming modes with (3) adjustable time delays, each up to 30 seconds. There are (2) Dry and (2) Wet inputs, with (2) SPDT Form 'C' outputs.
Features:
- Designed for easy interconnection of automatic doors with access control, time control, telephone entry and fire alarm systems.
- Bi-directional sequencing of two door operators in vestibule applications.
- New ‘PLUS’ feature supports basic restroom control (locked & unlocked).
- 8 Programming modes with (3) adjustable time delays, each up to 30 seconds.
- (2) Dry, (2) Wet inputs, and (2) SPDT Form ‘C’ outputs.
- Momentary, maintained and latching (ratchet or alternative action) relay operation.
- Compact design fits anywhere.
Specifications:
| Voltage | 12/24V AC/DC |
| Current Draw | 20 mA Idle, 60 mA Operating |
| Response Time | 0.3 Seconds |
| Inputs | 2 Wet, & 2 Dry, N.0. |
| Outputs | 2 x Form C (SPDT) |
| Contact Rating | 3 Amps @ 30V DC |
| Electrical Life | 100,000 @ Rated Capacity |
| Modes | 8 |
| Time Delay D.O.R #1 | 1-30 Seconds |
| Time Delay D.O.O #2 | 1-30 Seconds |
| Time Delay D.O.R #3 | 1-30 Seconds |
| Dimensions | 3-1/4"W x 2-5/16"H x 11/16"D (83mm x 58mm x 18mm) |
Installation Instruction:
