Codelocks A3 Standalone Door Controller with RFID
Description
Description

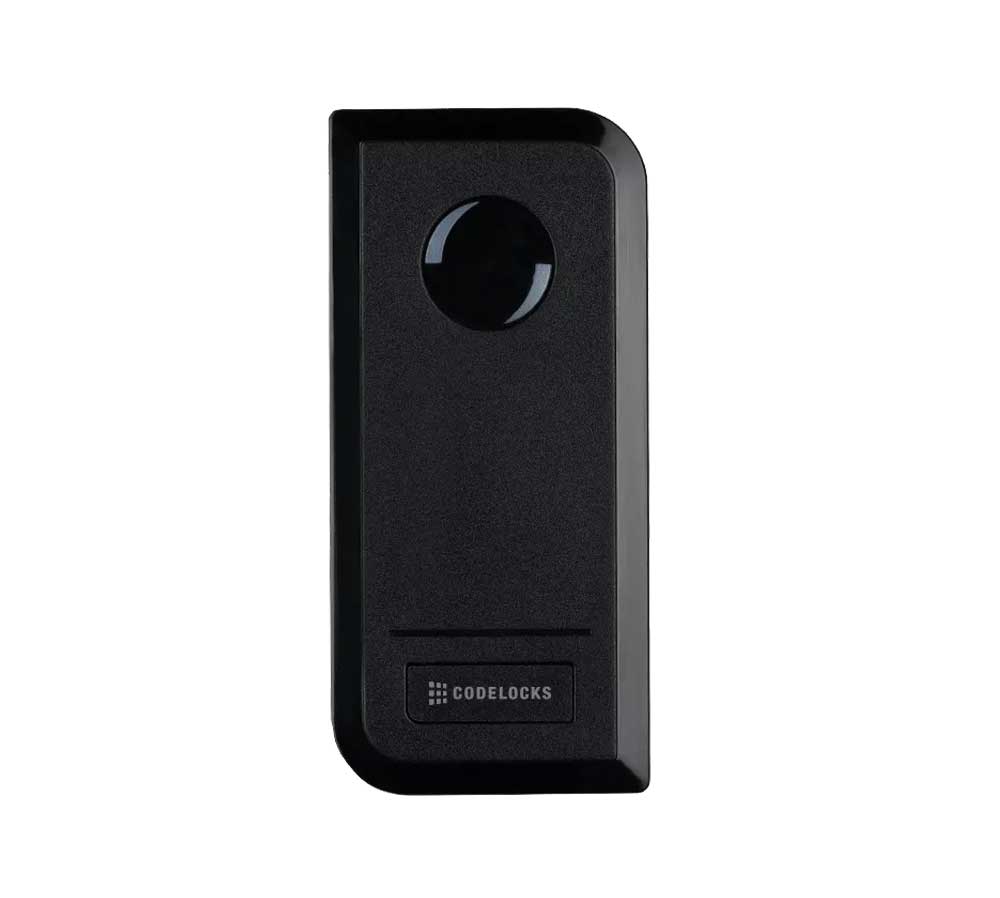

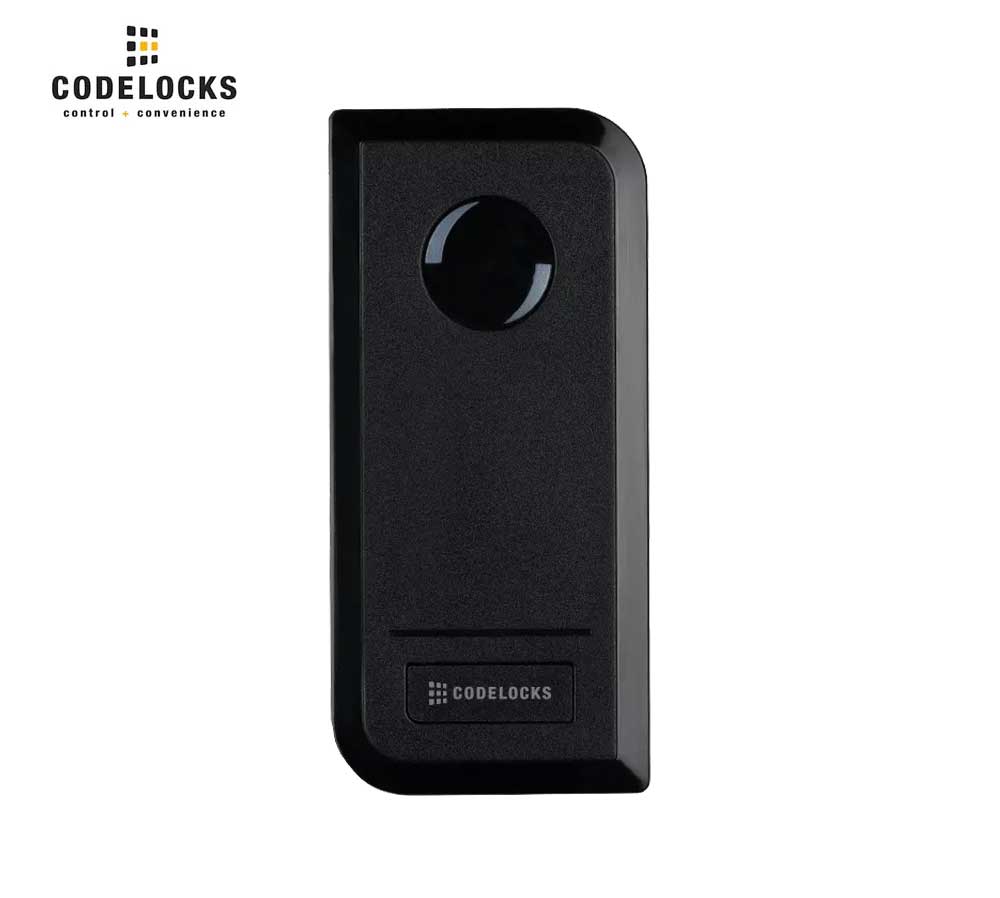

Codelocks A3 Standalone Door Controller with RFID
A3 Door Controllers- from Access by Codelocks. Compact, standalone programmable door controllers with RFID functionality. Featuring three models, each bringing unique qualities to the range, the A3 door controllers provide a compact, affordable proximity access control system allowing flexible entry for up to 1000 users.
The A3 RFID MIFARE® compatible door controller provides a compact, affordable proximity access control system allowing flexible entry for up to 1000 users.
Many smaller business buildings are still secured by traditional lock and key, meaning doors can be left unlocked all day leaving them open to possibilities of unauthorised persons gaining access, as well as keys going missing. The A3 RFID door controller offers you a keyless solution as a standalone product; an affordable access control system that does not require complex software purchases, external programmers or licensing costs.
Features:
- MIFARE® compatible
- Configurable penalty time
- Anti-tamper sensor
- LED status indicators
- Surface mount
- Flush or surface mount options
- Conforms to IP66 rating
Technical Specifications:
| Buttons | 2 x 6 |
| Clients - Smart Cards | Up to 1000 |
| IP Rating | IP66 |
| Keypad | 12 Individual Buttons |
| Finish | Black |
| Material | Mixed Plastic and Alloy |
| Lock Dimensions | 2" x 4 1⁄16" x 5⁄8" |
| Orientation | Vertical |
| Suitable | Internal, External |
| Supported Cards | MIFARE® Classic 13.56MHz 14443-3 Type A, MIFARE® DESFire® 13.56MHz ISO/IEC 14443 A 1-4, MIFARE Ultralite® 13.56MHz ISO/IEC 14443 A 1-3 |
| Voltage | 12-24V DC |
| Idle Current | 20mA |
| Working Current | 80mA |
| Inputs/Outputs | Relay, Push-to-Exit |
| Wiegand | Input/Output: 26-37 Bits PIN Output: 4 Bits, 8 Bits (ASCII), 10 Digits Virtual Number (4 Bits default) |
| Read Range | 60mm (2 3⁄8”) |
| Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 10%RH ~ 98%RH |
| Dimensions | 2" x 4 7⁄8" x 3⁄4" |
| User Types | Card |
Download:
