Codelocks CL250 Mechanical, Light Duty, Grade 2, Stainless Steel, T...
Description
Description

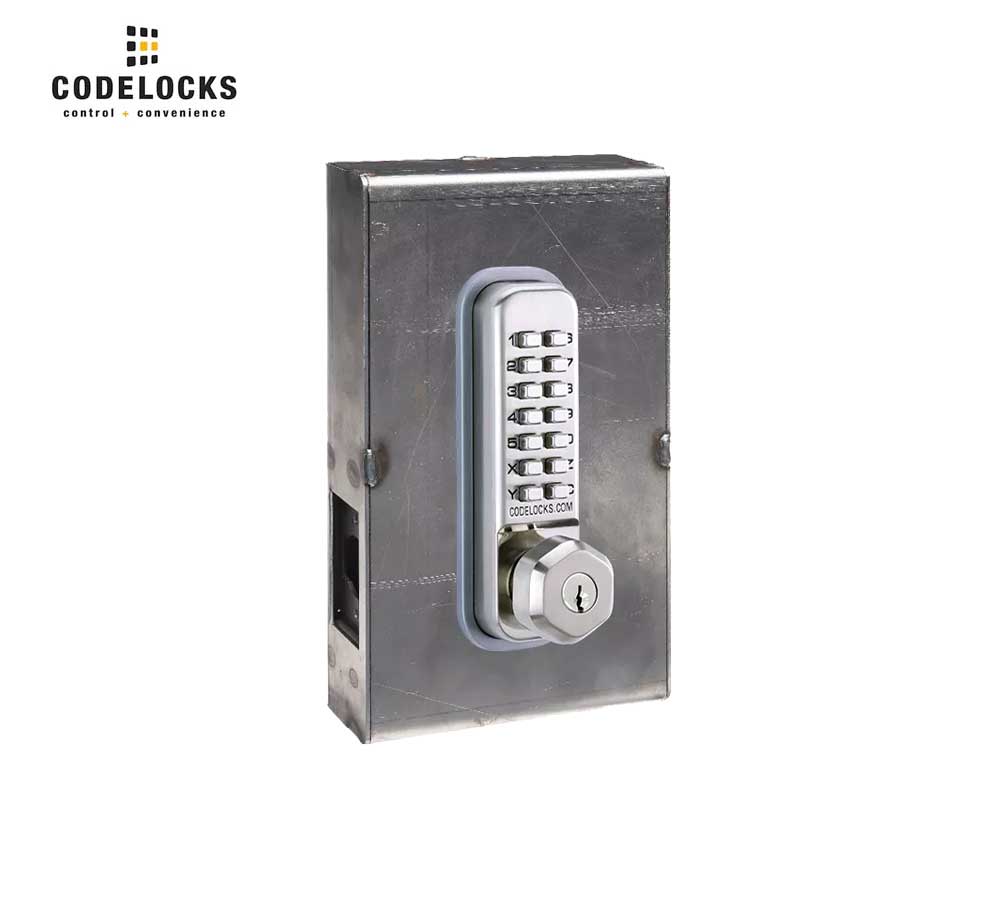

Codelocks CL250 Mechanical, Light Duty, Grade 2, Stainless Steel, Tubular Mortise Latchbolt, Key Override Gate Box Kit
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters/outdoor spaces. Gate Box Panic Hardware Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.
Features:
- Easy, effective gate and fence installation
- Complete kits with all required components
- 14-gauge weldable steel boxes with pre-drilled fixing holes
- Supplied as raw steel, ready to paint
- Adjustable stop bracket

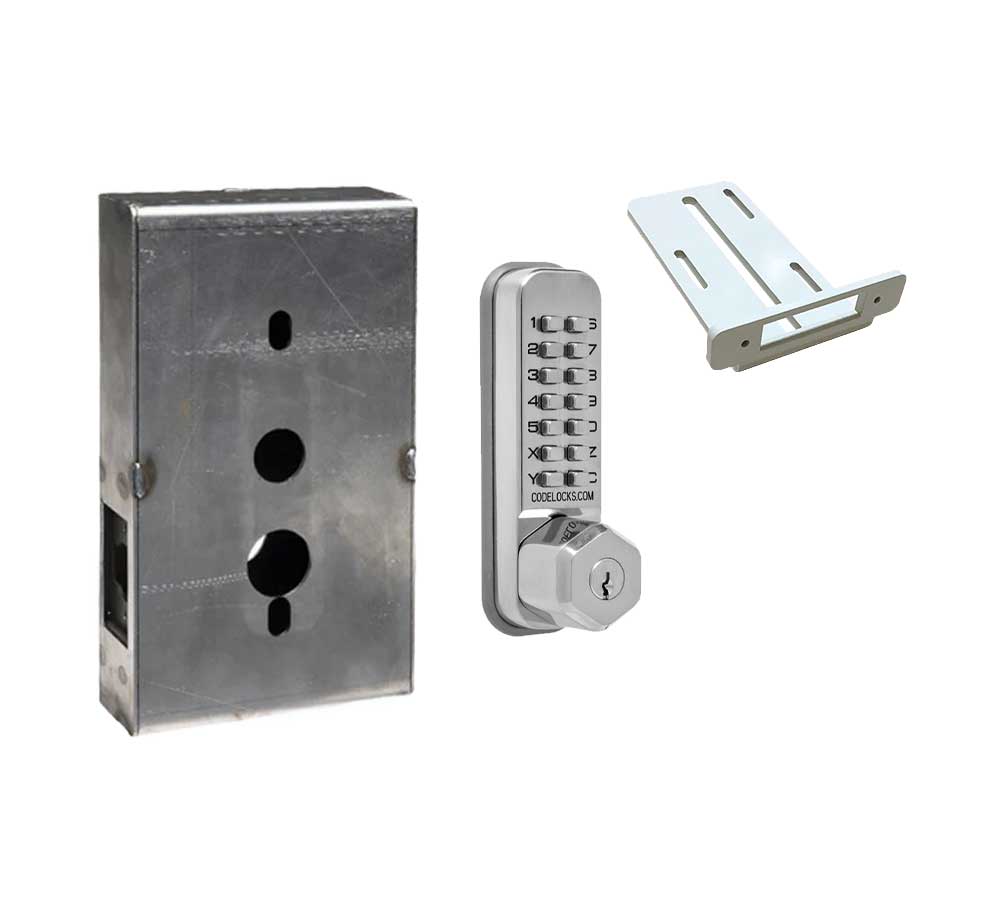

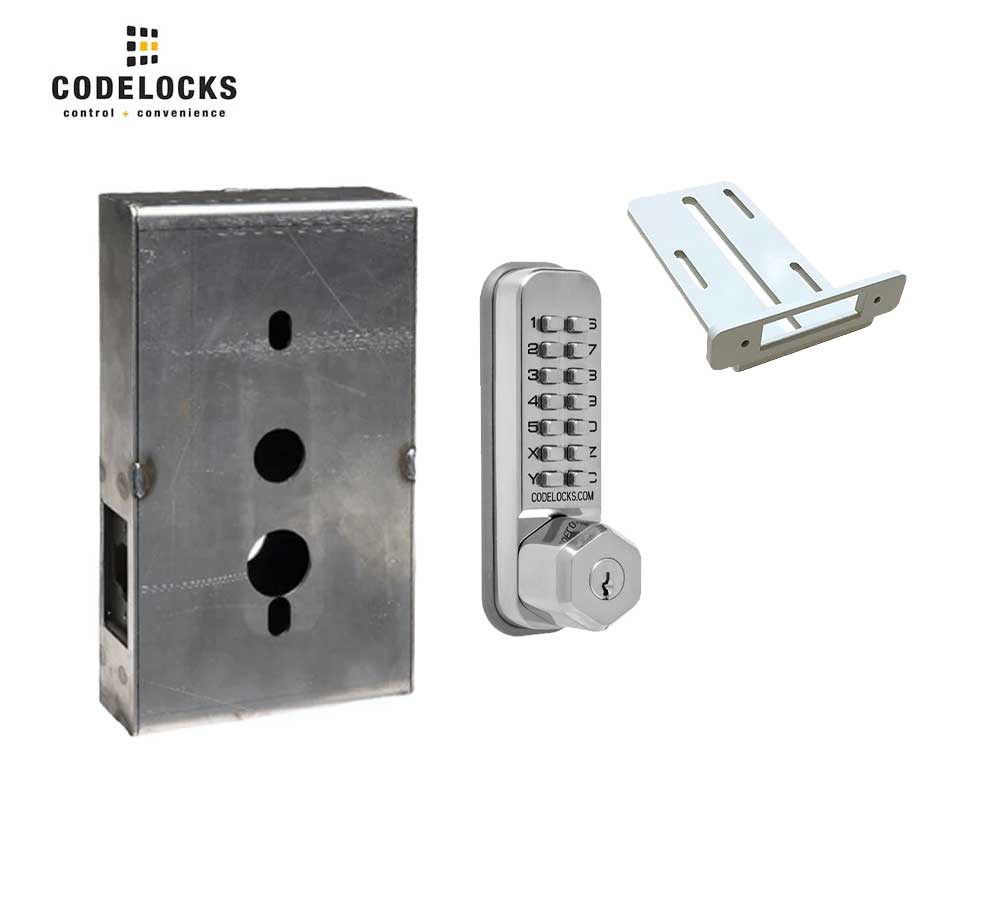

Gate Box Kit Components:
- CL250 Tubular Latch with Key Override
- Codelocks installation, operating/programming instructions, fastening bolts and latch
- 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
- Adjustable stop bracket
About the CL250 Tubular Latch with Key Override Mechanical Codelock:
Light duty mechanical lock with hexagonal knob handles, offering key override, deadbolt and tubular latch options. The CL250 latch is spring loaded and will lock automatically when the door is closed. The latch bolt has a deadlocking plunger feature to prevent unlawful shimming of the latch. It features:
- Allow Locks to be overridden via a key
- Light duty mortise latch with dual backplate
- Hexagonal beveled handle and lock case
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
Technical Specifications:
| Gate Box Dimensions | 9.5” x 5.5” x 1.75” (H x W x D) |
| Gate Box Material | 14-Gauge Steel |
| Buttons | 2 x 7 |
| User Types | Code |
| Code Change Method | Keypad (On Door) |
| Codes | 8,191 Non-Sequential Combinations Available |
| Code Storage | Single Code |
| Door Thickness | 1 3⁄8"- 2 3⁄8" (35mm - 60mm) |
| Finish Color | Stainless Steel |
| Latch Type | Tubular Latchbolt |
| Lock Dimensions | 177mm (7") x 48mm (1 ⅞") |
| Handed | Non-Handed |
| Keypad | 14 Individual Stainless Steel Buttons |
| Lock Material | Zinc Alloy |
| Orientation | Vertical |
| Spindle | Flat Spring Loaded Spindle |
| Suitable For | Internal, External |
| Manufacturer Warranty | Limited Lifetime Warranty |
| Fire Rated | 3-hour UL 10C |
| Certifications | Grade 2 ANSI A156.2 / A156.25, UL/ULC |
Download:
